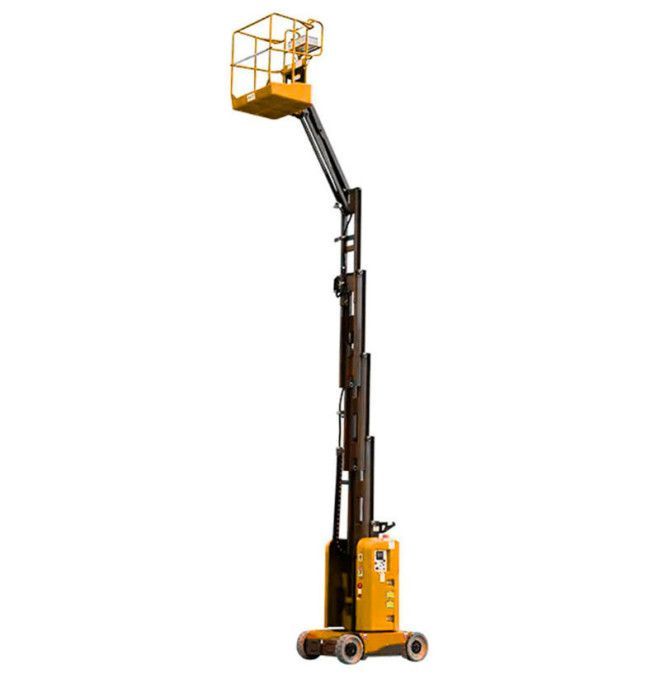

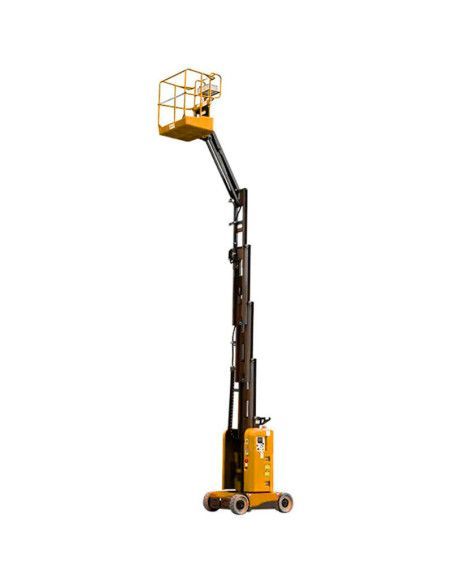

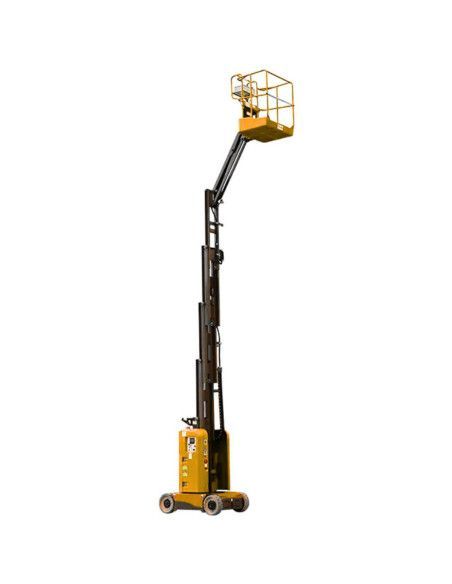

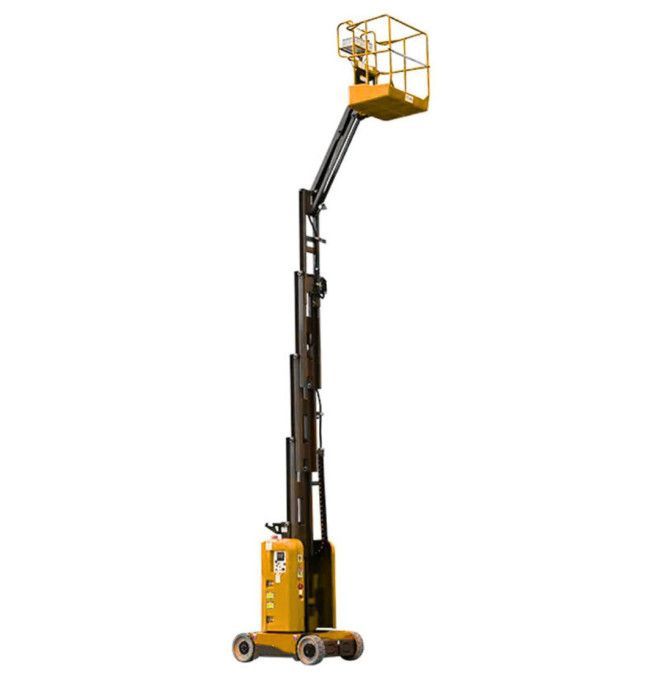

Lifting platform vertical mast with arm 7,9m-200kg

The lifting platform 7.9m vertical mast mobile, with 200kg load capacity, is designed to maximize efficiency and protect the working environment and stands out for:

• Joint arm: exceptional precision to reach high and difficult areas.
• Compact design: perfect for easy manoeuvring in factories, warehouses and shopping environments.
• Tires without marks: protects sensitive surfaces, maintaining the quality of the workspace.
• Intuitive controls: control lever that ensures easy and efficient handling.
• Ecological and emissions free: ideal for indoor operations without compromising the environment.
• Optimized for maneuverability, accessibility and productivity in any industrial environment.
• Direct electrical fitting: reduces the use of hydraulic oil, significantly minimizing possible leaks.
• Advanced proportional transmission: ensures smooth operation and superior maneuverability, allowing to position the machine with precision and ease.

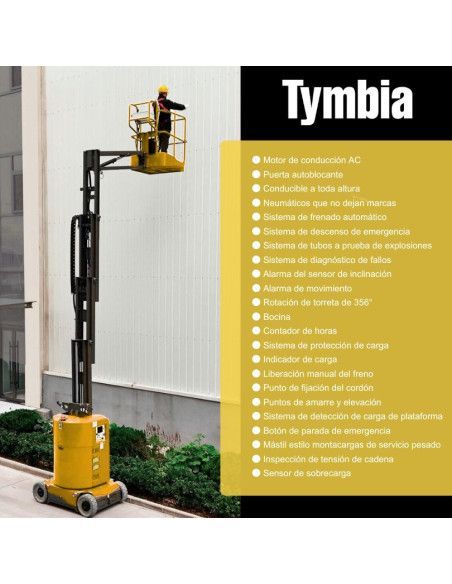

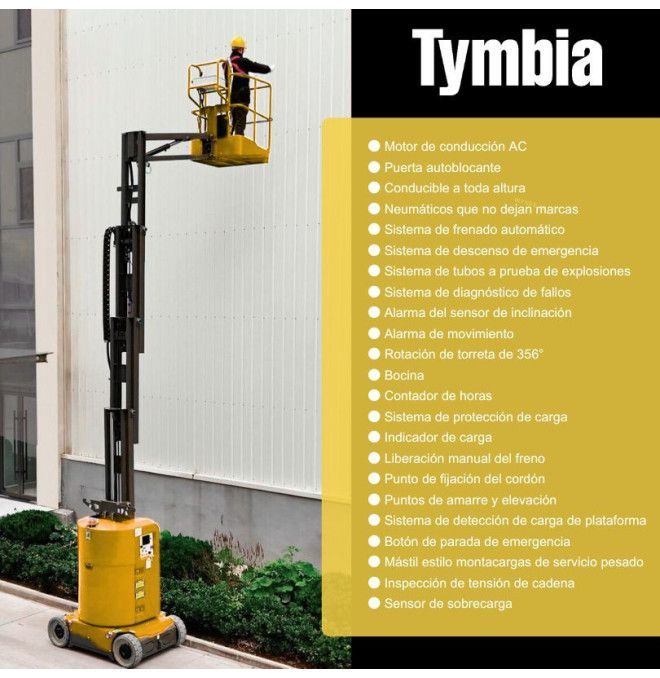

Equipation:

1. CA Driver Engine
2. Autobloc door
3. Conductible at full height
4. Tyres that do not leave marks
5. Automatic braking system
6. Emergency downturn system
7. Explosion-proof pipe system
8. Failure Diagnostic System
9. Inclination sensor alarm
10. Motion alarm
11. Rotation of 356° turret
12. Bocina
13. Hour Counter
14. Load protection system
15. Enablement
16. Indicator cargo
17. Manual release of the brake
18. Lace fixing point
19. Points of bitterness and elevation
20. Platform Charge Detection System
21. Emergency stop button
22. Mast style heavy service loads
23. Chain voltage inspection
24. Overload sensor

Technical specifications:

• Occupations 1
• Charge capacity 200kg
• Max. Working height 9.92 m
• Max. Height of the platform 7.9 m
• Distance from floor 85mm
• Total length 2.78m
• Total width 0.8 m
• Total height 1.98m
• Distance between axles 1,2m
• Dimension of the platform 0,80m 0,93m
• 15V/0.9kw driving motor
• 24V/3Kw Lift Engine
• Battery 24V/220Ah
• Weight 2850 kg
