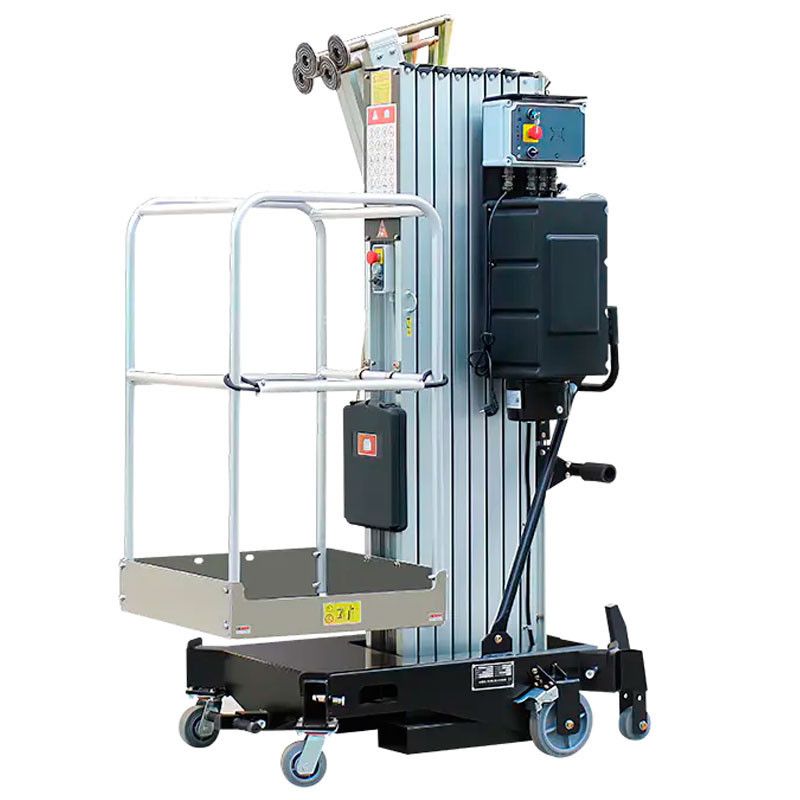

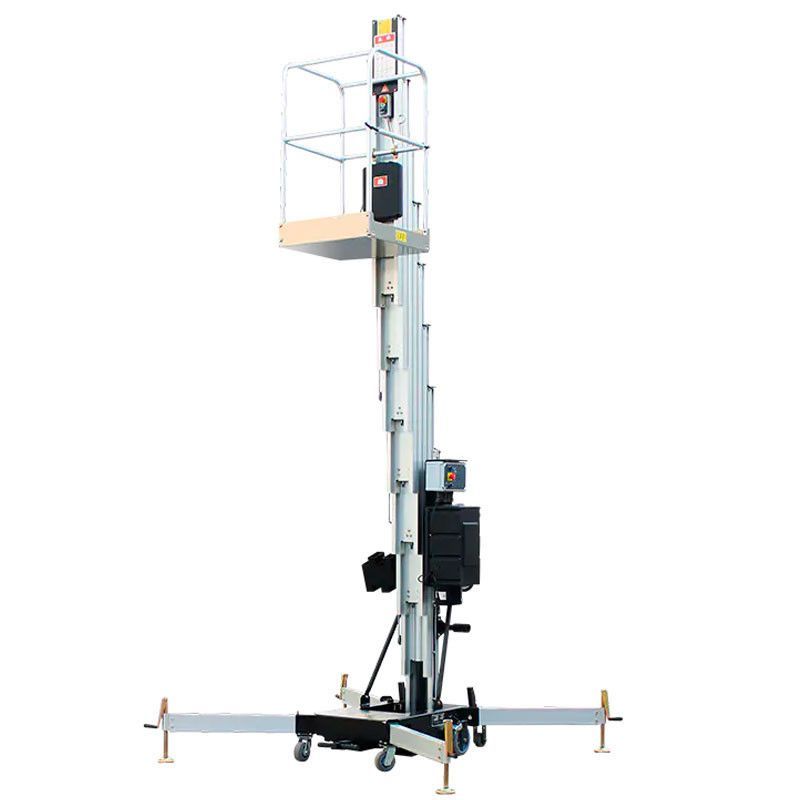

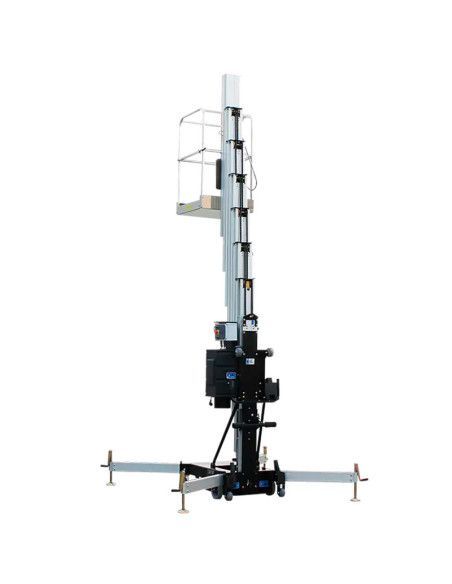

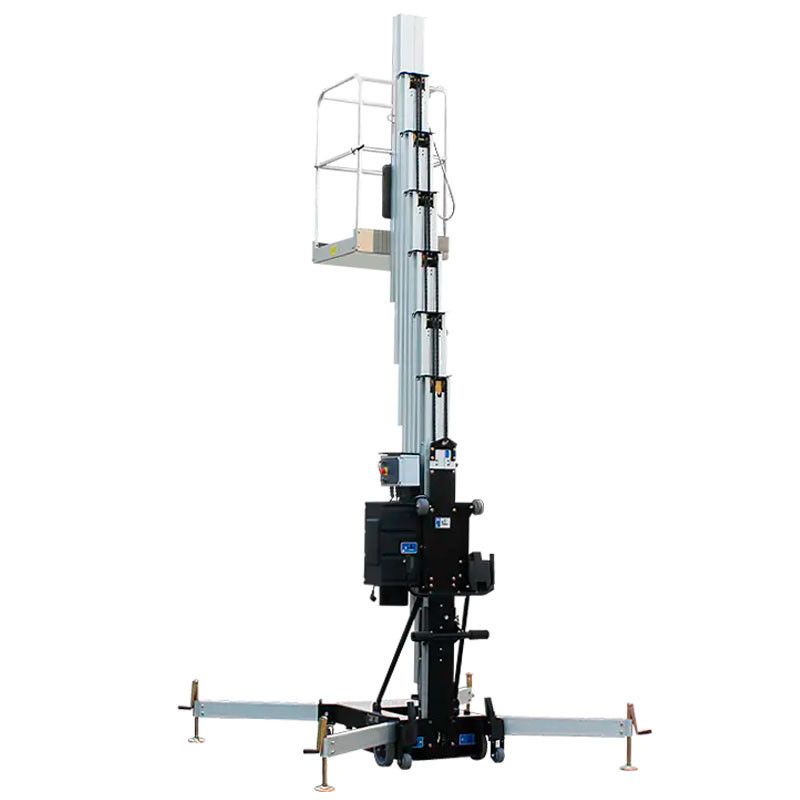

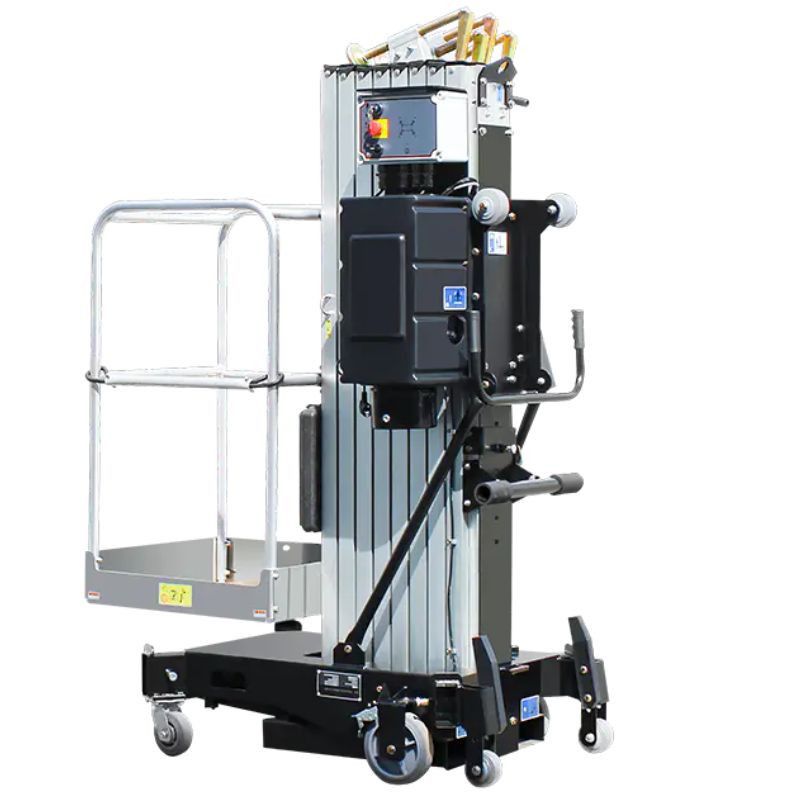

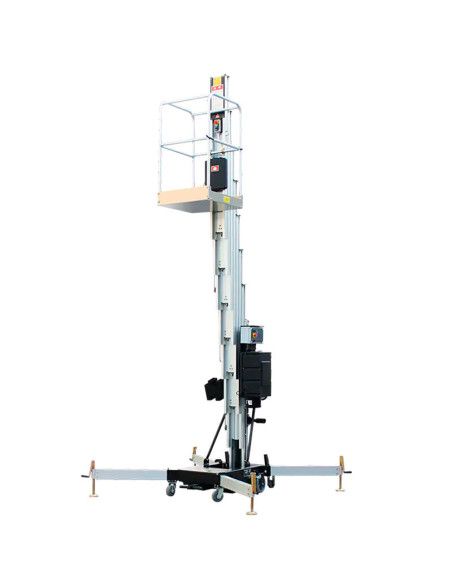

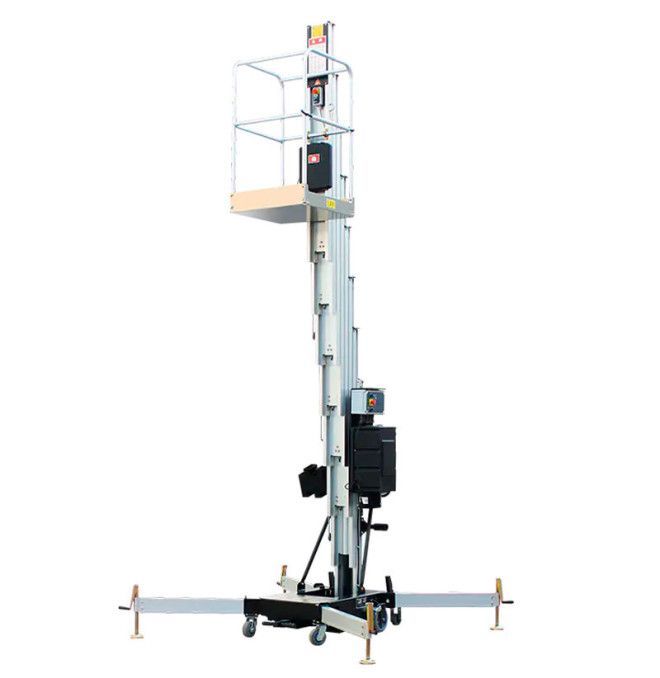

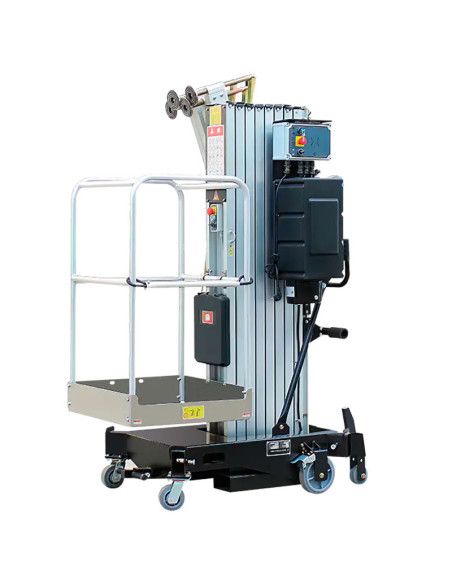

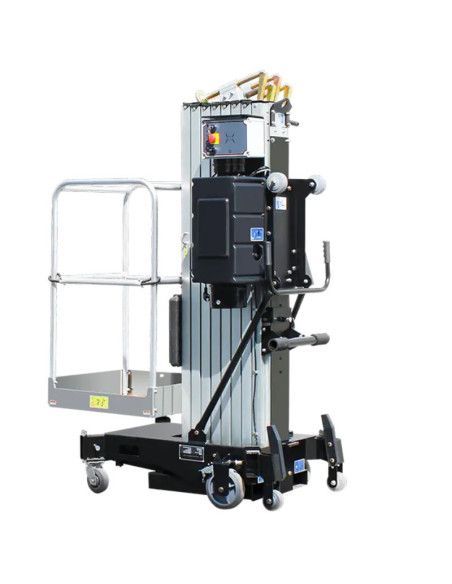

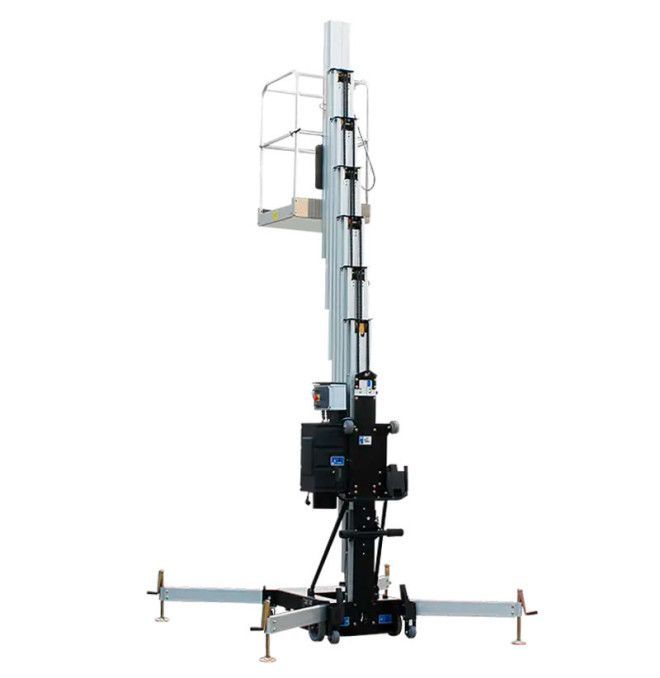

Lifting platform vertical mast 12.4m-136kg (battery)

The lifting Platforms mobile, are AWP solutions (Aerial Workforms) designed to be used by a single person.

By being compact, they offer an efficient solution for high-rise tasks safely and accurately. Its versatile design and compact size allow you to transport equipment and materials to the workplace effortlessly.

These mobile Work Platforms, are ideal for various applications such as:

• Windows replacement
• Installation of beams
• Fronton paint
• Specific and personalized projects

Technical specifications

• max. Working height 12.4 m
• max. Height of the platform 10.4 m
• Carrying capacity 136kg
• Occupants                 1

Dimensions

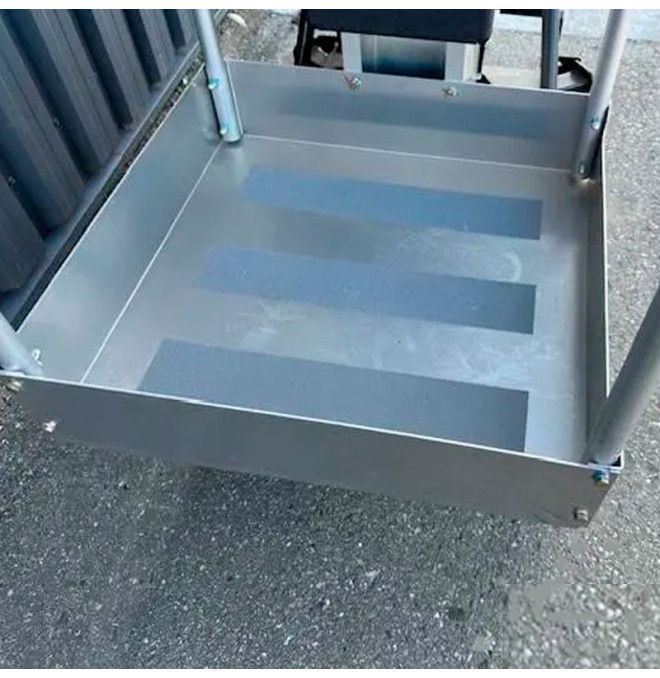

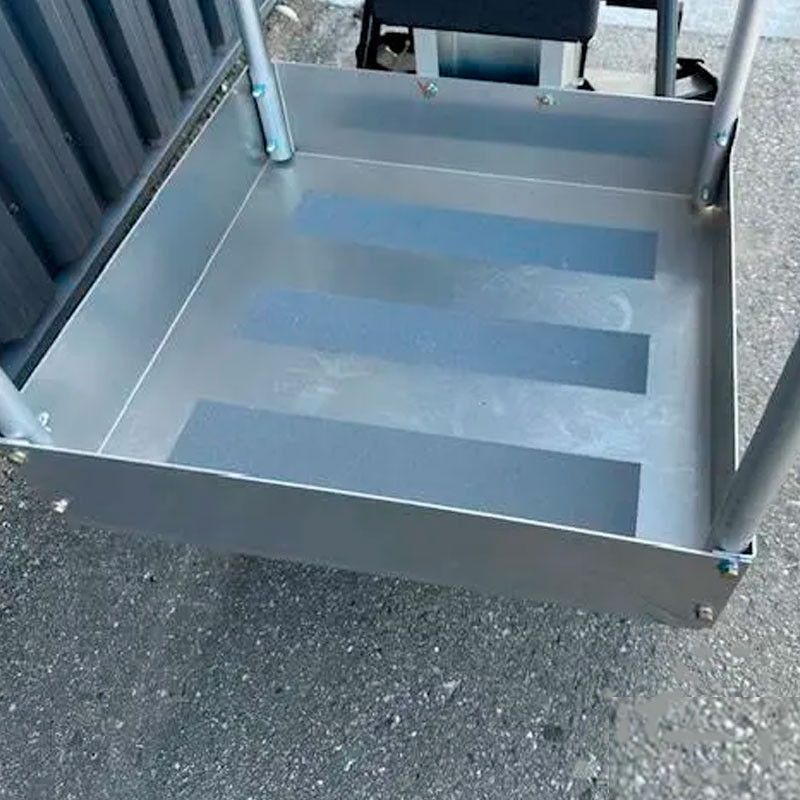

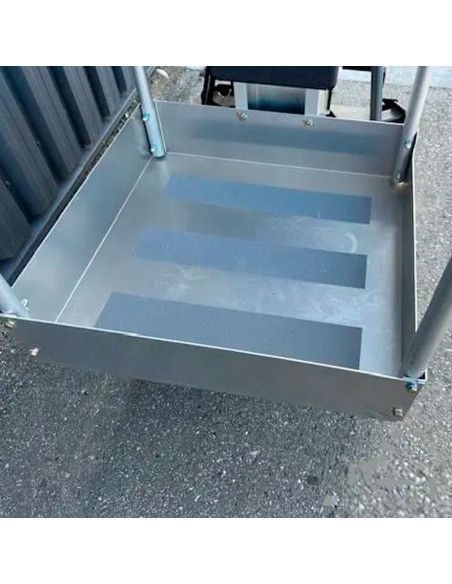

• Dimension of the platform 0,67 mx 0,66 m
• Total height          1.99 m
• Average width                  0.76 m
• Total length          1,42 m
• Coverage of stabilizers 1,9 mx 1,8 m

Weight

• AC option (with cable) 420kg
• continuous current 445kg

Power

• AC voltage 380V/220V/110V
• Engine power AC 0.75KW
• Battery voltage 12V
• Engine power (battery) 1.3KW
• Battery charge 12V/15A

Why choose the Tymbia GTWY1-10 platform?

Because they are equipped with technological innovations that maximize security and functionality:

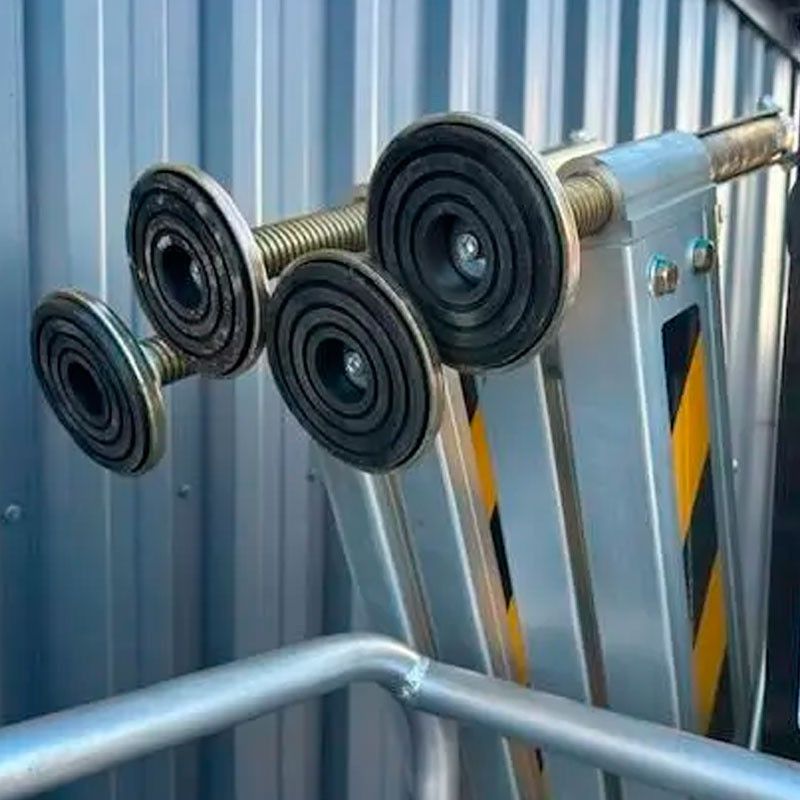

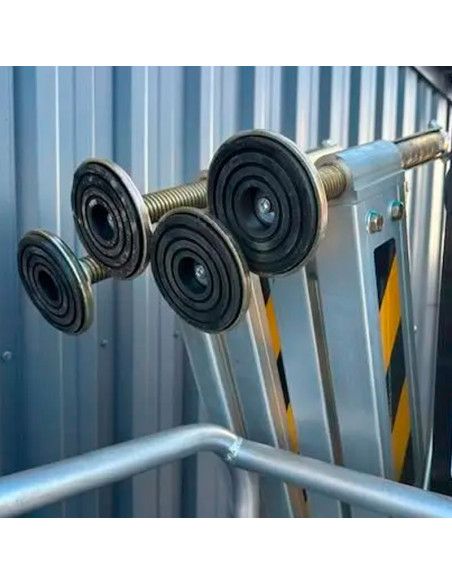

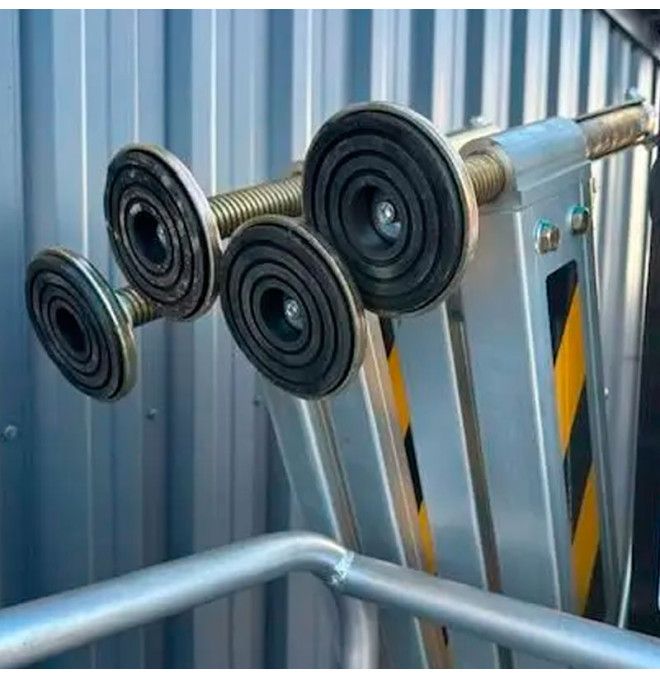

Interlocking stabilizers: guarantees stability during operation.

AC power supply on the platform: allows the use of tools electrics directly from the platform.

Emergency stop button: facilitates a quick response in case of dangers.

Easy to load in truck: transportable and practical for projects in different locations.

Emergency downturn system: provides a safe option in case of failures.

Leveling Bubble: allows the operator to make sure the platform is properly leveled.

Mounting pocket: simplifies the movement and transport of the elevator.

Vcylinder clamping valve: increases the durability and performance of the hydraulic system.
