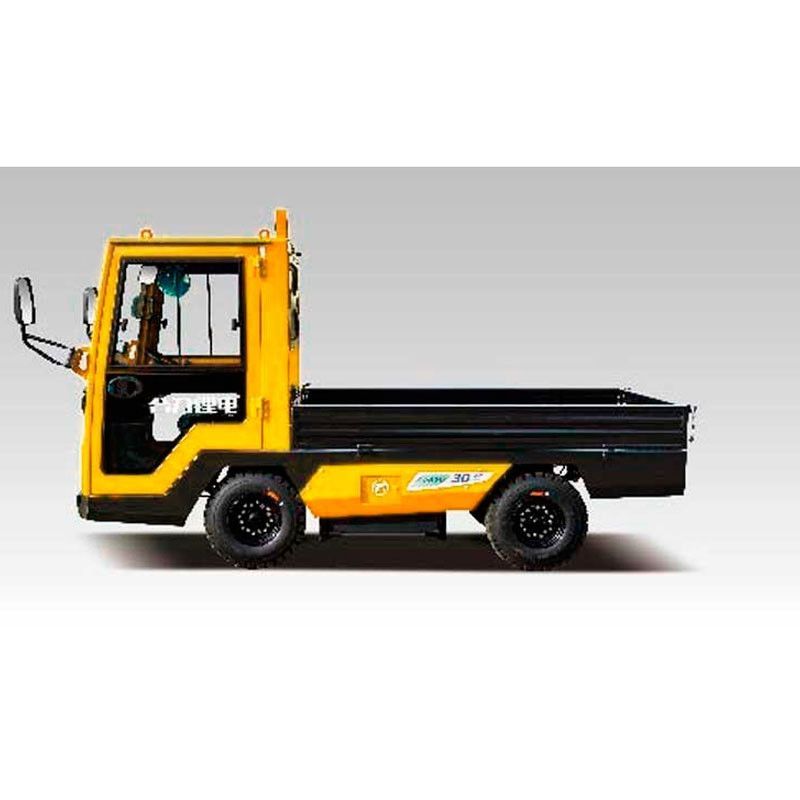

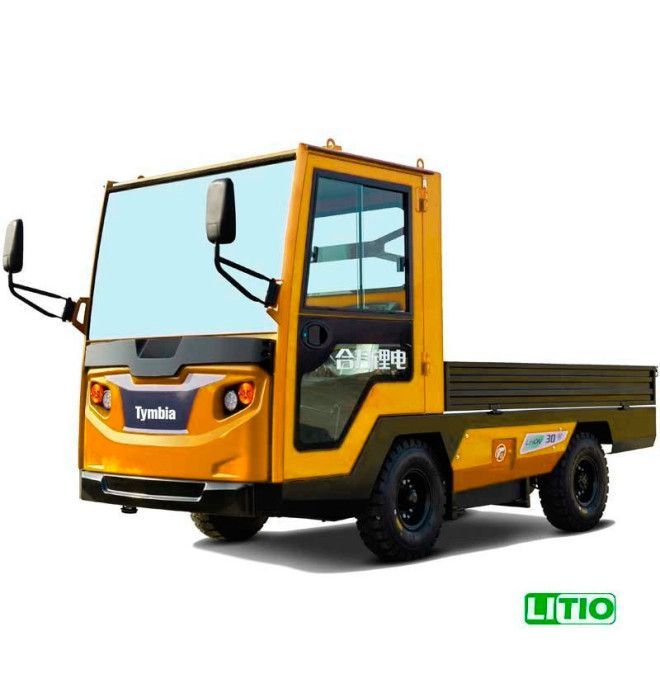

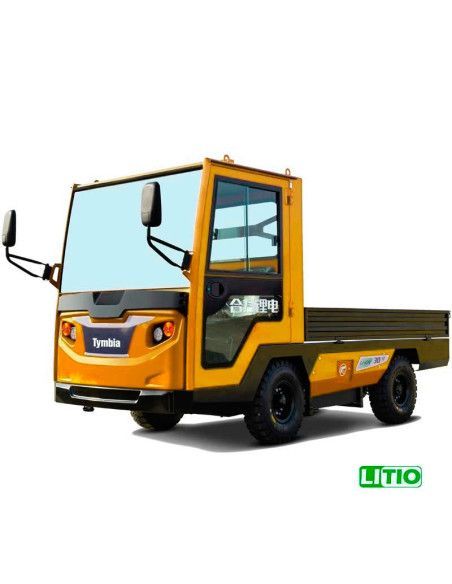

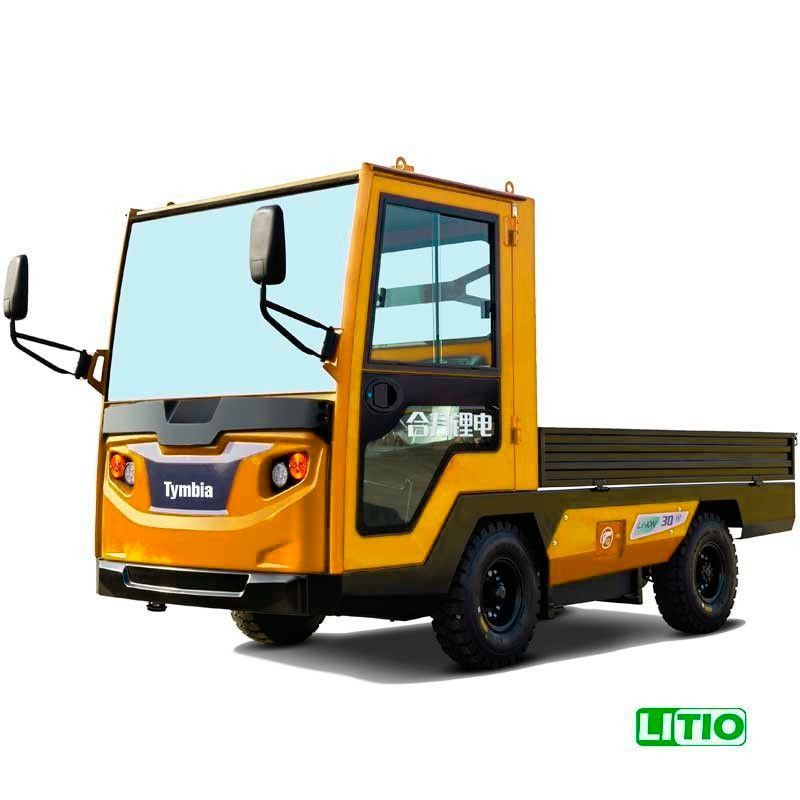

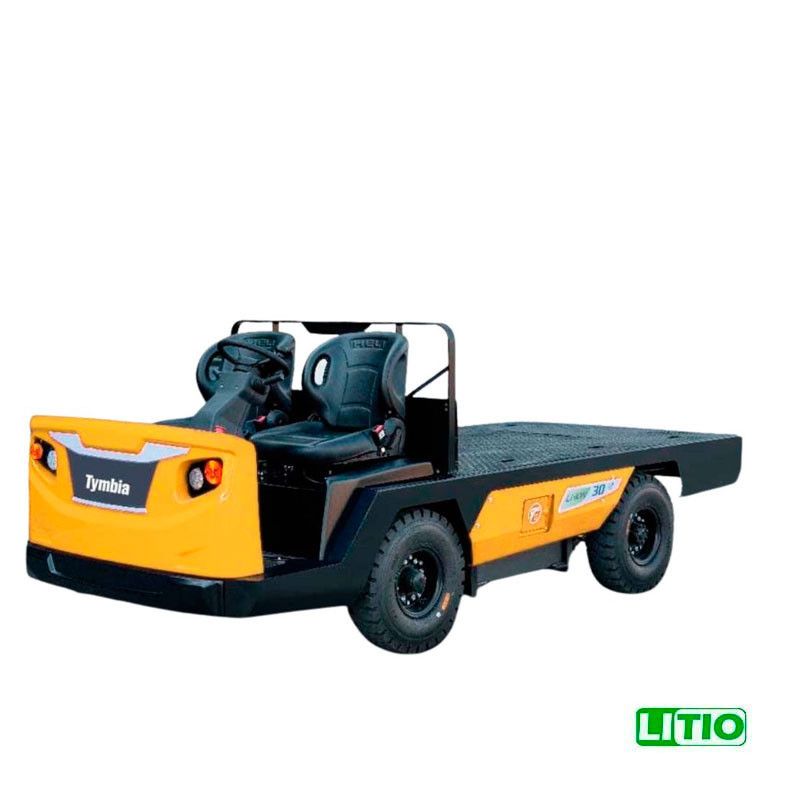

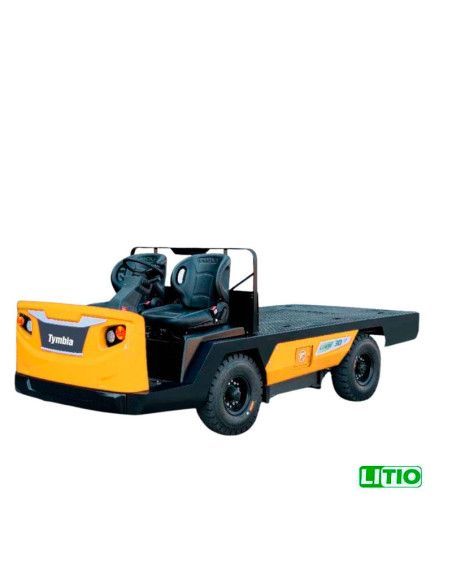

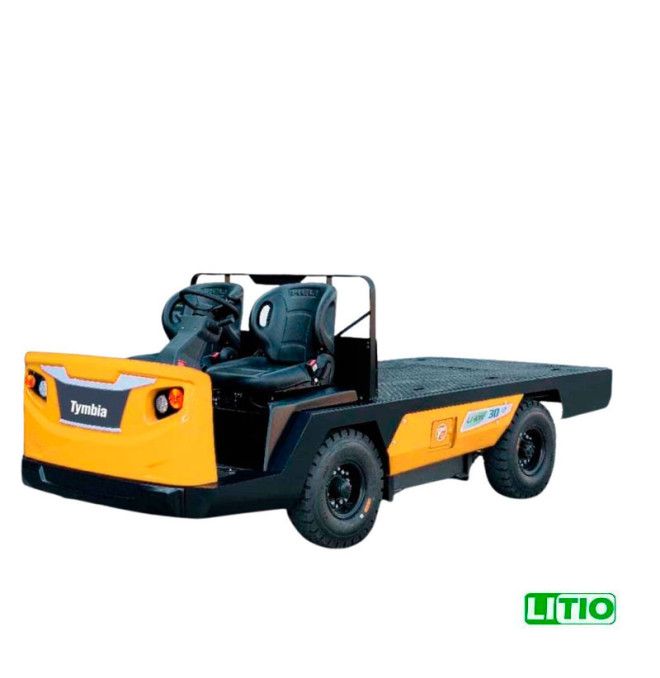

Tractor Drag with Platform 2000kg Lithium Battery 48V / 202AH

Tymbia platform electric tractor Tymbia G2 Series 2-10 tons - 100% electric industrial power

Tymbia G2 Series platform drag tractor is an industrial vehicle designed for the efficient movement of heavy loads in facilities such as factories, distribution centers, steel plants, ports and logistics terminals.

With a load capacity ranging from 2 to 10 tons, this model combines advanced electrical technology, extreme durability and low operating cost, being a sustainable and cost-effective alternative against traditional diesel vehicles.

Thanks to its lithium battery, this conveyor eliminates direct emissions, significantly reduces noise and does not require conventional batteries (without water, without acid). It is perfect for environments where decarbonization, energy efficiency and continuous operation are sought.

Main features:

• Available capacities: from 2 to 10 tons
• High efficiency lithium battery:
  • Technology lifepo₄ (iron and lithium phosphate) with long life and high thermal stability
• Capacity Options:
  • 48V / 202Ah for 2Ton tractors up to 80V / 228Ah for 10TN tractors
  • Fast loading system: full load in just 2 hours
  • Sufficient autonomy to cover full work days (6-8 hours)

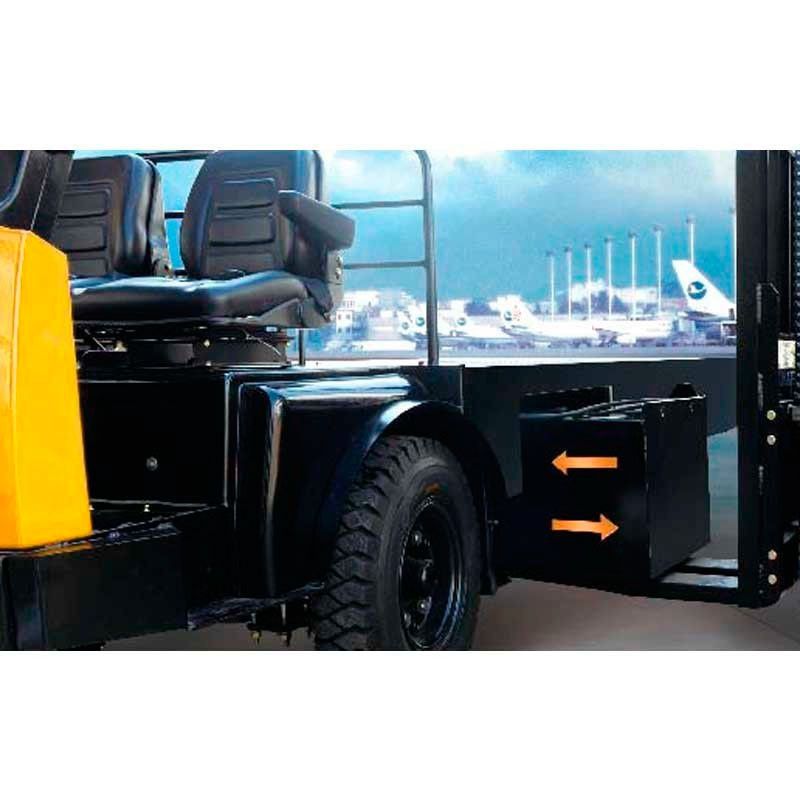

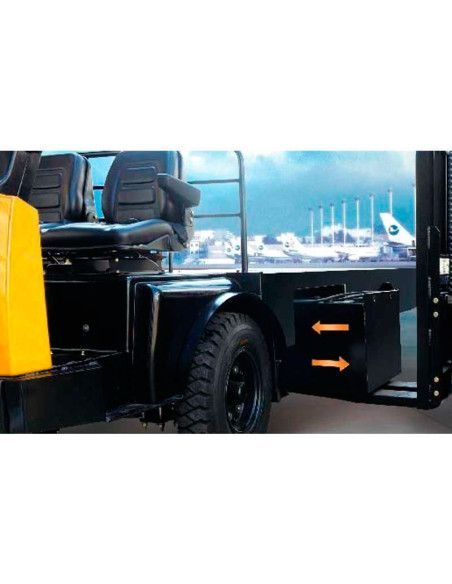

  • Removable side battery design (SIDE-PULL) for easy replacement without tools
• Electric motorization:
  • 4 kW traction motor to 11 kW according to model
  • 1.35 kW address engine at 10 kW
  • Intelligent control using LCD panel diagnosed by failures
• Hydraulic-electric braking system:
  • Fast and accurate response
  • Greater safety in earrings and high traffic areas
• Wide and customizable loading platform:
  • Standard dimensions: up to 3100 × 1600 mm
  • Platform height: ~ 550-850 mm
  • Compatible with safety railings and load anchors
• Ergonomic and safe design:
  • Suspended seat to reduce vibrations
  • Adjustable steering wheel in height and angle
  • Intuitive mechanical control lever
  • Rearview mirrors, LED lights and rotating warning light

Available settings

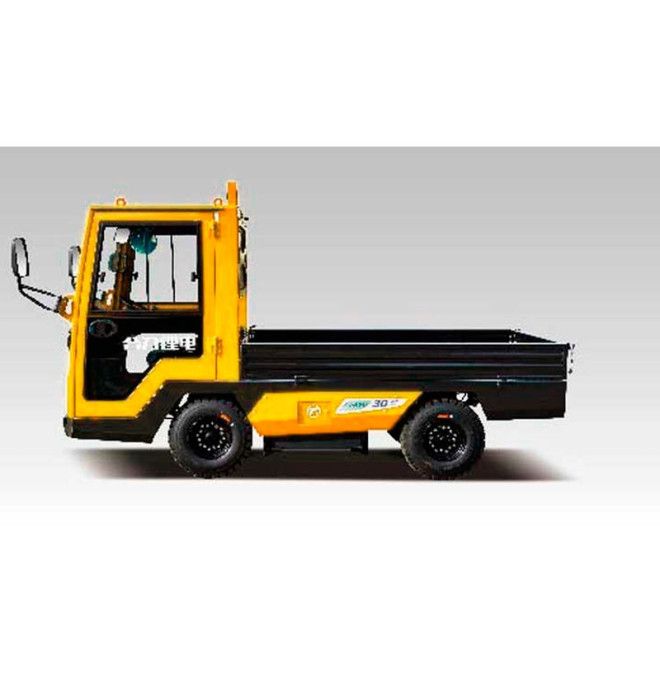

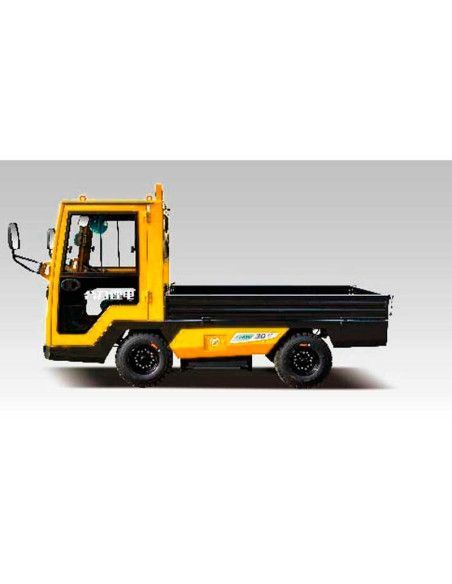

• Closed cabin
• Protection against rain, sun and dust; Ideal for outdoor use all year
• Identification System (FICS)
• Start by magnetic card or personal code
• Intelligent Fleet Management
• Geolocation, use reports and remote diagnostics
• Additional LED lights
• Better visibility in dark areas
• Custom color
• Choice of the client's choice
• Solid tires
• For use on abrasive surfaces or at risk of punctures

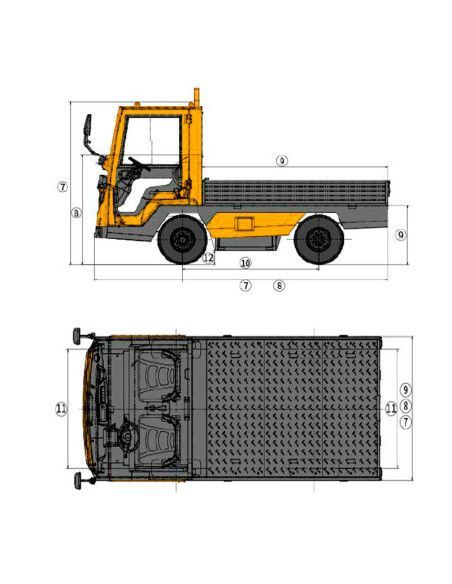

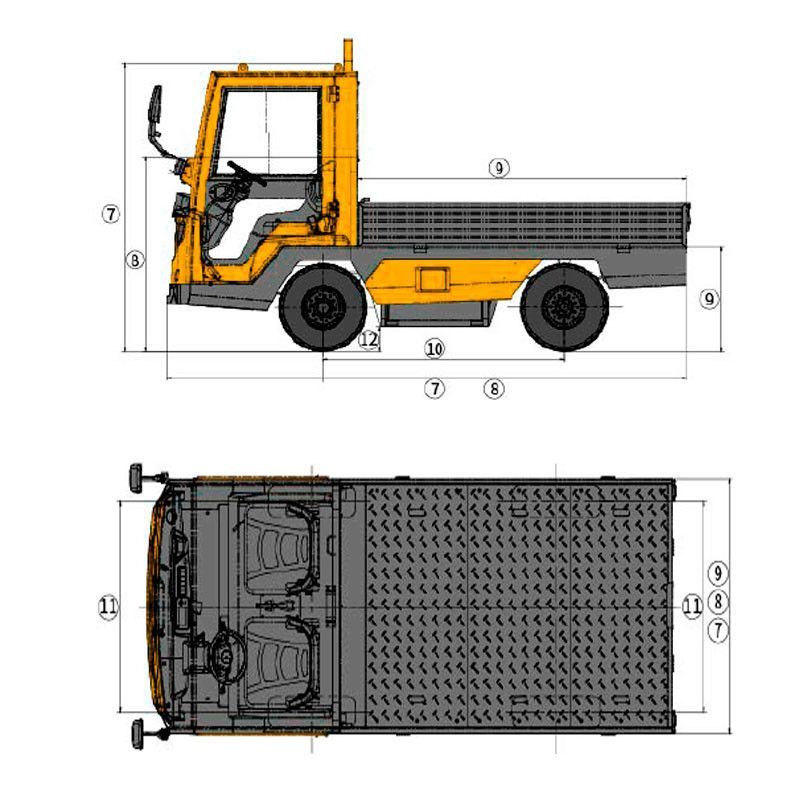

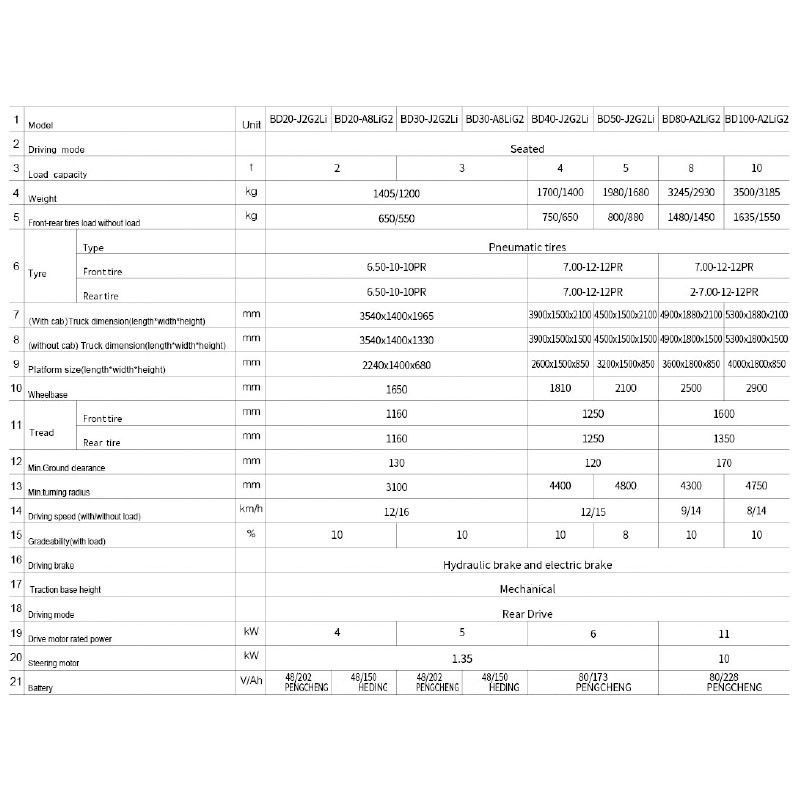

Specifications Key Techniques (Model BD20J2G2LI)

• Nominal capacity 2,000 kg
• Weight: 1405/1200 kg

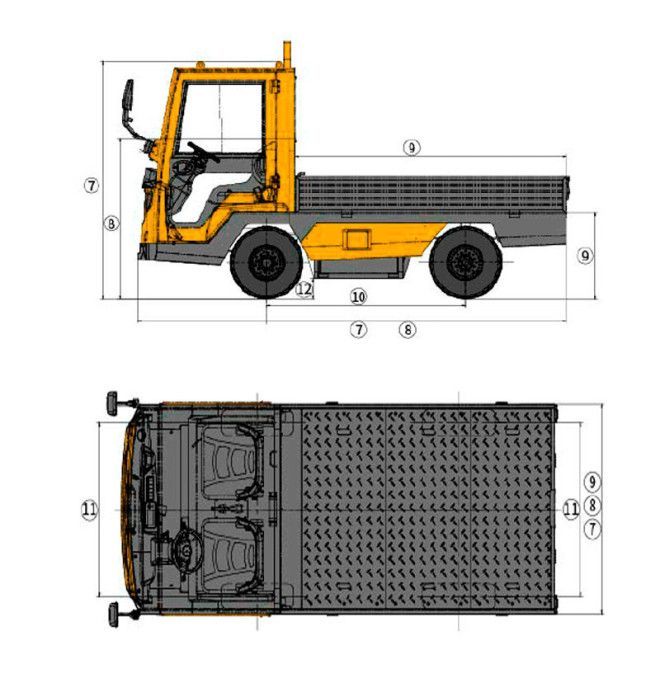

• Dimensions with cabin: 3540x1400x1995 mm
• Dimensions without cabin: 3540x1400x1330 mm
• Dimension platform: 2240x1400x680 mm
• Maximum speed (with load / without load): 12/16 km / h
• Overlavable pending: 10%
• Minimum rotation radius 3,100 mm
• Type of tires (6.50-10-10pr)
• Standard battery 48V / 202Ah
• Degree of protection (electronics) IP65

Competitive advantages

• Zero emissions and silent operation - ideal for interiors and urban areas
• Fast load in 2 hours - Allows continuous use in multiple shifts
• No battery maintenance - Water and acid-free lithium technology
• High durability - reinforced chassis and resistant components to extreme conditions
• Simplified maintenance - Easy access to motor, battery and electrical system
• Versatility - Adaptable to different types of loading and environments

Ideal applications

• Internal transport in factories (pieces, molds, raw materials)
• Logistics ports and terminals (containers, pallets, rolls)
• Steel and metallurgical plants (scrap, coils, profiles)
• Recycling centers (Handling of heavy materials)
• Airports and Hangares (track on track)

Why choose the G2 Series tractor G2?

• Leading brand industrial Equipment with proven technology
• Modular design that allows personalization according to needs
• Global technical support and parts available around the world
• Sustainable solution that reduces carbon footprint and operating costs

Contact us today to obtain a budget or technical advice.

Available with multiple capacity configurations, battery and accessories.

Ideal for companies that seek efficiency, security and sustainability in their logistics operations.

Tymbia - industrial and sustainable industrial solutions

Cabine option: 19,500 € + VAT
