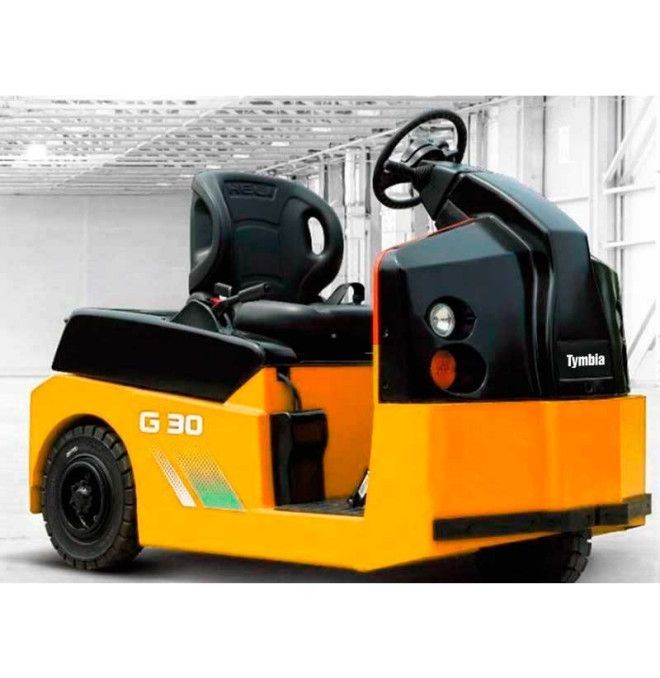

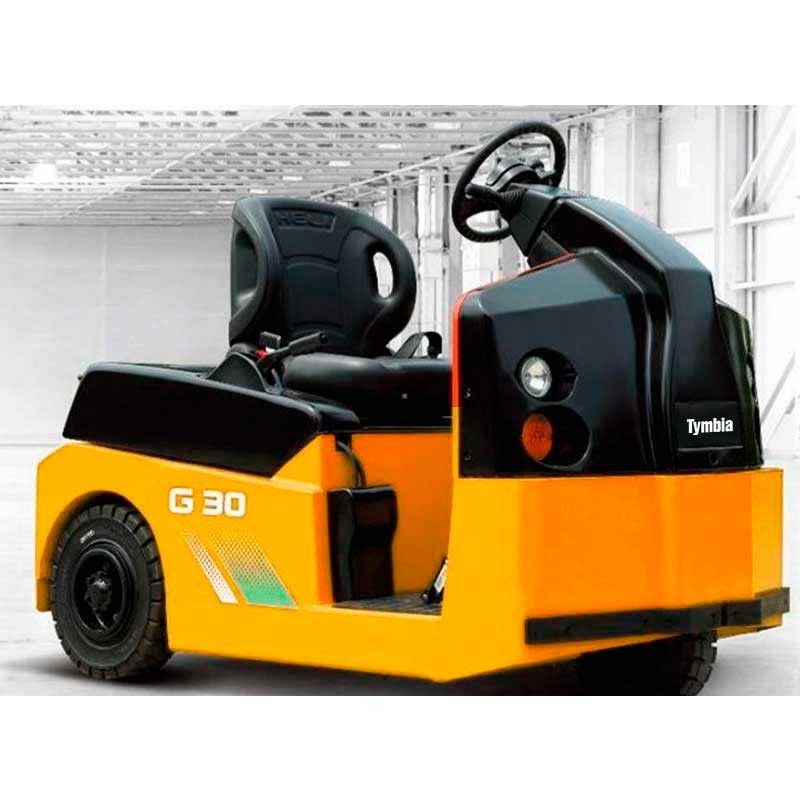

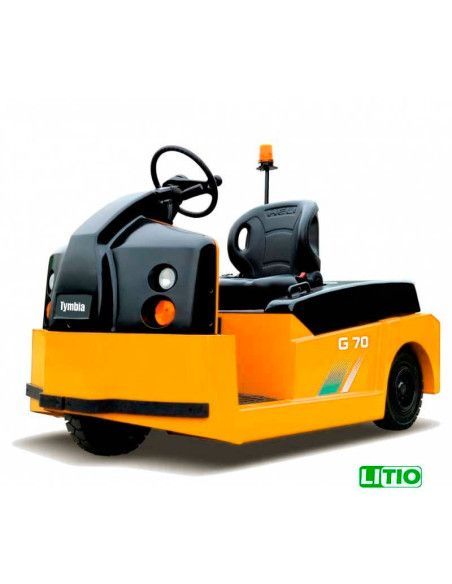

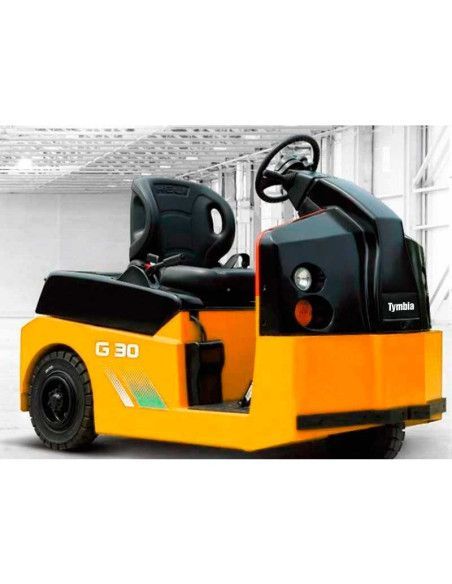

Tractor Tow Tractors 2000kg LITIO battery
Fully electric drag vehicle to drag up to 2,000kg load, now with lithium battery.

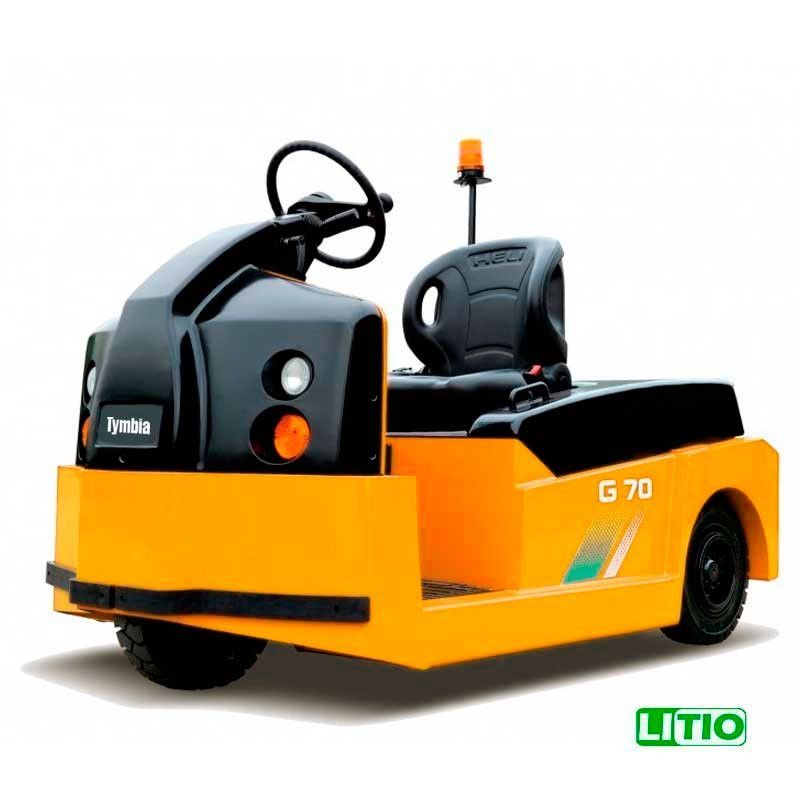

The tractor with lithium battery from 2 to 7 tons of the G2 series. The vehicle has orn functional design and excellent manoeuvre capacity.
This model adopts a seat structure design with low pedals, taking into account the comfort of going up and down from the vehicle and driving comfort, reducing the intensity of the workforce and improving production efficiency.
It is suitable for operations trailer of goods in the manufacture of cars, postal services, medicine, tobacco and other fields.
1. To know the European market and the development of national users at medium to high levels;
2. The superior ergonomic design allows the driver to operate all buttons and pedals comfortably, which helps relieve driving fatigue;
3. Low Pedal, large operating space, easy to climb and descend;
4. Adopts a CA management and drive control system, high efficiency and low energy consumption;
5. Models of 2 to 5 tons use mechanical direction and models of 6 to 7 tons use electronic direction, which is light and reliable;
6. The convenient optional traction mechanism improves the operating efficiency of the user;

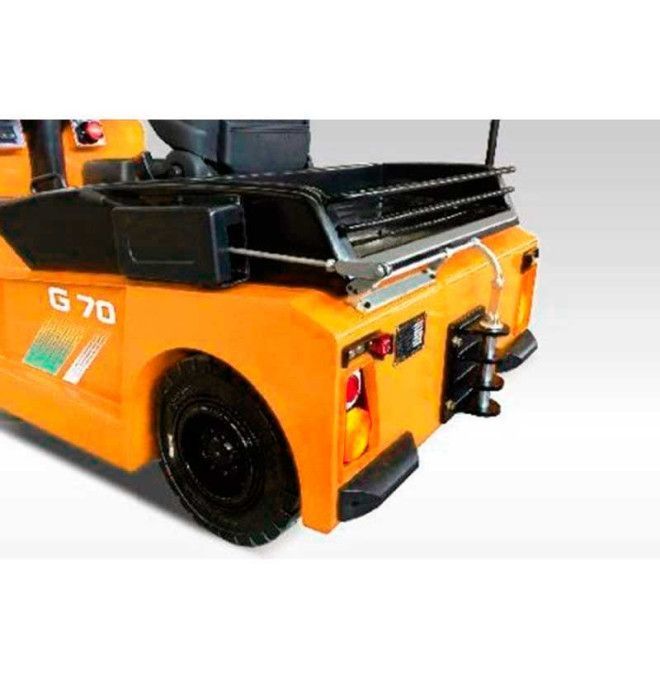

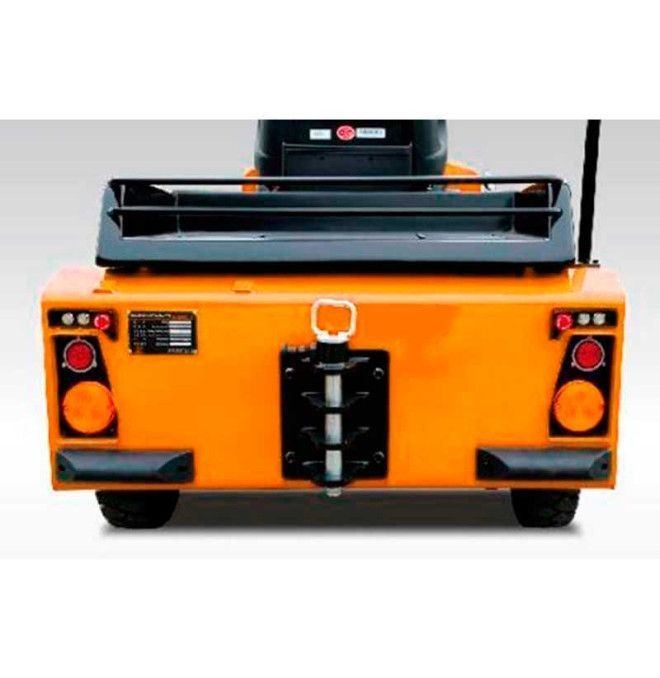

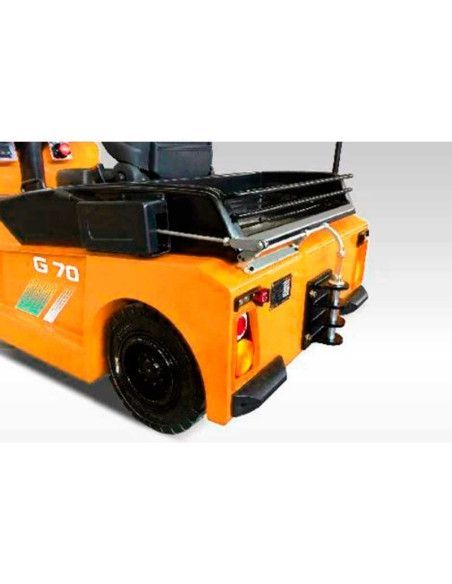

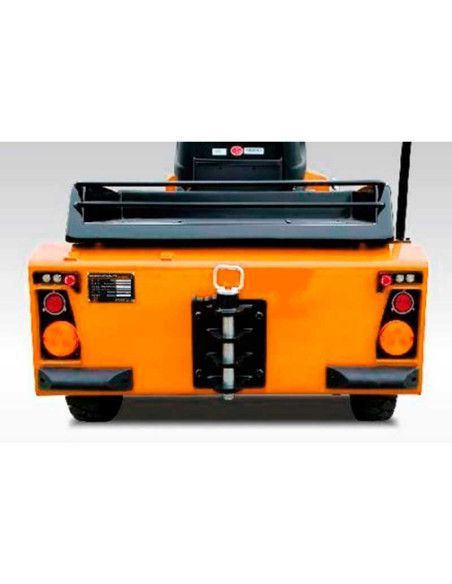

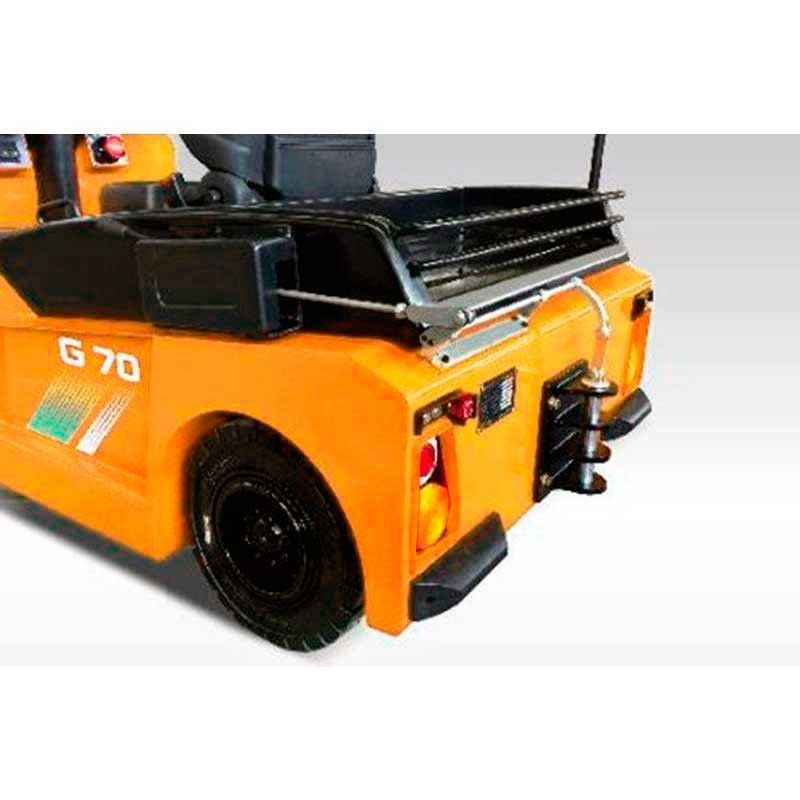

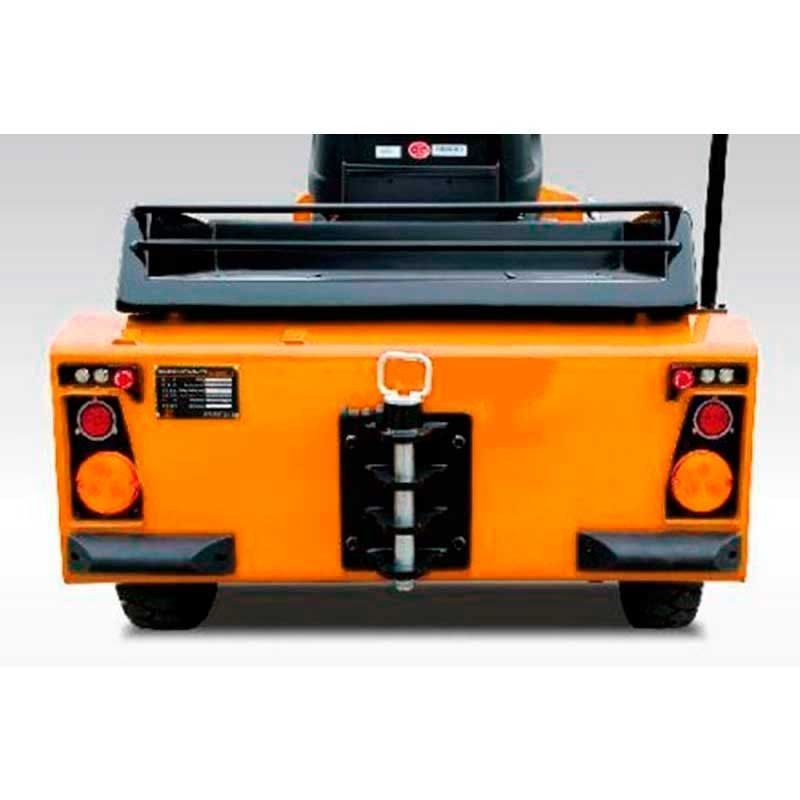

7. It is equipped with slow forward and backward bidirectional forwarding functions to perform the operation of a single person to remove and hang the traction pin, which is safe and reliable;
8. Semi-closed seat, seat position and backrest are adjustable in front and back, which can be adapted to driving people of different body types;
9. Efficient transmission system, high ascent capacity and abundant power.
| Model | QYD20S-J3G2Li | QYD30S-J3G2Li | QYD40S-J3G2Li | QYD50S-J3G2Li | QYD60S-J3G2Li | QYD70S-J3G2Li | |
| Operator type | Sentenced | ||||||
| Tow weight | kg | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 |
| Nominal drive | N | 3000 | 3100 | 6000 | 6100 | 8000 | 8100 |
| Maximum | N | 800 | 1000 | 1500 | 1600 | 2600 | 2800 |
| Travel speed (C/S load) | km/h | 9/12 | 8/12 | 14/9 | |||
| Superb Earring (C/S Load) | % | 10/20 | 6/20 | 6/20 | 5/20 | 6/20 | 4/20 |
| Dimensions: LxAnxAl | mm | 1740x860x1270 | 1950x960x1270 | 2060x1050x1540 | |||
| Seat height | mm | 710 | |||||
| Height of the pedal | mm | 200 | |||||
| Turn radio | mm | 1530 | 1600 | 1790 | |||
| Front tyres | 3.50-5 | 4.00-8 | |||||
| Rear tyres | 2x4.00-8 | ||||||
| Engine power | kW | 3.0 (AC) | 4.0 (AC) | 6.5(AC) | |||
| LITIO Battery | V/Ah | 24/202 | 48/202 | 48/271 | |||
| Weight approx. (with bat. Lithium) | kg | 625 | 930 | 1100 | |||
Color can change between yellow and red depending on availability.
- Load capacity (kg)
- 2.000
- Weight (kg)
- 800
- Description
- Tractor arrastre 3000kg conductor a bordo
- Drums
- 24 V / 465 Ah
- Dimensions (mm)
- 1740x860x1270
- Speed (km / h)
- 8/6
- Drag capacity (kg)
- 2000
- Engine
- Electrical
