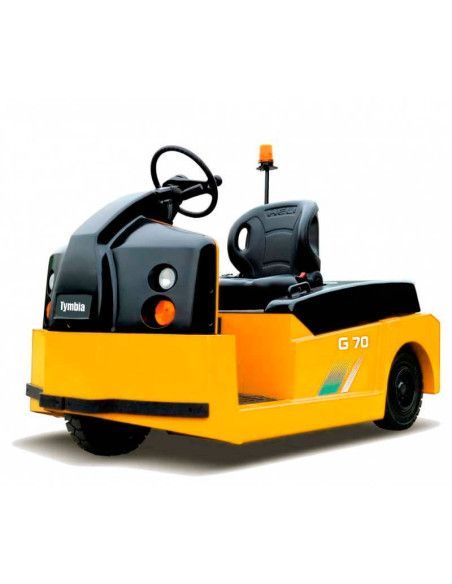

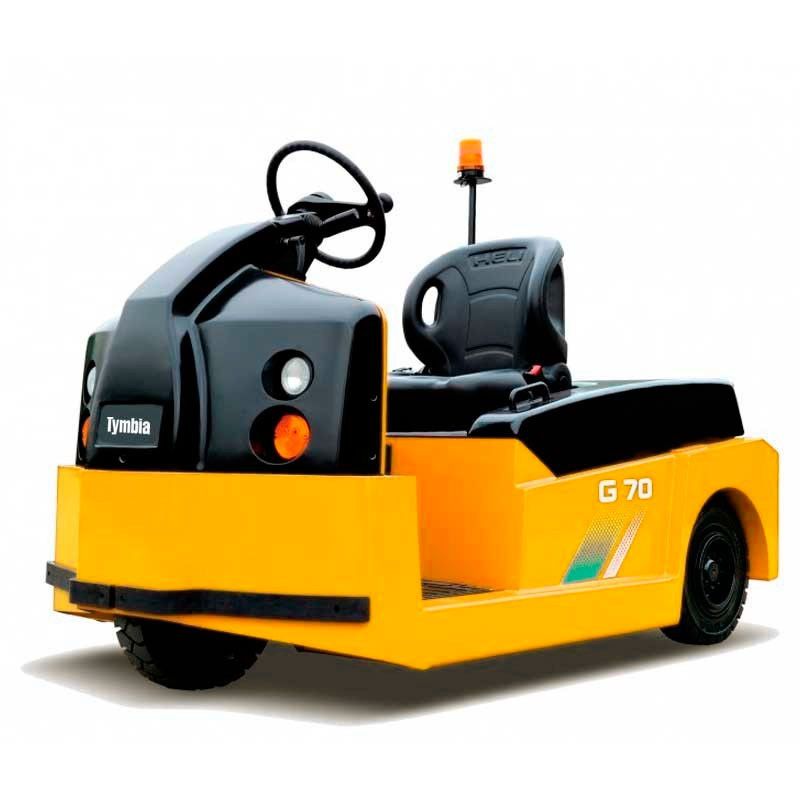

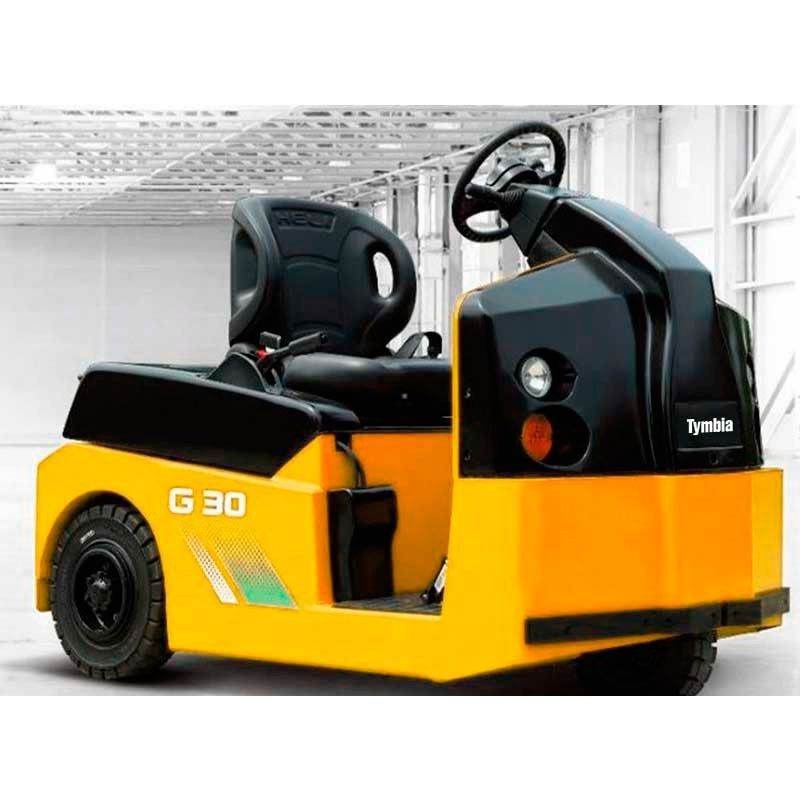

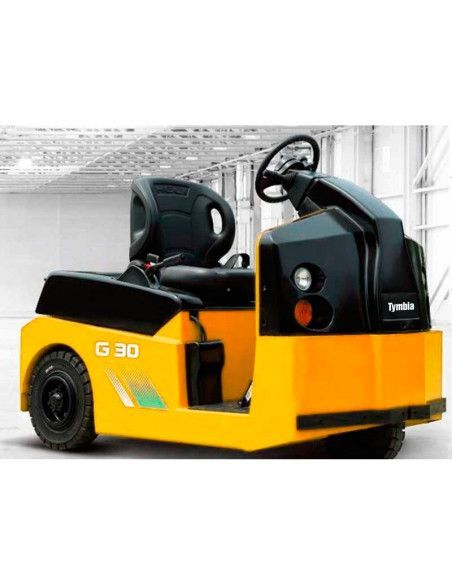

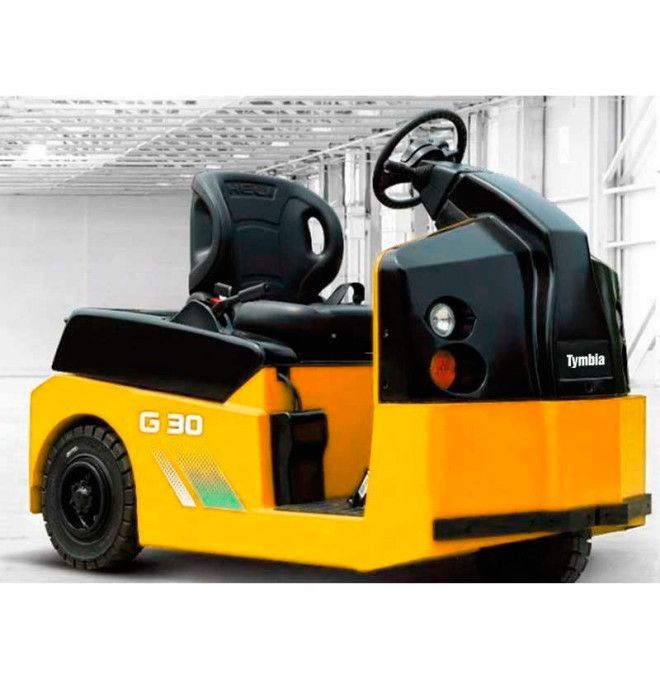

Tractor Tow Tractors 2000kg acid battery
Fully electric drag vehicle to drag up to 2,000kg load.
The 2-7t electric drag tractor from the G2 series is a completely new product developed by CHL.
The design and performance of driving tractor has been improved in an integral manner. The model adopts a seating structure with low pedesta, which takes into account the convenience of uploading and falling from the station and convenience convenience, which effectively reduces operator's work intensity and improves production efficiency. The indicators Tractor performance have reached advanced national and international leading levels.
It is suitable for the operation of trailer of trawl of goods in logistics fields such as car manufacturing, post, medicine, tobacco, etc.
1. Satisfy the development of the European market and national medium-level users.
2. The upper ergonomic design allows the driver to operate all the buttons and pedals comfortably, which helps relieve fatigue when driving.
3. Low pedal, very comfortable to go up and down.
4. Adopt a Steering and AC control system, high efficiency and low power consumption.
5. The 2-5T model adopts mechanical management and the 6-7T model adopts an electronic address, which makes the direction light and reliable.

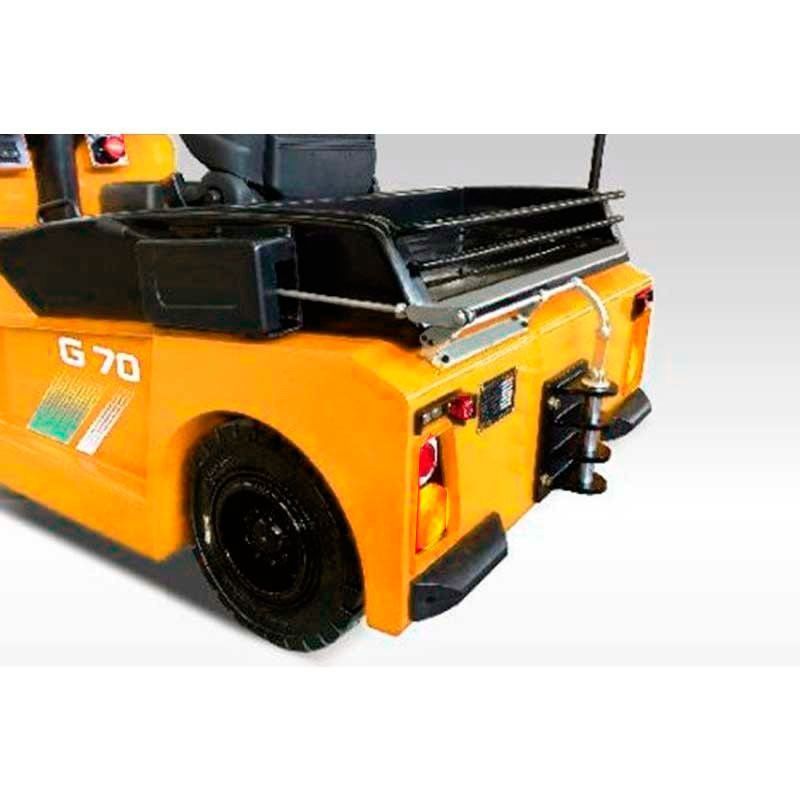

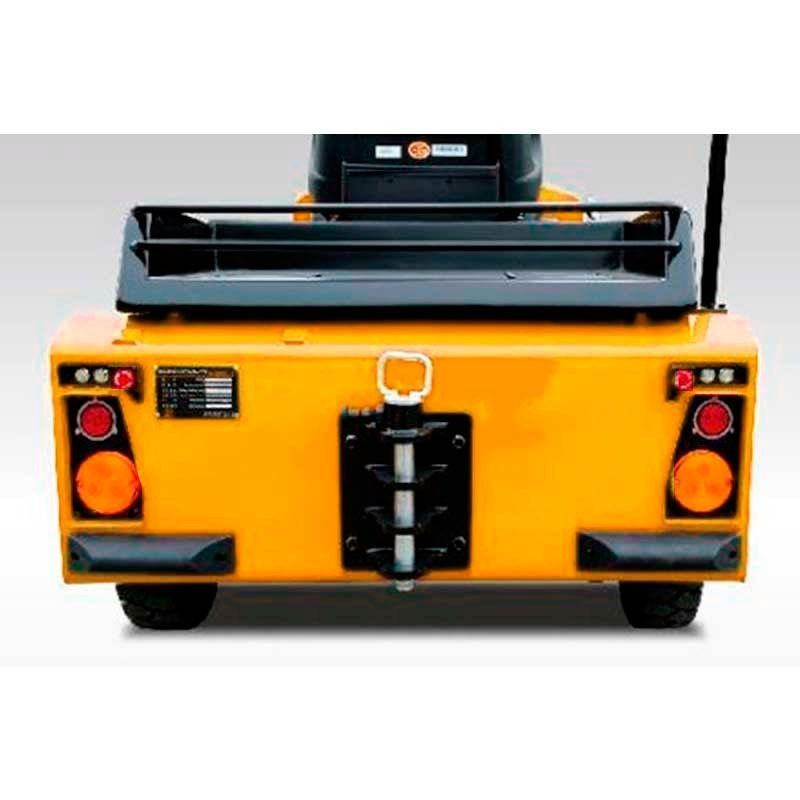

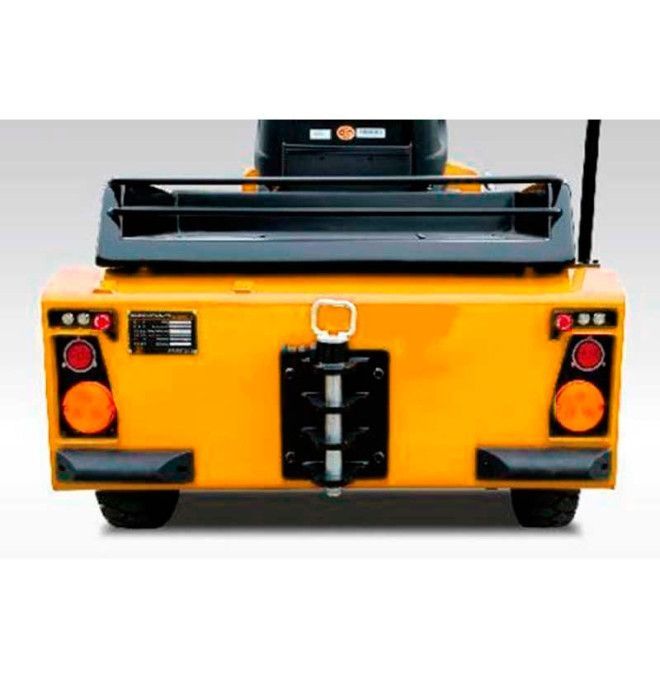

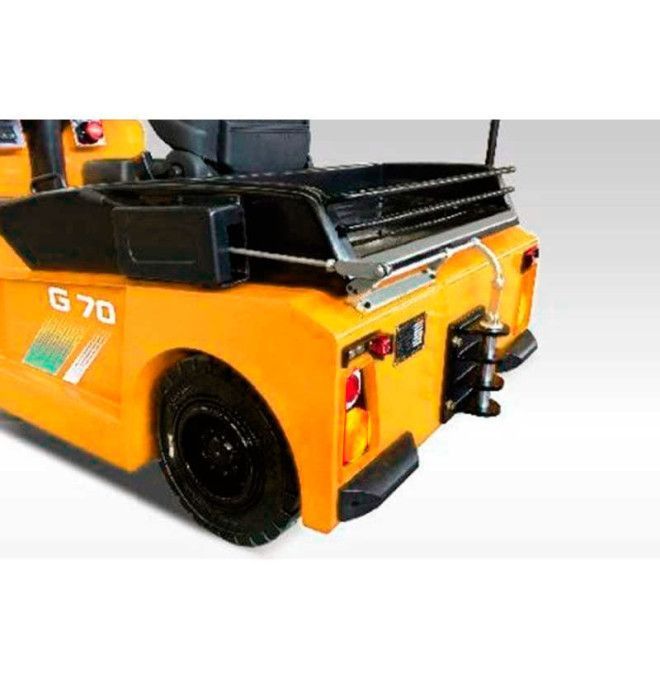

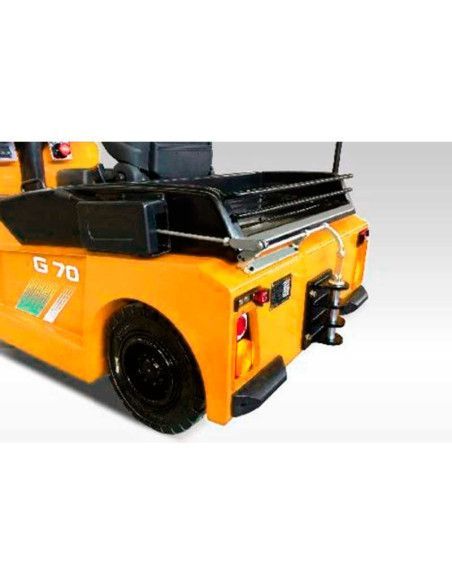

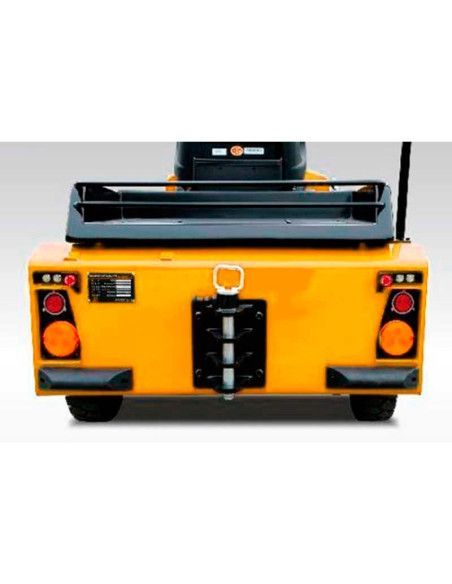

6. Optional portable traction mechanism to improve user efficiency.
7. Standard configuration of the advancing function and bidirectional, safe and reliable recoil function.
8. Efficient transmission system design, strong capacity for ascent and abundant power.
| Model | Qyd20s-j2g2 | Qyd30s-j2g2 | Qyd40s-j2g2 | Qyd50s-j2g2 | Qyd60s-j2g2 | Qyd70s-j2g2 | |
| Operator type | Sitting | ||||||
| Trawl | kg | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 |
| Nominal traction | No | 3000 | 3100 | 6000 | 6100 | 8000 | 8100 |
| Maximum traction | No | 800 | 1000 | 1500 | 1600 | 2600 | 2800 |
| Travel speed (C / S load) | km / pm | 9/12 | 8/12 | 14/9 | |||
| Overlavable pending (C / S load) | % | 10/20 | 6/20 | 6/20 | 5/20 | 6/20 | 4/20 |
| Dimensions: LXAnxal | mm | 1740x860x1270 | 1950x960x1270 | 2060x1050x1540 | |||
| Seat height | mm | 710 | |||||
| Pedal height | mm | 200 | |||||
| Spinning radius | mm | 1530 | 1600 | 1790 | |||
| Front tire | 3.50-5 | 4.00-8 | |||||
| Rear tire | 2x4.00-8 | ||||||
| Engine power | kw | 3.0 (AC) | 4.0 (AC) | 6,5 (ac) | |||
| Acid battery | V / Ah | 24/240 | 24/320 | 48/210 | 48/240 | 48/320 | |
- Load capacity (kg)
- 2.000
- Weight (kg)
- 800
- Description
- Tractor arrastre 3000kg conductor a bordo
- Drums
- 24 V / 465 Ah
- Dimensions (mm)
- 1740x860x1270
- Speed (km / h)
- 8/6
- Drag capacity (kg)
- 2000
- Engine
- Electrical
