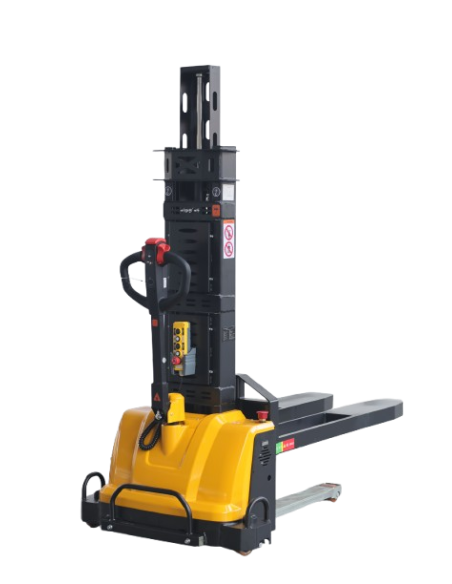

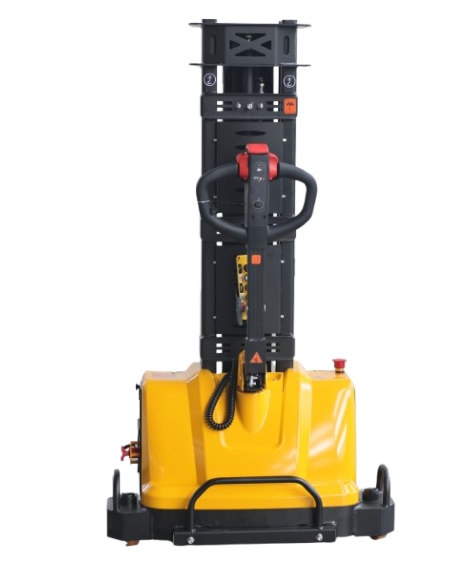

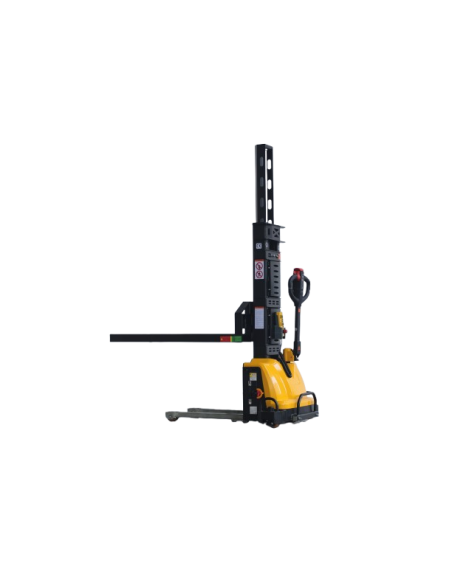

Self-supporting stacker fully electric 1000kg to 1300mm

The self-supporting stacker Tymbia totally electric is an innovation for the delivery of all kinds of materials. In the same product you can replace your lifting platform, transparent manual, stacker, ramp and elevator.

It's perfect to drive in the truck or van and get it up and down by its own means. self-supporting ador will significantly increase the comfort and efficiency of your deliveries.

The self-bearing stacker is the best solution for the distribution of goods.

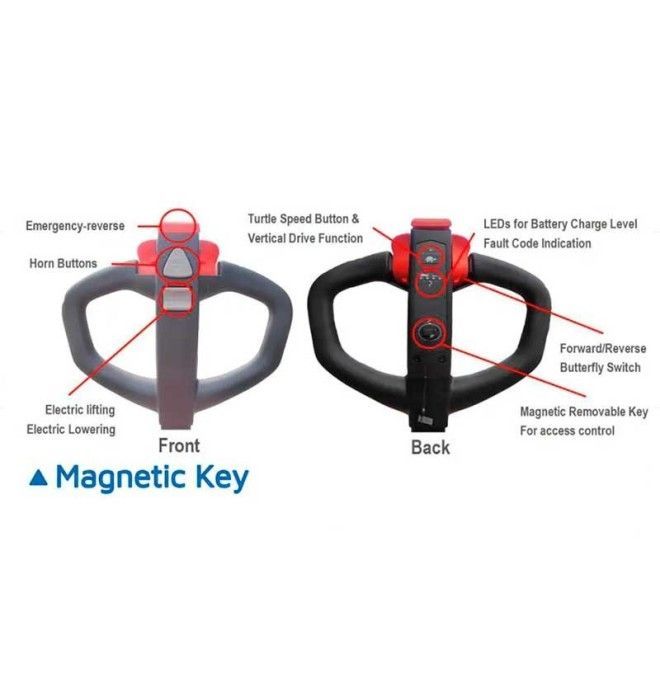

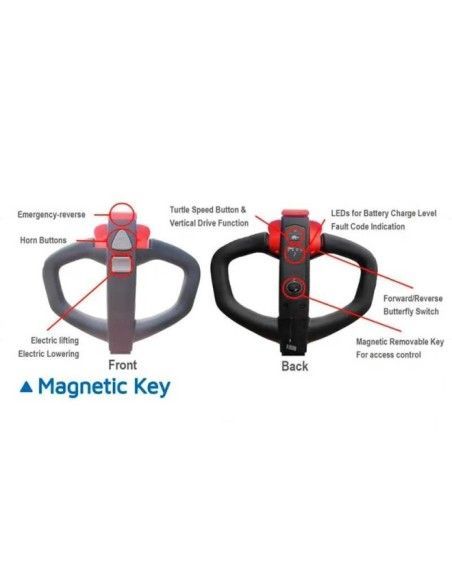

• Canbus Smart Mango Turtle Speed Option
• Vertical work
• Indicator battery
• Indicator error code
• Easy maintenance.

This self-supporting stacker has been created to facilitate movement in load trucks, providing high efficiency and lifting and movement of paddles effortlessly. It is available in capacity of 1000 kg and 1200 kg and lift heights of 800 mm to 1500 mm. Compact and lightweight design is suitable for a variety of light service applications.

TECHNICAL SPECIFICATIONS

• Type of energy: Electrical
• Capacity: 1000 Kg
• Charging center c: 400mm
• Wheel material: Polyurethane
• Size of the motor wheel: Ω190x70
• Balance Roller Size: я75X35
• Loading Roller Size: ΩX70
• Lift height (h3): 900/1100/1300/1500mm
• Minimum mast height (h1): 1250/1450/1650/1850mm
• Working height (h4): 2480/2680/2880/3080mm
• Minimum height of the fork (h13): 85mm
• Total length (l1): 1730mm
• Size of the fork S/E/L: 60/195/1200mm
• Width of the fork (b5): 600
• Distance to ground (m2): 10mm
• Superb Earring With/Without charge: 3-5 %
• Brake: Electromagnetic
• Power of drive: 0.75kW
• Lift engine power: 2kW
• Battery capacity: 48 V/25 Ah (30 Ah as option)
• Battery weight: 30Kg
• Assisted address: Mechanical
