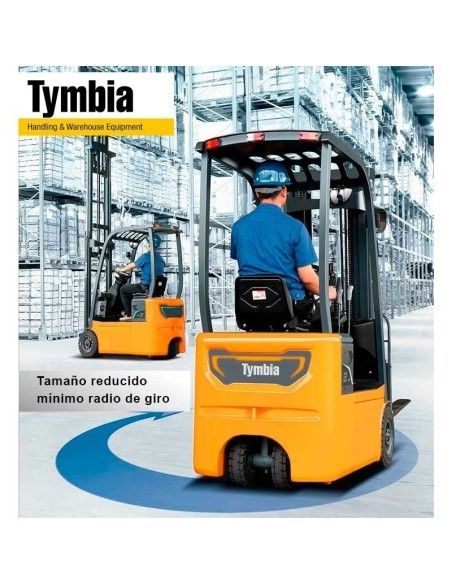

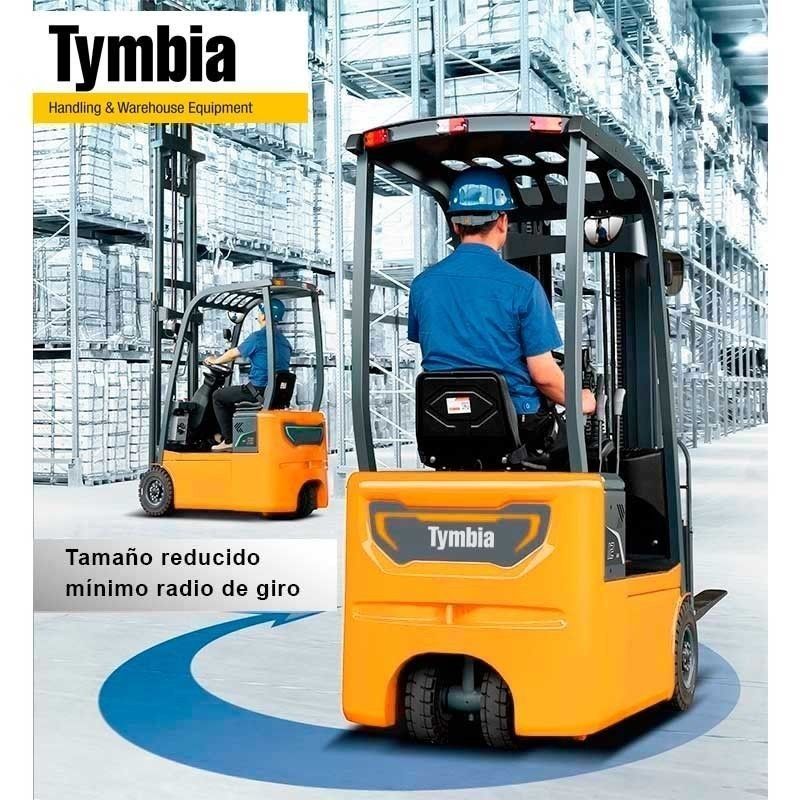

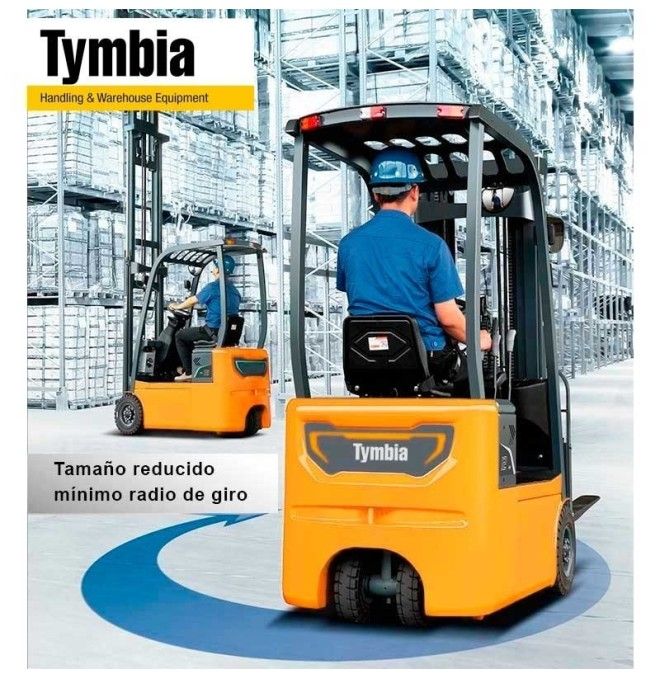

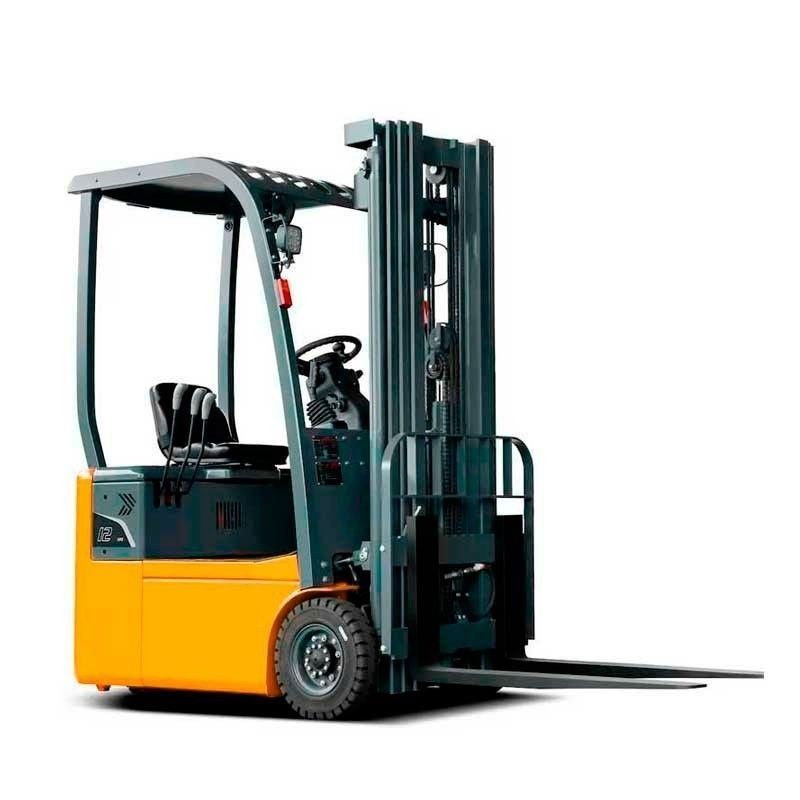

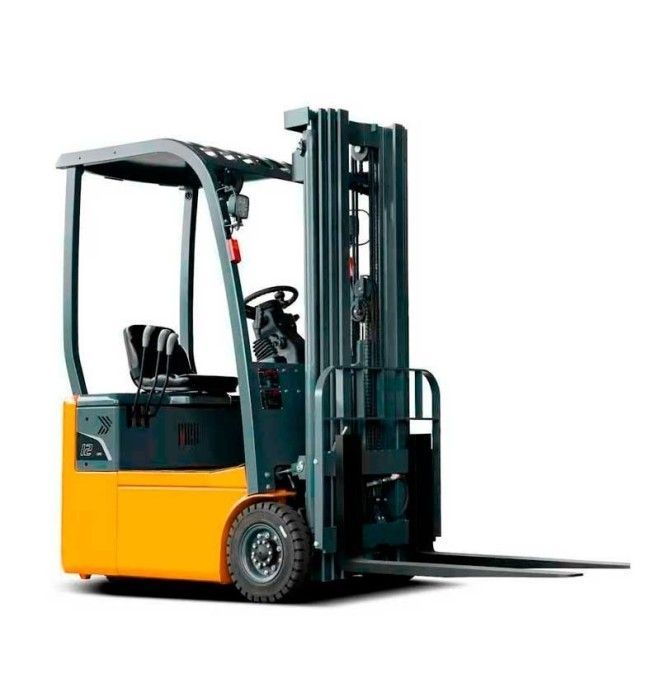

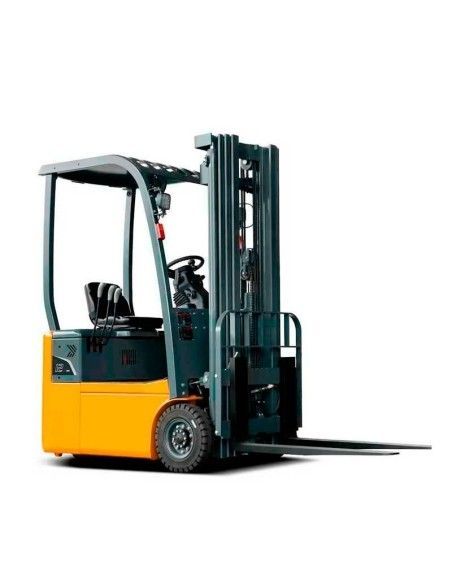

Electric forklift 3 wheels 800-1200kg H4 series

The most compact CHL forklift!

Perfect if you need to work in narrow or congested corridors, the CPD 08-12 SQ will give you the strength you need.

Technical characteristics:

• Load capacity: 800-1200kg
• Standard lifting height: 3000 mm
• Voltage: 24V
• Maximum speed: 10-12 km / h
• Front Wheel Drive

Standard acid battery:

• 0,8T = 24V / 240AH
• 1,0t = 24V / 360AH
• 1,2t = 24V / 420Ah

Available at 0.8 t / 10 t / 12 t, this 3-wheel trolley is versatile and will accompany you in many different work environments.

New elegant, compact and functional design, the user's space is comfortable and is well designed with greater space for legs and head.

Thanks to its reduced dimensions and weight you can also enter elevators with your merchandise, you will have all the advantages of a stacker and those of a single-product forklift.

Specially designed to be an affordable and versatile model, it is a good choice to replace a stacker.

In terms of security, this machine has a complete PAHO system, a driver's detection system, is also equipped with a vehicle unlocking system by card or code.

The +: adjustable driving mode, loading system on board serial, shock absorber effect when lowering the mast ...

Confidence

Lights: The truck is equipped with a standard LED lighting system, which has a high gloss, a long service life and is more energy efficient.

Mast: High strength H channel steel is adopted.

• Top to lower the mast
• Hydraulic protection against explosions, self-locking protection forward
• Multiple electrical protection: protection against short circuits, protection against overheating, low power protection
• Security reminder in the parking lot
• Limit control of sliding speed on slope
• Driver's presence detection system (intelligent self-locking non-manned lock protection)
• Operation sequence protection
• The removable structure offers easy maintenance of electrical components;
• The integrated steering axis is durable
• The drive motor can be disassembled separately, which offers comfortable maintenance
• Common platform for trucks with lithium batteries and trucks with lead-acid batteries that offers a high degree of universality of components.

The three electrical systems are solid and reliable.: The wheelbarrow has an IP54 AC motor free of maintenance, recognized brand electronic control and battery.

Address shaft:  A hydraulic steering axis with high-level transverse oil cylinder is adopted.

** They must have their own discharge means.
