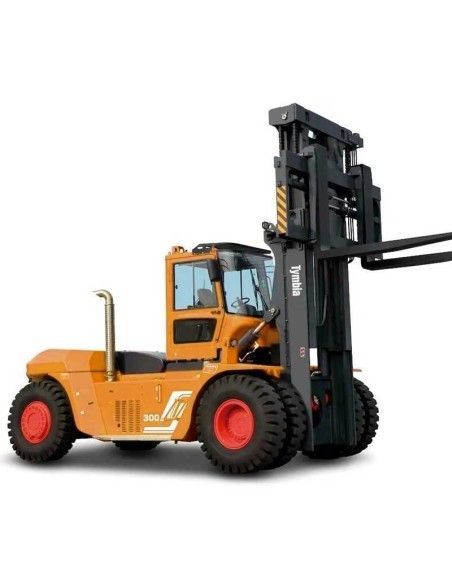

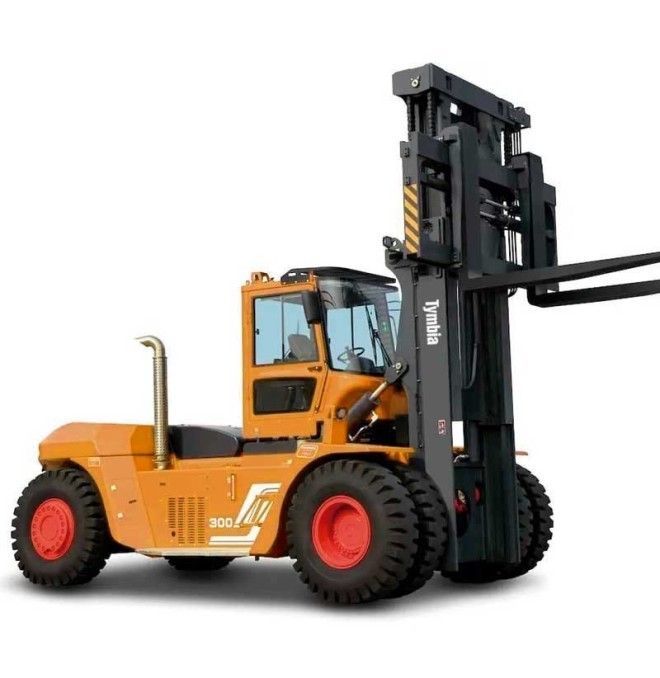

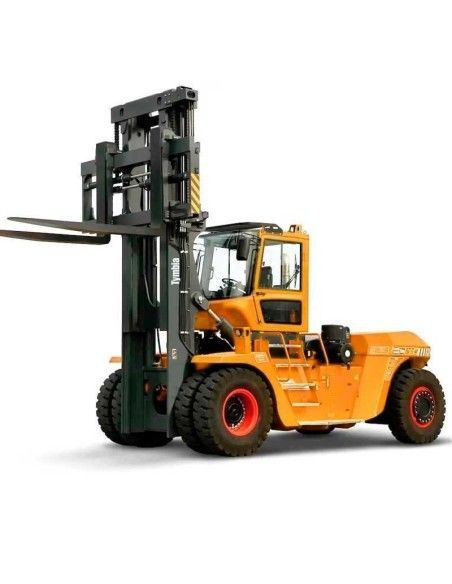

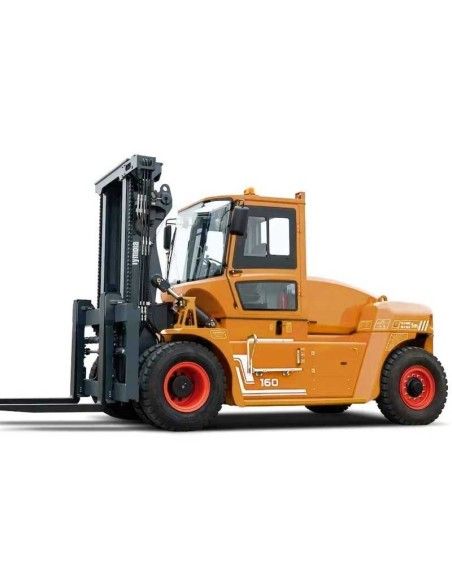

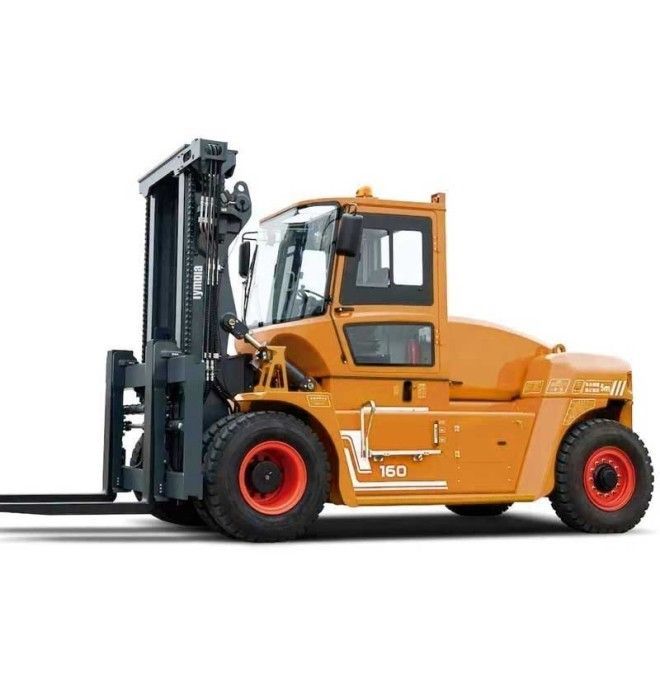

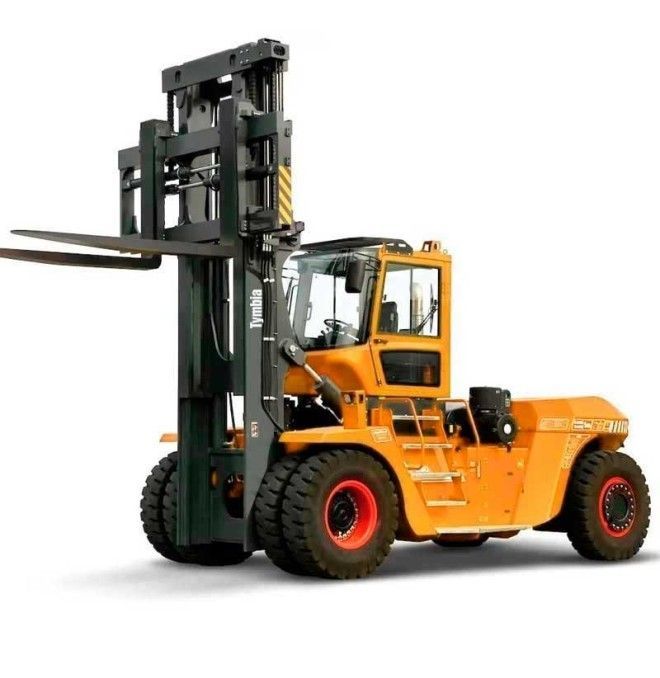

Forklift Diesel 20-46Ton. G2 series

Forklift diesel for large loads from 20 to 46 tons. Durability and power for the most demanding tasks.

Characteristics

• Nominal capacity: 12000-46000 Kg
•  Standard lift height: 3000 mm
•  Energy : Diesel
• Charging center: 1200 mm.

Durable and reliable.

► Durable structure design

► High resistance plate application.

► Fold and form pieces greatly improving resistance and stiffness.

► Special mold that guarantees precise control of the dimensions.

Simple and very efficient daily inspection

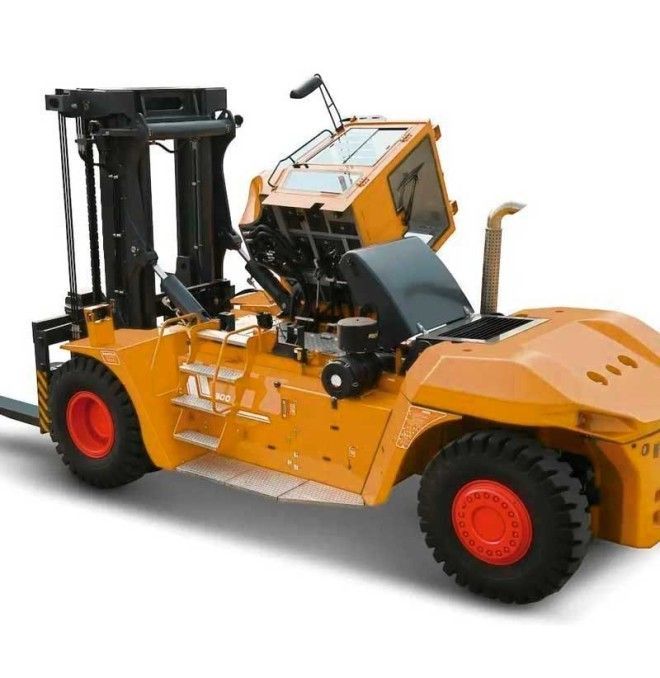

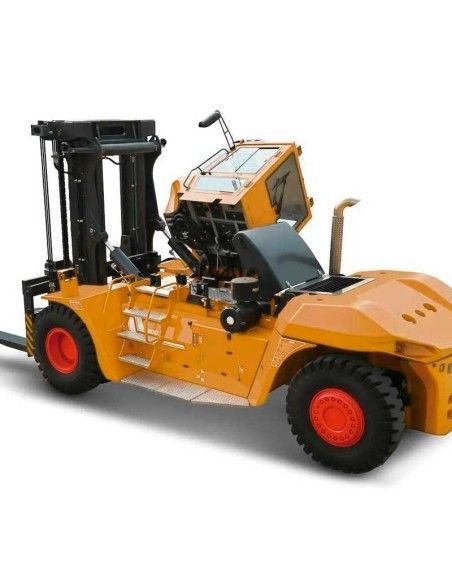

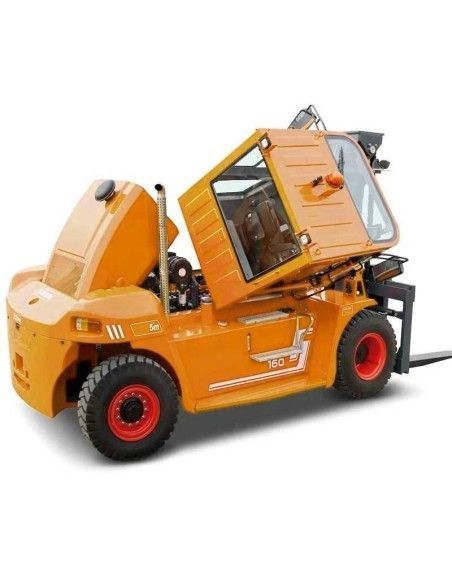

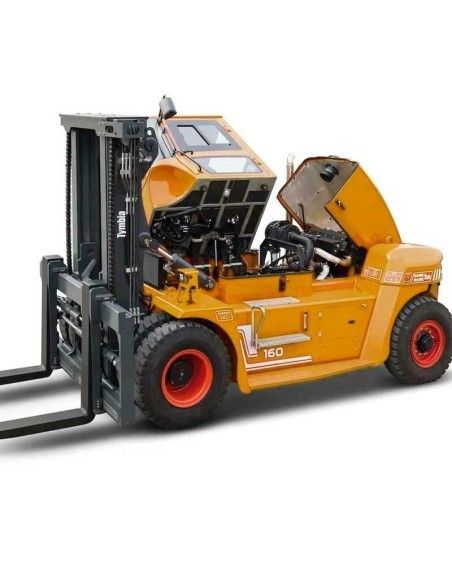

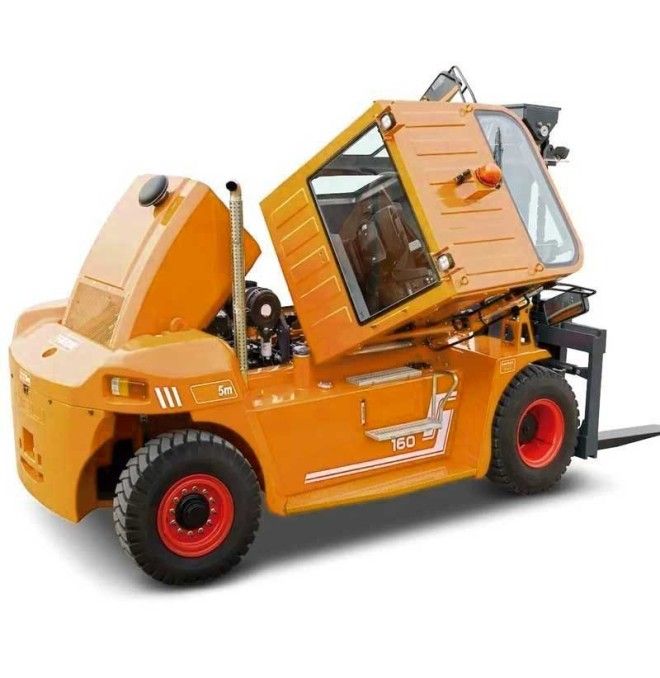

►Based ash:  The automatic tilt system facilitates internal maintenance. The hydraulic drive tilt cylinder with electrical assistance makes the cabin 60's on the right, which facilitates maintenance.

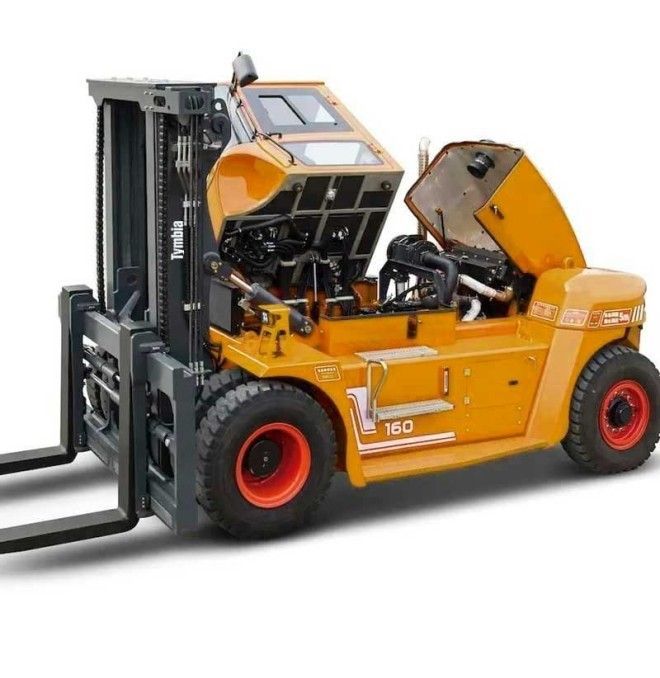

► Engine cap with large opening angle: The open-type engine hood that can be opened by two self-locking springs ensures easy and highly efficient maintenance.

►Distant seat: The position of the detachable cabin can be adjusted in front and back, with a wide field of vision and easy maintenance.

►Sliding engine cap: Sliding motor cap for maximum maintenance space.

Easy addition and control of liquids: The addition and verification of the cooling fluid, the addition and verification of the engine oil and the verification of the hydraulic oil level become easier.

► Easy replacement of air filter

Improved protection performance

► Oil cylinder protection handle

► Electric tilting button with high degree of resistance to dust and water.

► dustproof vent of the front axle

►Pow-proof vent of the transmission box

►An anti-dust fever cabinet electrical

► Rolled hoses are used with steel wire and the safety level greatly improves.

► Powderproof waterproof connectors

 Improved cooling efficiency

► optimally designed channel

►Special coolant HELI original engine fan

High efficiency combination, strong power

►The VOLVO engine that meets the EU/T4F/Europe IV Stage V in China, the ZF or DANA transmission box are assembled in the wheelbarrow.

► Hydraulic dynamic load variable control system

►You can automatically adjust the movement of the oil pump according to the operator's habits and load conditions to achieve high-precision flow control and energy saving.

►The constant displacement system has a simple structure, technology  mature, a reliable and low-cost system.

►The rear counterweight has no air channel and the counterweight usage ratio increases by 5% and therefore reduces the service weight of the wheelbarrow.

►The lightweight design optimizes the structure and the wheelbarrow is lighter and more stable.

Comfortable and comfortable

► Anti-slip weight: Anti-slip aluminum pedals, with good resistance to oxide and corrosion, provide excellent anti-slip performance to enter and exit the cabin.

►Pasamanos auxiliar: Solid and durable

► Large climbing and handrails.

►Open-type steps make it easy and safe to go up and down.

► Smaller spin radius

► Compact frame design

► Optimized address

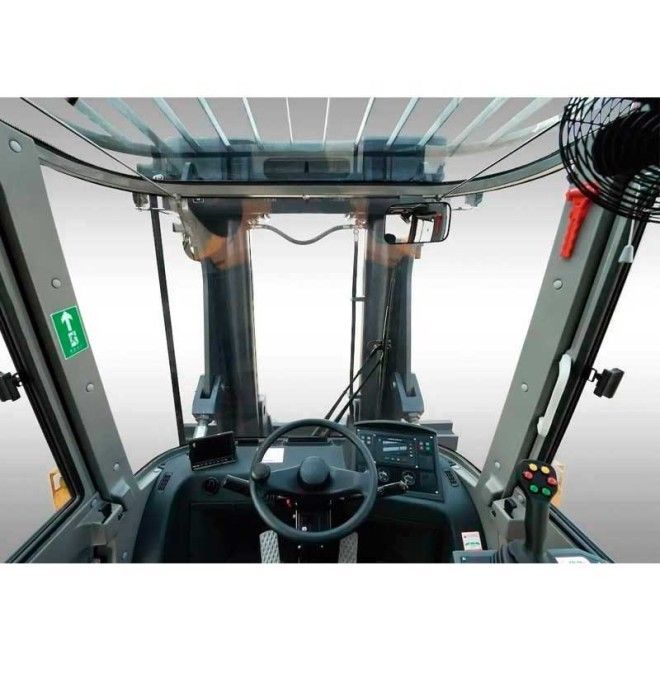

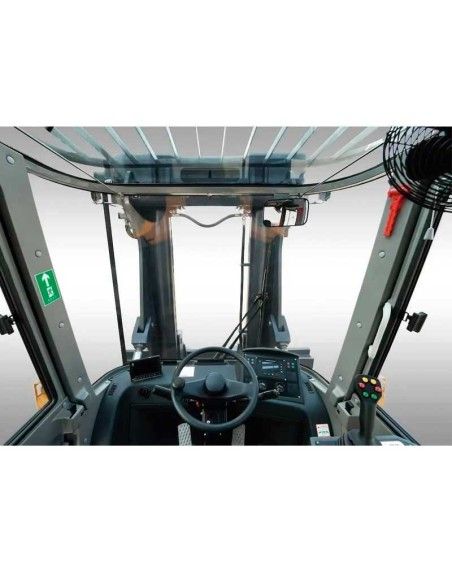

► Front glass is used with a large arch and field angle

of frontal vision increases 10".

► Top view: Large glass is used at the top of the cabin.

left and right side window display

► 4 pieces of glass are used on the left and right door to guarantee a view of 300.

► Top rear view: Large glass is used in the back of the cabin.

►Rear view system: The rear view of the wheelbarrow can be displayed in real time when it is back.

►Special room with 360° view

►Total suspension seat: The adjustable damping design that reduces impacts not only supports your weight but also provides a stable driving experience

►Weighting system (optional): Weight can be measured accurately

checking the hydraulic pressure.

►Reversing: Six probes guarantee safety in driving.

► Tracking is achieved through 6 points distributed reasonably. Increased monitoring range

►Standard visualization meter and monitoring of wheelbarrow work.

► Optimized ergonomic design facilitates reading and operation.

► Optimized pedal design: Optimized pedal reduces fatigue during prolonged work.

►Adjustable Flyer: The steering wheel can be adjusted according to the operator's habits and an easy and flexible direction greatly reduces your work.

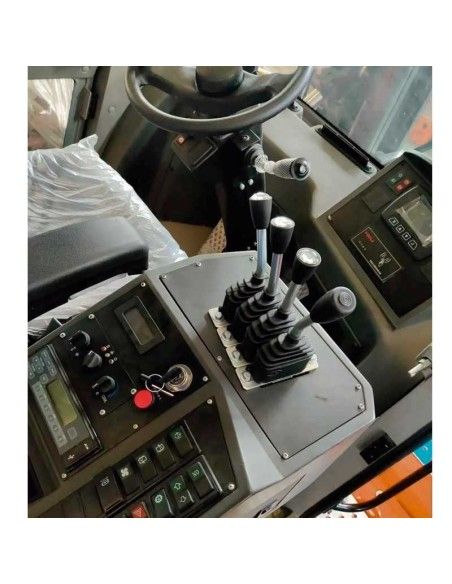

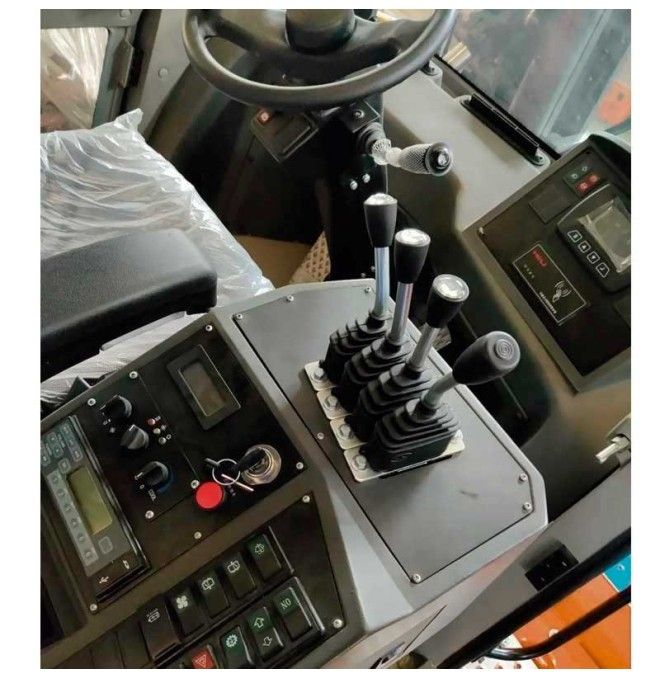

► Flexible control panel: Accurate, safe and effective control can be achieved through a small operating force.

► Integrated aviation handle: Integrated aviation handle, with small operating force and high precision and safety.

Security and efficiency

► Smaller front fly

►Reposition of the center of gravity.

► more compact mast construction

►Reposition of the gravity center

►Reposition of the electrical system

►Reposition of the cooling system.

►No air channel in the counterweight

Presence Control System (OPS)

►The wheelbarrow is automatically immobilized and cannot be operated when the operator is away from the seat.

► PAHO system for mast:  The mast is blocked and cannot be operated when the operator is away from the seat.

Wet-type motif

►No maintenance

The specially designed brake structure and principle provide anti-dust and anti-water functions and save maintenance costs.

► Safe and reliable

Work requirements such as prolonged time, heavy work, short distance or frequent braking can be met.
