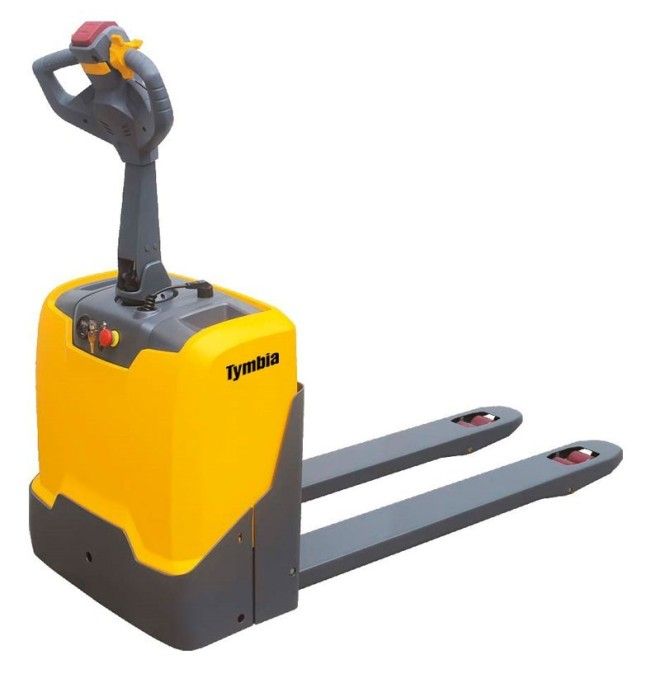

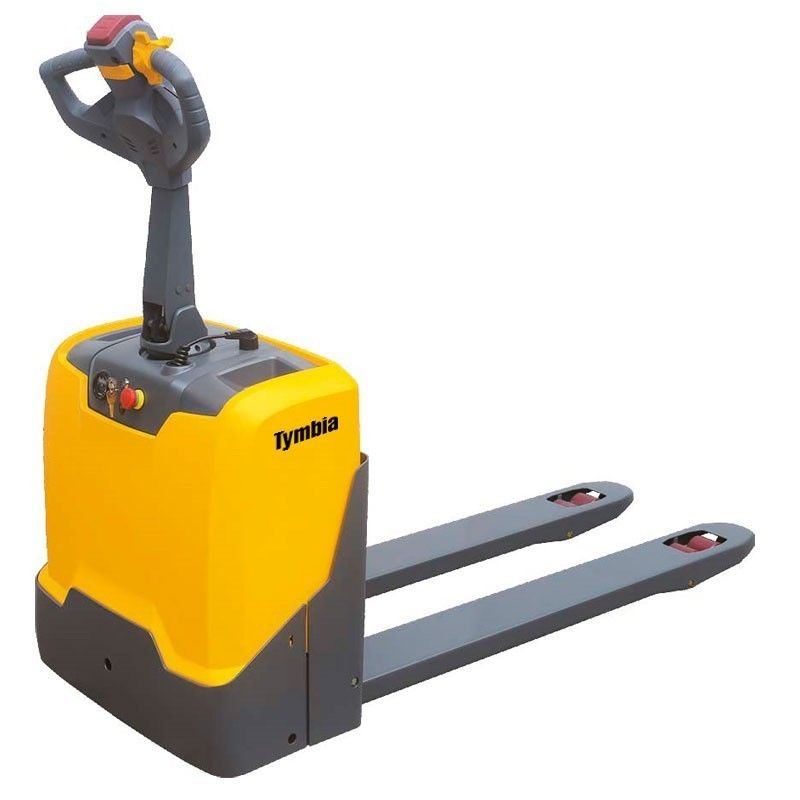

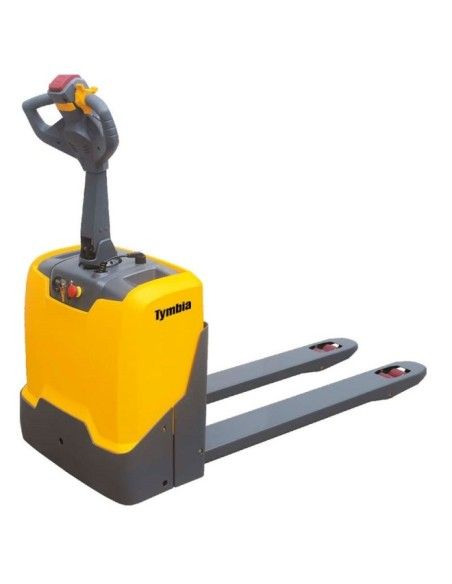

Electric pallet truck compact 1500kg - battery 24V/105Ah
M101040082
€3,390.00
3.390,00 € (tax incl.)
1500kg electric transparent for maneuvers in narrow corridors and container loading. Your 0.9KW Brushless Engine and 105Ah Battery guarantee high performance in industrial environments with reduced maintenance.
- Charging capacity: Supports 1500kg with 1320mm radius of rotation; Optimizes flows in confined spaces.
- Brushless motorization: 0.9kw brushless traction; Ensures high energy efficiency and constant operating savings.
- Industrial autonomy: 24V / 105Ah battery with integrated charger; It allows continuous operation in intensive use logistics.
- Certified Security: Electromagnetic braking and emergency stop; CE certification mandatory according to current European regulations.

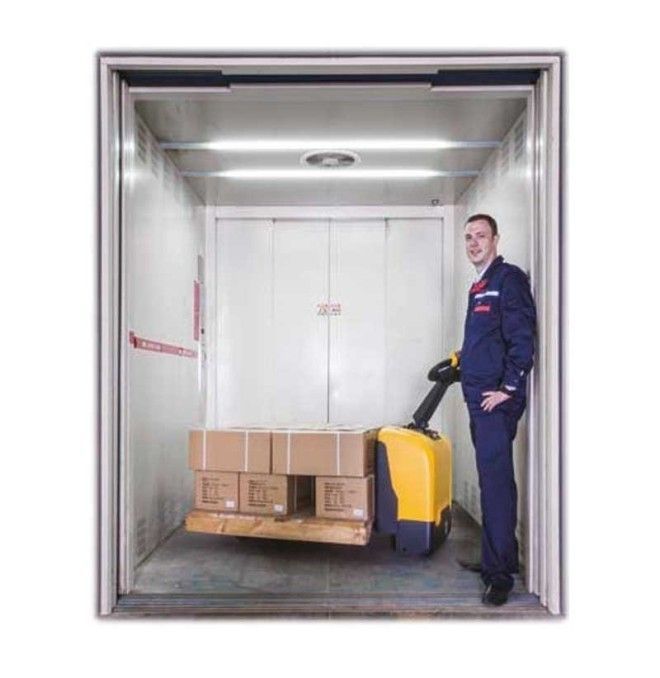

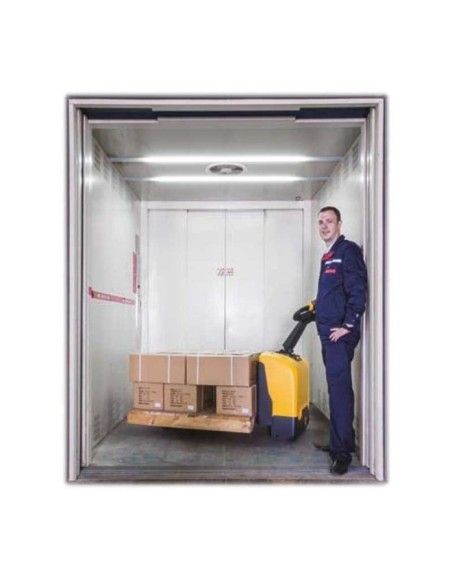

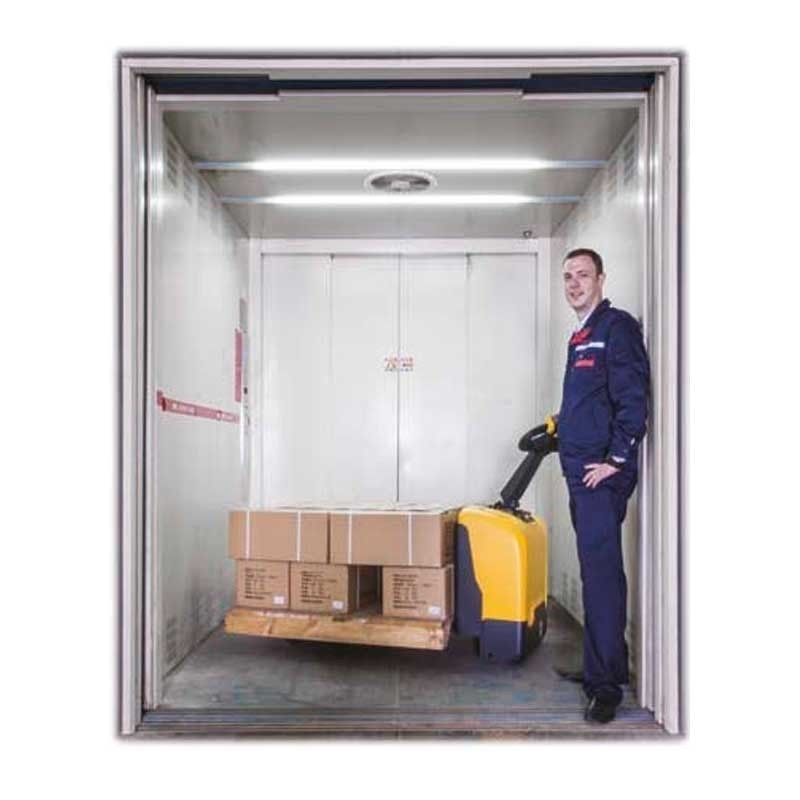

The totally mini-tire-type transparent has a compact design and a powerful engine. Its small rotation radius offers the same size as a manual transparent, being very used in narrow areas, hallway workshops, supermarkets and for the loading of containers.
BASIC CHARACTERISTICS:
● RUYI new type of rudder with maximum speed limit button.
● Emergency stop and navel.
● BDI and time counter.
● Wheels to balance stability.
● Sealed battery.
● Brushless horizontal engine.
● Built-in charger.
● Roldana on forks.
Advantages:
● with smaller spin radius 1320 mm-1389 mm (width 520/550/685 mm)
● Motor DC Brushless High Electriciency, Maintenance Free.
● Fully sealed battery free maintenance, intensive use of great capacity.
● Offers the low driving speed option when the handle is in vertical position, reduces
turning a lot of space. (Option for Mango Frei Germany)
● High scroll speed is up to 5.3-5.8 km / h, improves productive efficiency.
● The floating steering wheel supports automatic height adjustment.
● The horizontal motor wheel provides a convenient replacement.
Optional:
● External charger.
● Width and long fork (size).
● Cargo backup.

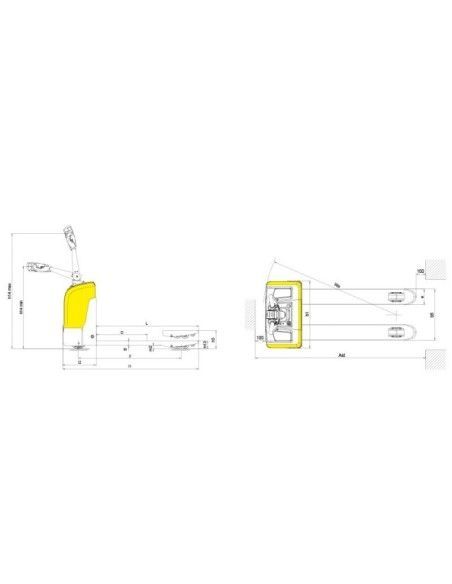

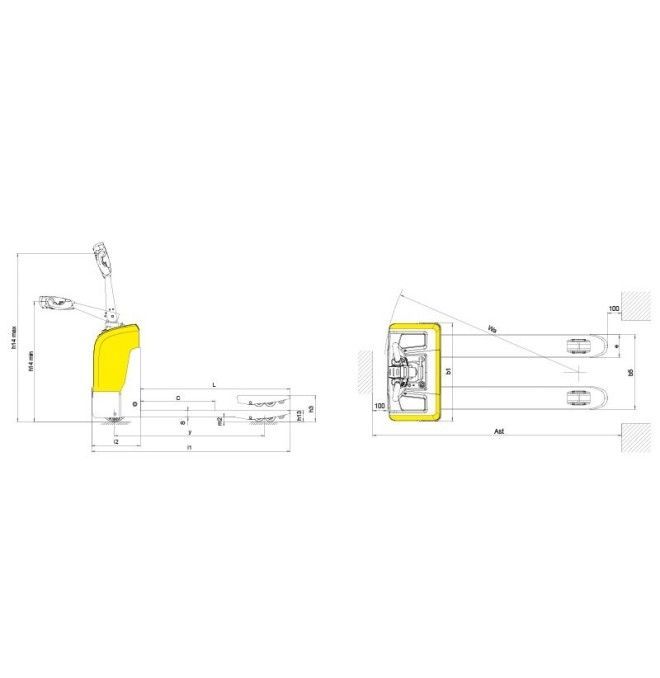

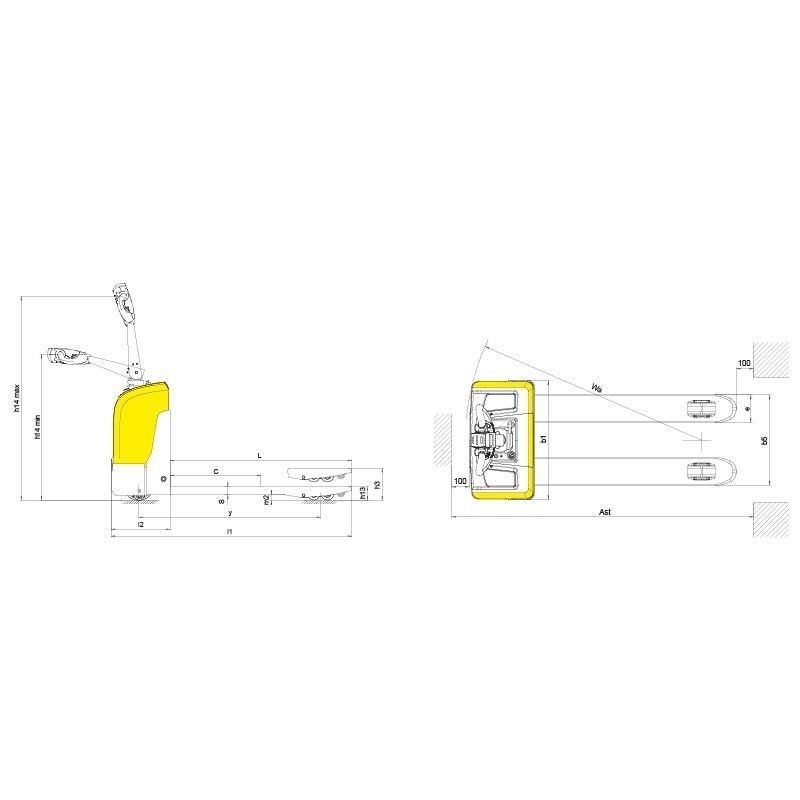

Technical characteristics:
| 1.2. Model | Te15w | |
| 1.3. TYPE | Electrical | |
| 1.4. Driver | standing | |
| 1.5. Load capacity | Q (KG) | 1.500 |
| 1.6. Distance from the center of charge | c (mm) | 600 |
| 1 8. Loading distance, Motor shaft center at the fork | x (mm) | 951/1021 |
| 1.9. Axles distance | and (mm) | 1152/1222 |
| 2.1. Service weight | kg | 230 |
| 2.2. Load per shaft, loaded front / rear | kg | 442/12880 |
| 2.3. Load by shaft, front / rear without load | kg | 200/30 |
| 3.1. Wheels | Polyurethane | |
| 3.2. Front tire size | mm | Φ1950x70 |
| 3.3. Tire size. rear | mm | Φ82x93 / 74x93 |
| 3.4. Additional wheels (dimensions) | mm | Φ60x35 |
| 3.5. Number of rear front wheels (x = drive wheels) | 1x + 2/2 (4) | |
| 3.6. Tread, front | b10 (mm) | 500 |
| 3.7. Tread, rear | b11 (mm) | 360/390/525 |
| 4.4. Max. Height lifting | h3 (mm) | 105 |
| 4.9. 1maxima minimum rudder height in driving position | h14 (mm) | 950/1310 |
| 4.15. Fork height, down | h13 (mm) | 85/75 |
| 4.19. Full length | l1 (mm) | 1525/1595 |
| 4.20. Length Up to the face of the forks | l2 (mm) | 375 |
| 4.21. Total width | b1 / B2 (mm) | 685 |
| 4.22. Dimensions of the fork | s / E / L (mm) | 53/160/1150 (1220) |
| 4.25. Total width of the forks | b5 (mm) | 520/550/685 |
| 4.32. Distance to the ground, center of the axles | m2 (mm) | 32/22 |
| 4.34.1 Hall width for pallets 100x1200 | AST (mm) | 2102/2184 |
| 4.34.2 Hall width for pallets 800x1200 | AST (mm) | 2005/2035 |
| 4.35. Spinning radius | WA (mm) | 1347/1415 |
| 5.1. Scroll speed. with 1Sin Load | km / pm | 5.3 / 5.8 |
| 5.2. Lifting speed, loaded / downloaded | meters /'s | 0.035 / 0.045 |
| 5.3. Descent speed. Charged / Downloaded | meters /'s | 0.008 / 0.037 |
| 5.8. Max. Overlavable pending (loaded / downloaded) | % | 5/15 |
| 5.10. Service brake | Electromagnéticor | |
| 6.1. Control engine 60min. | kw | 0.9 |
| 6.2. Lifting motor in S3 15% | kw | 0.8 |
| 6.4. Lithium battery voltage, Nominal capacity KS (Mastildulplex) | (V) / (Oh) | 24/105 |
| 6.5. Battery weight | kg | 49 |
| 10.7 Sound pressure level in the driver's seat | dB (A) | 70 |
- TYPE
- Electric
- Load capacity (kg)
- 1500
- Lifting height (mm)
- 105
- Horquillas (mm)
- 1150x550
- Battery
- Lead-acid
- Lifting system
- Electric
- Total length (mm)
- 1595
- Weight (kg)
- 250
- Width (mm)
- 685
- Description
- Eléctrica
- Height Min. (mm)
- 85
- Drums
- 24V - 230 Ah
- Length fork (mm)
- 1150
- Rudder
- Polyurethane
- Rolls
- Polyurethane
- Traction motor (KW)
- 2.0
- Lifting motor (KW)
- 2.2
- Regulations
- EC
