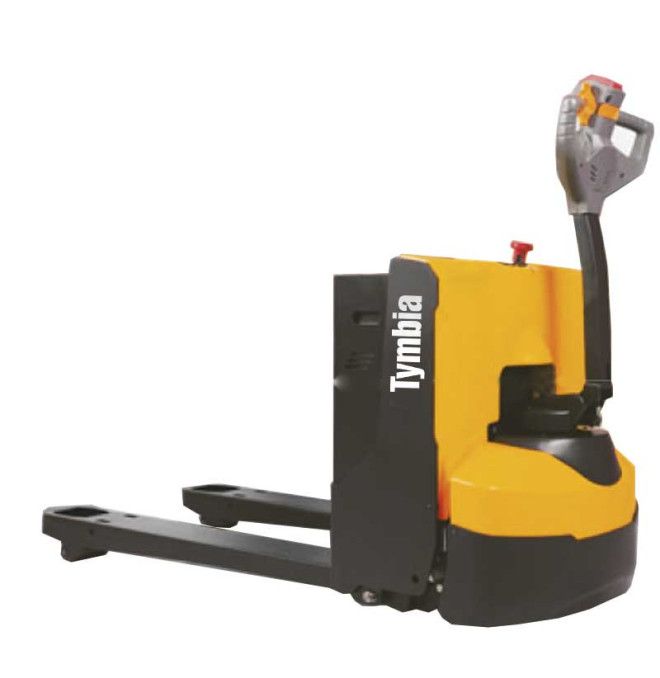

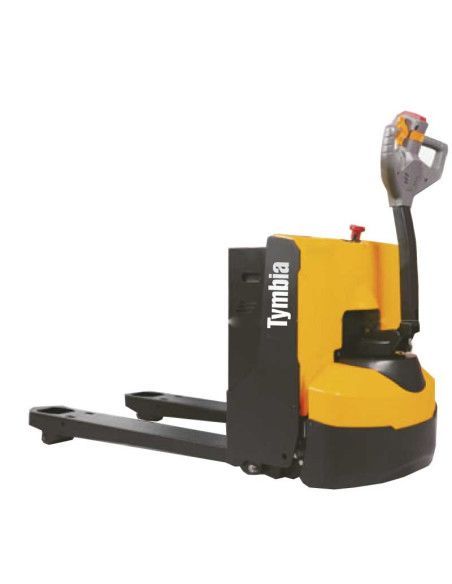

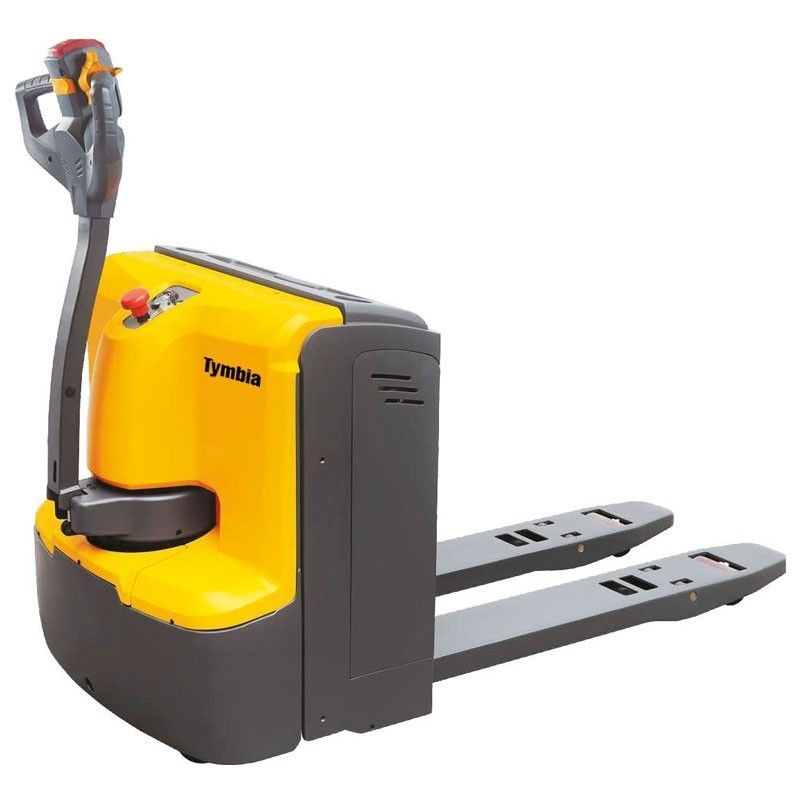

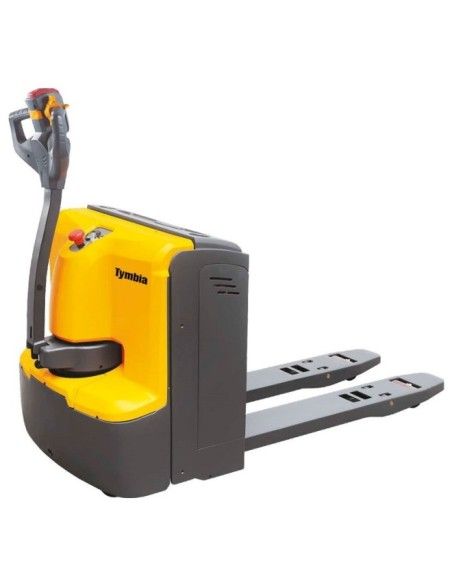

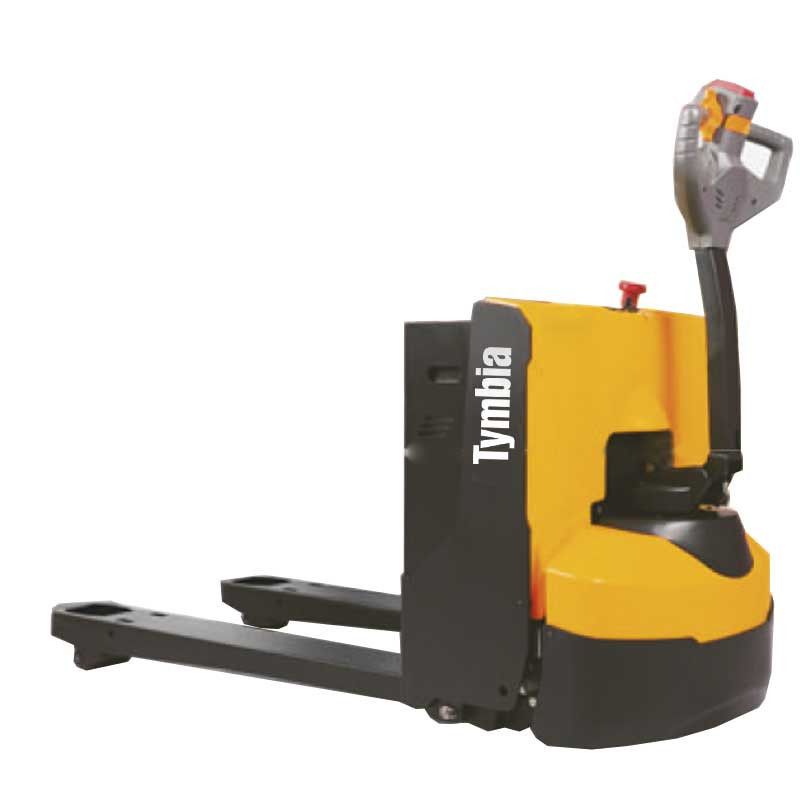

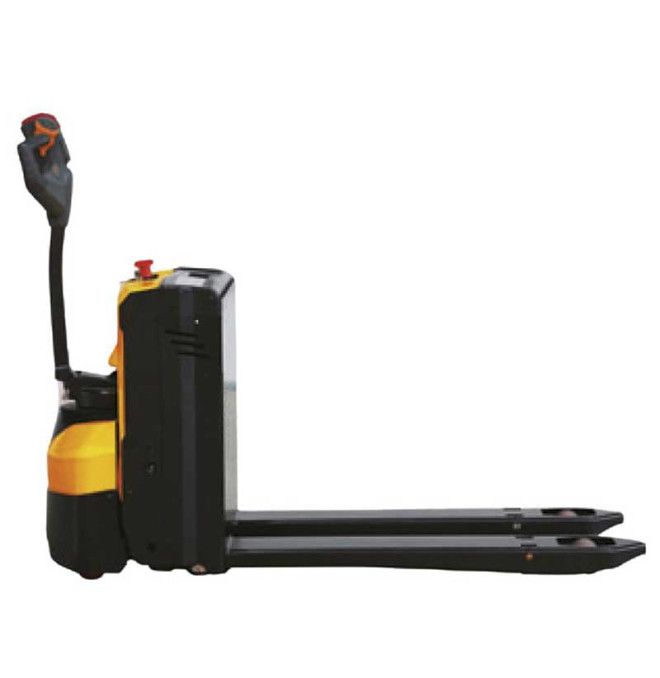

Electric Transparent 2000kg Lithium Battery - Forks 685x1150mm
M101040081
€7,290.00
7.290,00 € (tax incl.)

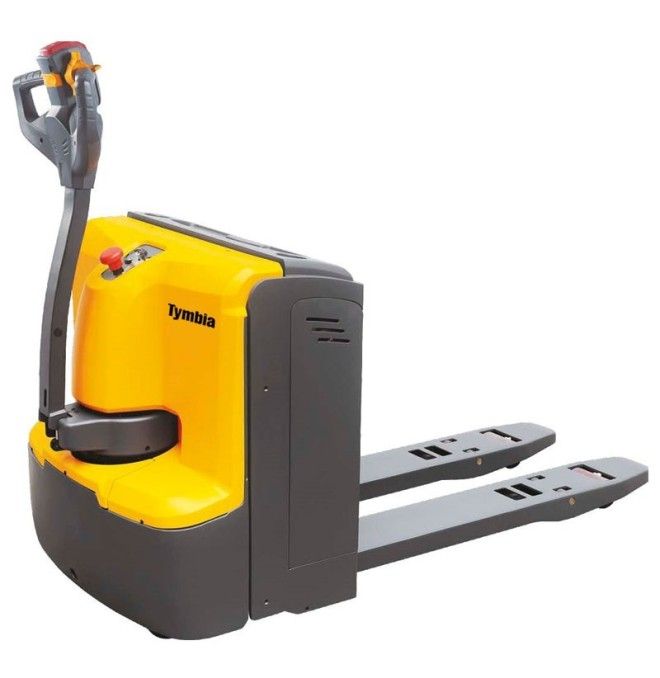

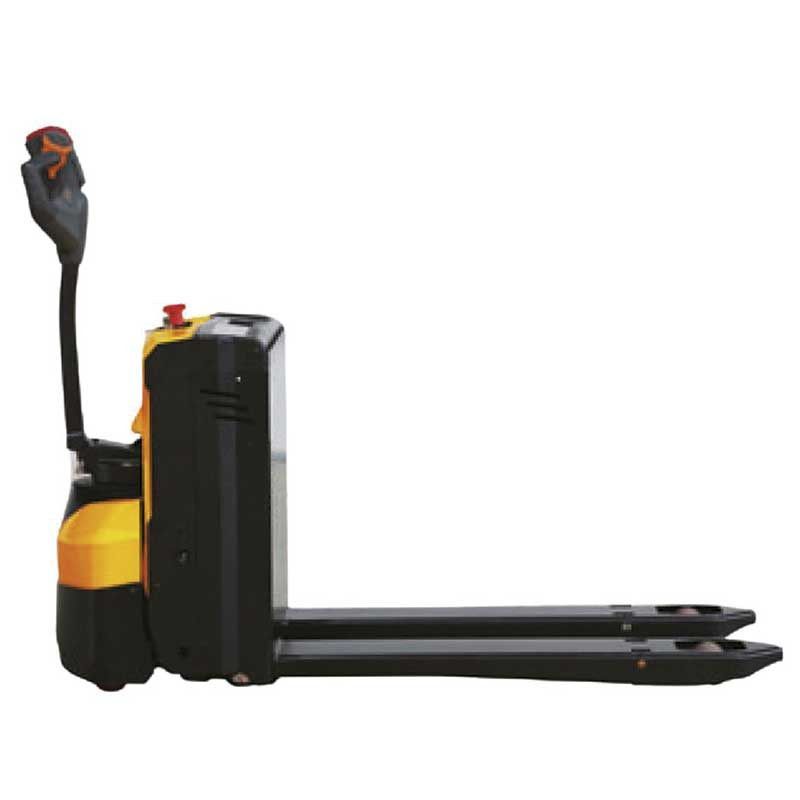

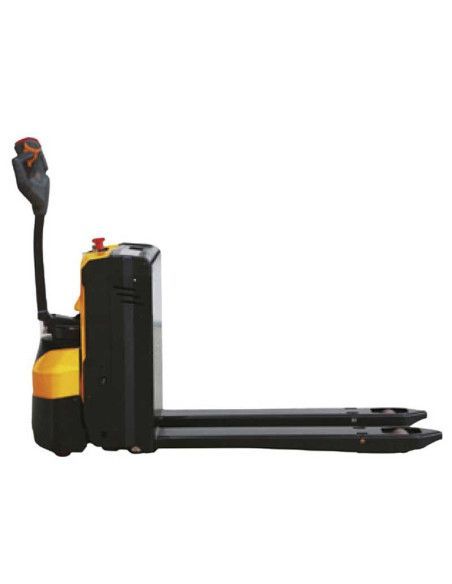

Electric Transpalet of 2000kg equipped with lithium battery for handling loads in industrial environments. Its compact design and optimized turning radius facilitate logistical flow in narrow corridors and supermarkets.

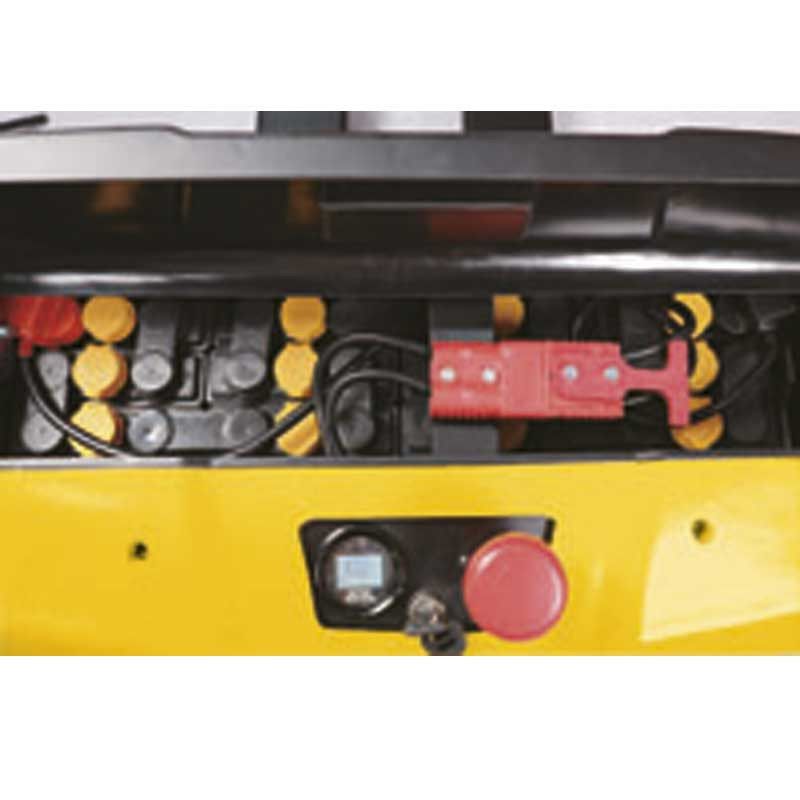

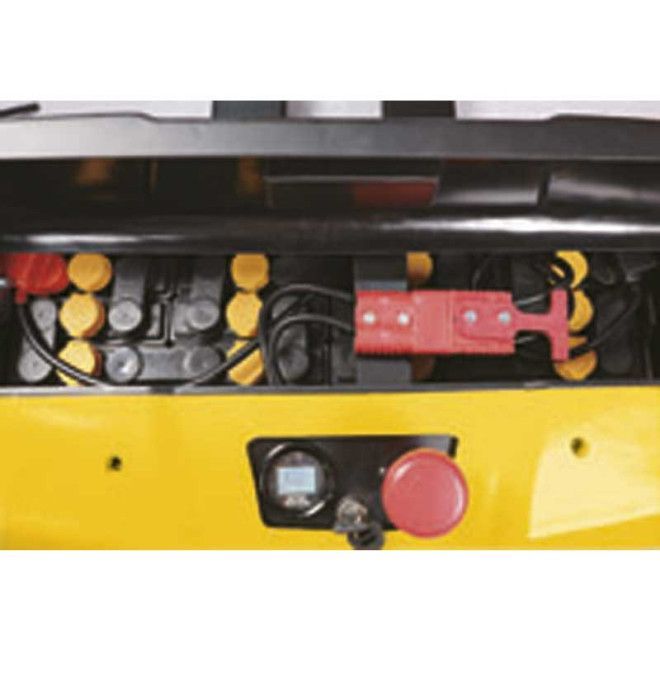

- 24V / 100Ah lithium battery: High performance energy source.
- AC no brush-bone motorization: 1.2kw propulsion with vertical drive motor that ensures energy efficiency and low technical maintenance.
- Dimensions and maneuverability: 1150mm forks and total width of 710mm for precise rotation in reduced workspaces.
- Security and regulations: System with emergency stop, stability wheels and compulsory EC certification according to current European regulations.
The lithium electric transparent with driver on foot is an efficient and safe tool for loading loads up to 2,000 kg in all types of environments.
The lithium battery provides reliable and durable power, with shorter loading times and a longer shelf life compared to traditional lead-acid batteries. In addition, lithium batteries do not require maintenance and are lighter, which contributes greater efficiency and ease of management.
BASIC CHARACTERISTICS:
● Mango Ruyi

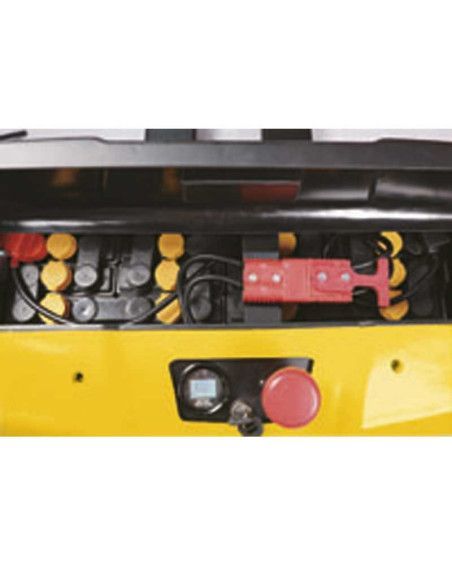

● Emergency stop and navel
● BDI and hour counter

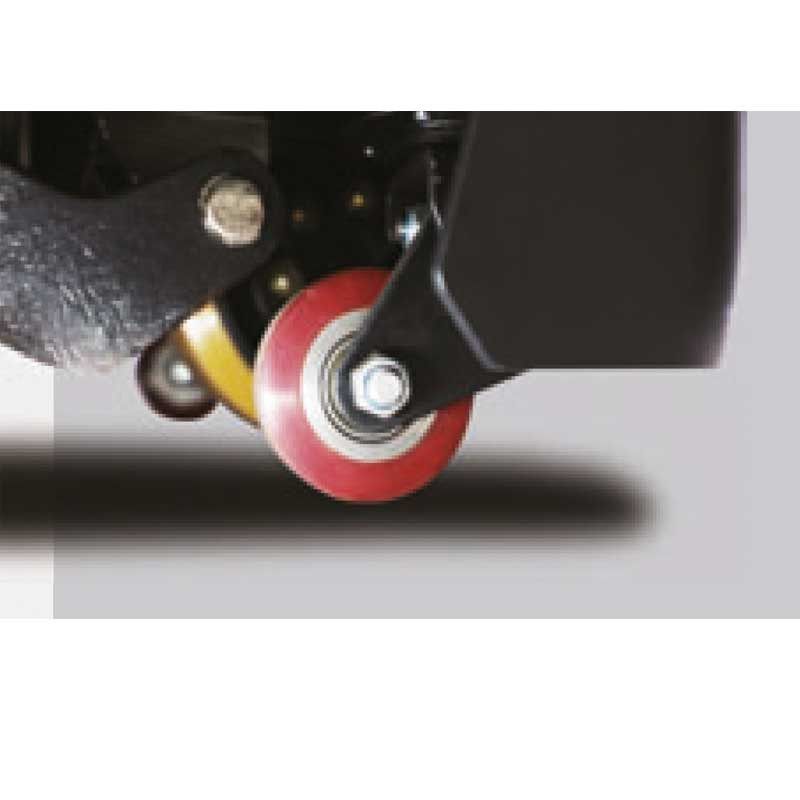

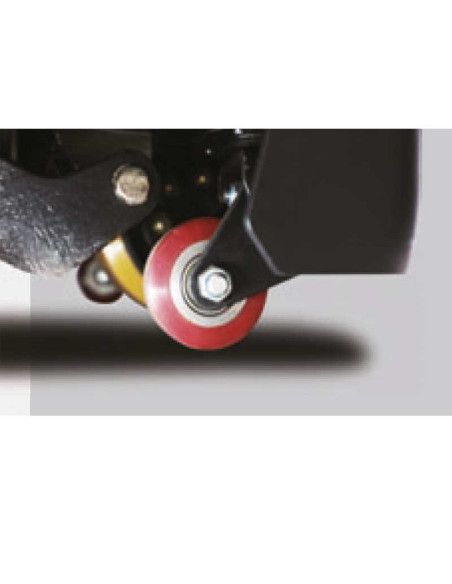

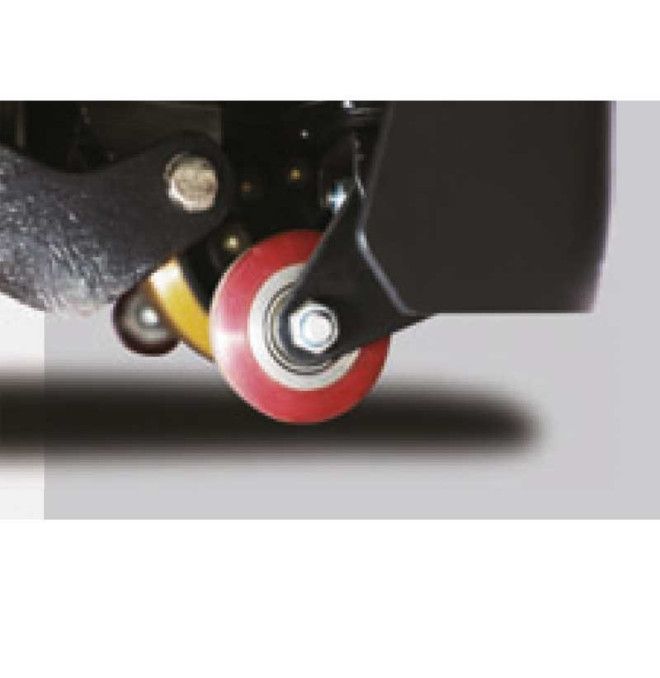

● Wheels to balance stability.
● Industrial battery
● Bless AC engine
● Vertical drive motor
● Side battery change
● Built-in charger
● Platform with speed sensor
● 24V / 100Ah lithium battery
Optional:
● Width and long fork (size)
● Cargo backup
● Built-in charger
● Refrigerator camera with rubber drive wheel.
● Input and output roller for empty pallets.

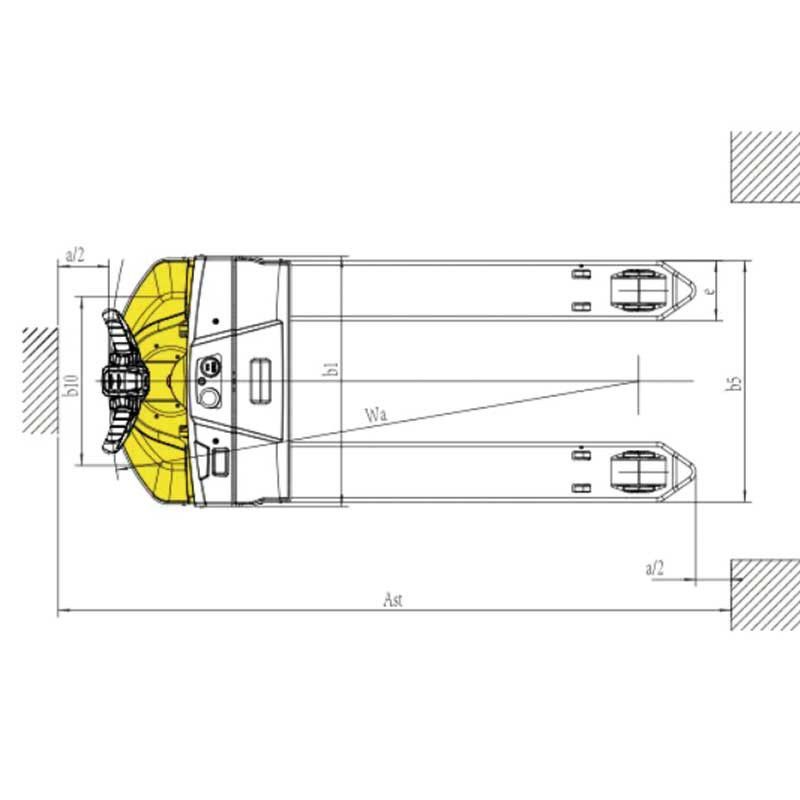

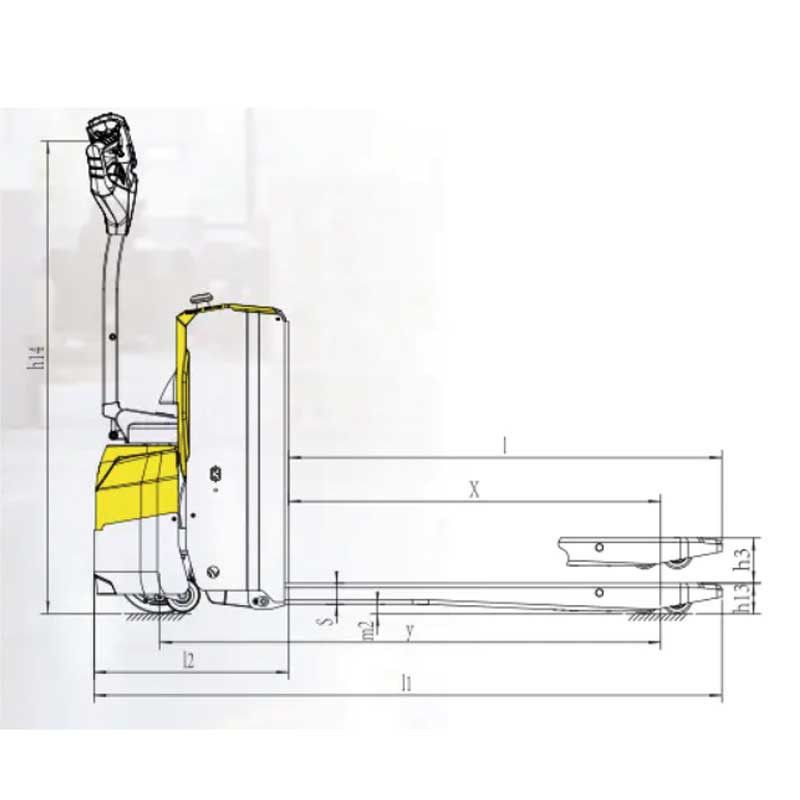

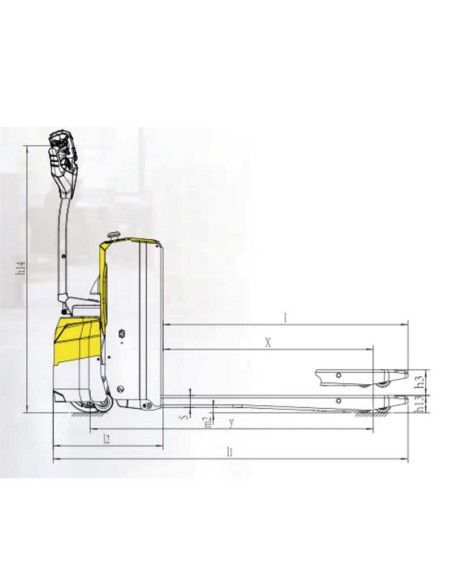

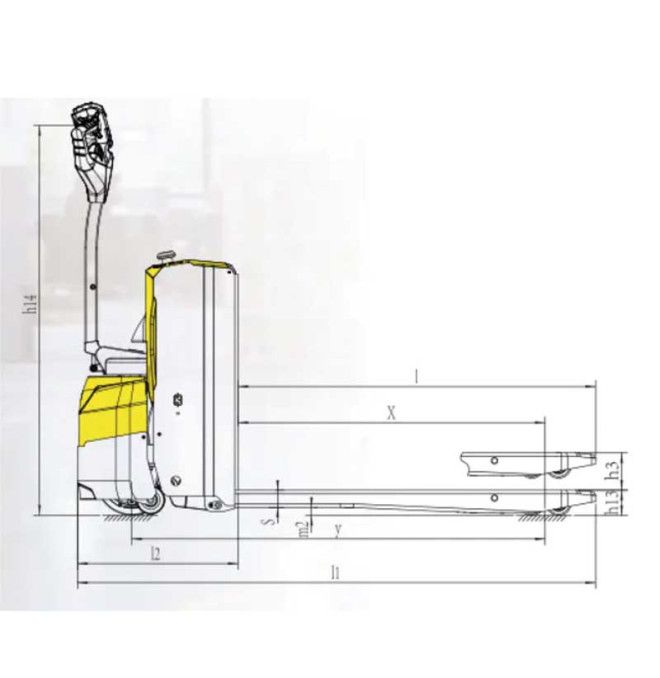

Technical characteristics:

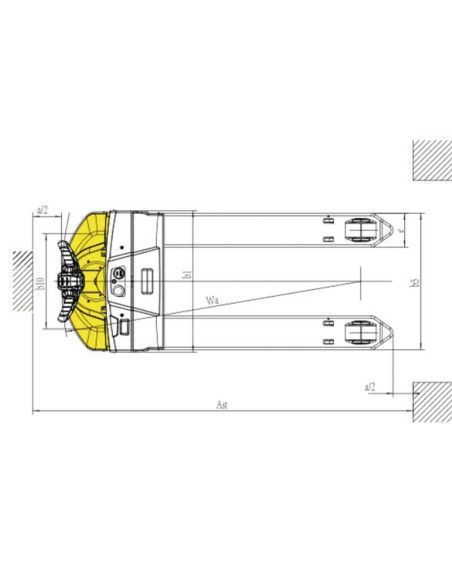

| 1.2. Model | Te20kd-I | |
| 1.3. TYPE | Electrical | |
| 1.4. Driver | standing | |
| 1.5. Load capacity | Q (KG) | 2.000 |
| 1.6. Distance from the center of charge | c (mm) | 600 |
| 1 8. Loading distance, Motor shaft center at the fork | x (mm) | 987/1057 |
| 1.9. Axles distance | and (mm) | 1330/1400 |
| 2.1. Service weight | kg | 425 |
| 2.2. Load per shaft, loaded front / rear | kg | 1052/1373 |
| 2.3. Load by shaft, front / rear without load | kg | 326/99 |
| 3.1. Wheels | Polyurethane | |
| 3.2. Front tire size | mm | Φ230x70 |
| 3.3. Tire size. rear | mm | Φ82x106 (98) |
| 3.4. Additional wheels (dimensions) | mm | 478 |
| 3.5. Number of rear front wheels (x = drive wheels) | 1x + 2/2 (4) | |
| 3.6. Tread, front | b10 (mm) | 478 |
| 3.7. Tread, rear | b11 (mm) | 375/515 |
| 4.4. Max. Height lifting | h3 (mm) | 120 |
| 4.9. 1maxima minimum rudder height in driving position | h14 (mm) | 750/1250 |
| 4.15. Fork height, down | h13 (mm) | 81/78 |
| 4.19. Full length | l1 (mm) | 1666/1736 |
| 4.20. Length Up to the face of the forks | l2 (mm) | 516 |
| 4.21. Total width | b1 / B2 (mm) | 710 |
| 4.22. Dimensions of the fork | s / E / L (mm) | 74/170/1150 (1220) |
| 4.25. Total width of the forks | b5 (mm) | 550/685 |
| 4.32. Distance to the ground, center of the axles | m2 (mm) | 27/33 |
| 4.34.1 Hall width for pallets 100x1200 | AST (mm) | 2302/2374 |
| 4.34.2 Hall width for pallets 800x1200 | AST (mm) | 2156/2198 |
| 4.35. Spinning radius | WA (mm) | 1504/1574 |
| 5.1. Scroll speed. with 1Sin Load | km / pm | 5.8 / 6 |
| 5.2. Lifting speed, loaded / downloaded | meters /'s | 0.03 / 0.038 |
| 5.3. Descent speed. Charged / Downloaded | meters /'s | 0.04 / 0.036 |
| 5.8. Max. Overlavable pending (loaded / downloaded) | % | 8/20 |
| 5.10. Service brake | Electromagnéticor | |
| 6.1. Control engine 60min. | kw | 1.2 |
| 6.2. Lifting motor in S3 15% | kw | 0.8 / 1.2 |
| 6.4. Lithium battery voltage, Nominal capacity KS (Mastildulplex) | (V) / (Oh) | 24/100 |
| 6.5. Battery weight | kg | 80 |
| 10.7 Sound pressure level in the driver's seat | dB (A) | 70 |
- TYPE
- Lithium
- Load capacity (kg)
- 2000
- Lifting height (mm)
- 120
- Horquillas (mm)
- 1150x550
- Battery
- Lithium
- Lifting system
- Electric
- Total length (mm)
- 1775
- Weight (kg)
- 620
- Width (mm)
- 775
- Description
- Eléctrica
- Height Min. (mm)
- 82
- Drums
- 24V - 230 Ah
- Length fork (mm)
- 1150
- Rudder
- Polyurethane
- Rolls
- Polyurethane
- Traction motor (KW)
- 2.0
- Lifting motor (KW)
- 2.2
- Regulations
- EC
