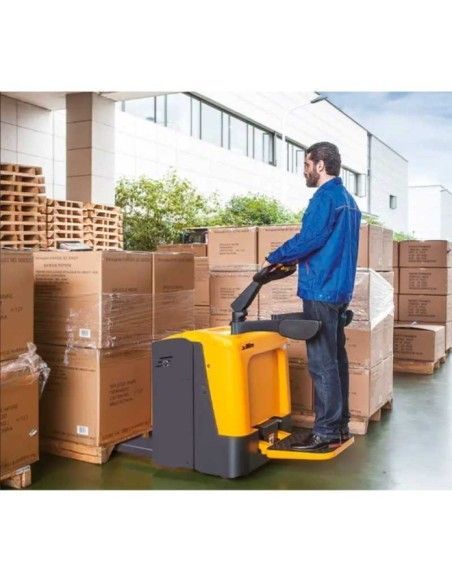

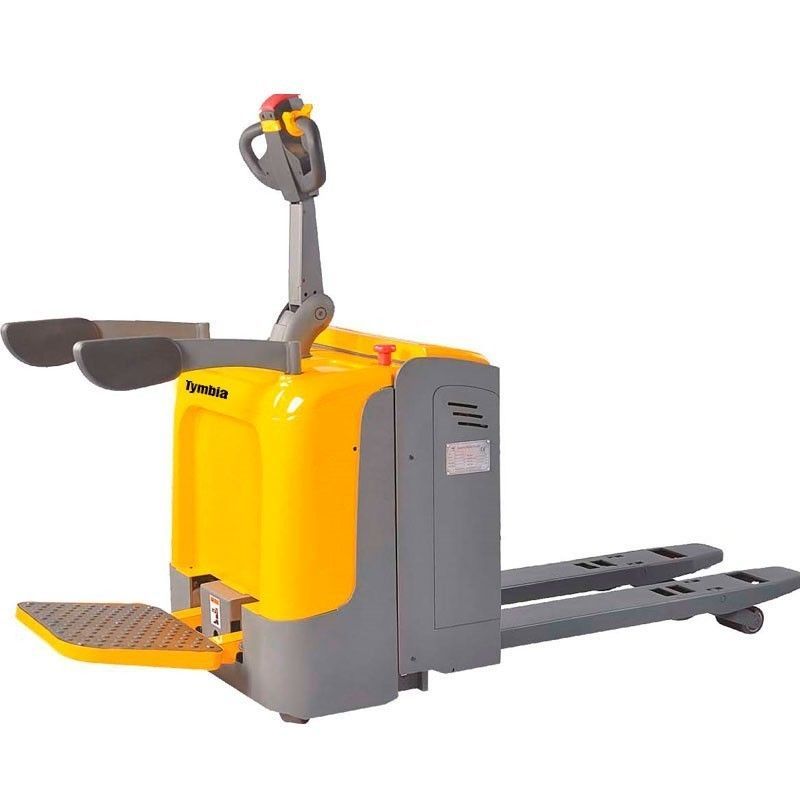

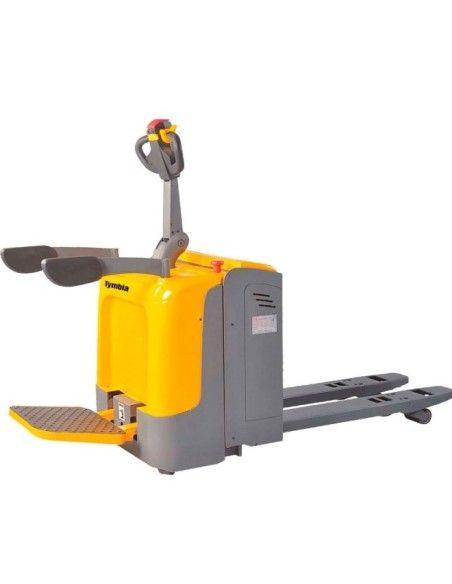

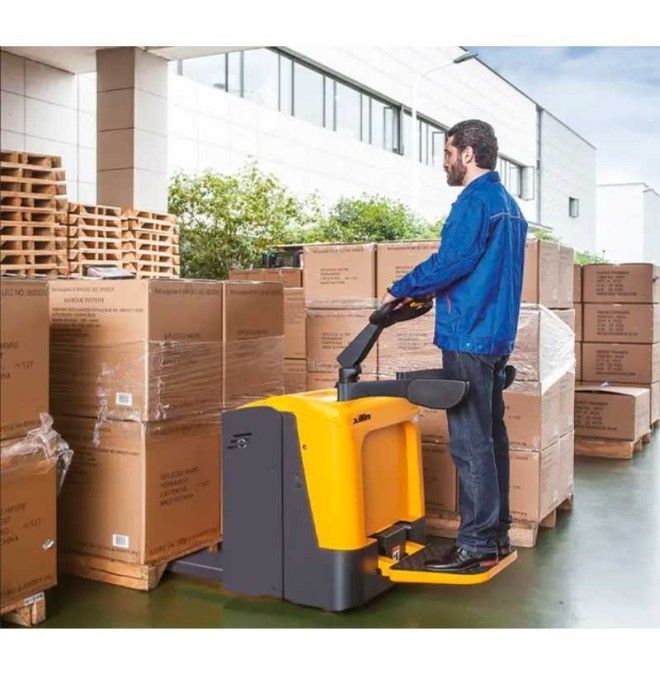

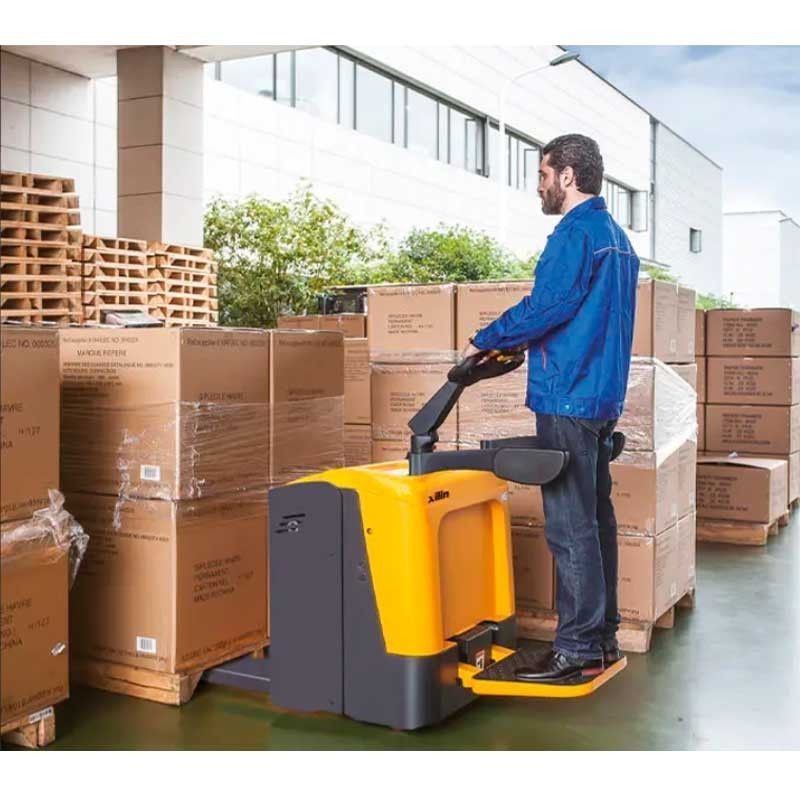

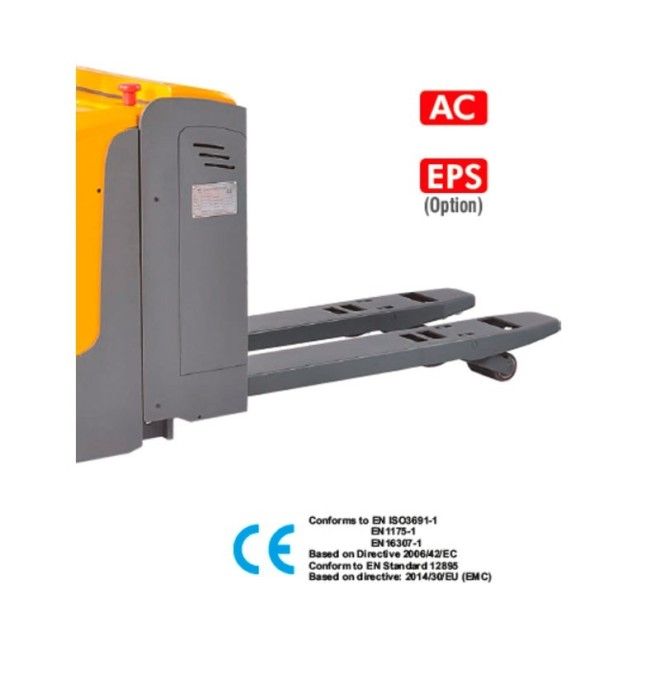

Electric pallet truck 2000kg with platform and lithium battery
M101040077
€8,490.00
8.490,00 € (tax incl.)
Electric Transparet of 2,000kg with platform for foot driver and lithium battery. It optimizes the medium distance transport in department stores through a light steering system and high energy efficiency.
- 24V / 150AH lithium battery: It supplies constant power with fast burden and high energy efficiency in industrial environments.
- 2,000kg capacity: Incorporates 1,2kw brushless AC motor for the efficient movement of heavy loads.
- Assisted address EPS Plus: It allows precise maneuvers with 1550mm spinning radius and ergonomic platform for the operator.

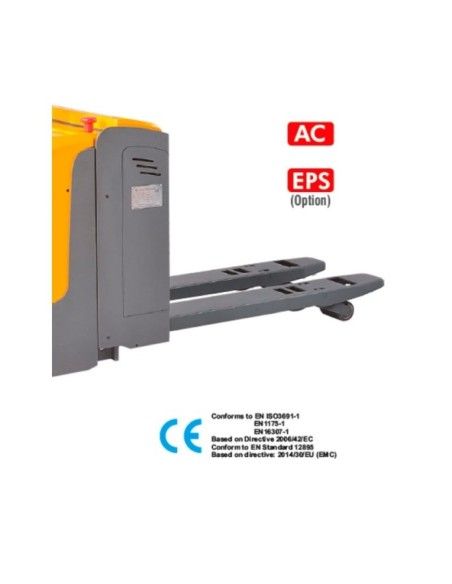

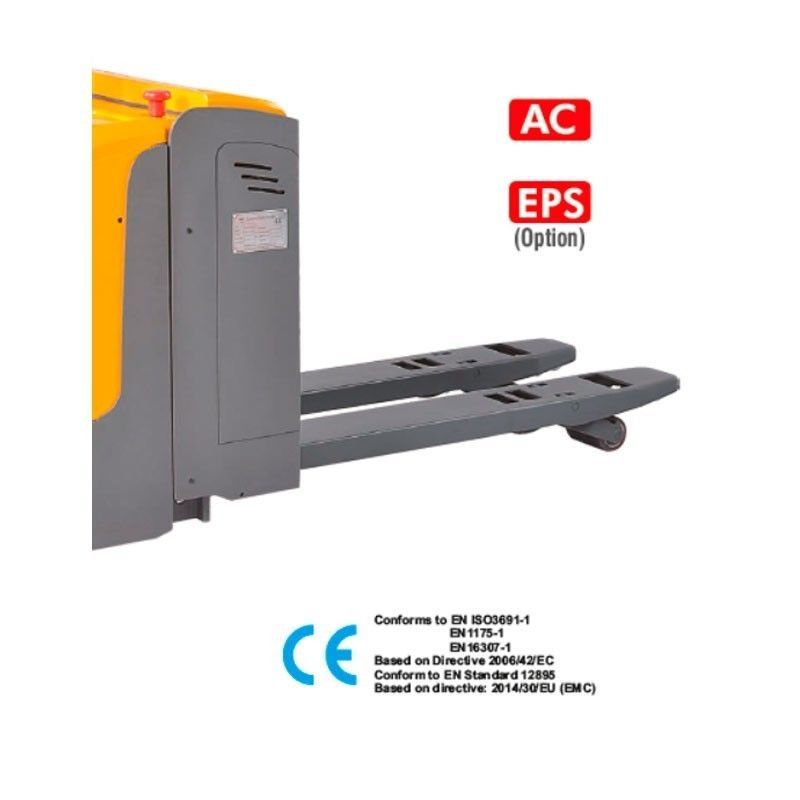

- Industrial Safety: It has an emergency stop, electromagnetic brake and compulsory EC certification according to European regulations.
Electric water transparent with 2,000kg platform and lithium battery with standing conductor is an efficient tool widely used in department store and large supermarkets for medium away transport.
Lithium batteries are an excellent choice for industrial applications and material handling due to their reliable power, shorter loading times, longer, low maintenance, light weight and energy efficiency
BASIC CHARACTERISTICS:

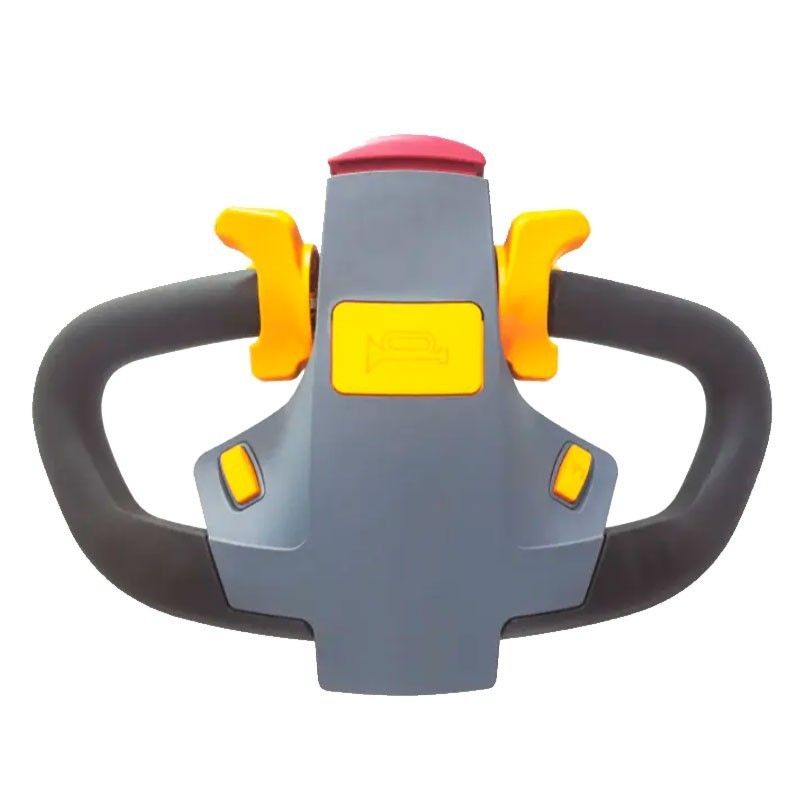

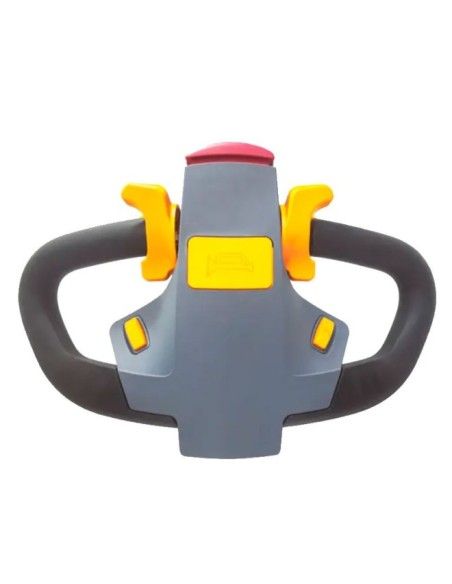

● Mango Ruyi
● Emergency stop and navel
● BDI and hour counter
● Wheels to balance stability.
● Industrial battery
● Bless AC engine
● Vertical drive motor
● Side battery change
● Built-in charger
● Platform with speed sensor
● Handles 1150x500mm
● EPS Plus (power steering)
● 24V / 150Ah lithium battery
Optional:
● Width and long fork (size)
● Cargo backup
● Built-in charger
● Refrigerator camera with rubber drive wheel.
● Input and output roller for empty pallets.

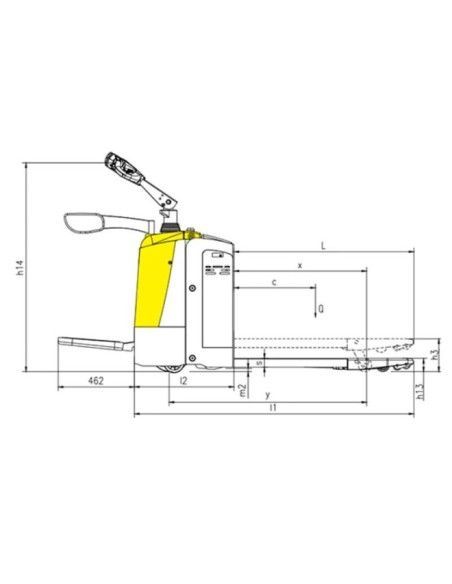

Technical characteristics:
| 1.2. Model | TE20 PLATF. | |
| 1.3. TYPE | Electrical | |
| 1.4. Driver | standing | |
| 1.5. Load capacity | Q (KG) | 2.000 |
| 1.6. Distance from the center of charge | c (mm) | 600 |
| 1 8. Loading distance, Motor shaft center at the fork | x (mm) | 914/964/1034 |
| 1.9. Axles distance | and (mm) | 1211/1261/1331 |
| 2.1. Service weight | kg | 710 |
| 2.2. Load per shaft, loaded front / rear | kg | 1300/1410 |
| 2.3. Load by shaft, front / rear without load | kg | 660/160 |
| 3.1. Wheels | Polyurethane | |
| 3.2. Front tire size | mm | Φ250x70 / φ250x80 |
| 3.3. Tire size. rear | mm | Φ82x126 (98) |
| 3.4. Additional wheels (dimensions) | mm | Φ127x57 |
| 3.5. Number of rear front wheels (x = drive wheels) | 1x + 2/2 (4) | |
| 3.6. Tread, front | b10 (mm) | 537 |
| 3.7. Tread, rear | b11 (mm) | 340/370/470/505 |

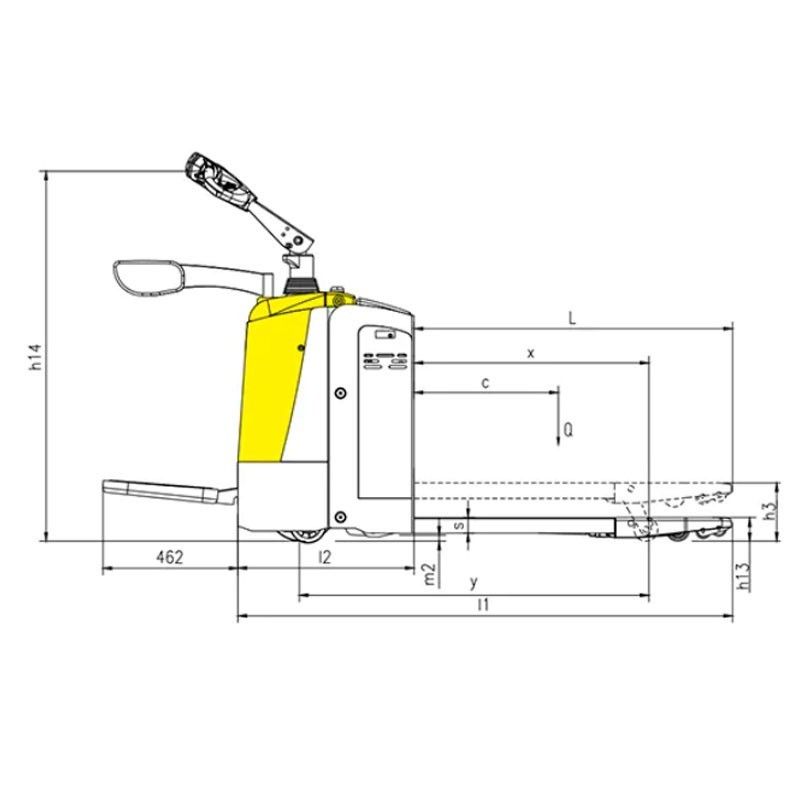

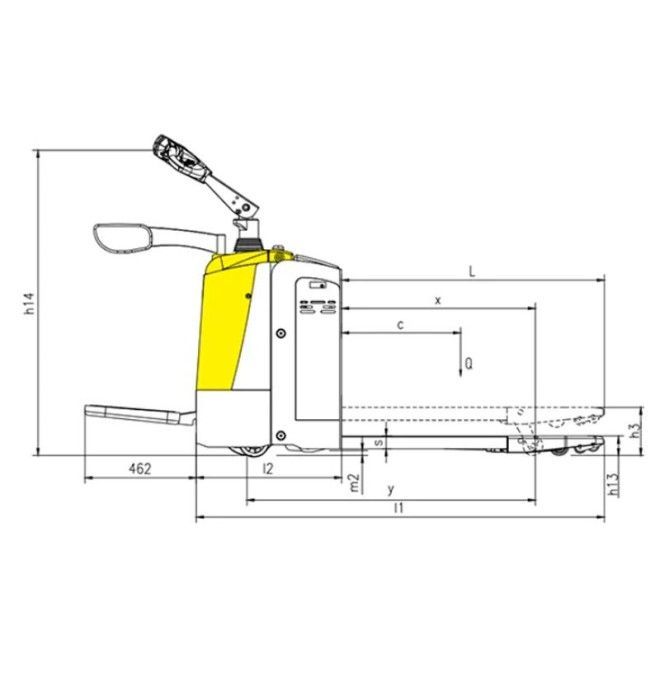

| 4.4. Max. Height lifting | h3 (mm) | 120 |
| 4.9. 1maxima minimum rudder height in driving position | h14 (mm) | 1050/1450 |
| 4.15. Fork height, down | h13 (mm) | 82 |
| 4.19. Full length | l1 (mm) | 1710/1760/1830 |
| 4.20. Length Up to the face of the forks | l2 (mm) | 610 |
| 4.21. Total width | b1 / B2 (mm) | 775 |

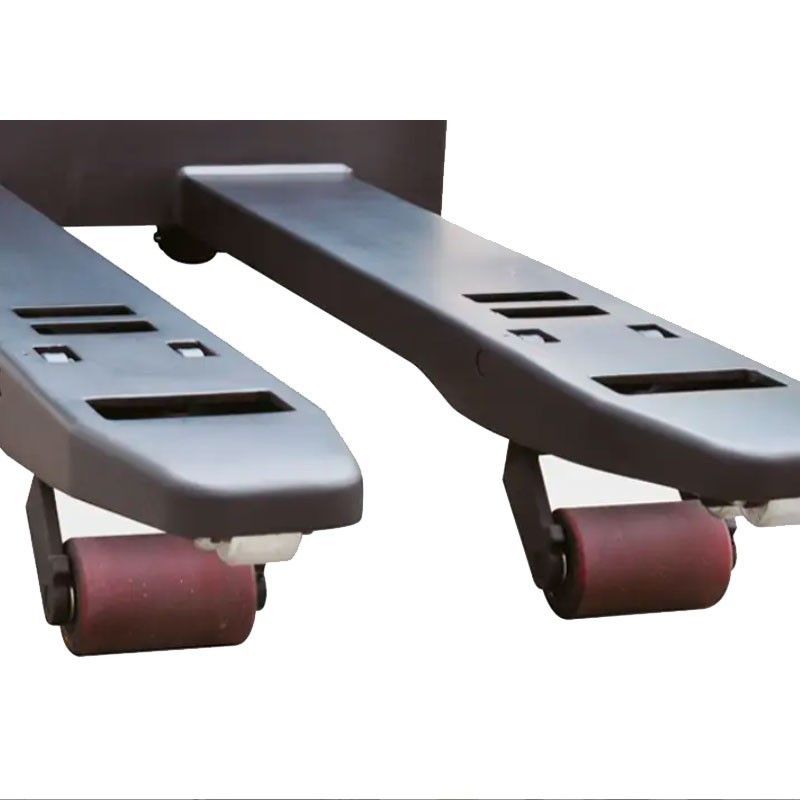

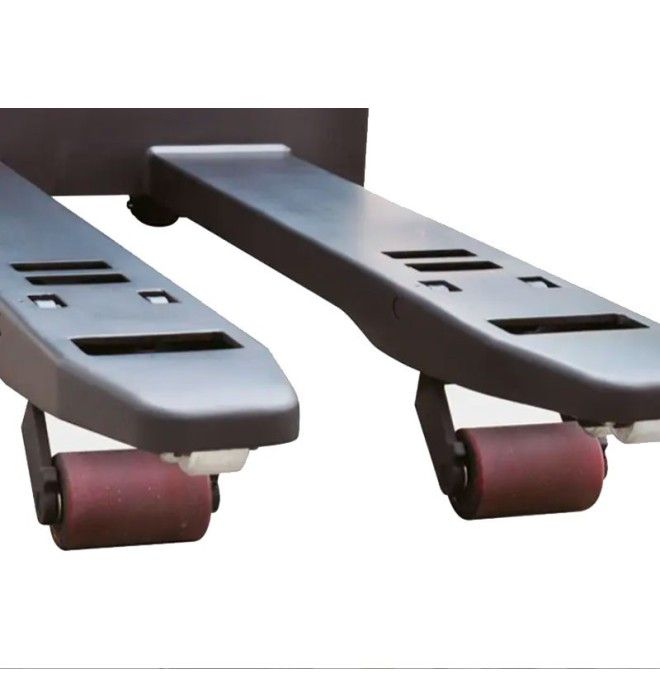

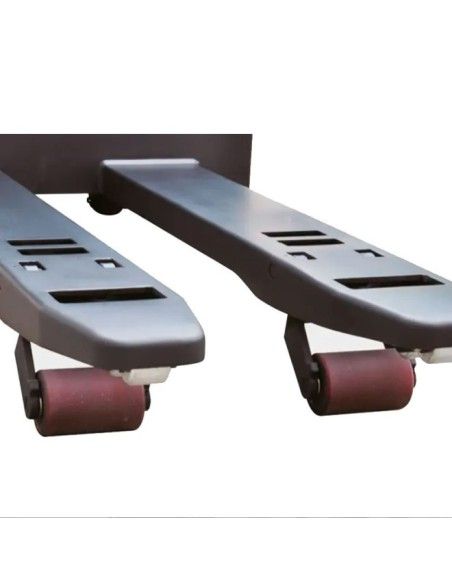

| 4.22. Dimensions of the fork | s / E / L (mm) | 54/180/1100 (1150/1220) |
| 4.25. Total width of the forks | b5 (mm) | 520/550/650/685 |
| 4.32. Distance to the ground, center of the axles | m2 (mm) | 28 |

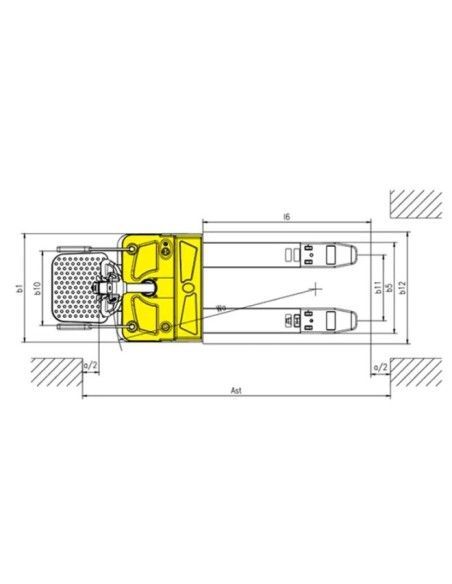

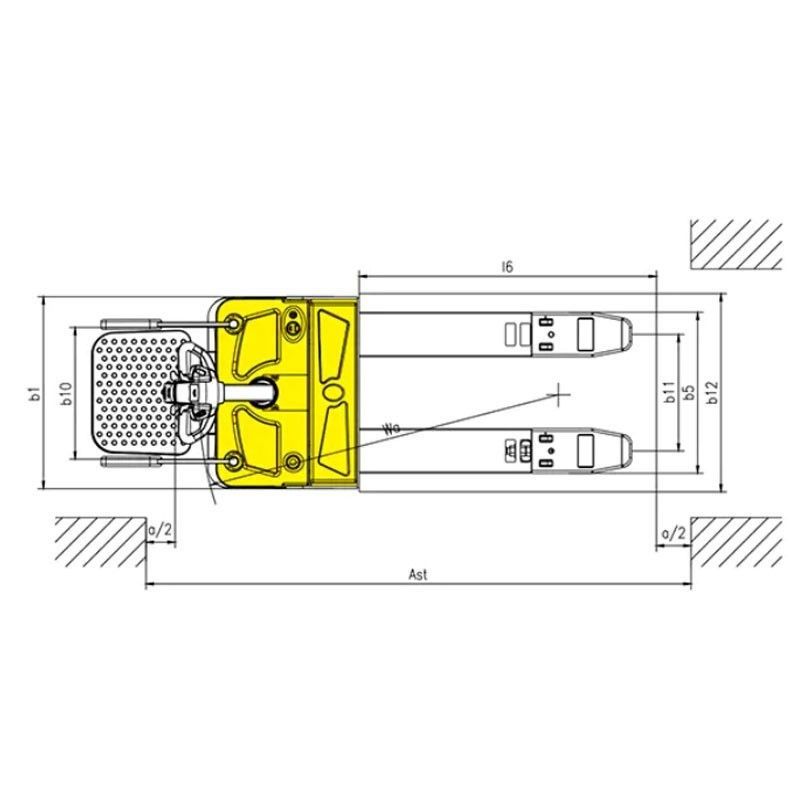

| 4.34.1 Hall width for pallets 100x1200 | AST (mm) | 2360/2405/2475 |
| 4.34.2 Hall width for pallets 800x1200 | AST (mm) | 2245/2270/2305 |
| 4.35. Spinning radius | WA (mm) | 1550/1600/1670 |
| 5.1. Scroll speed. with 1Sin Load | km / pm | 7.0 / 7.1 |
| 5.2. Lifting speed, loaded / downloaded | meters /'s | 0.025 / 0.035 / 0.035 / 0.045 |
| 5.3. Descent speed. Charged / Downloaded | meters /'s | 0.035 / 0.030 / 0.060 / 0.055 |
| 5.8. Max. Overlavable pending (loaded / downloaded) | % | 8/20 |
| 5.10. Service brake | Electromagnéticor | |
| 6.1. Drive motor | kw | 1.2 / 1.5 |
| 6.2. Lifting engine in S3 | kw | 0.8 / 1.2 |
| 6.4. Lithium battery voltage, Nominal capacity KS (Mastildulplex) | (V) / (Oh) | 24/150 |
| 6.5. Battery weight | kg | 60 |
| 10.7 Sound pressure level in the driver's seat | dB (A) | 70 |
- TYPE
- Lithium
- Load capacity (kg)
- 2000
- Lifting height (mm)
- 120
- Horquillas (mm)
- 1150x550
- Battery
- Lithium
- Lifting system
- Electric
- Total length (mm)
- 1710
- Weight (kg)
- 710
- Width (mm)
- 775
- Description
- Eléctrica
- Height Min. (mm)
- 82
- Drums
- 24V - 230 Ah
- Length fork (mm)
- 1100
- Rudder
- Polyurethane
- Rolls
- Polyurethane
- Traction motor (KW)
- 2.0
- Lifting motor (KW)
- 2.2
- Regulations
- EC
