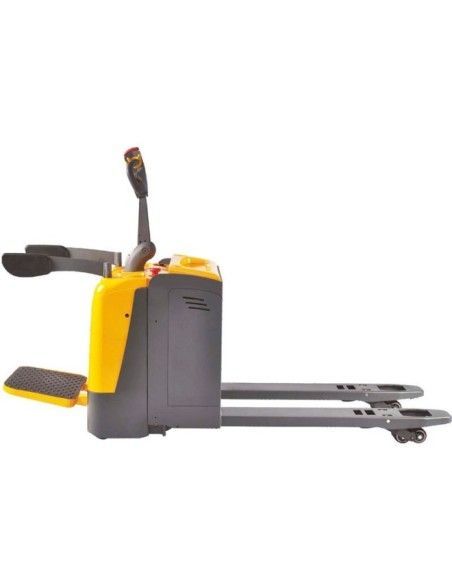

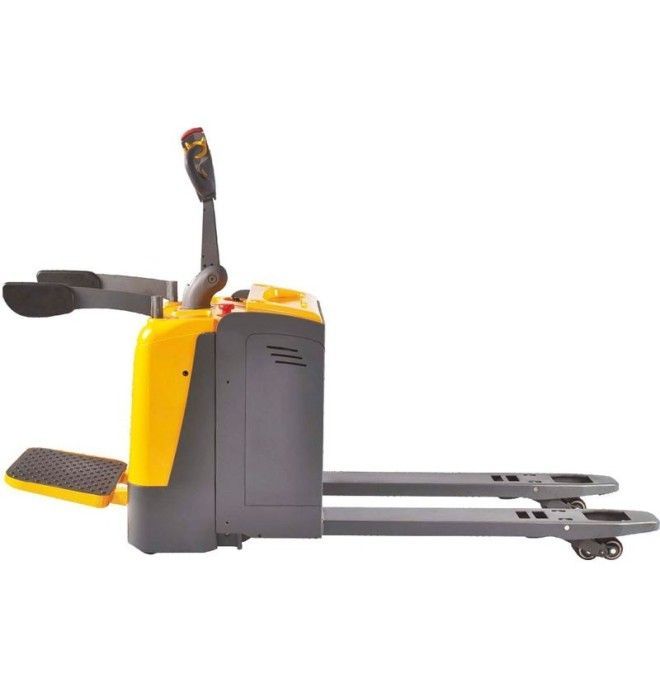

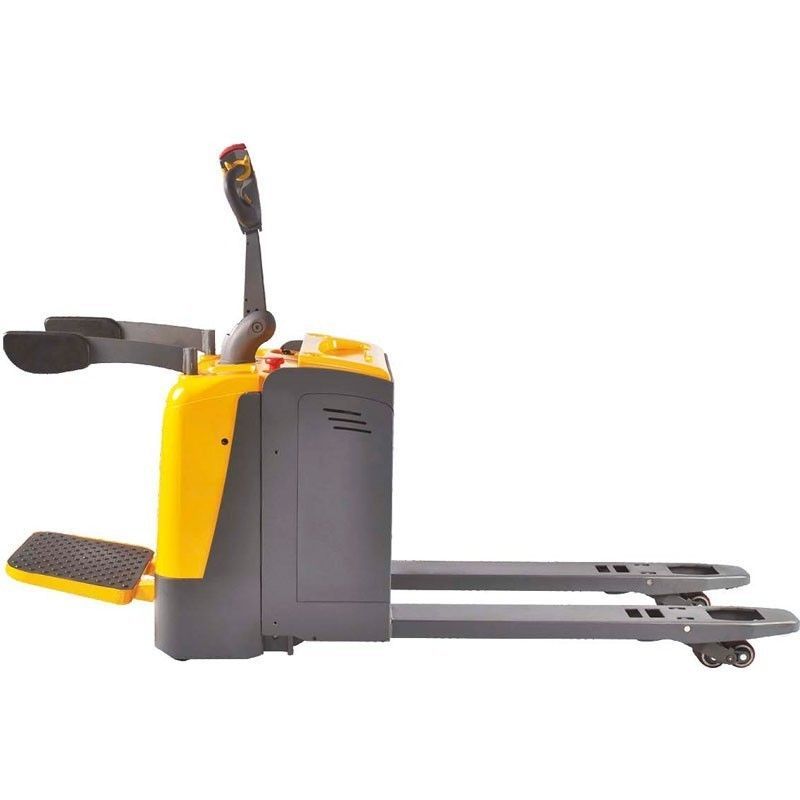

Electric pallet truck 3000kg with platform and lithium battery
M101040079
€8,990.00
8.990,00 € (tax incl.)
Pallet truck with platform and lithium battery for loads up to 3,000kg, perfect for the pallet movement in heavy, high speed transport and ideal for loading dock jobs.
DISPONIBLE IN STOCK, INVIO INMEDIATO.

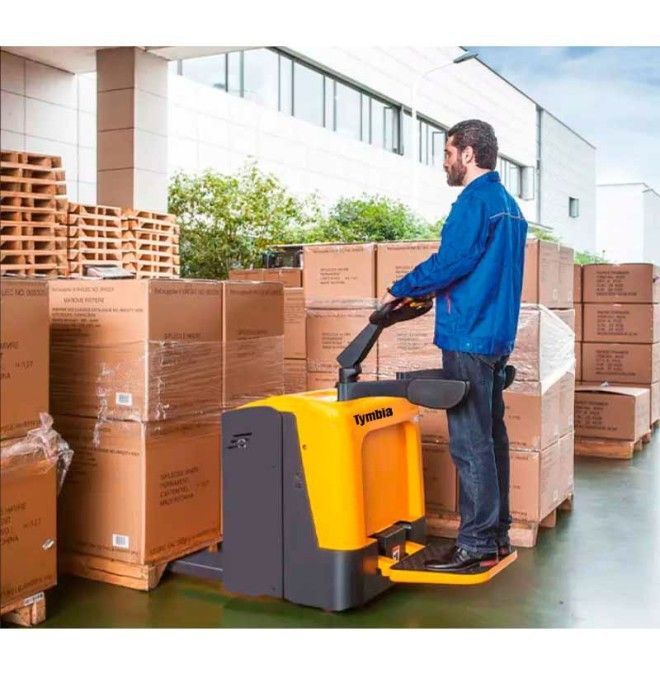

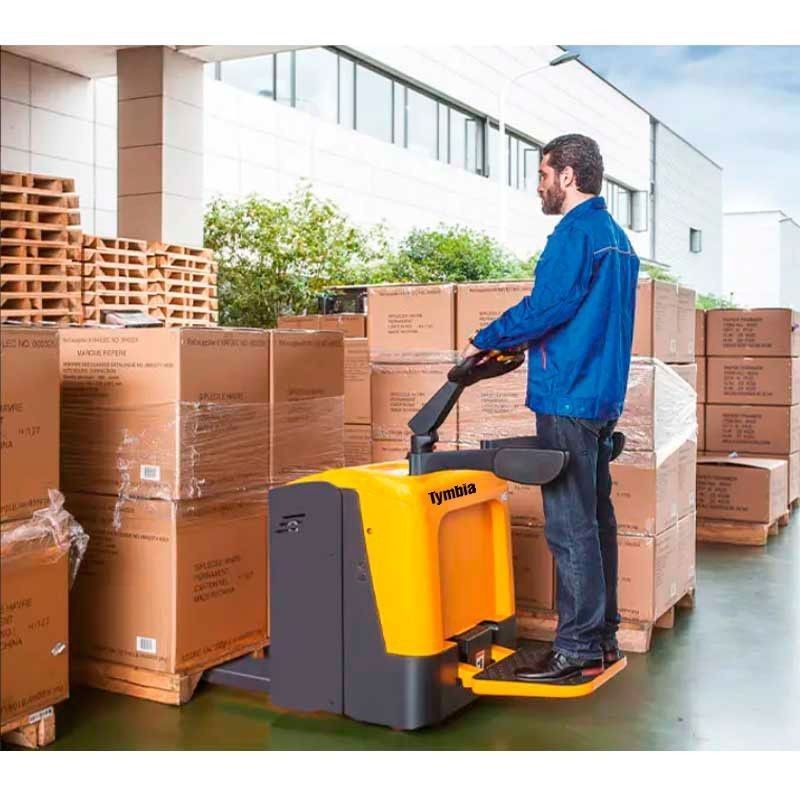

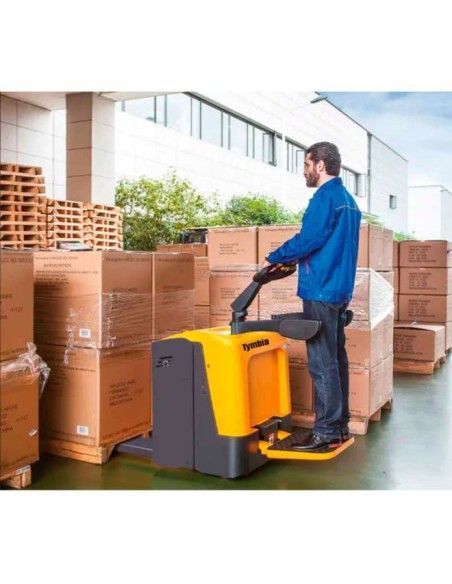

The electric pallet truck with platform and standing driver is a tool efficient and safe for handling heavy loads of up to 3,000 kg in industrial and warehouse environments.
Lithium batteries provide reliable, long-lasting power, with shorter charging times and longer lifespan compared to traditional lead-acid batteries.Additionally, lithium batteries are maintenance-free and lighter, contributing to greater efficiency and ease of handling.
BASIC FEATURES:
● RUYI Mango

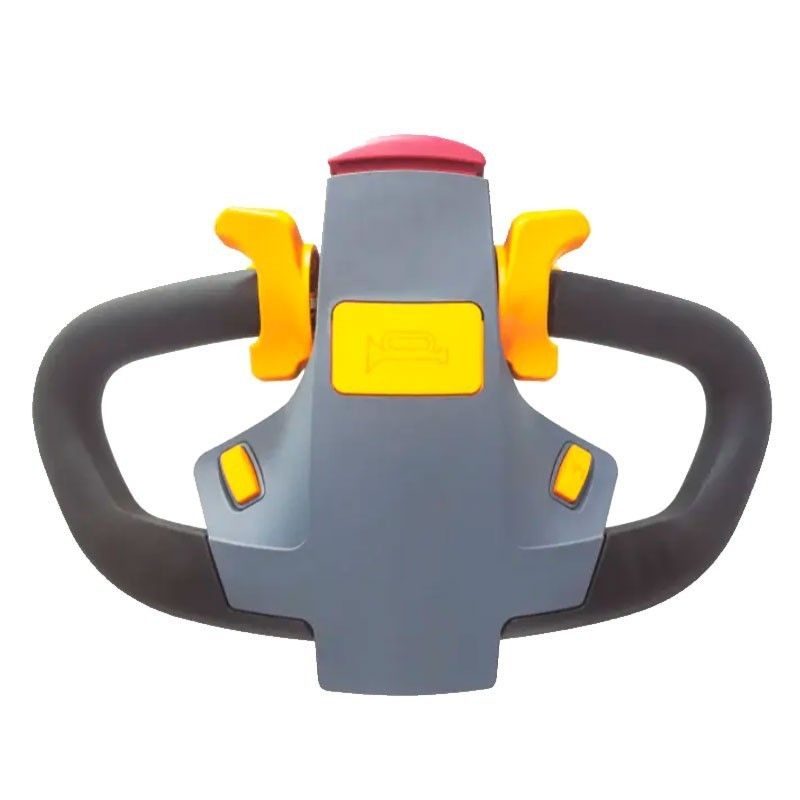

● Emergency stop and navel
● BDI and hour counter
● Wheels to balance stability.
● Industrial battery
● Brushless AC motor
● Vertical drive motor
● Side battery change
● Input charger

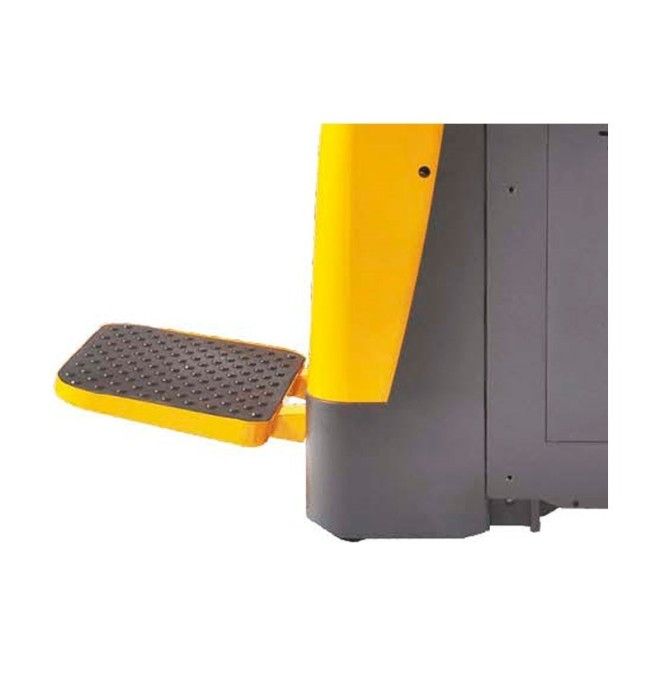

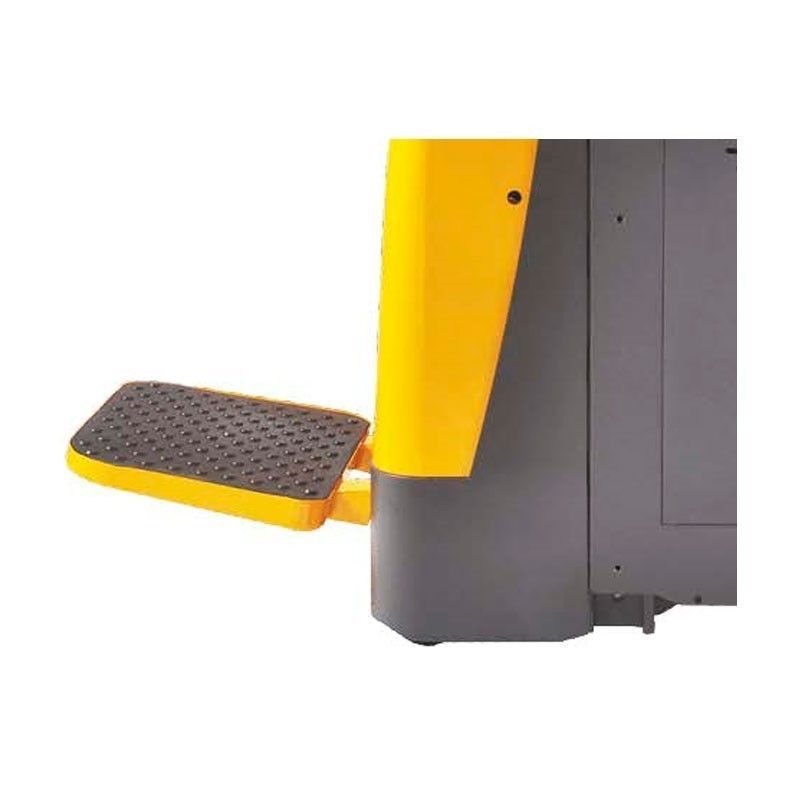

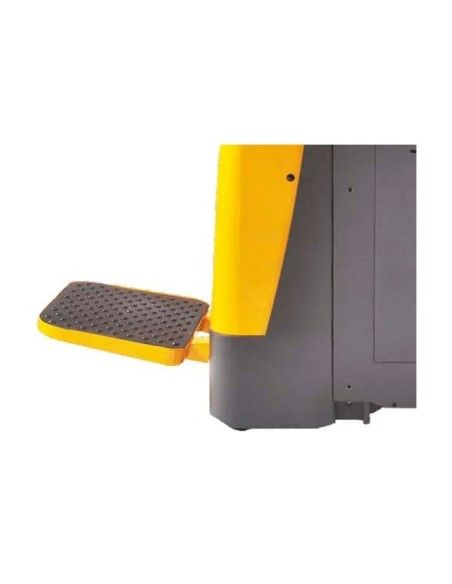

● Platform with speed sensor
● EPS PLUS (power steering)
● 24V/240AH lithium battery
OPTIONAL:

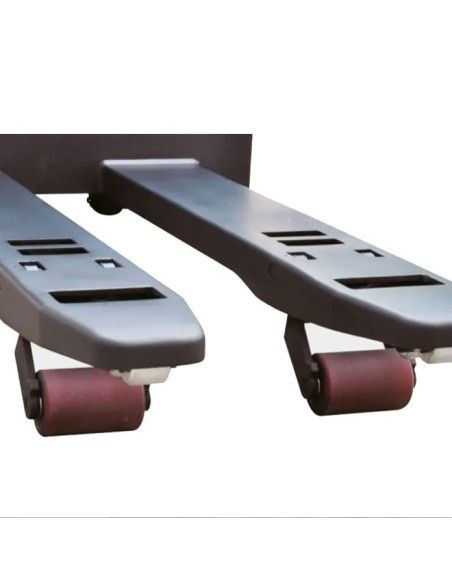

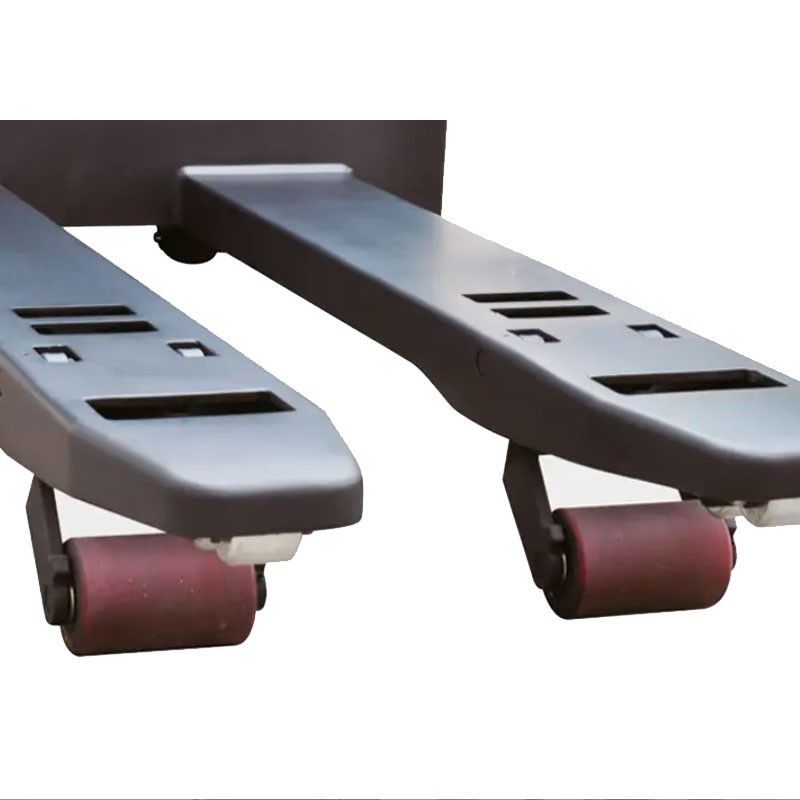

● Width and length of the fork (size)
● Load backup
● Input charger
● Refrigerating chamber with rubber wheel.
● Entrance and exit roller for empty pallets.

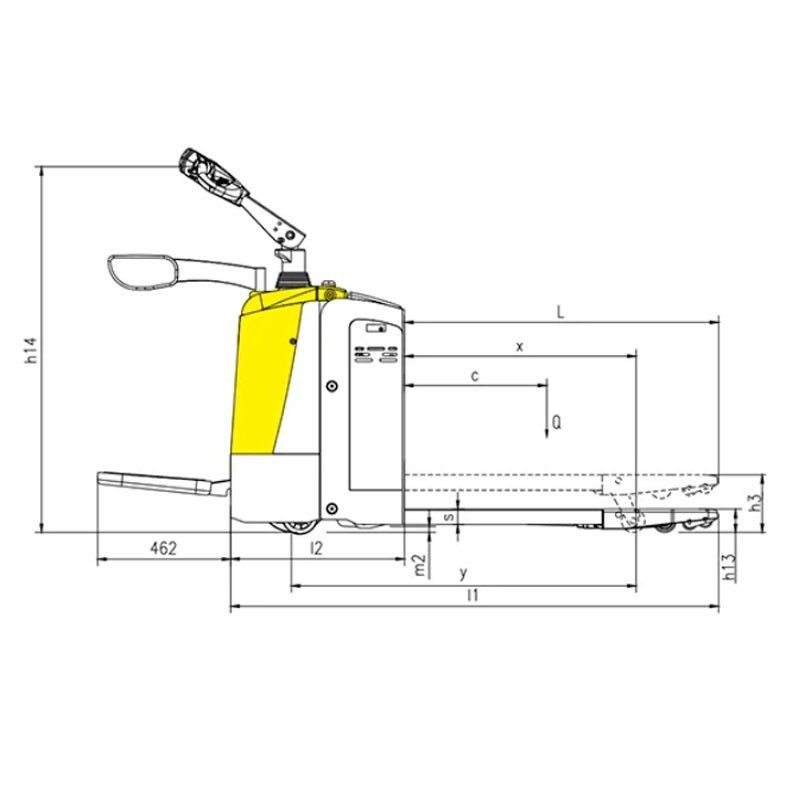

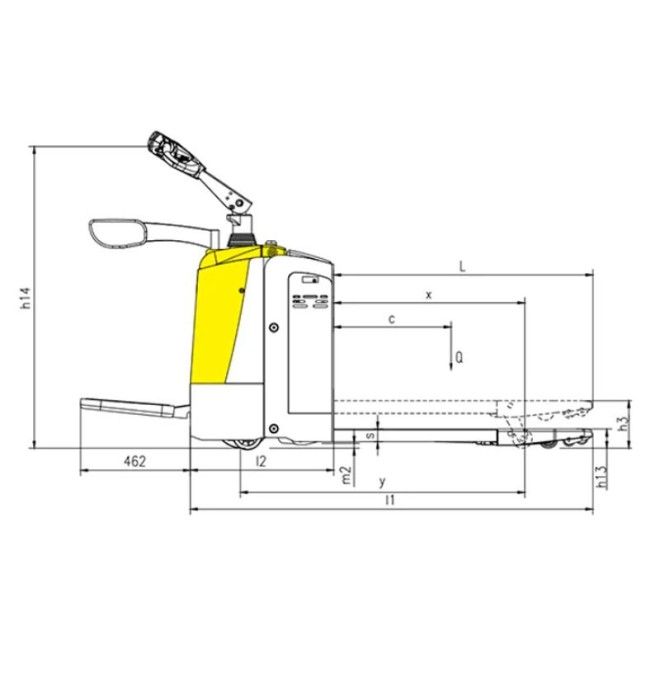

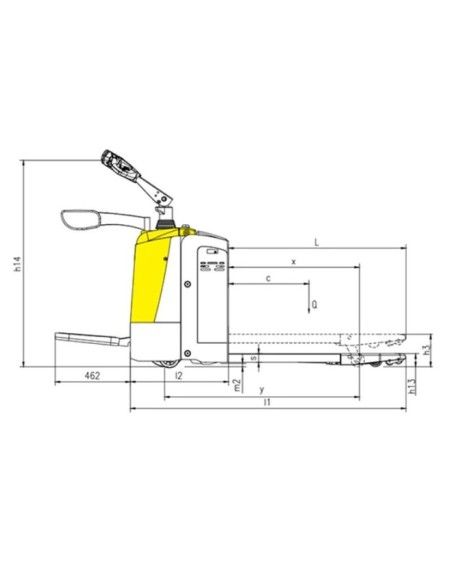

TECHNICAL CHARACTERISTICS:
| 1.2. MODEL | TE30 PLATAF. | |
| 1.3. Kind of | Electric | |
| 1.4.Driver | standing | |
| 1.5.Load capacity | Q (kg) | 3.000 |
| 1.6.Distance from load center | c (mm) | 600 |
| 1 8. Load distance, center of drive axle to the fork | x (mm) | 914/964/1034 |
| 1.9.Distance between axles | and (mm) | 1286/1336/1406 |
| 2.1.Service weight | kg | 820 |
| 2.2.Charge per axle, loaded forward/transfer | kg | 1720/2100 |
| 2.3.Charge per axle, front/loadless rail | kg | 660/160 |
| 3.1.Wheels | Polyurethane | |
| 3.2.Front tyres size | mm | Φ250x80 |
| 3.3.Tyre size. rear | mm | Φ82x126(98) |
| 3.4.Additional wheels (dimensions) | mm | Φ127x57 |
| 3.5.Number of rear front wheels (x = motor wheels) | 1X+2/2(4) | |
| 3.6.Bearing belt, front | b10 (mm) | 537 |
| 3.7.Roller belt, rear | b11 (mm) | 340/370/470/505 |
| 4.4.Max. Lift height | h3 (mm) | 120 |
| 4.9.Minimum height 1maximum of the rudder in driving position | h14 (mm) | 1050/1450 |
| 4.15. Height of the fork, down | h13 (mm) | 82 |
| 4.19. Total length | l1 (mm) | 1785/1835/1905 |
| 4.20. Longitude to the face of the forks | l2 (mm) | 685 |
| 4.21. Total width | b1/b2 (mm) | 775 |

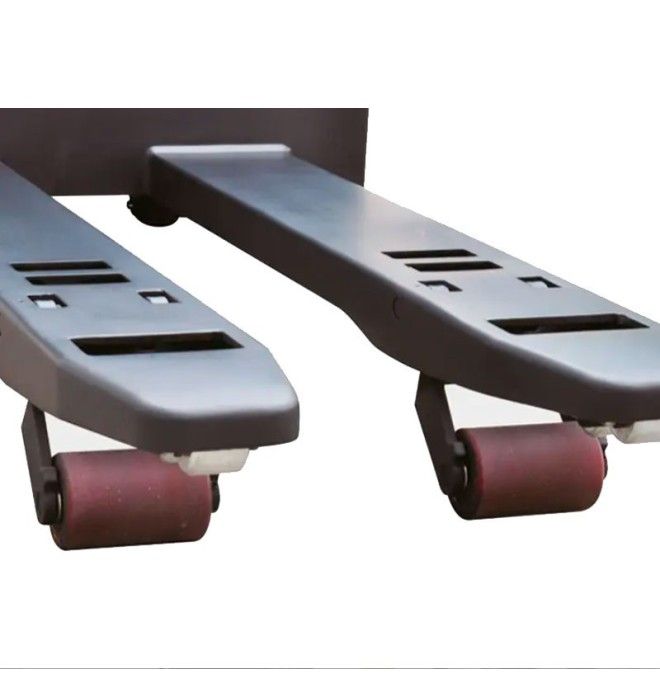

| 4.22. Dimensions of the fork | s/e/l (mm) | 54/180/1100(1150/1220) |
| 4.25. Total fork width | b5 (mm) | 520/550/650/685 |
| 4.32. Distance to the floor, center of distance between axles | m2 (mm) | 28 |

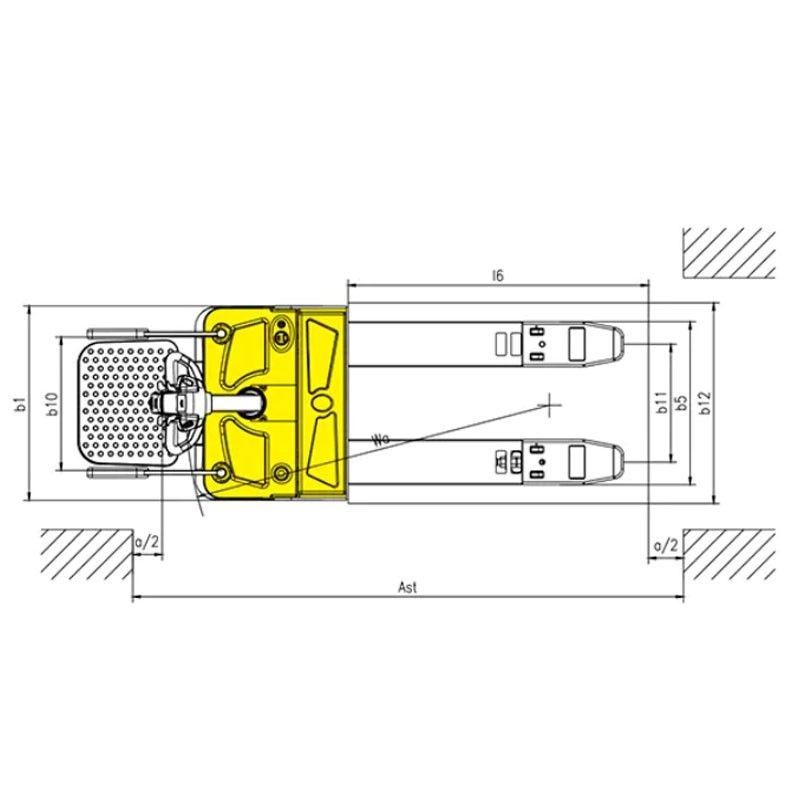

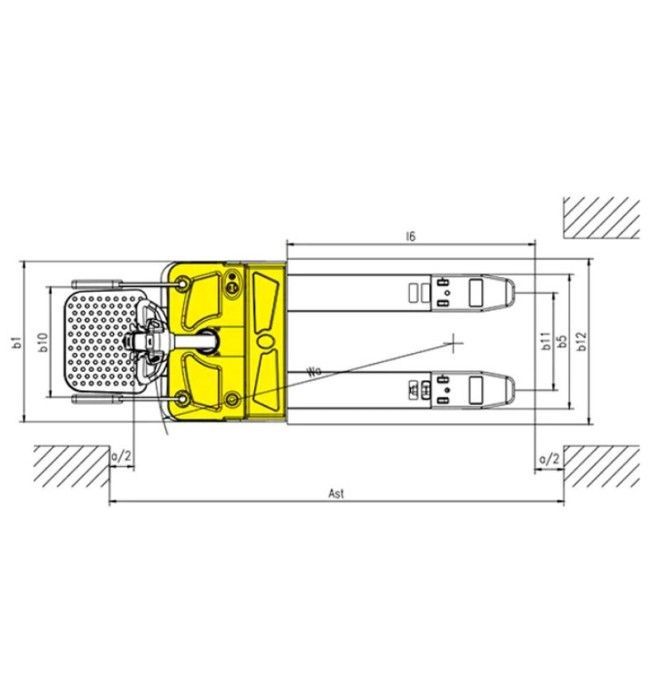

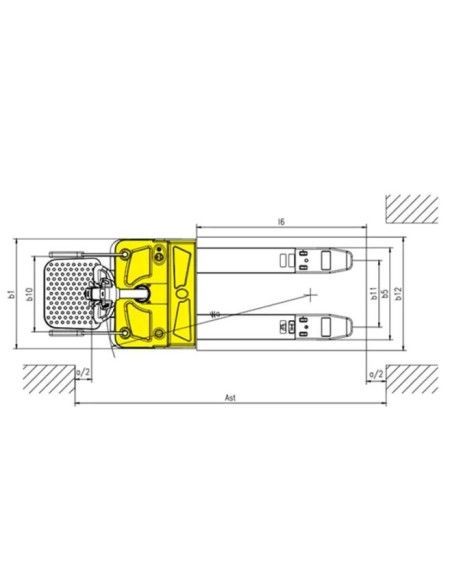

| 4.34.1 Aisle width for pallets 100x1200 | Ast (mm) | 2435/2480/2550 |
| 4.34.2 Aisle width for pallets 800x1200 | Ast (mm) | 2320/2345/2380 |
| 4.35. Radius of rotation | Wa (mm) | 1625/1675/1745 |
| 5.1.Displacement speed. with 1 no charge | km/h | 7.0/7.1 |
| 5.2.Lifting speed, loading/downloading | m/s | 0.039/0.056 |
| 5.3.Decreasing speed. loaded/downloaded | m/s | 0.064/0.050 |
| 5.8.Max. overable slope (loaded/downloaded) | % | 8/20 |
| 5.10. Service brake | Electromagneticor | |
| 6.1.Drive engine | kW | 2.2 |
| 6.2.Lift motor in S3 | kW | 2.2 |
| 6.4.LITHIUM battery voltage, nominal capacity KS (duplex mast) | (V)/(Ah) | 24/240 |
| 6.5.Battery weight | kg | 80 |
| 10.7 Sound pressure level in the driver's seat | dB (A) | 70 |
- TYPE
- Lithium
- Load capacity (kg)
- 3000
- Lifting height (mm)
- 120
- Horquillas (mm)
- 1150x550
- Battery
- Lithium
- Lifting system
- Electric
- Total length (mm)
- 1785
- Weight (kg)
- 820
- Width (mm)
- 775
- Description
- Eléctrica
- Height Min. (mm)
- 82
- Drums
- 24V - 230 Ah
- Length fork (mm)
- 1100
- Rudder
- Polyurethane
- Rolls
- Polyurethane
- Traction motor (KW)
- 2.0
- Lifting motor (KW)
- 2.2
- Regulations
- EC
