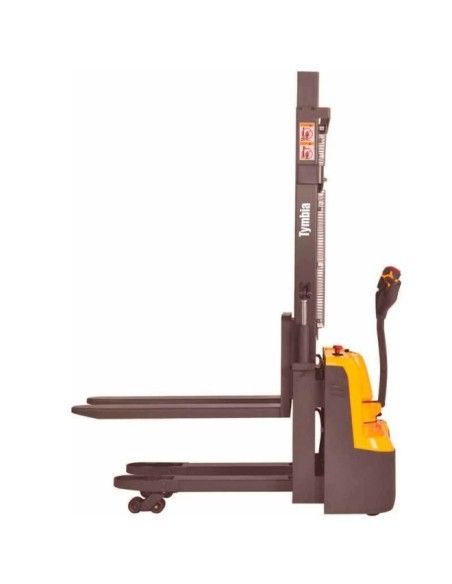

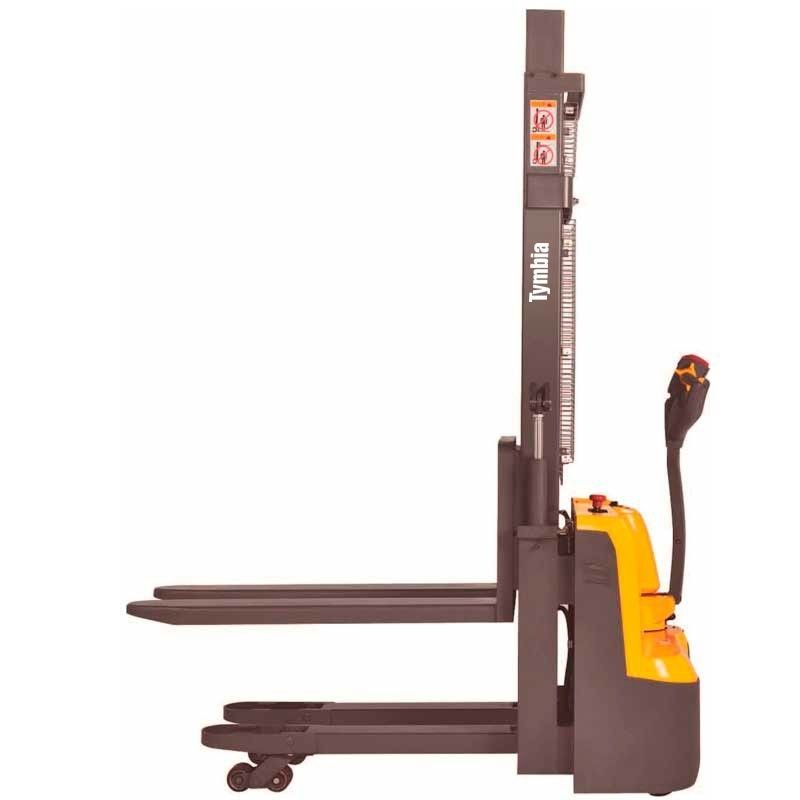

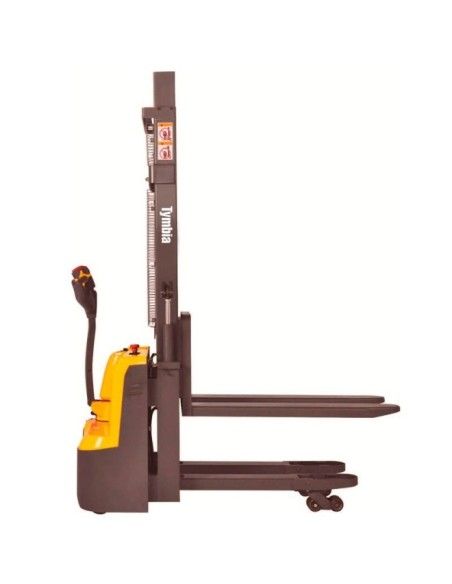

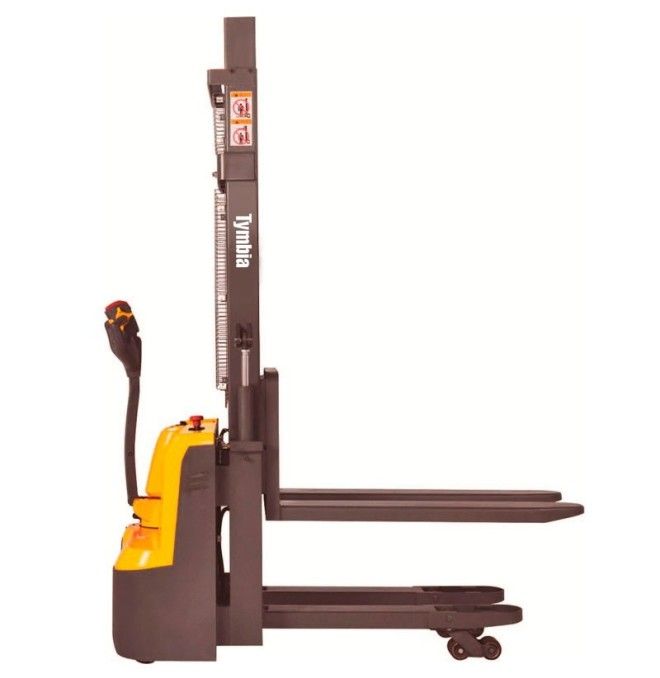

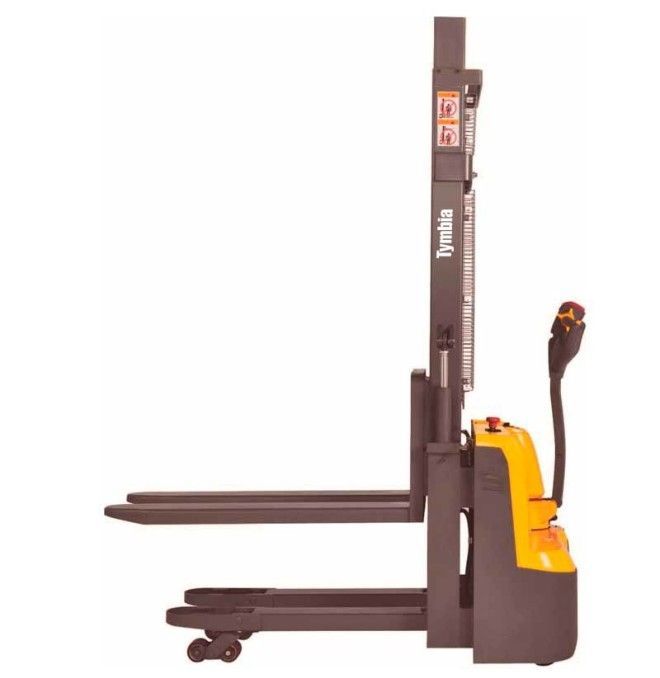

Electric stacker 1200kg to 3000mm with ELEVATION
M102020403
MAD54,041.70
54.041,70 € (tax incl.)
Electric stacker of 1,200 kg, capable of reaching a lifting height of 3,000 mm. with initial elevation, small spinning radio makes it ideal for small warehouses.
Marked CE.
Available in stock, immediate shipping.
Electric stacker 1,200 kg, with lifting height up to 3,000 mm and with initial elevation.
Small turn radio makes it ideal for small warehouses. Equipped with a gel battery for durable performance, this stacker offers smooth and efficient initial lifting.
Improve your productivity and load handling with this versatile and reliable solution.
Our stacker offers a number of advantages that make it ideal for industrial and commercial environments:
- Compact and Excellent Visibility Design: Its compact design and reduced dimensions provide excellent visibility to the operator, which facilitates maneuverability in narrow spaces.
- Improved stability: With a 4-point support structure and a side helm, together with a low-gravity center design, our stacker guarantees excellent stability during operation.
- Double Palette for Greater Efficiency: The double pallet design allows to handle two pallets simultaneously, while the initial lifting of the loading leg increases the distance to the ground, facilitating the passage through ramps and other obstacles.
- Maniobrability and Durability: Equipped with a floor-type wheel that offers a small turning radius, a waterproof and dust-proof engine, our stacker guarantees excellent maneuverability and durability even in difficult environments.
- Braking and Security Performance: Offers good braking performance ramp and has an efficient electromagnetic parking brake, which guarantees security during operation.
- Battery Protection: The BDI with low-voltage cutting device protects the battery and prolongs its useful life, ensuring optimal performance for longer.
- Height of the Adjustable Balance Wheel: The height of the equilibrium wheel is adjustable, which guarantees the life of the motor wheel and contributes to the optimal performance of the stacker.
- Quiet operation: Developed to generate little noise and equipped with a pretty engine, our stacker guarantees a quieter and comfortable working environment.
Discover how our stacker can improve efficiency and safety in your workplace.

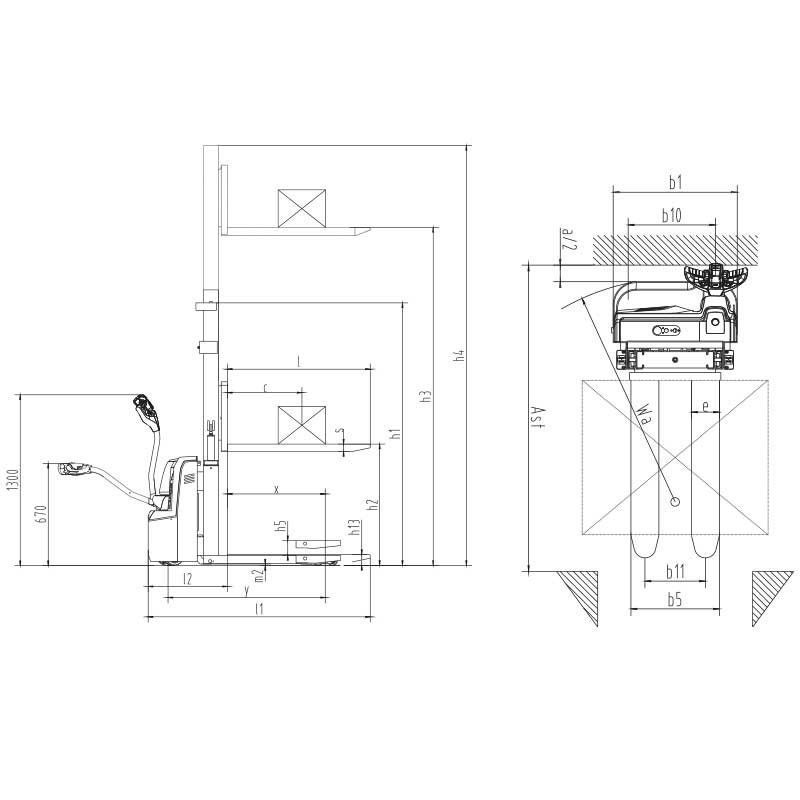

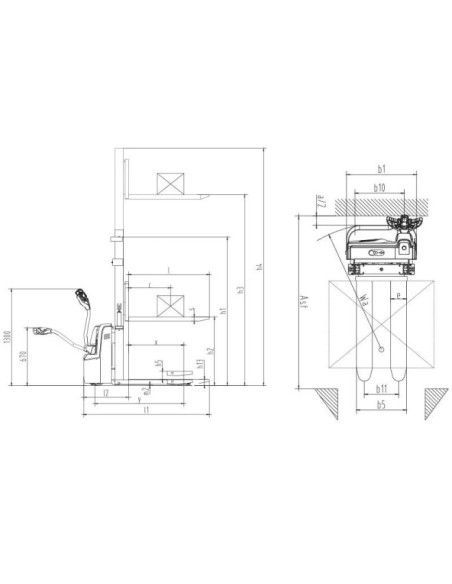

| 1.2.MODEL | AE12.30 ELEV.INICIAL | |
| 1.3. Kind of | Eléctricor | |
| 1.4.Operator | Walk | |
| 1.5.Load capacity | Q (kg) | 1200 |
| 1.6.Distance from load center | c (mm) | 600 |
| 1 8. Freight distance, center drive to the fork | x (mm) | 788 |
| 1.9.Distance between axles | and (mm) | 1268 |
| 2.1.Service weight | kg | 675/740/760/775 |
| 2.2.Axle load, front/back - with load | kg | 814/1146 |
| 2.3.Charge per axle, front / back - without charge | kg | 235/525 |
| 3.1.Wheels | Polyurethane | |
| 3.2.Front tyres size | ≈195x70 | |
| 3.3.Tyre size. rear | ≈80x70 | |
| 3.4.Additional wheels (dimensions) | ≈150x60 | |
| 3.5.Number of rear front wheels (x = motor wheels) | 1x+1/4 | |
| 3.6.Front belt | b10 (mm) | 523 |
| 3.7.Rear belt | b11 (mm) | 390 |
| 4.2.Repleted mast height | h1 (mm) | 2122/1872/2122/2272 |

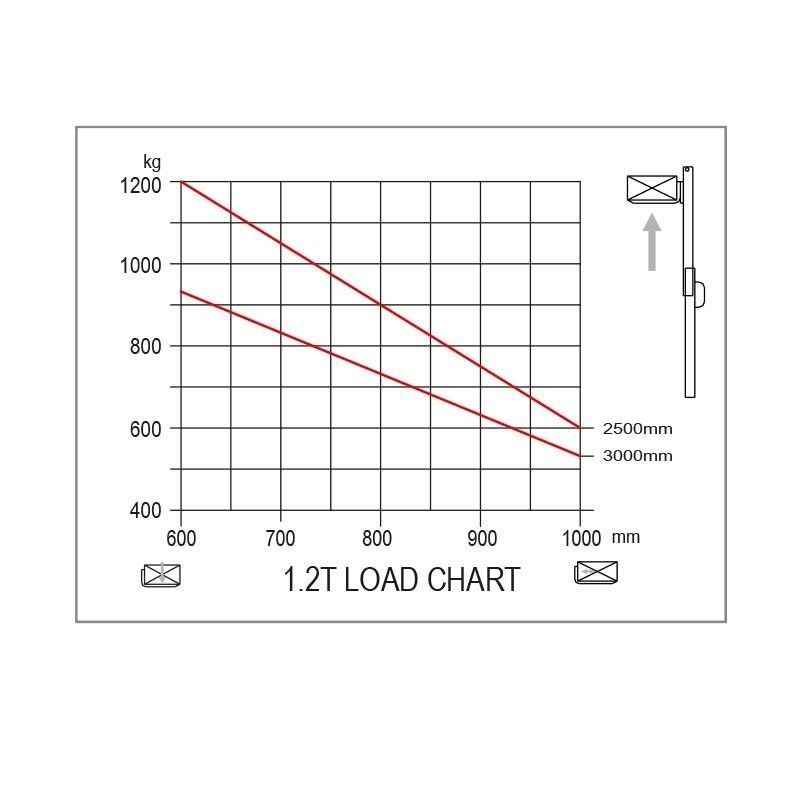

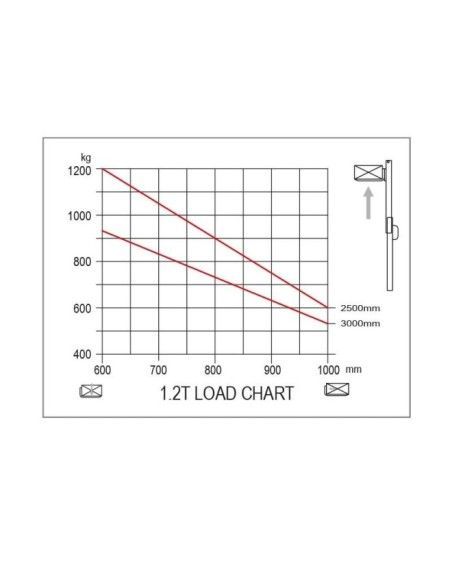

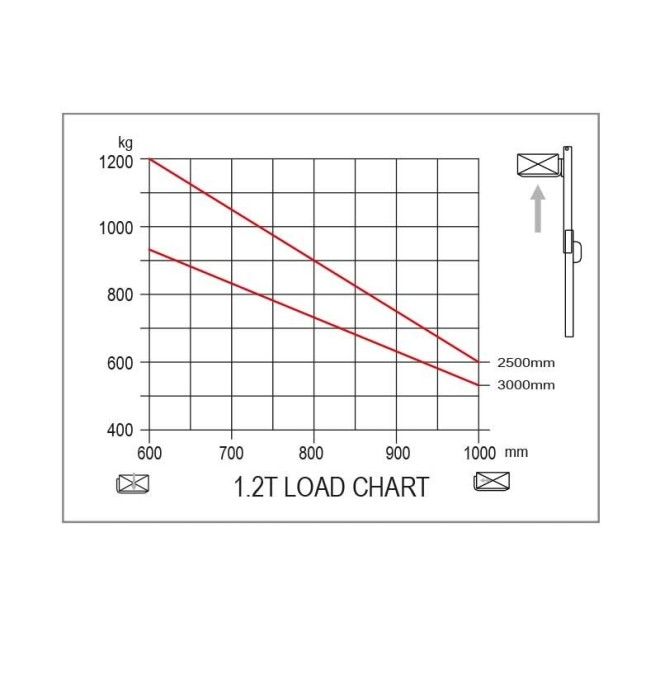

| 4.4.Maximum lifting height | h3 (mm) | 1600/2500/3000/3300 |
| 4.5.Extended mast height | h4 (mm) | 2122/3092/3592/3892 |
| 4.6.Initial elevation | h5(mm) | 120 |
| 4.9.Minimum height 1maximum of the rudder in driving position | h14 (mm) | 670/1300 |
| 4.10. Height of arms of wheels | h8 (mm) | 82/202 |
| 4.15. Height of the fork descent | h13 (mm) | 90 |
| 4.19. Total length | l1 (mm) | 1709(1789) |
| 4.20. Longitude to the face of the forks | l2 (mm) | 639 |
| 4.21. Total width | b1/b2 (mm) | 800 |
| 4.22. Dimensions of the fork | s / e / l (mm) | 60/180/1070(1150) |
| 4.25. Total fork width | b5 (mm) | 570 |
| 4.32. Distance to the floor, center of distance between axles | m2 (mm) | 17-137 |
| 4.34.1 Aisle width for pallets 100x1200 | Ast (mm) | 2286 |
| 4.34.2 Aisle width for pallets 800x1200 | Ast (mm) | 2224 |
| 4.35. Radius of rotation | Wa (mm) | 1450 |
| 5.1.Displacement speed. with 1 no charge | km/h | 4.5/5.0 |
| 5.2.Lifting speed, loading/downloading | m/s | 0.11/0.14 |
| 5.3.Decreasing speed. loaded/downloaded | m/s | 0.12/0.12 |
| 5.8.Max. overable slope (loaded/downloaded) | % | 6/15 |
| 5.10. Service brake | Electromagneticor | |
| 6.1.Drive engine | kW | 0.65(DC) |
| 6.2.Lift motor in S3 | kW | 22 |
| 6.4.Battery voltage, nominal capacity KS (moretilduplex) | (V)/(Ah) or kWh | 24/105(125) |
| 6.5.Battery weight | kg | 60.8(70) |
| 10.7 Sound pressure level in the driver's seat | dB (A) | 70 |
- TYPE
- Electric
- Load capacity (kg)
- 1200
- Lifting height (mm)
- 3000
- Horquillas (mm)
- 1150x570
- Battery
- Lead-acid
- Mast type
- Duplex
- Lifting system
- Electric
- Total length (mm)
- 1789
- Weight (kg)
- 775
- Total height (mm)
- -
- Width (mm)
- 800
- Description
- stacking
- Measures Nails long x Width (mm)
- 65/185/1150
- Drums
- 24V/340Ah
- Height with folded mast (mm)
- 2122
- Height with mast displayed (mm)
- 3592
