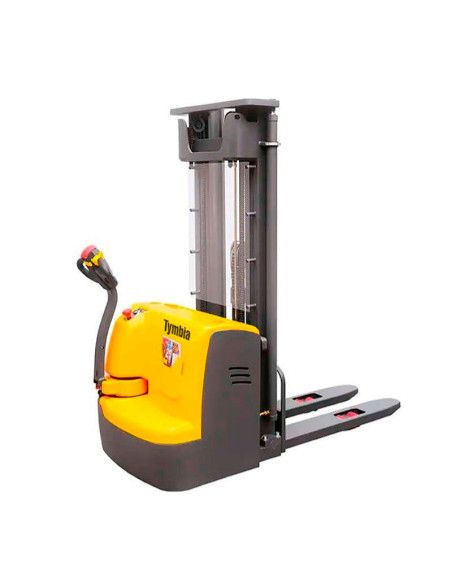

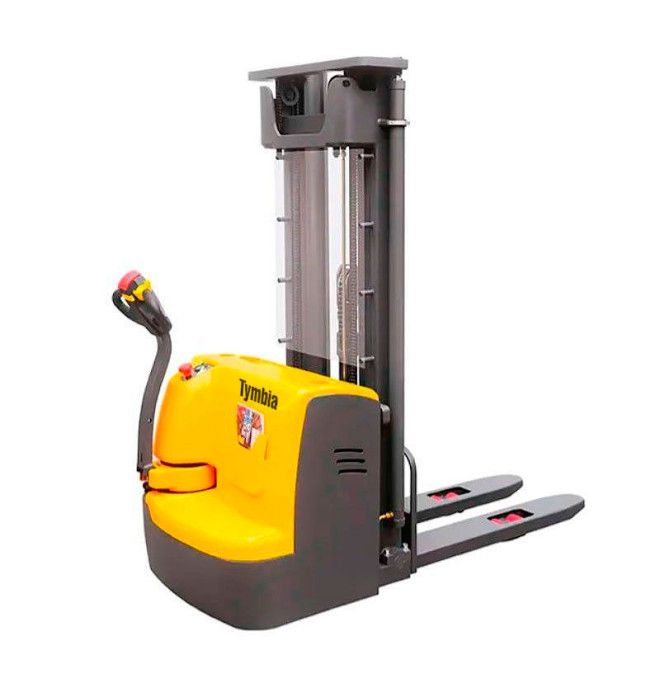

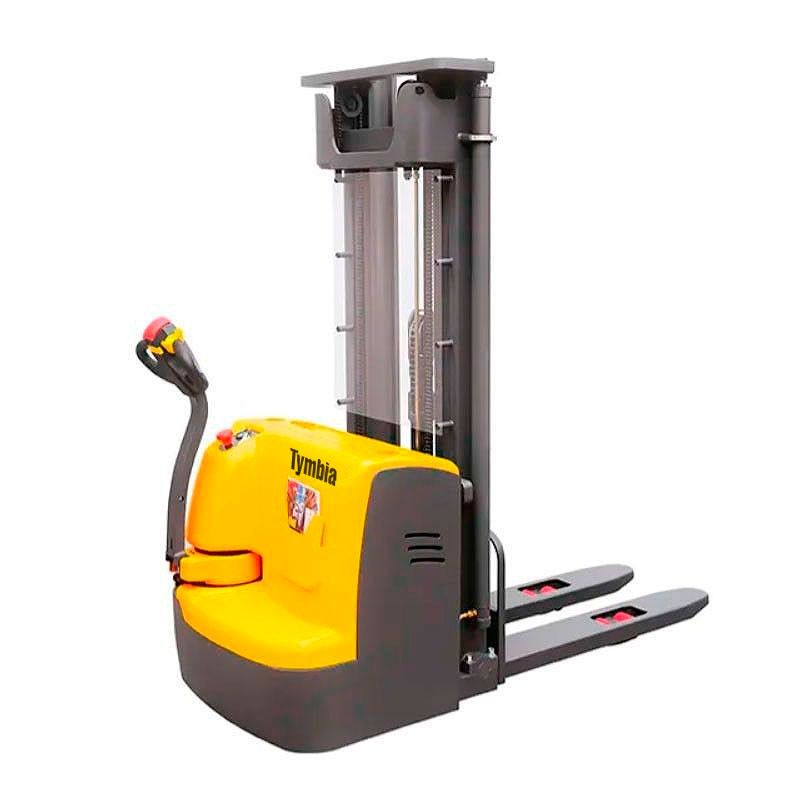

Electric stacker 1500kg to 5600mm
M102020401
MAD103,859.70
103.859,70 € (tax incl.)
Electric stacker of 1500 kg with lifting height up to 5600 mm and 24V / 200Ah battery is an excellent choice for warehouse and logistics applications where heavy loads are needed at considerably high heights.
Marked CE.
Special discount precompresses 15% until 02/28/26
- Advanced AC Control System: This system offers more accurate and efficient control
- Smart regenerative brake system: Regenerative brakes take advantage of the kinetic energy of the vehicle during the slowdown to recharge the battery, thus improving energy efficiency and reducing the wear of conventional brakes.
- Multifunction screen: A central screen that provides vital information for the driver, such as the battery level (BDI), the operating hours counter of the vehicle, and possibly other data such as the outer temperature, the speed of the vehicle, etc.
- Emergency reversing device: A system that allows the driver to reverse the vehicle safely in emergency situations, perhaps with assistance functions to avoid collisions.
- Automatic deceleration system with regenerative braking: By reducing speed, the system mainly uses the regenerative braking to convert the kinetic energy into electrical energy that recharges the battery, thus reducing the wear of conventional brakes and improving energy efficiency.
- Built-in pressure relief valve: This valve protects the vehicle components from possible damage caused by pressure overloads, relieving pressure on the system when it reaches dangerous levels.
- Emergency Energy Disconnection: A system that automatically disconnects the energy of the vehicle in emergency situations to avoid additional risks.
- Continuous speed control: It allows the driver to maintain a constant speed under specific driving conditions, improving efficiency and comfort in long journeys.
- Lifting limit switch: This switch turns off the hydraulic pump motor when the vehicle reaches its maximum lifting height, avoiding damage to the system and improving safety.

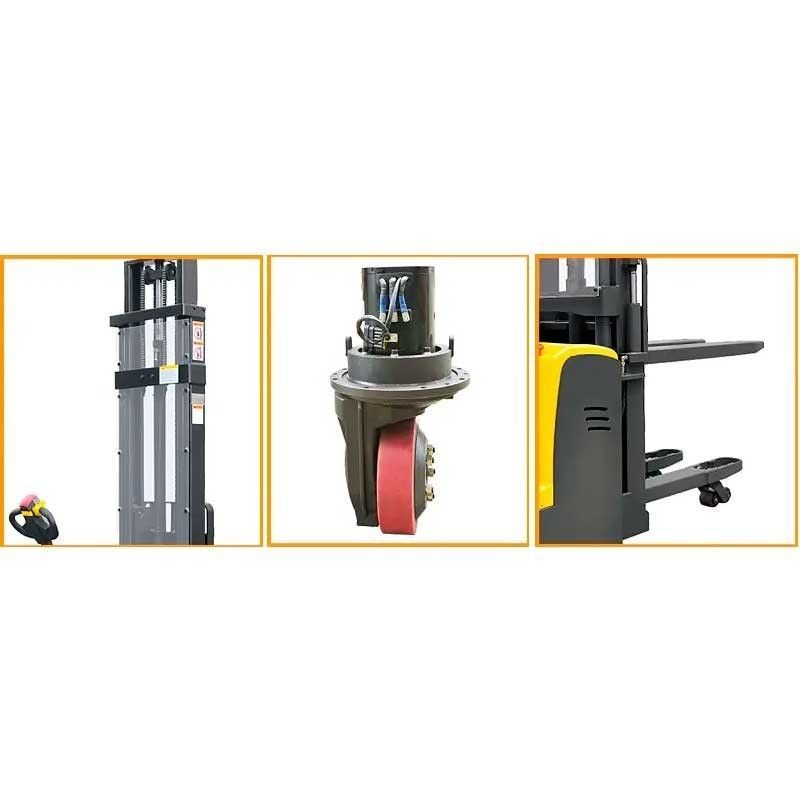

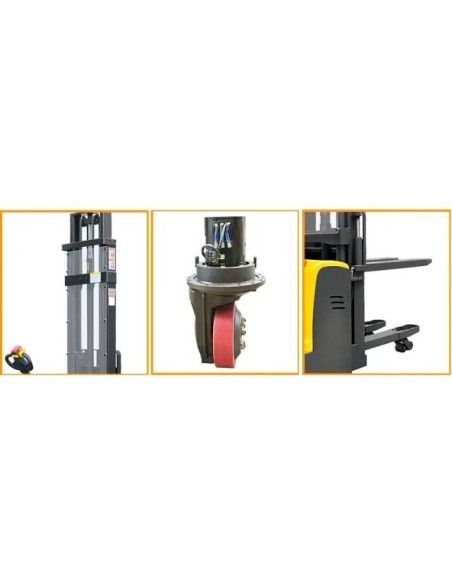

- Vertical drive motor with small spinning radius: A motor designed to occupy little space and allow a reduced rotation radius, which facilitates the maneuverability of the vehicle in narrow spaces. In addition, its structure resistant to water and dust increases its durability and reliability in various environmental conditions.

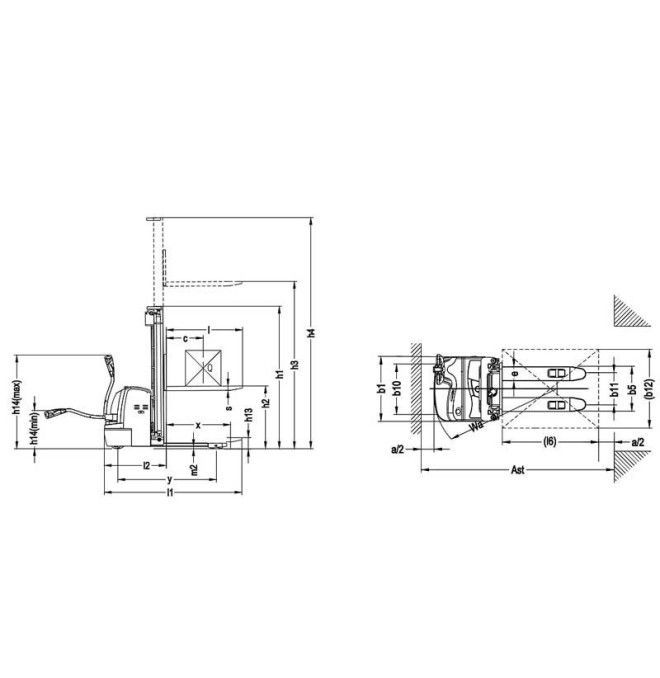

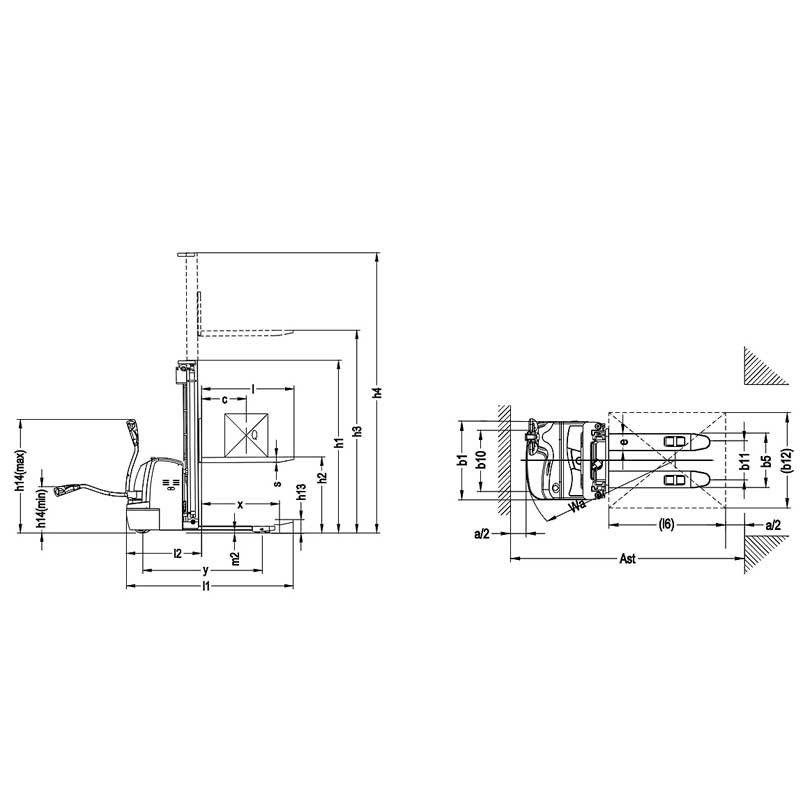

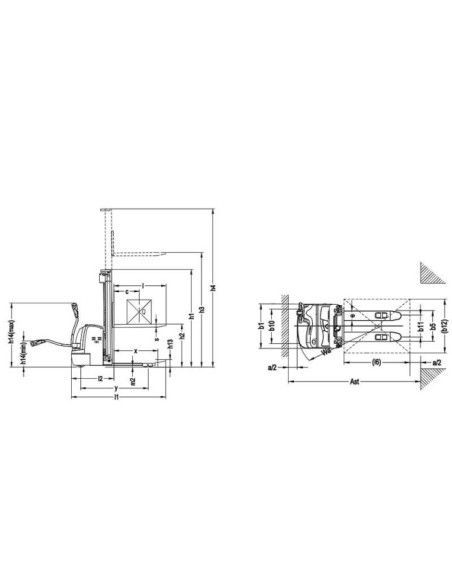

| 1.2.Model | Ae15.56 | |
| 1.3. TYPE | Electric | |
| 1.4.Operator | On foot | |
| 1.5.Load capacity | Q (KG) | 1500 |
| 1.6.Distance from the center of charge | c (mm) | 600 |
| 1 8. Load distance, center Delgee to the fork | x (mm) | 770 |
| 1.9.Axles distance | and (mm) | 1383 |
| 2.1.Service weight | kg | 1185/1205/1225 |
| 2.2.Load per shaft, loaded front / rear | kg | 1280/1070 |
| 2.3.Load by shaft, front / rear without load | kg | 650/200 |
| 3.1.Wheels | Polyurethane | |
| 3.2.Front tire size | Φ250x70 | |
| 3.3.Tire size. rear | Φ80x70 | |
| 3.4.Additional wheels (dimensions) | Φ150x60 | |
| 3.5.Number of rear front wheels (x = drive wheels) | 1x + 1/4 | |
| 3.6.Tread, front | b10 (mm) | 520 |
| 3.7.Tread, rear | b11 (mm) | 400/525 |
| 4.2.Height. low mast | h1 (mm) | 2054/2214/2414 |
| 4.3.Free elevation (option 2500- 3500 mm) | h2 (mm) | 1570/1740/1940 |
| 4.4.Max. height elevation | h3 (mm) | 4500/5000 /5600 |
| 4.5.Height, extended mast | h4 (mm) | 5030/5510/6110 |
| 4.9.1maxima minimum rudder height in driving position | h14 (mm) | 670/1300 |
| 4.10. Height of the arms of the wheels | h8 (mm) | 81 |
| 4.15. Height of the fork, down | h13 (mm) | 90 |
| 4.19. Full length | l1 (mm) | 1975 (2055) |
| 4.20. Length Up to the face of the forks | l2 (mm) | 905 |
| 4.21. Total width | b1 / B2 (mm) | 820 |
| 4.22. Dimensions of the fork | s / E / L (mm) | 60/170/1070 (1150) |
| 4.25. Total width of the forks | b5 (mm) | 570/695 |
| 4.32. Distance to the ground, center of the axles | m2 (mm) | 26 |
| 4.34.1 Hall Width for Palets 100x1200 | AST (mm) | 2480 |
| 4.34.2 Hall width for pallets 800x1200 | AST (mm) | 2450 |
| 4.35. Spinning radius | WA (mm) | 1575 |
| 5.1.Scroll speed. with 1Sin Load | km / pm | 5.8 / 6.0 |
| 5.2.Lifting speed, loaded / downloaded | meters /'s | 0.09 / 0.16 |
| 5.3.Descent speed. Charged / Downloaded | meters /'s | 0.15 / 0.16 |
| 5.8.Max. Overlavable pending (loaded / downloaded) | % | 6/15 |
| 5.10. Service brake | Electromagnetic | |
| 6.1.Drive motor | kw | 1.2 (ac) |
| 6.2.Lifting engine in S3 | kw | 22 |
| 6.4.Battery voltage, KS nominal capacity (Mastildulplex) | (V) / (ah) or kwh | 24/200 |
| 6.5.Battery weight | kg | 160 |
| 10.7 Sound pressure level in the driver's seat | dB (A) | 70 |
- TYPE
- Electric
- Load capacity (kg)
- 1500
- Lifting height (mm)
- 5600
- Horquillas (mm)
- 1150x570
- Battery
- Lead-acid
- Lifting system
- Electric
- Total length (mm)
- 2055
- Weight (kg)
- 1225
- Total height (mm)
- -
- Width (mm)
- 820
- Description
- stacking
- Measures Nails long x Width (mm)
- 65/185/1150
- Drums
- 24V/340Ah
- Height with folded mast (mm)
- 2414
- Height with mast displayed (mm)
- 6110
