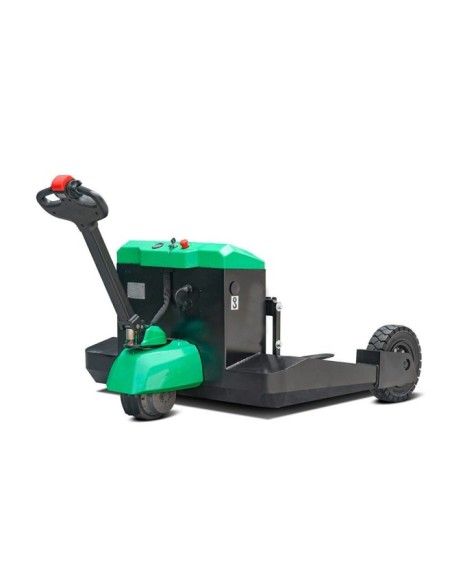

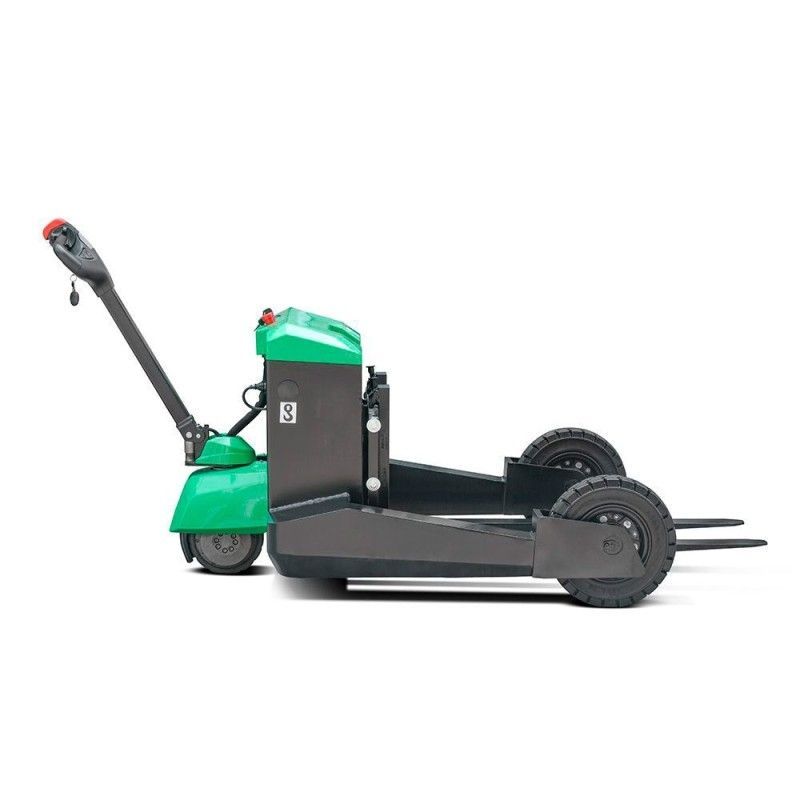

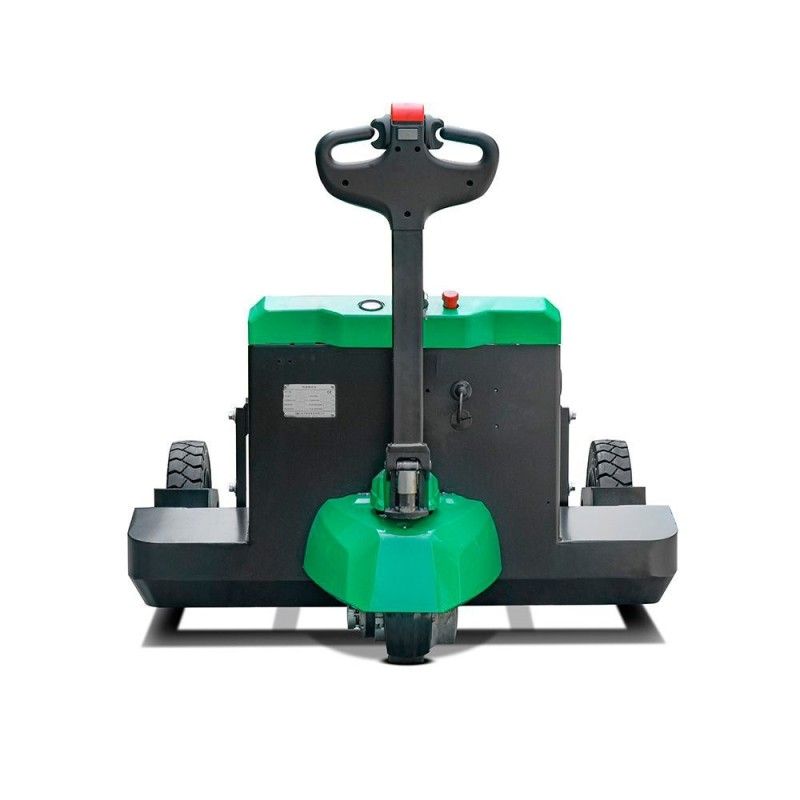

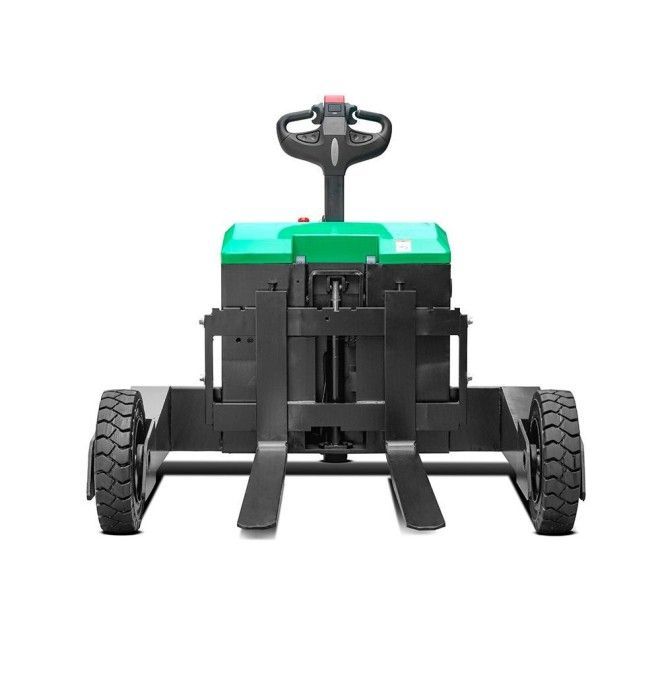

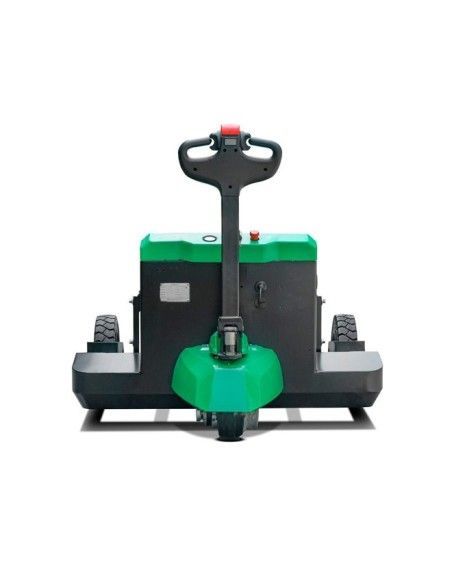

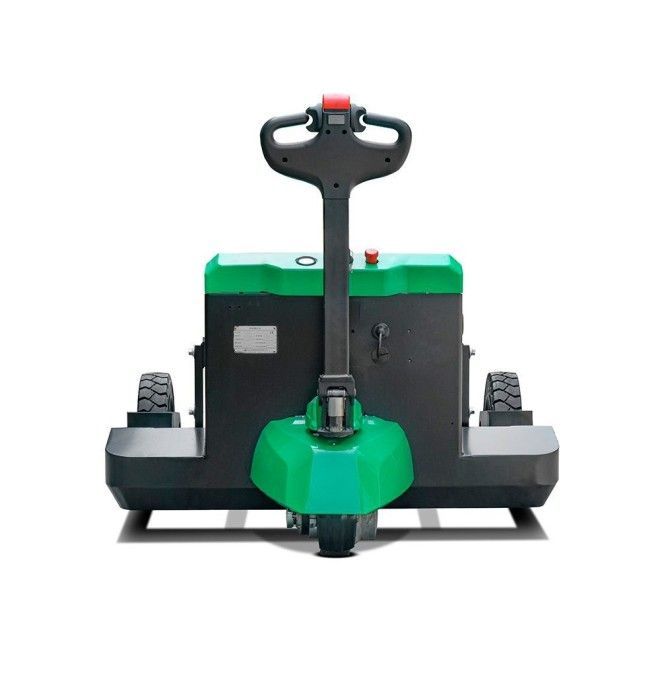

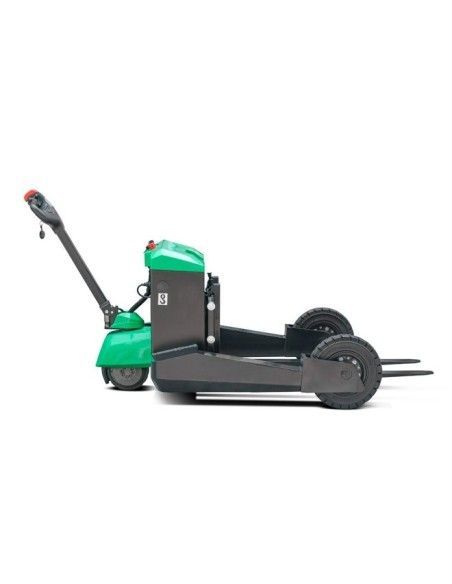

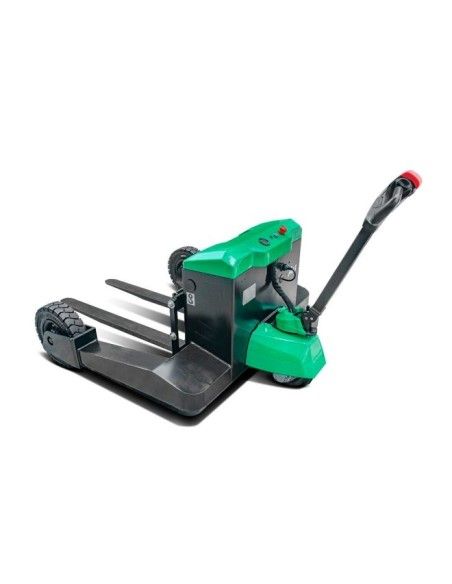

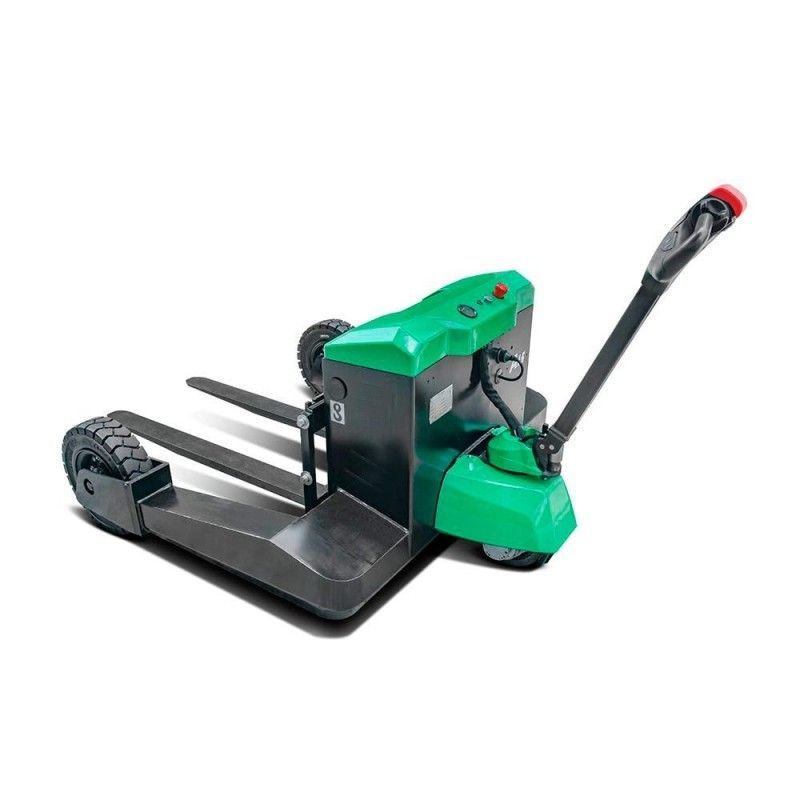

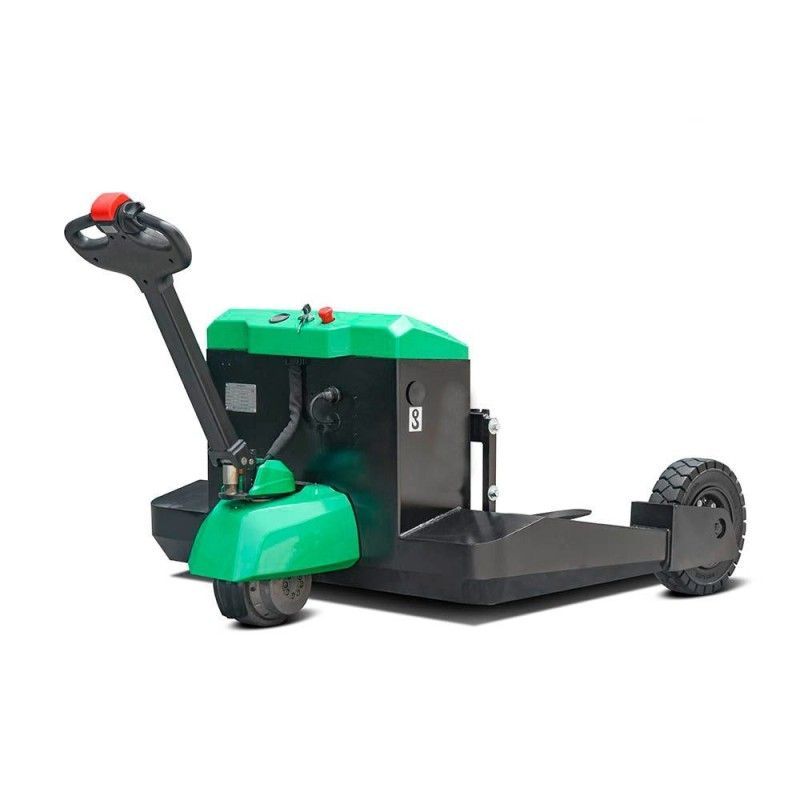

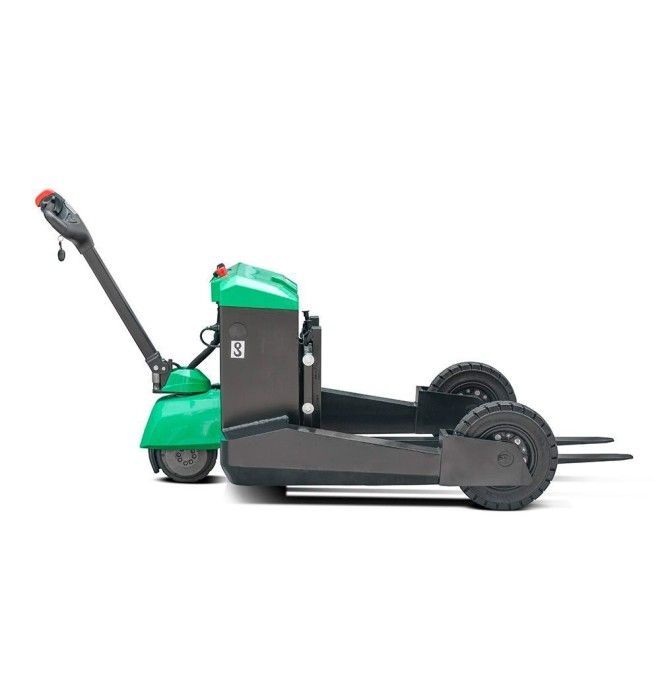

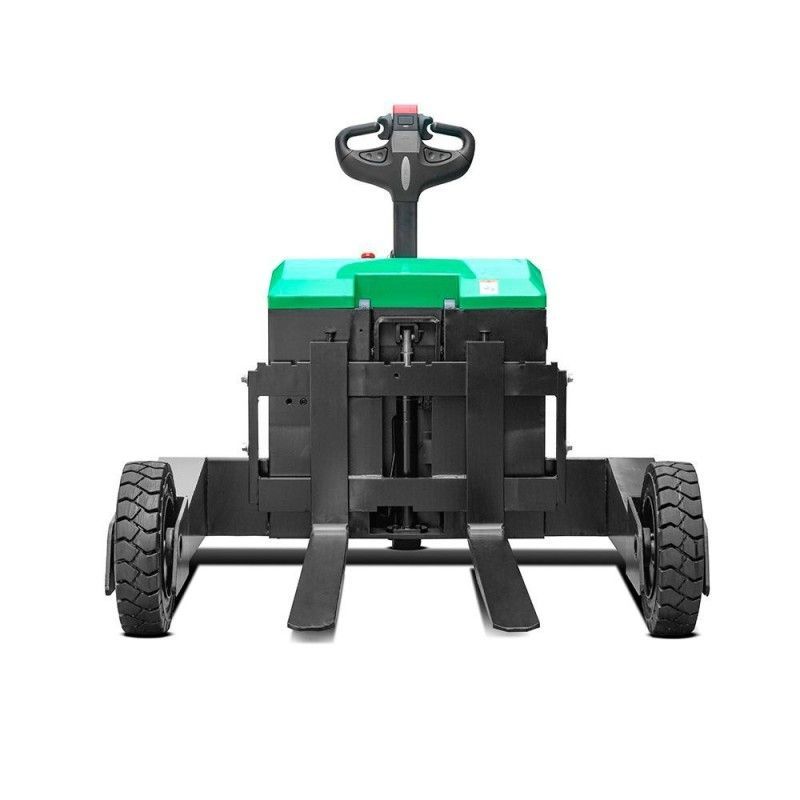

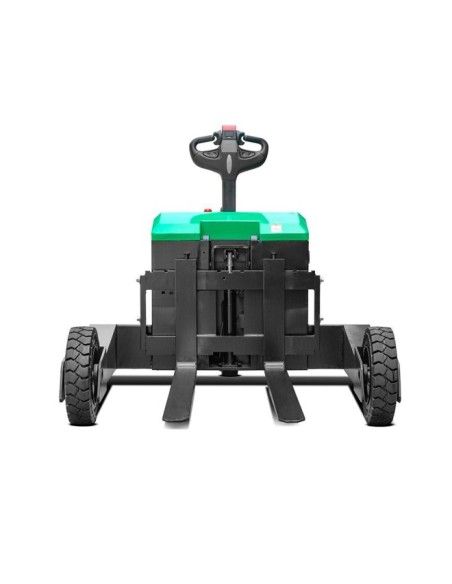

1500kg electric transparent - traction for off-road
M101040073
€7,990.00
7.990,00 € (tax incl.)
Electric SUV 600kg with 48V-20Ah lithium battery. It facilitates the handling of loads on irregular surfaces, agricultural terrain or gravel. It guarantees operational efficiency in external environments demanding by brushless electric traction.
- Charging capacity: 1500kg on solid rubber tires for stability in rugged and outer soils.
- Energy system: 48V-20Ah lithium battery with built-in charger for fast loading and high efficiency.
- Brushless traction: 1KW DC Motor with Brushless technology reducing maintenance and heat costs.
- Certified Security: Integrated electric brake and compulsory EC certification according to European regulations for handling loads.
Electric transparent with load capacity of 1500kg off-road and lithium battery. It is perfect for working on irregular terrain, soil floors, gravel, etc. Ideal for hard applications under difficult conditions. Very robust and efficient thanks to its resistant solid wheels.
Internal width of 650mm and outer 845mm, being its 1060mm forks. Interior measure of legs 1.100mm (hollow pallet)
This model of electrical off-road transparent, adopts DC brushing-free traction control technology, combined with advanced lithium battery technology, to achieve a fast, safe and reliable load, and low maintenance costs.
The large rubber solid tire guarantees a high protection performance, which makes it an ideal tool for loading, unloading and handling of outdoor palletized goods.
The front wheels are equipped with deep slot rubber tires, with great floor distance, wear resistance, durability, and good impact absorption effect.
Overlap 10% pending (no load).
The transparent is equipped with a 48V voltage system, with low motor stream, less generation of heat and less losses under elevation conditions with and without load.

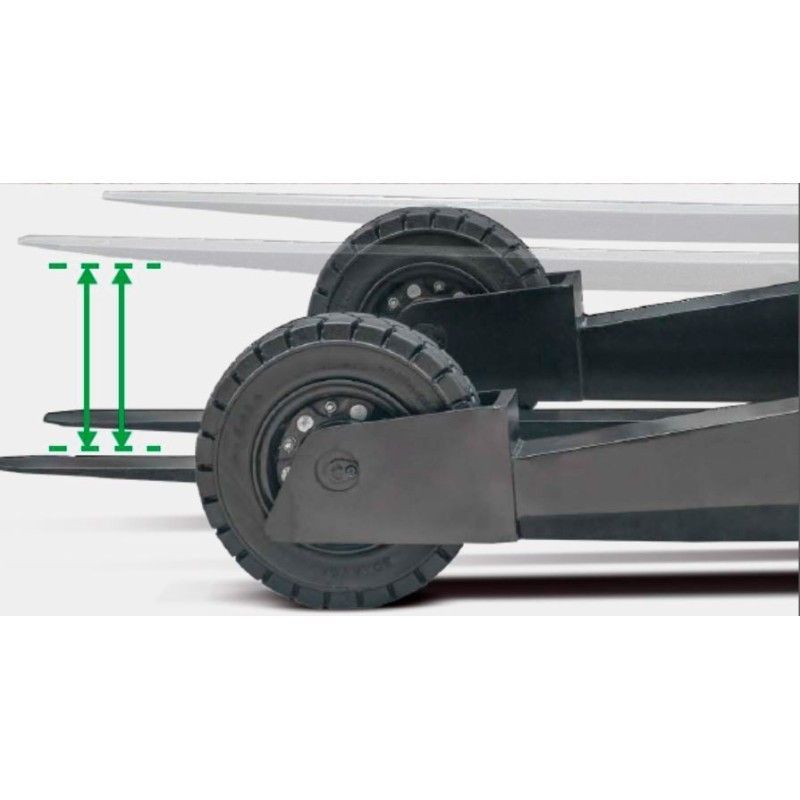

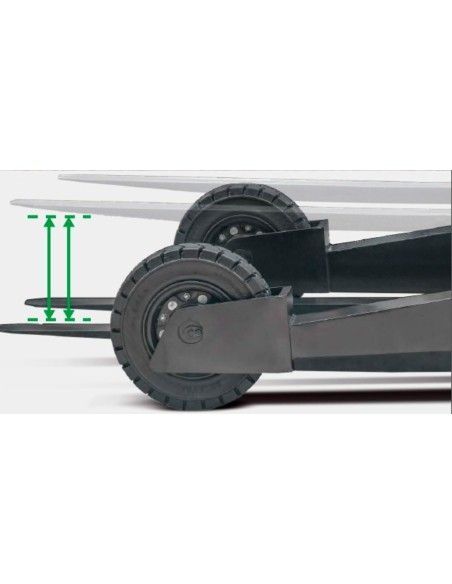

The lifting height reaches 250mm.

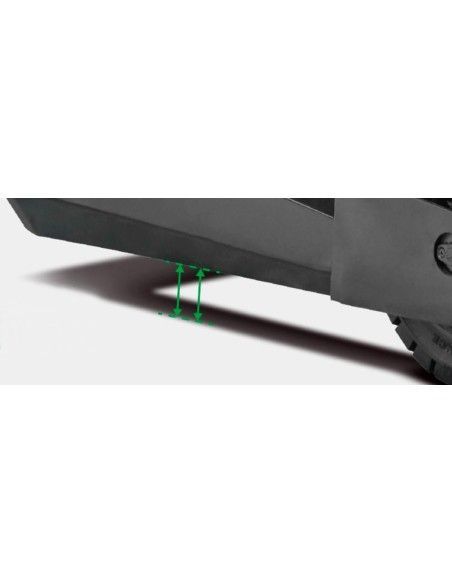

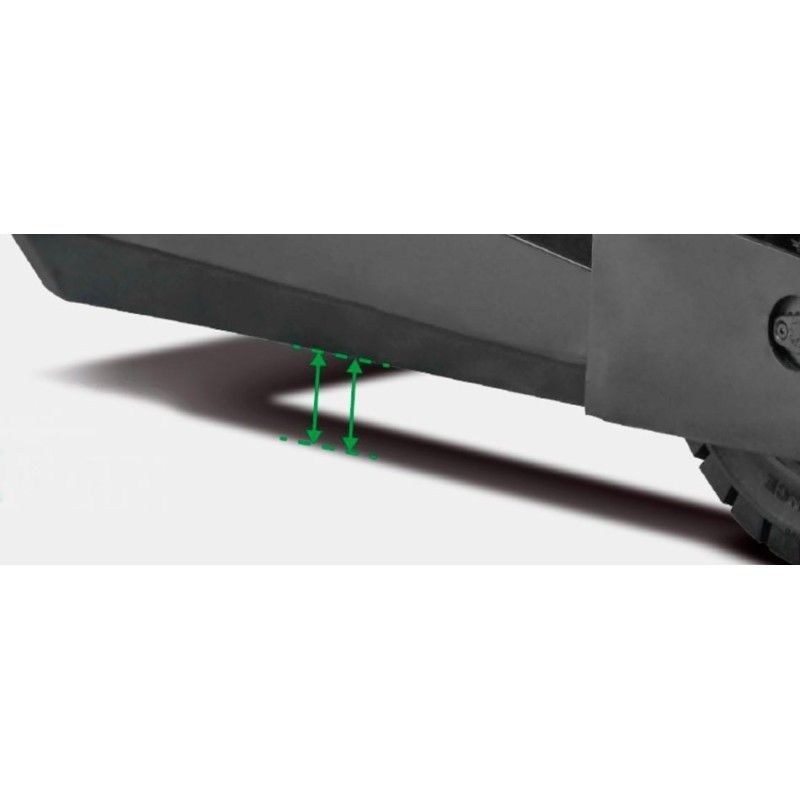

The distance to the floor reaches 100mm.
Maintenance
The fully open hood facilitates the replacement of the battery and maintenance more convenient.
Incorporated serial charger, which makes the load more comfortable and efficient.
DC engine without brushes brushes of coal, superior maintenance performance.
Technical characteristics
- Loading capacity: 1500kg
- Distance from the cargo center: 500mm
- Loading distance, Motor shaft center for the fork: 667mm
- Between axles: 1197mm
- Service weight: 440kg
- Shaft load, Loaded front / rear: 460 / 1480kg
- Load by shaft, front / rear without load: 240 / 200kg
- Tires: Solid rubber, superelastic, tire, polyurethane: solid rubber
- Size of front tires: ᴓ250 × 80
- Size of rear tires: ᴓ399 × 104
- Wheels, front / rear number (x = roll wheels): 1x / 2
- Tread, rear: 1230mm
- Lifting: 250mm
- Total length: 1773mm
- Length Up to the face of the forks: 703mm
- Average width: 546 / 1390mm
- Dimensions of the fork: 35x100x1070mm
- Distance between fork arms: 210 ~ 850mm
- Floor Distance, Downtown Between Axles: 100mm
- Hall width for pallets 800 x 1200 longitudinal: 2112mm
- Radio of turn: 1410mm
- Scroll speed, loaded / downloaded: 5.5 / 5.5 km / h
- Lifting speed, with loading / unloading: 0.046 / 0.061 m / s
- Drop speed, loaded / downloaded: 0.056 / 0.058 m / s
- Max. Ask capacity, loaded / downloaded: 6/10%
- Hand brake: Electric
- S2 60 min: 1kw drive motor rating
- Classification of lifting engine in S3 15%: 1.5kw
- Battery tension, Nominal capacity K5: 48/20 V / AH
- Battery weight: 11,4kg
- Type of motor unit: DC
- TYPE
- Lithium
- Load capacity (kg)
- 1500
- Lifting height (mm)
- 250
- Battery
- Lithium
- Lifting system
- Electric
