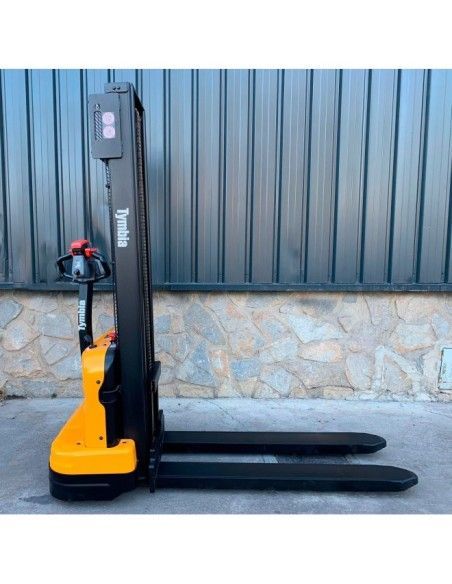

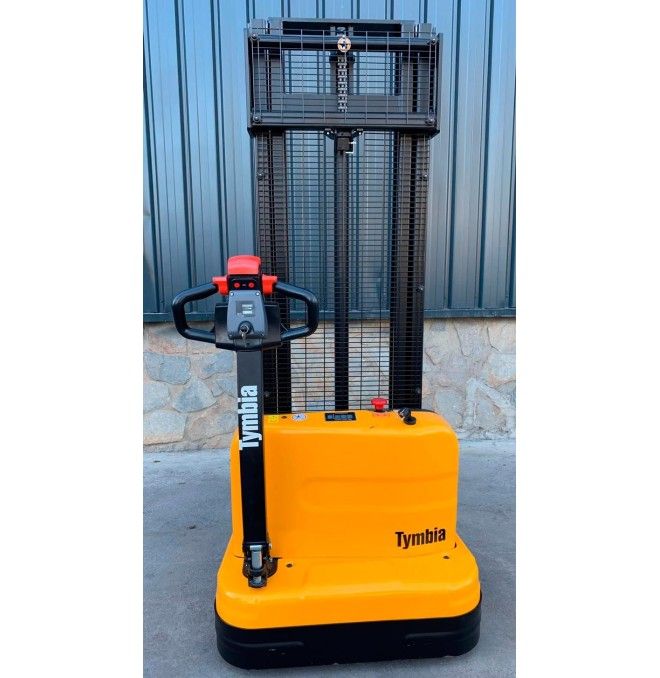

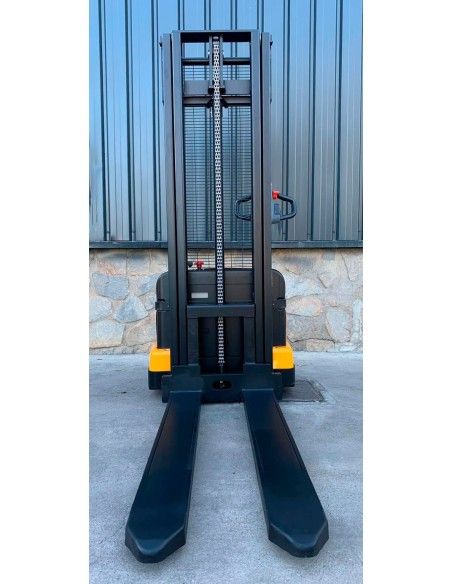

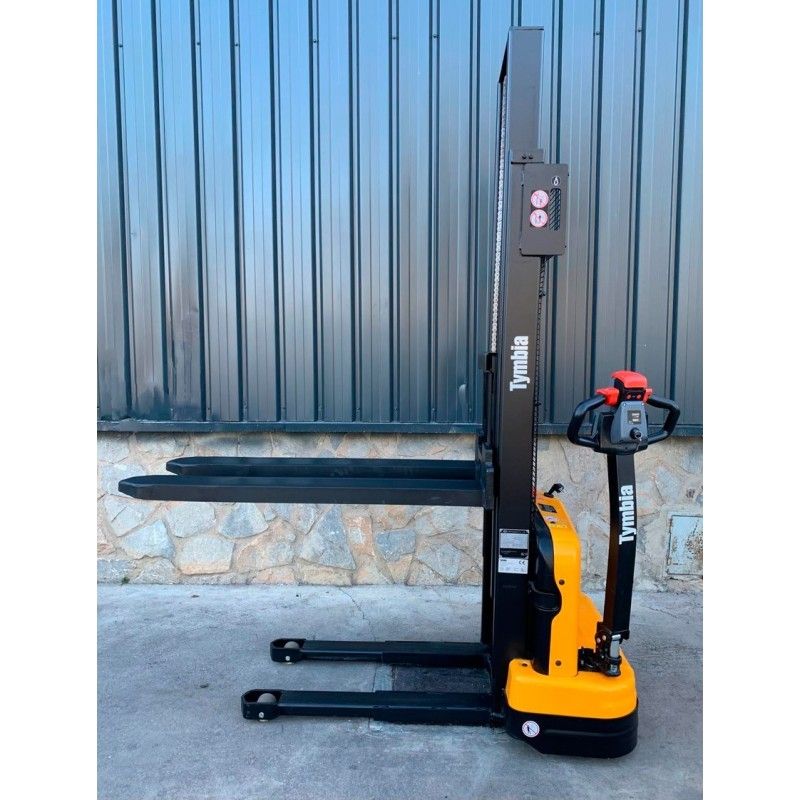

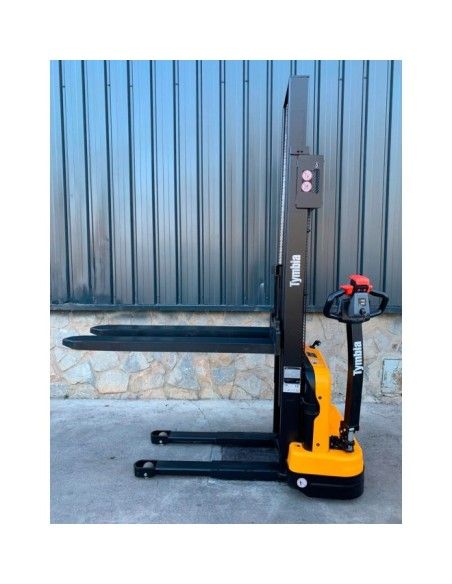

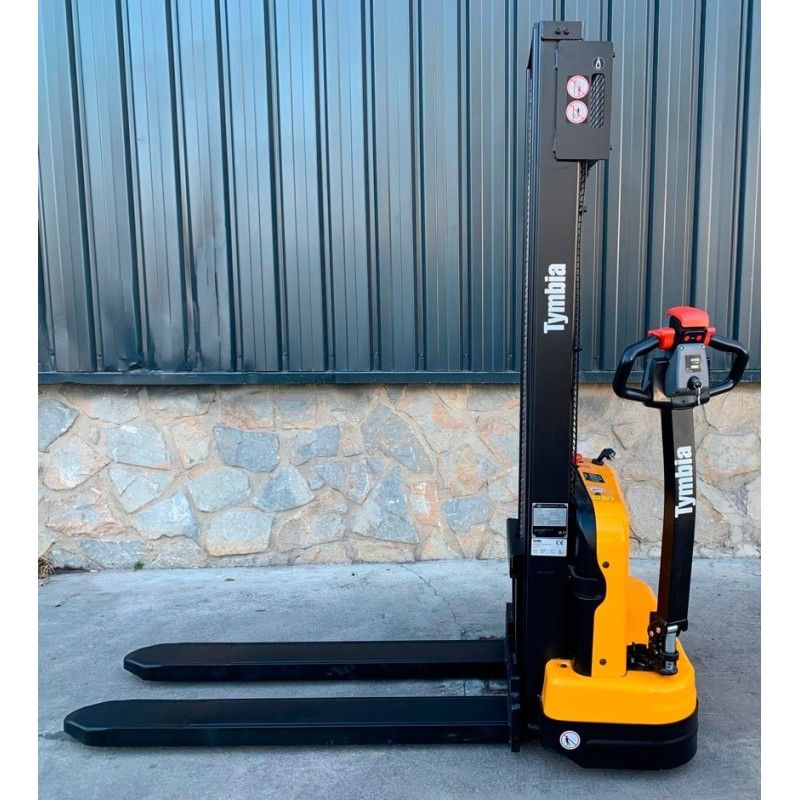

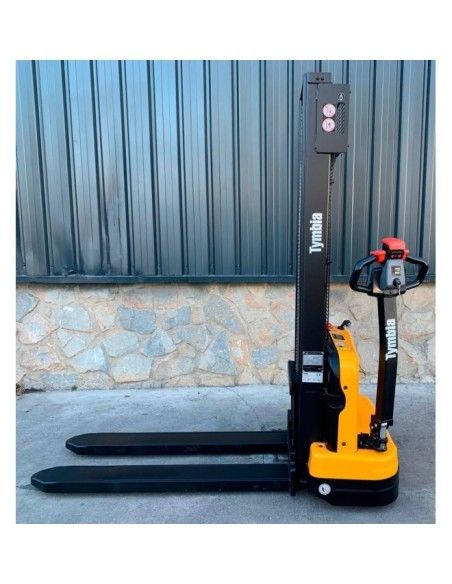

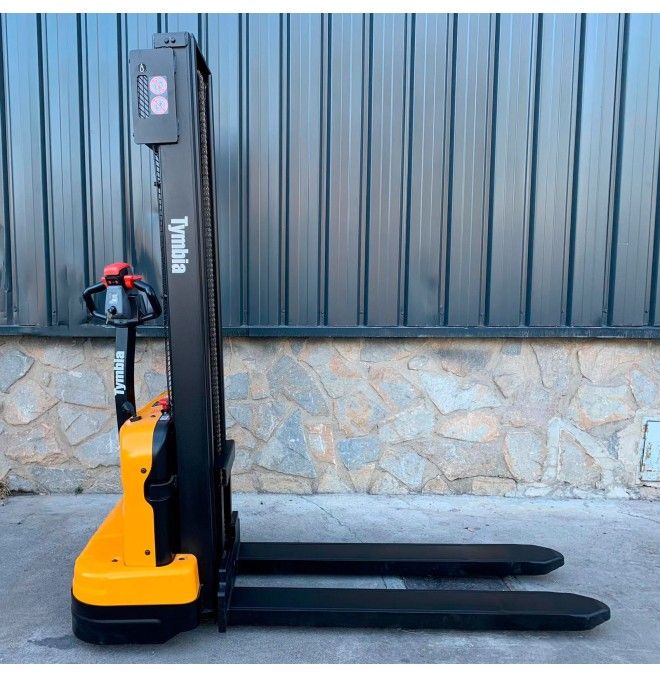

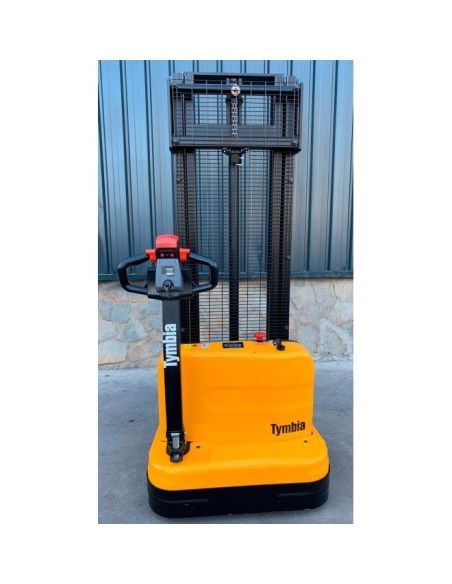

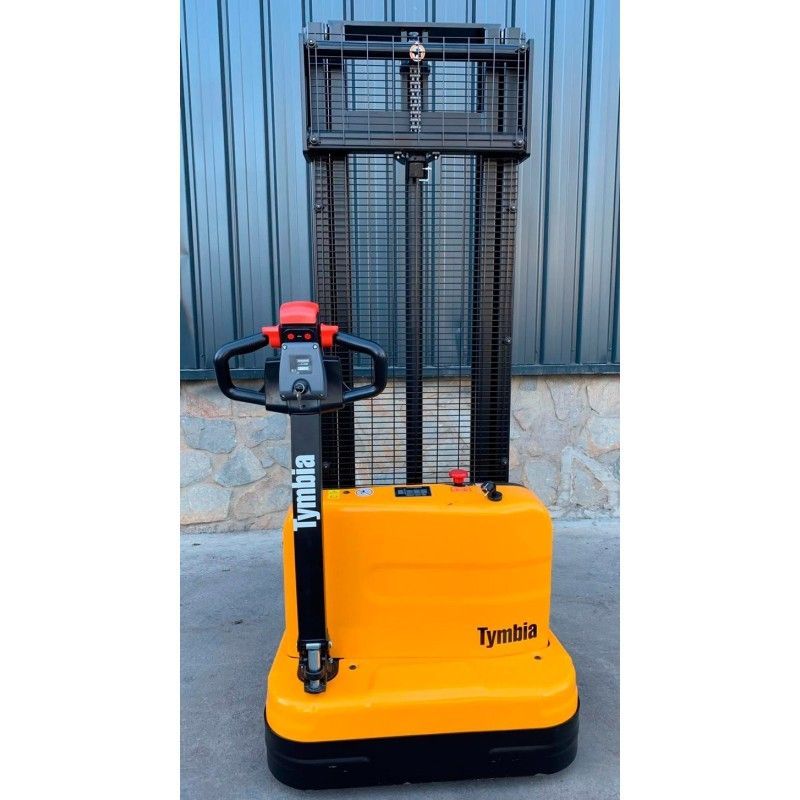

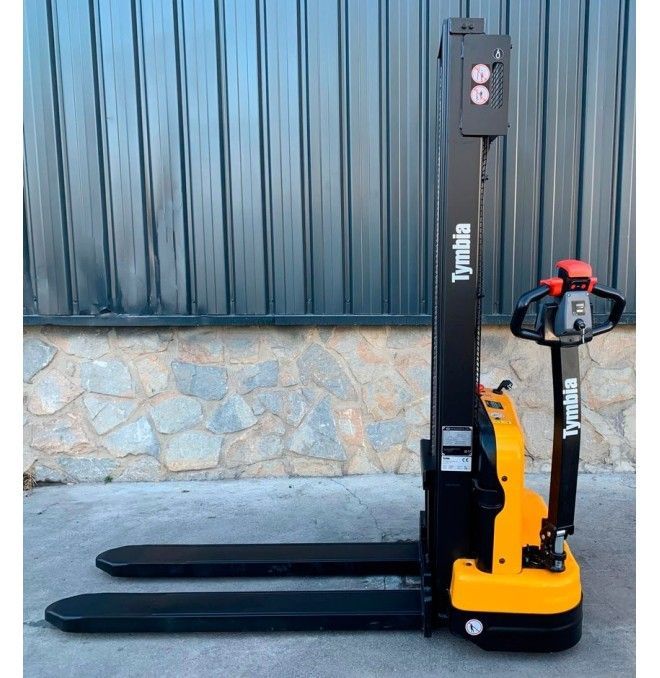

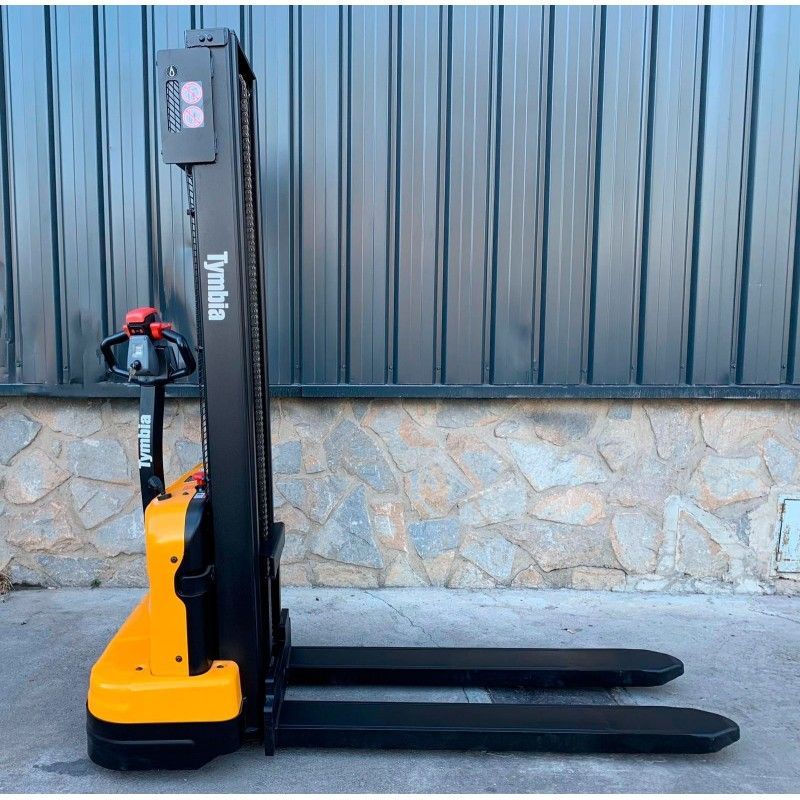

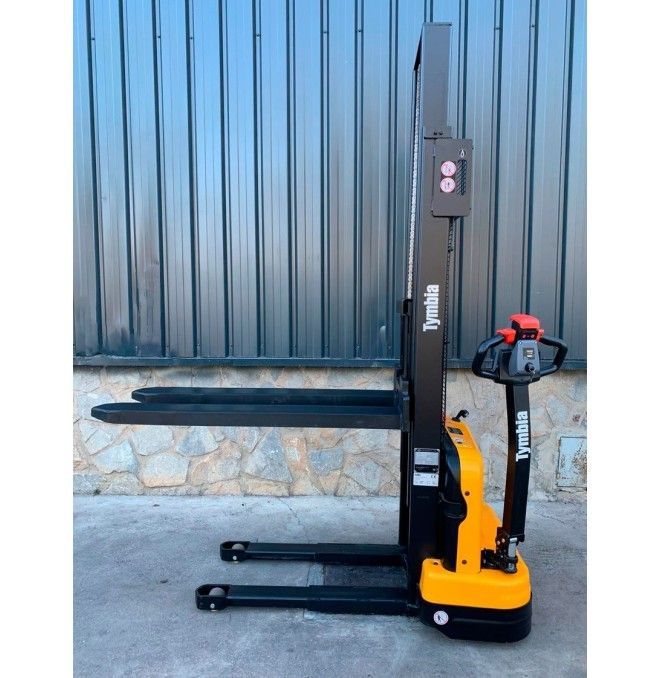

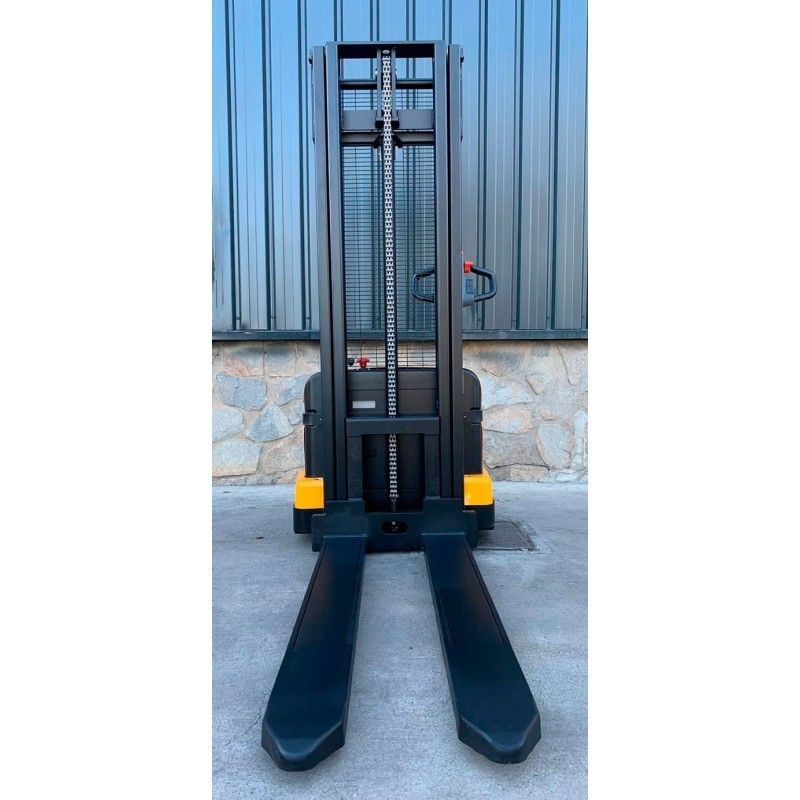

Electric stacker 1200kg to 2900mm with 1350mm long forks

Electric traction and lifting stacker with special length to measure (1350mm), up to 1200kg load capacity and a lifting height up to 2900mm, being its fork dimensions 60x170x1150mm .

This stacker is designed to cover all light lifting and stacking operations and tasks in the warehouses, especially for systems racking and Shelving with an average height of 2.5 m to 3.6 m, thanks to its ergonomic and compact design, it is very easy to handle. Facilitates the load and discharge of the material for the operator. It has a wide mast for high residual lifting capacities and perfect view through the mast.

In addition, this new model offers greater ease and flexibility for daily use when carrying an integrated 24V/10A charger and a 24V/80Ah lead-acid battery.

TECHNICAL CHARACTERISTICS

• Load capacity: 1200kg
• Freight center distance: 600mm
• Freight distance, motor axis center to the fork: 800mm
• Distance between axles: 1195mm
• Service weight: 470kg
• Type of tyres: Polyurethane
• Wheel size, front: Ø210×70mm
• Wheel size, rear: Ø74×72mm
• Height, folded mast: 2067mm
• Lift height: 2930mm
• Extended mast height: 3532mm
• Minimum fork height: 90mm
• Total length: 1706mm
• Total width: 925mm
• Fork dimensions: 60x170x1350mm
• External distance of the forks: 570mm
• Aisle width with pallets 1000 x 1200 cross-sectional: 2246mm
• Aisle width with pallets 800 x 1200 in longitudinal sense: 2180mm
• Turn radio: 1415mm
• Displacement speed, with/without load: 4.0/4.5km/h
• Lifting speed, loaded/downloaded: 0.10/0.15m/s
• Decreasing speed, loaded/downloaded: 0.12/0.10m/s
• Max. gradability, with charge/no charge: 3/10%
• Service Freno: Electromagnetic
• Power drive S2 60 min: 0.75kW
• Lift engine power in S3 15%: 2.2kW
• Battery voltage / nominal capacity: 24V/80Ah
• Battery weight: 38kg
• Color: Yellow or Red (according to availability)

- Special length to measure. Talk to us.
