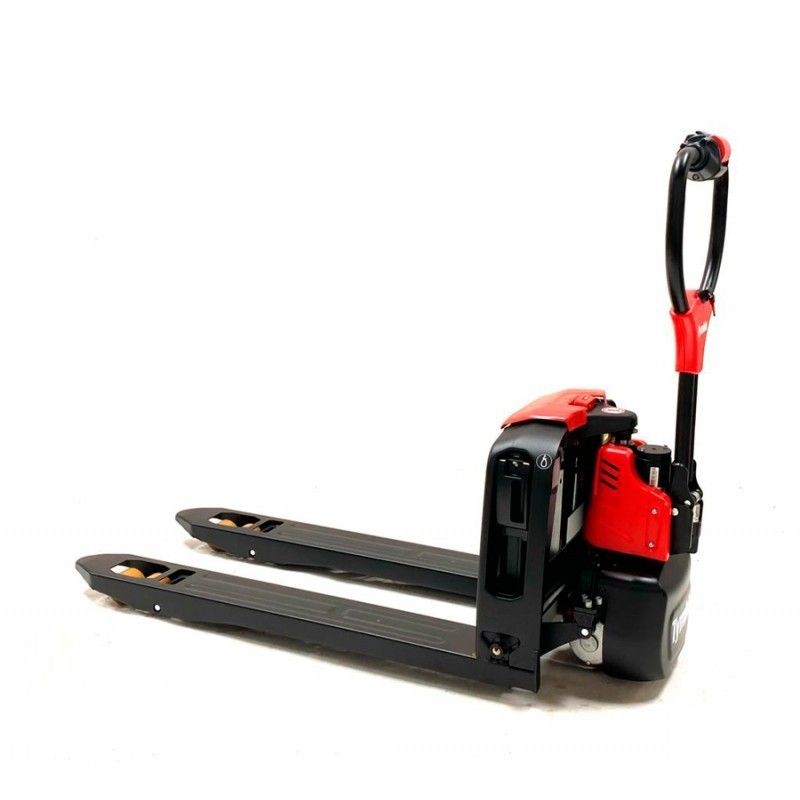

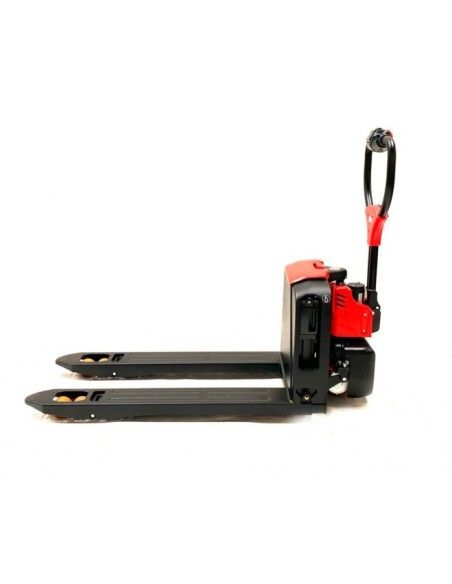

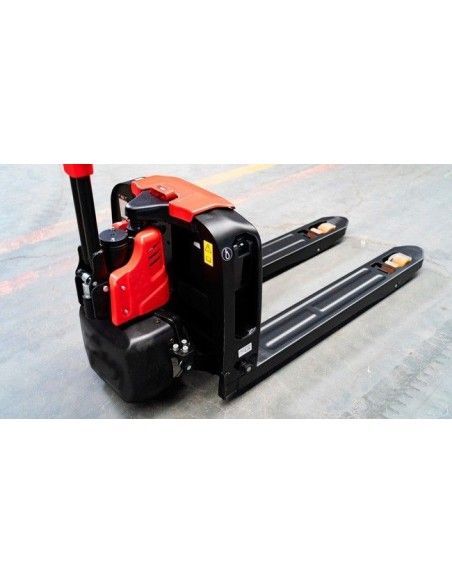

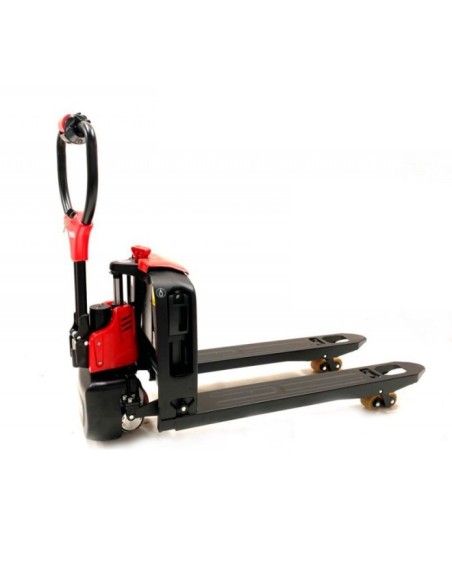

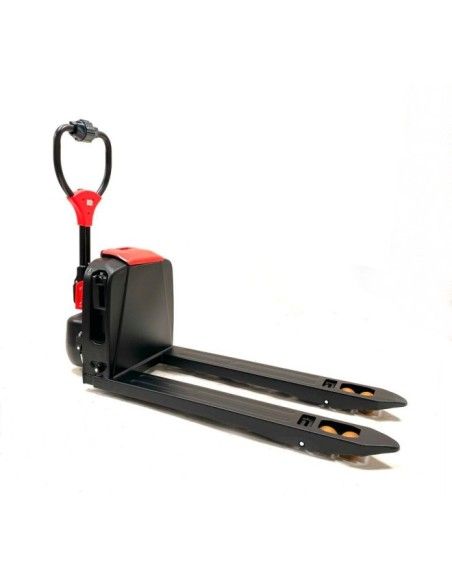

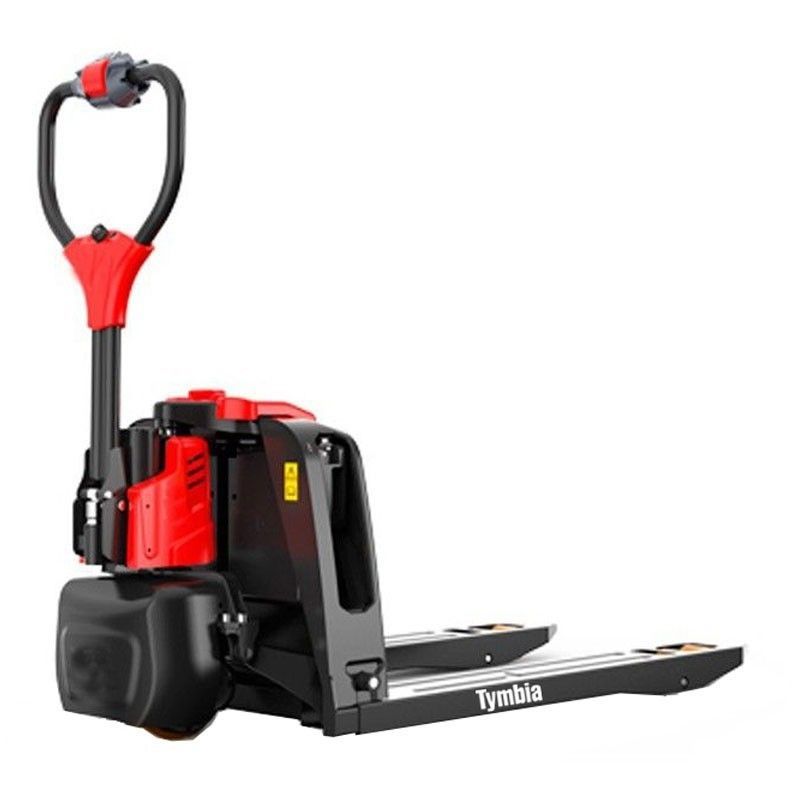

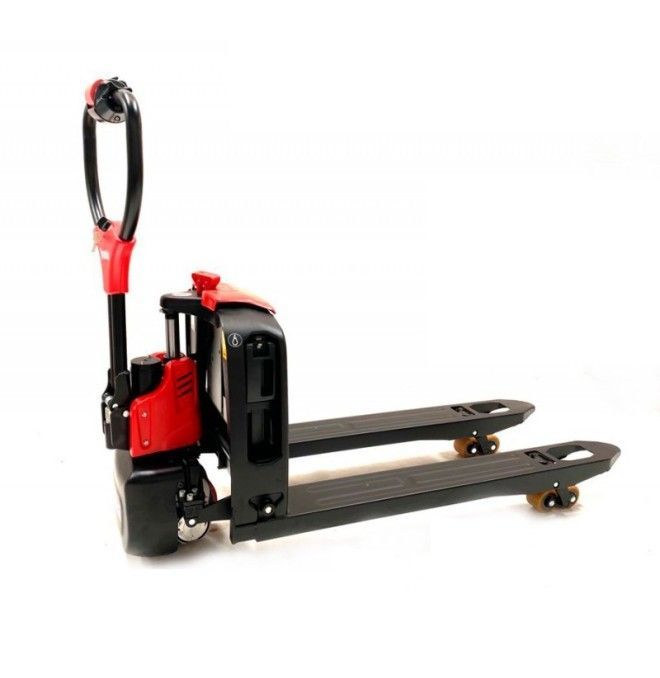

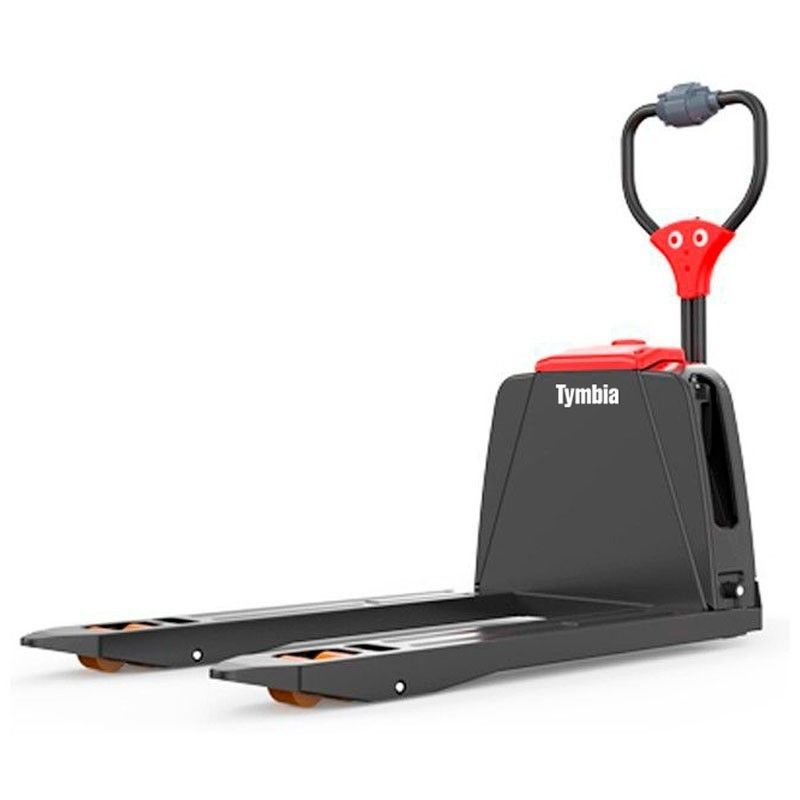

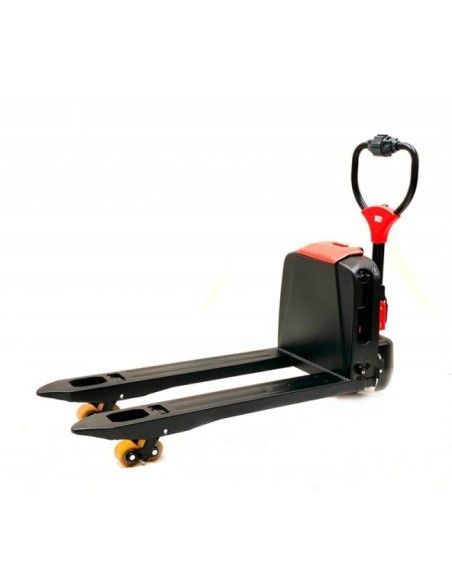

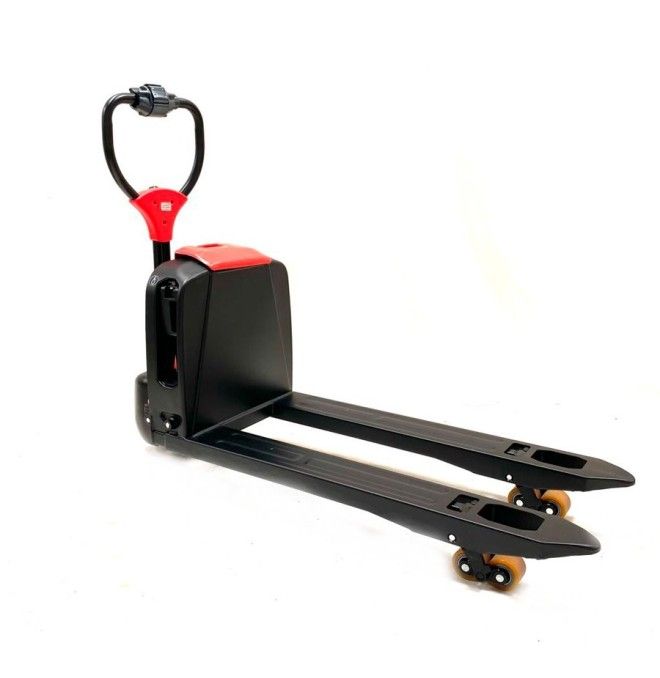

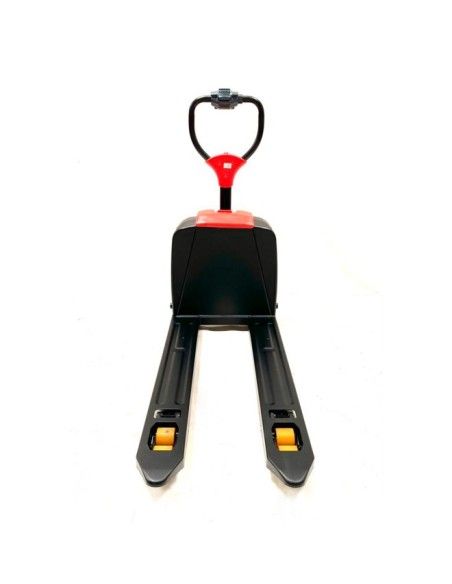

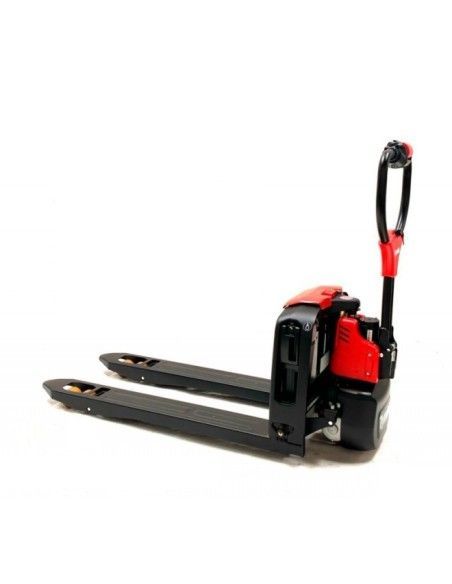

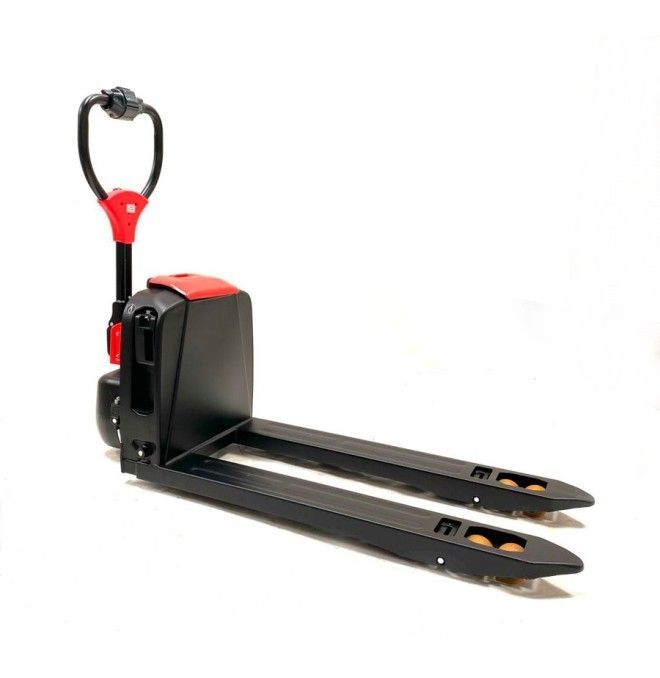

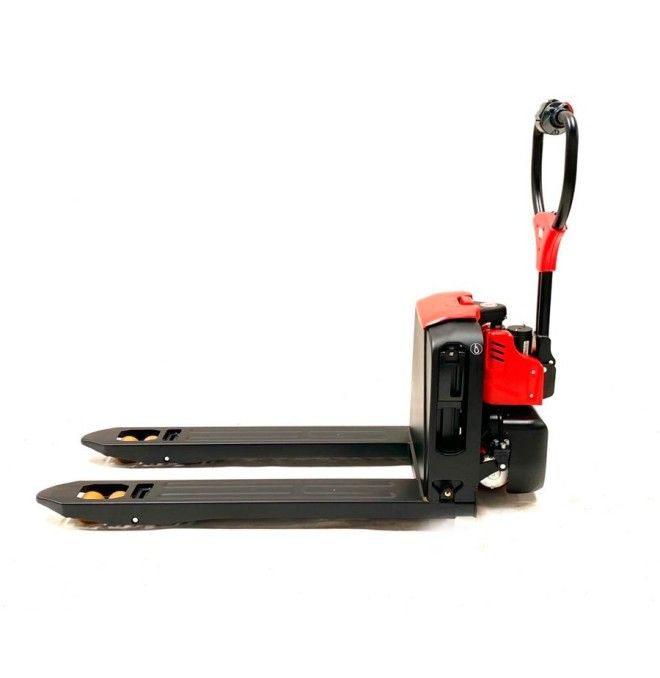

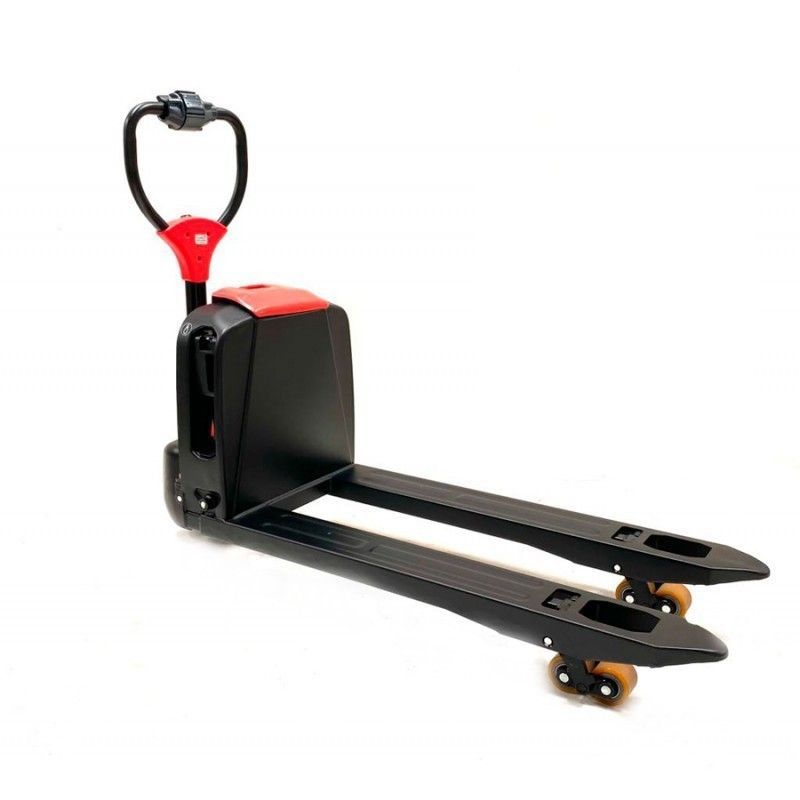

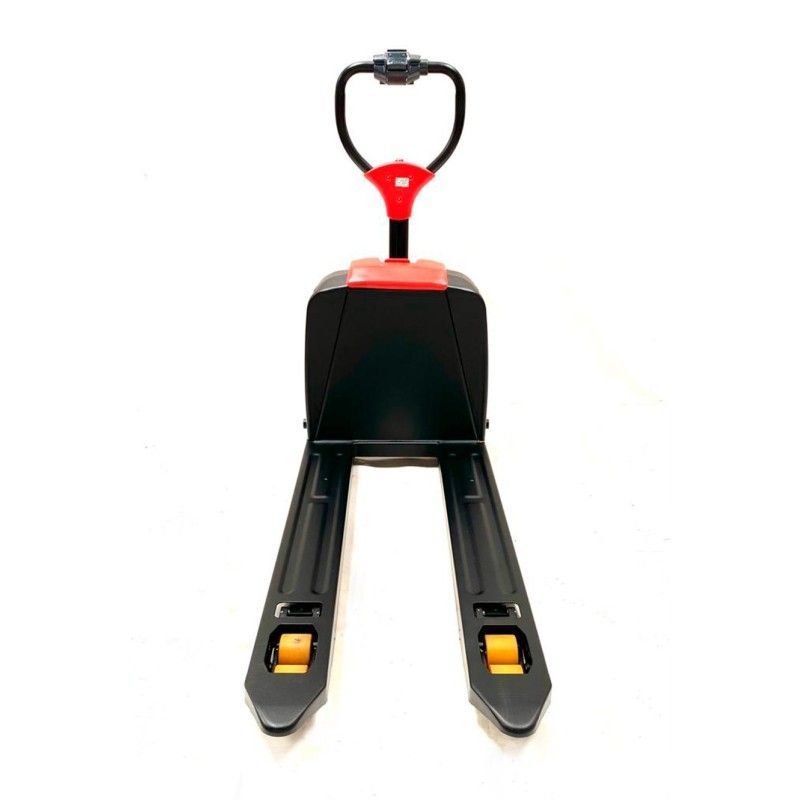

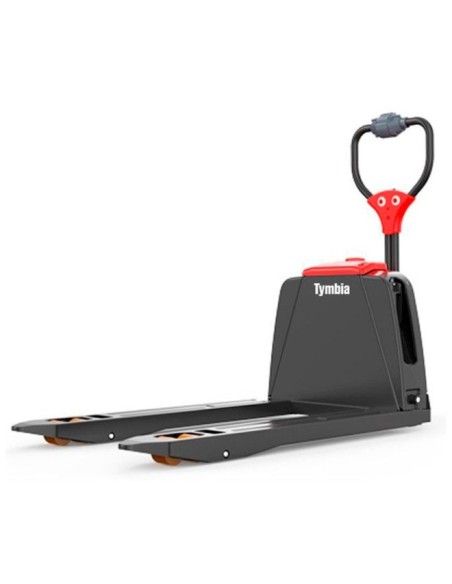

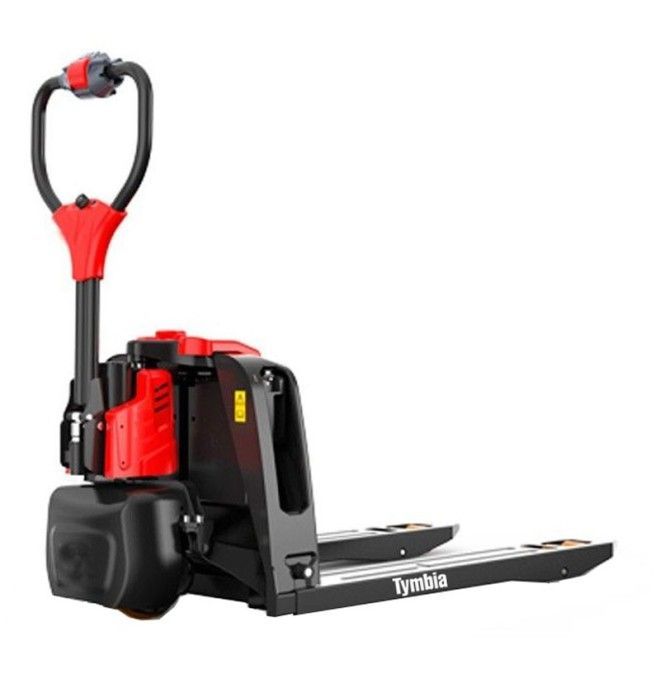

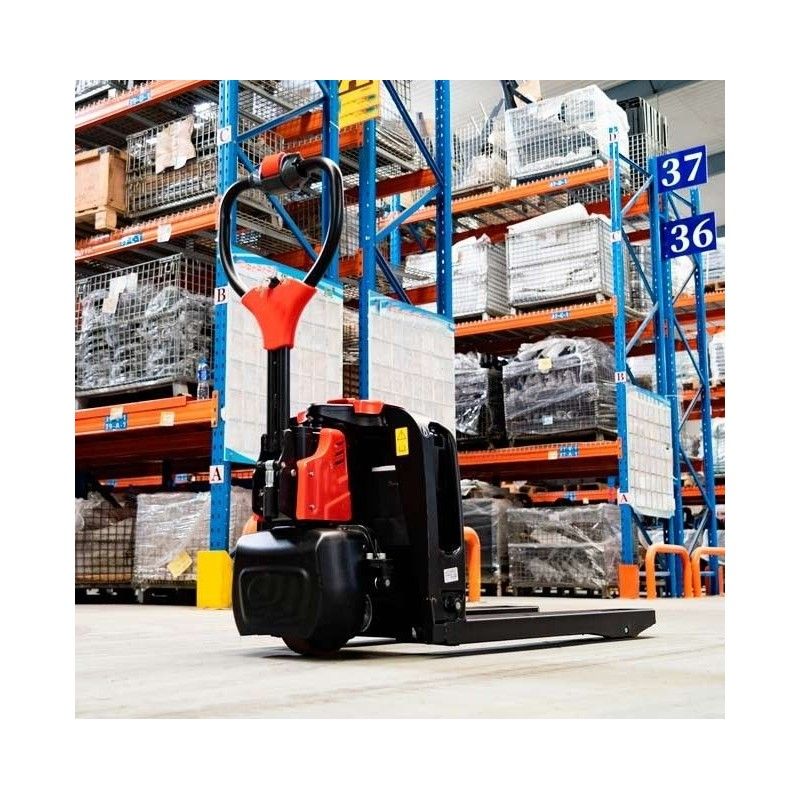

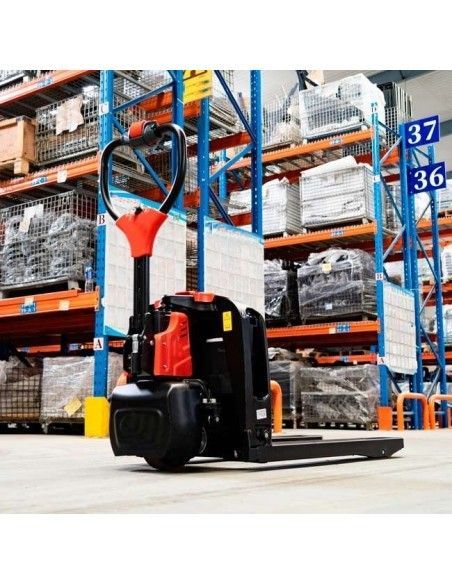

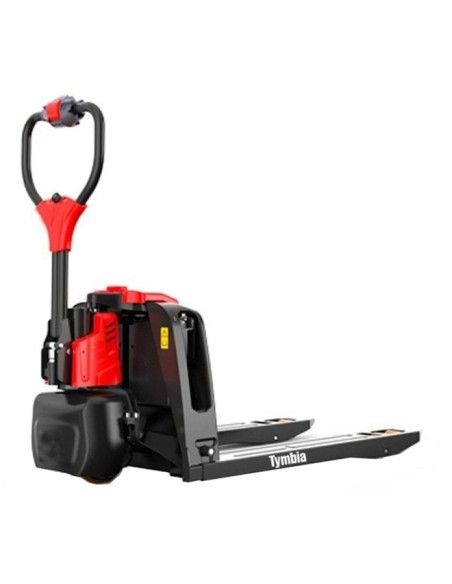

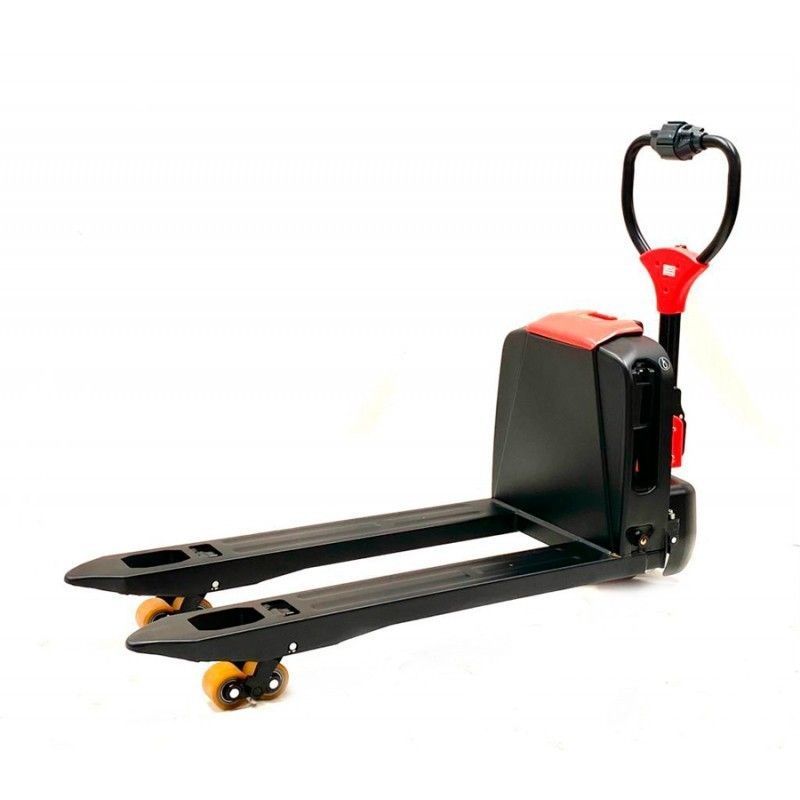

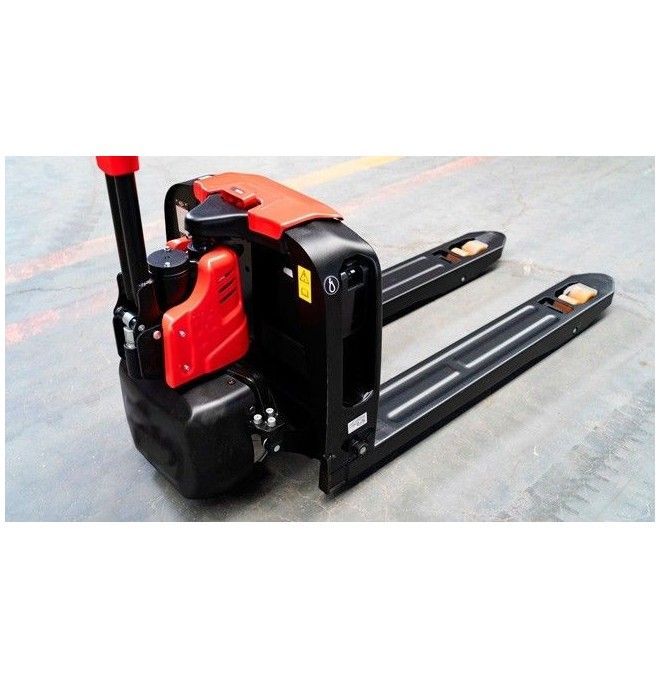

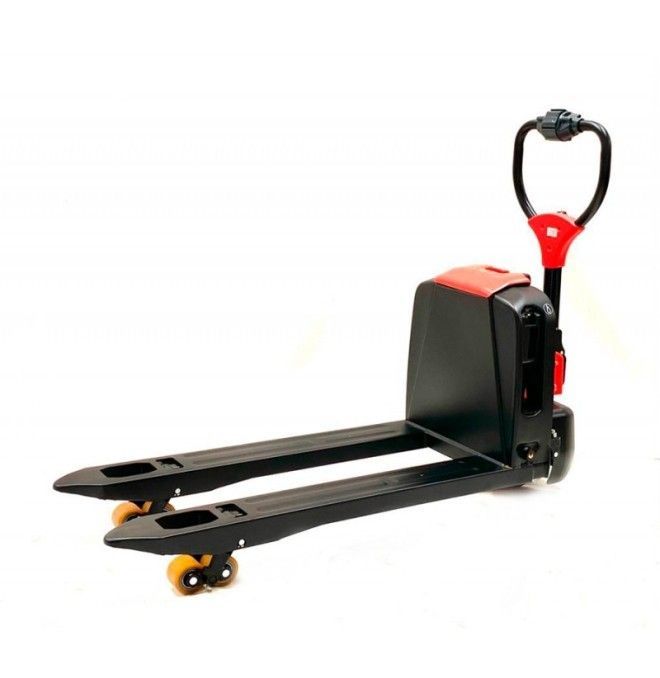

1500kg Electric Transpalet - 24V / 20Ah Lithium Battery
M101040063
€1,295.00
1.295,00 € (tax incl.)

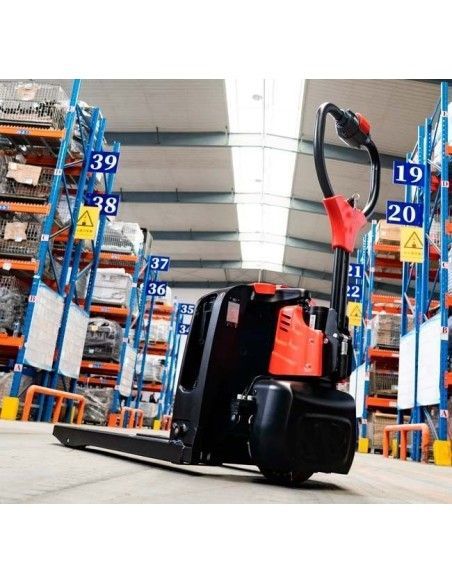

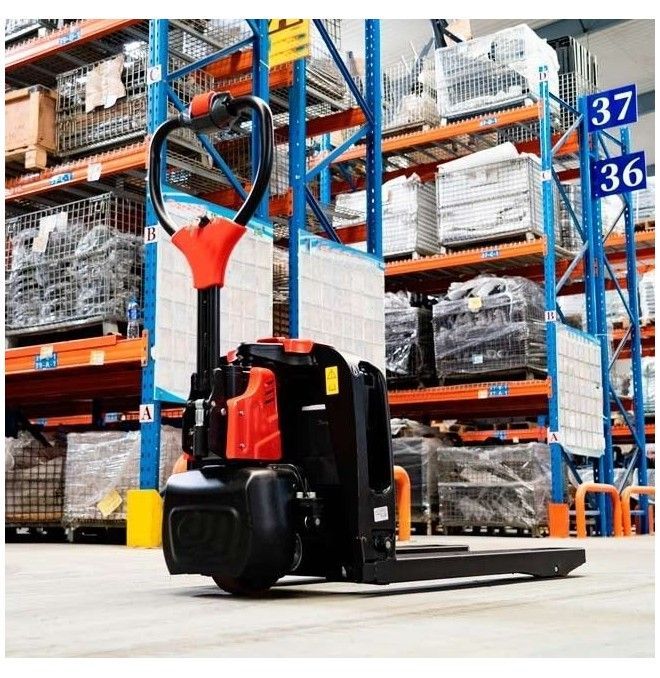

1500kg electric transparent with removable lithium battery for intensive logistics in warehouses. The dual feeding system guarantees high availability and energy efficiency in demanding industrial environments; Professional solution of low maintenance.
- Charging capacity: Supports 1500kg with a cargo center at 600mm; High strength robust structure for intensive use.
- Lithium autonomy: 24V / 20Ah removable battery with 2-hour quick load in standard power outlet.
- Industrial maneuverability: 1360mm spinning radius and 590mm chassis; Facilitates movement in reduced spaces and hallways.
- Security: EC certification mandatory according to European regulations; Includes electric brake and high strength industrial components.
Fully electric transparent, 1500kg of load capacity. This new model allows maximum flexibility in configurations for each type of application, from occasional use to heavy work.

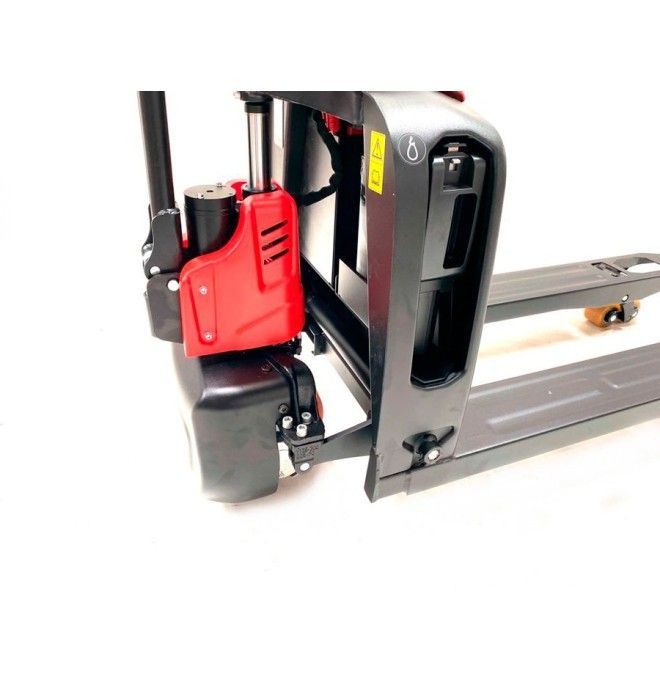

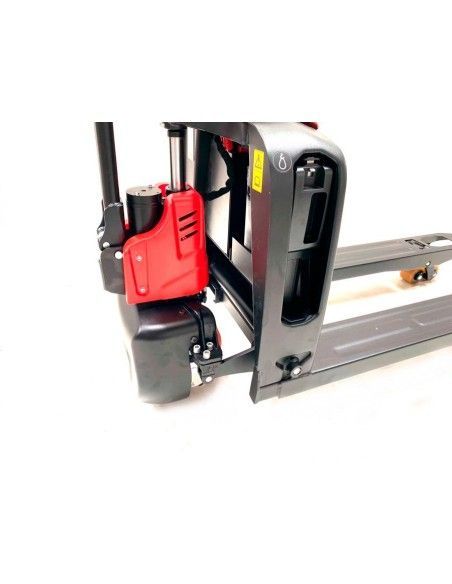

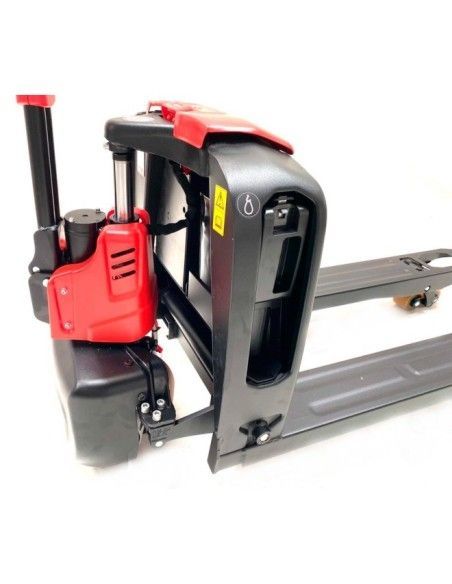

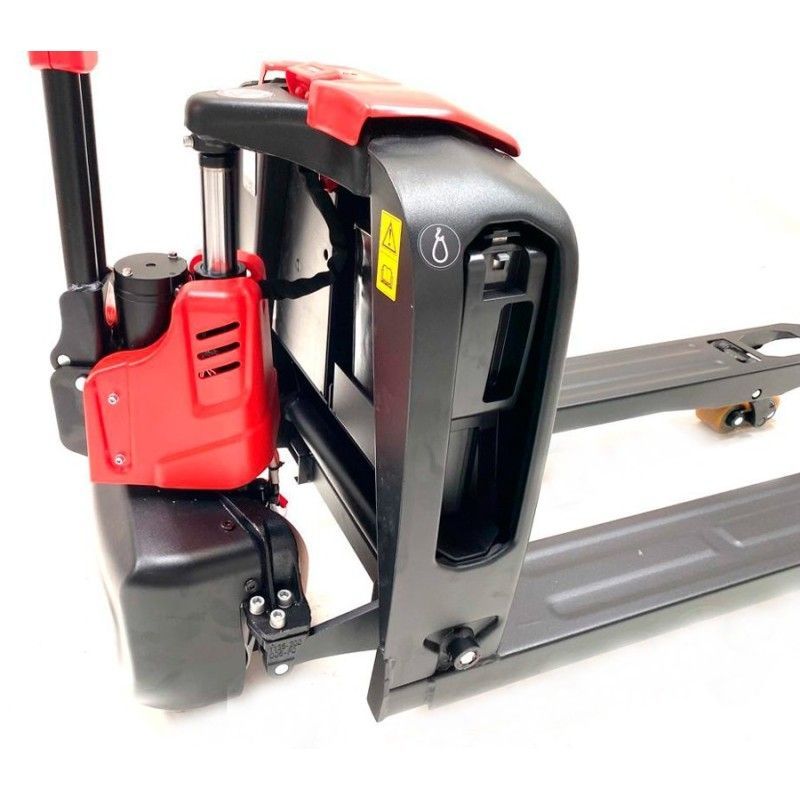

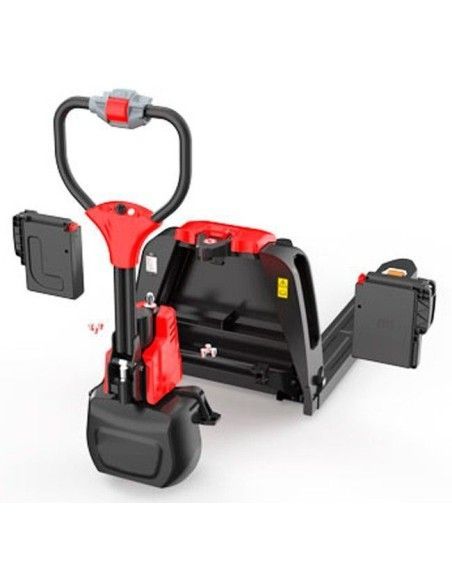

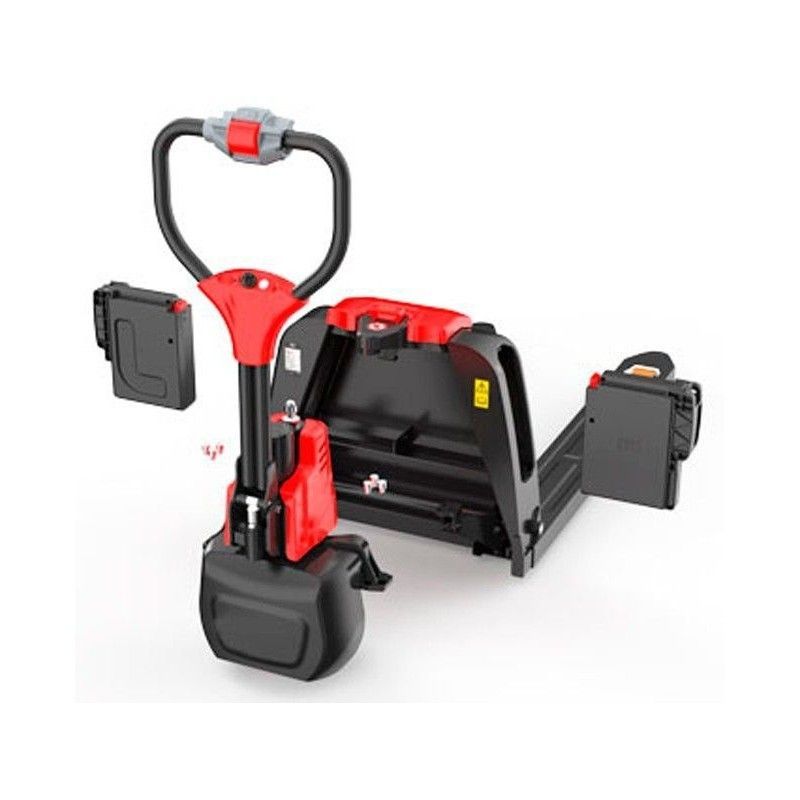

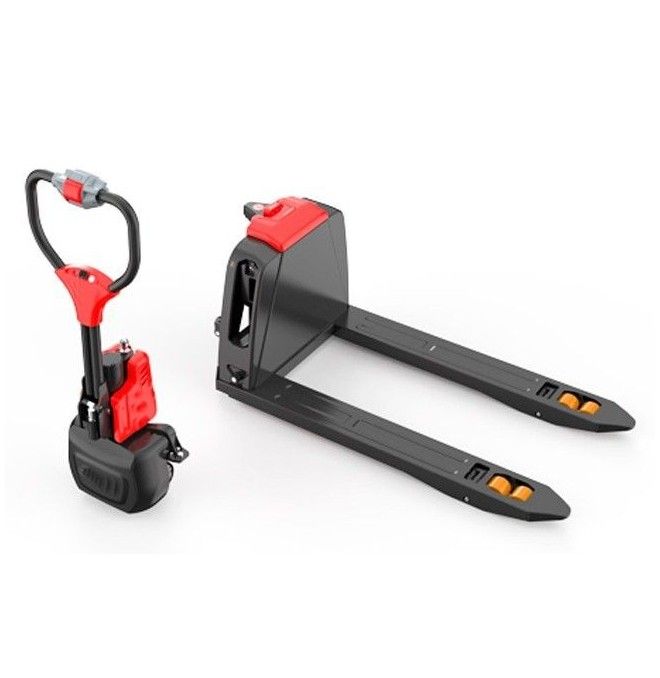

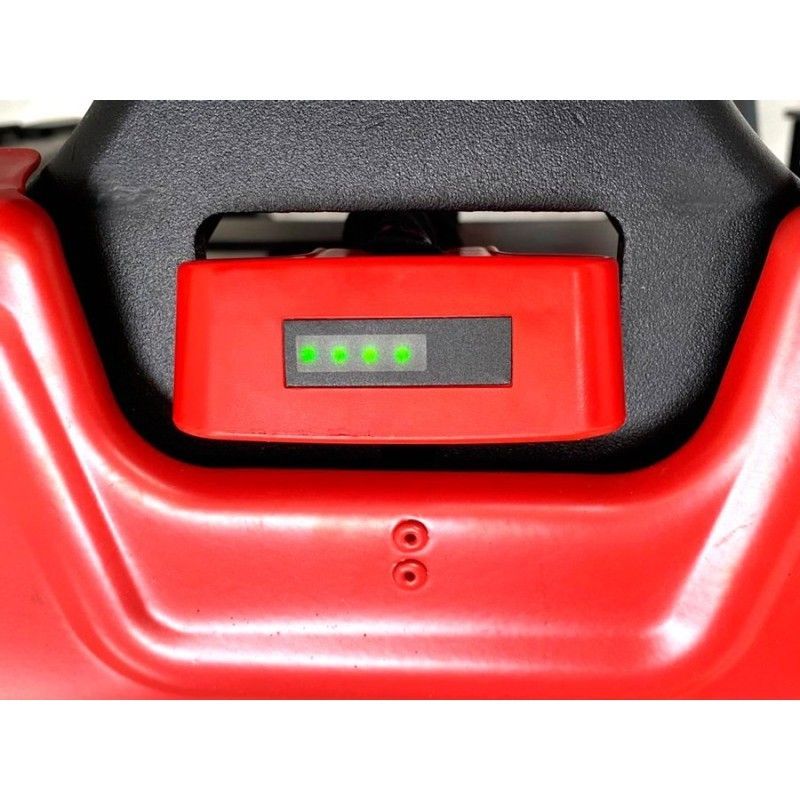

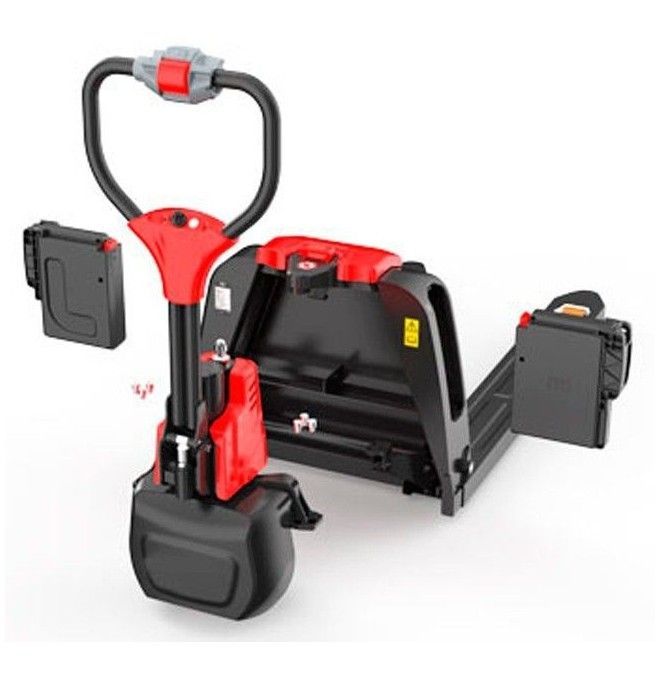

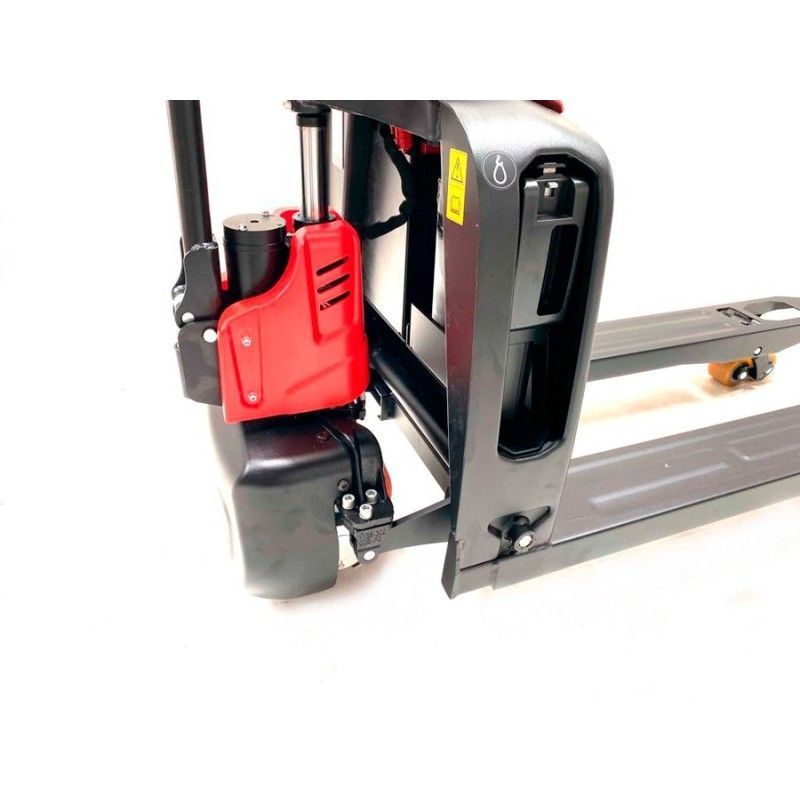

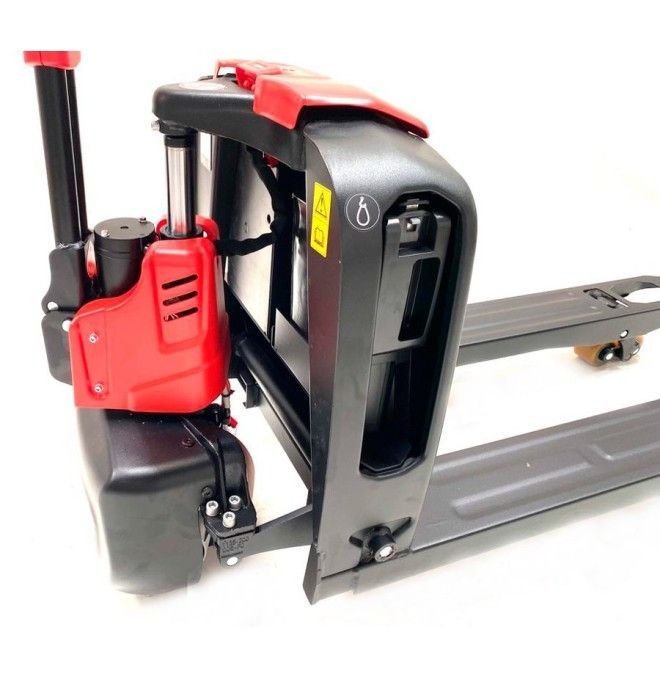

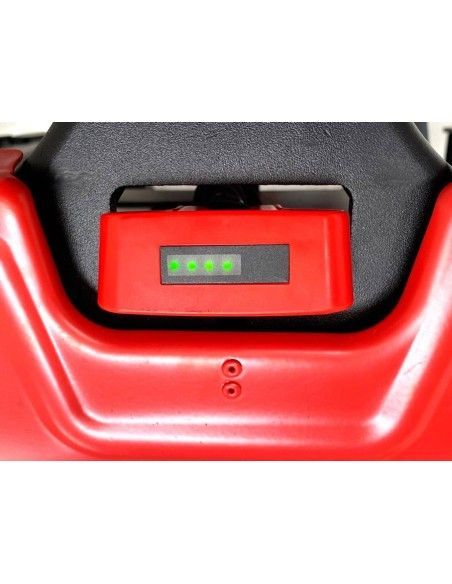

With a design of two feed slots, to offer the option of two 24V / 20Ah batteries, in order to maximize the activity time for full-time applications. You will have the battery fully charged in just 2 hours; This battery is designed to facilitate its handling and can load it into any standard power outlet, without the need for special loading pieces.
Integrated charger included. Single-phase load

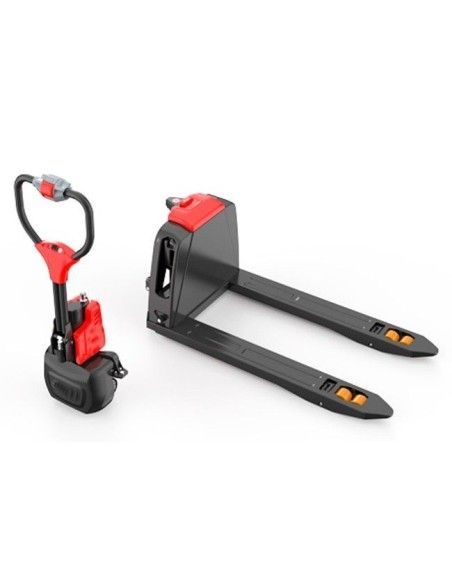

The standard configuration of a single battery comes with a portable storage space for greater storage ease. Its versatility converts the electrical turns into a perfect tool for different tasks in the smaller environments or spaces.
Manufactured and designed to improve your experience in transport and loading materials. Ideal for spaces reduced by its design and easy handling. An economical way of transporting your packages comfortably and easily.
Its structure and design facilitates operator its use, and its maintenance is minimal.

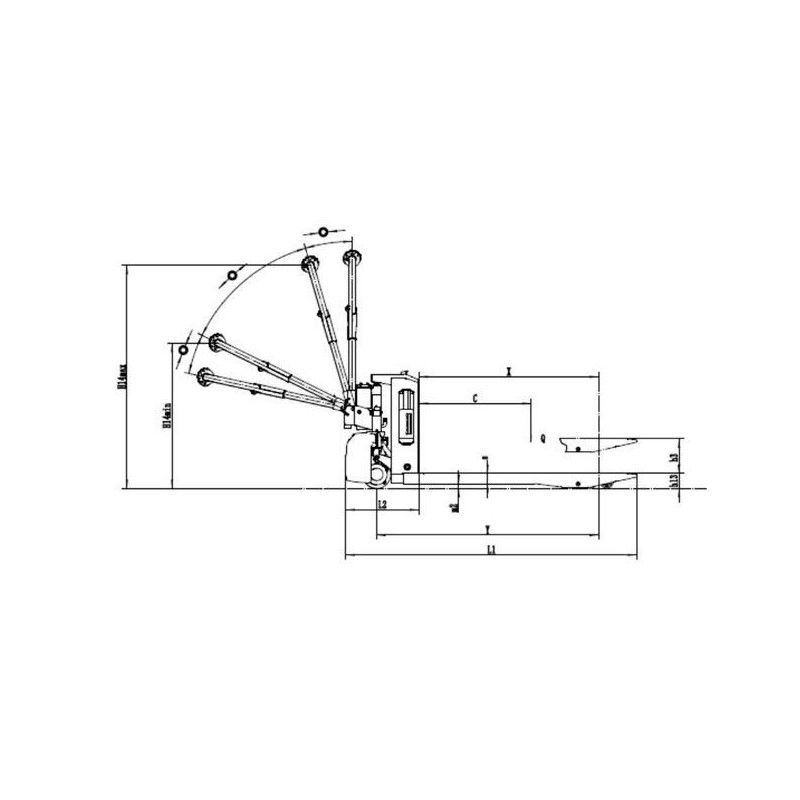

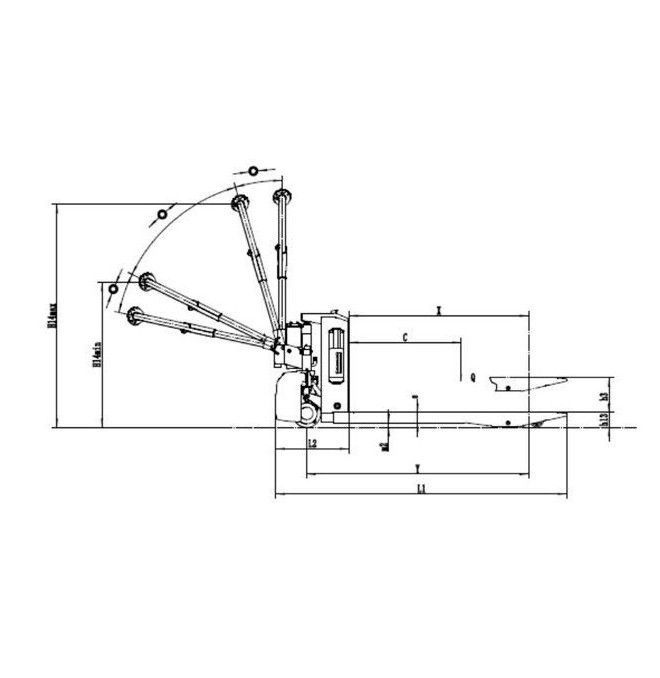

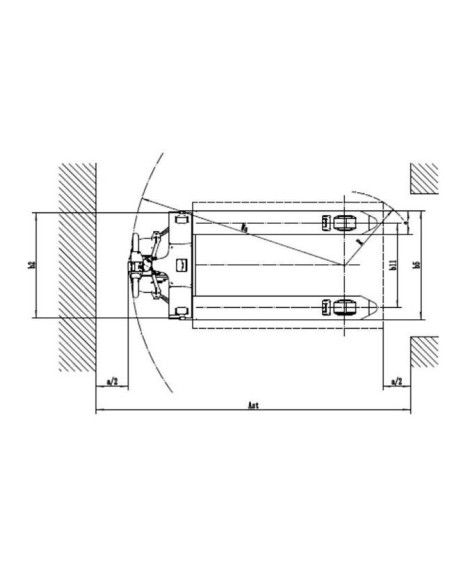

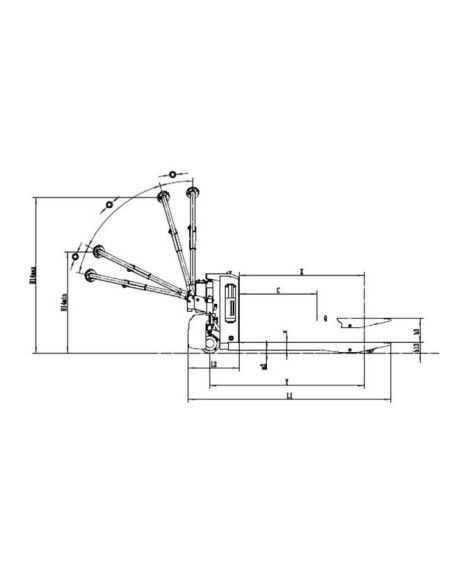

Technical characteristics
(Q) Load capacity: 1500kg
(c) Cargo center: 600mm
(x) Load distance: 950mm
(y) Axles distance: 1180mm
Type of wheel drive: Polyurethane
Size of the wheel drive: 210x70mm

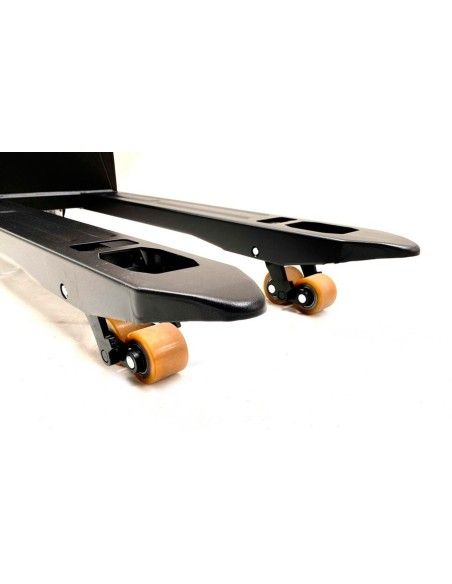

Roller size: ф80x60 (ф74x88) mm
Motor wheels: 1
Rollers: 4
(H3) Lifting height: 105mm
(H14) Min. / Max. of the rudder: 750 / 1190mm
(H13) Height Min: 82mm
(L1) Total length: 1550mm
(B1) Total width: 590mm
(S / E / L) Dimensions Forks: 55x150x1150mm
(B5) Distance from forks (Width): 560mm
Floor Distance, Downtown Between Axles: 25mm

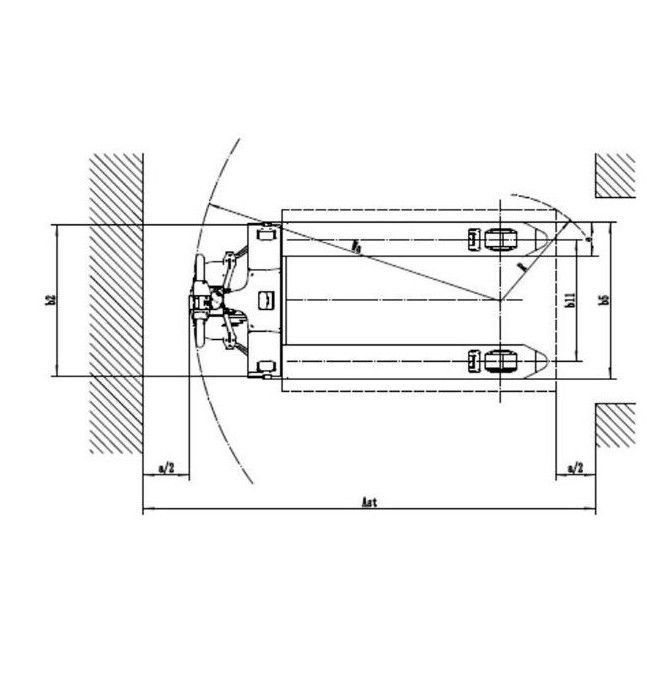

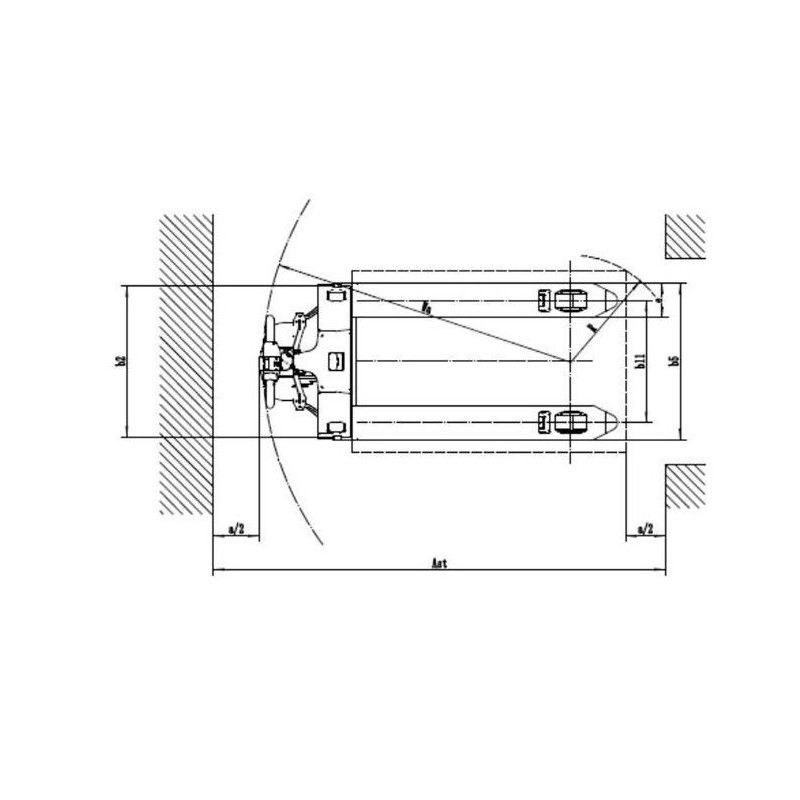

(WA) Radio rotation: 1360mm
Scroll speed, with / without load: 4 / 4.5 km / h
Lifting speed, with / without load: 0.017 / 0.020 m / s
Drop speed, with / without load: 0.046 / 0.058m / s
Overlavable pending: 5% (load) / 16% (downloaded)
Brake type: Electric
Push motor power: 0.75KW
Lifting motor power: 0.5KW
Battery voltage / Nominal capacity: 24 / 20V / AH
Battery weight: 5kg
Lithium battery
Removable battery
Controller: DC
Type of address: Mechanics
Weight: 120kg
CE
- TYPE
- Lithium
- Load capacity (kg)
- 1500
- Lifting height (mm)
- 105
- Horquillas (mm)
- 1150x560
- Battery
- Lithium
- Lifting system
- Electric
- Total length (mm)
- 1550
- Weight (kg)
- 120
- Width (mm)
- 590
- Color
- Red/Black
- Description
- Pallet Truck electric 1500kg Lith Extra
- Max. (mm)
- 1190
- Height Min. (mm)
- 82
- Propeller system
- Electric
- Drums
- 24V/20Ah
- Length fork (mm)
- 1150
- Rudder
- Polyurethane
- Rolls
- Polyurethane
- Traction motor (KW)
- 0.75
- Lifting motor (KW)
- 0.5
