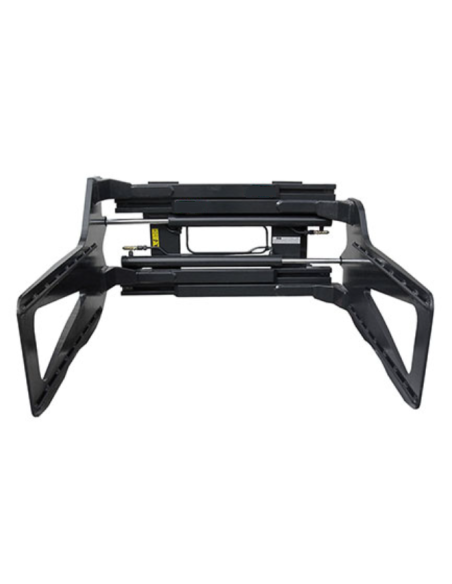

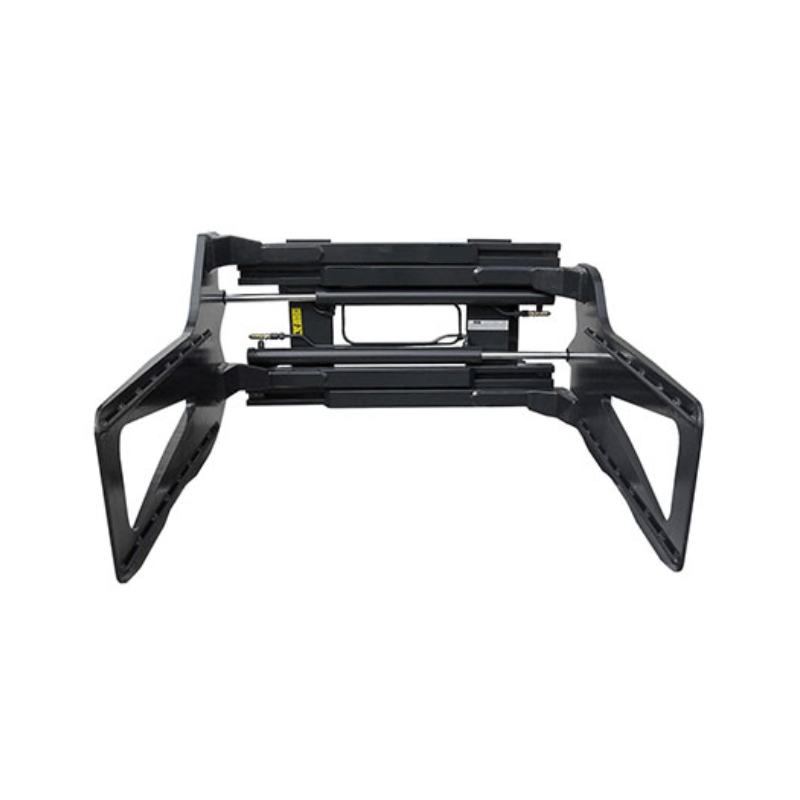

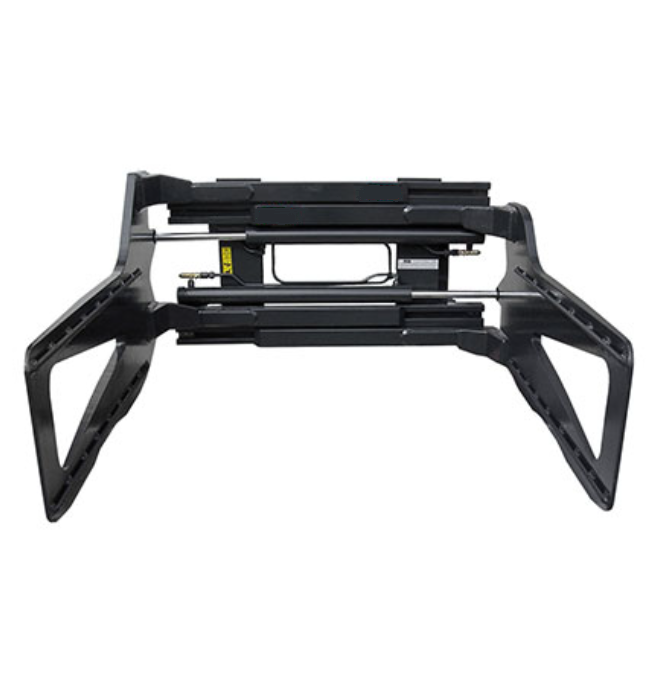

Bullet launch 1800kg, FEM2, opening 560-1780mm

Suitable scales for handling variety of materials in bullets: paper waste, recycled plastic products, natural and synthetic textile fibres.

Implementation for forklift Trucks fEM2, ideal for loading bullets up to 1800kg. Its design offers high visibility over and through the picture, and bthin and round handles provide excellent grip on the load, plus pthin arm ivory can be passed between stacked bullets facilitating their use and safety.

Technical specifications:

• Mounting class (ISO 2328) FEM2
• Clamp capacity between the arms in load center (Q2) (kg) 1800
• Charging center (LC) (mm) 500
• Loss of capacity (LL) (mm) 135
• Side slider included SI
• Type of lateral scroller
• Integrated displacement
• Minimal opening range between arms (W30) (mm) 560
• Maximum opening range between arms (W31) (mm) 1780
• Minimum width of the portable board (W6) (mm) 750
• Maximum fixed frame width (W4) (mm) 950
• Length of the holding arms (L3) (mm) 1000
• Height of the clamping arms (H3) (mm) 400
• Holding arm thickness (T3) (mm) 30
• Central visibility (H10) (mm) 185
• Horizontal gravity center (HCG) (mm) 256
• Vertical gravity center (VCG) (mm) 218
• Application weight (G) (kg) 435
• Ground distance (H6) (mm) 76
• Hydraulic functions 2
• Height portable board (H4) (mm) 407
• Minimum Pressure-Pinza (P-min-CL) (Bar) 80
• Minimal oil flow-Pinza (OFR-min-CL) (l/min) 15
• Recommended oil flow-Pinza (OFR-rec-CL) (l/min) 25
• Max-Pinza (OFR-max-CL) (l/min) 40
