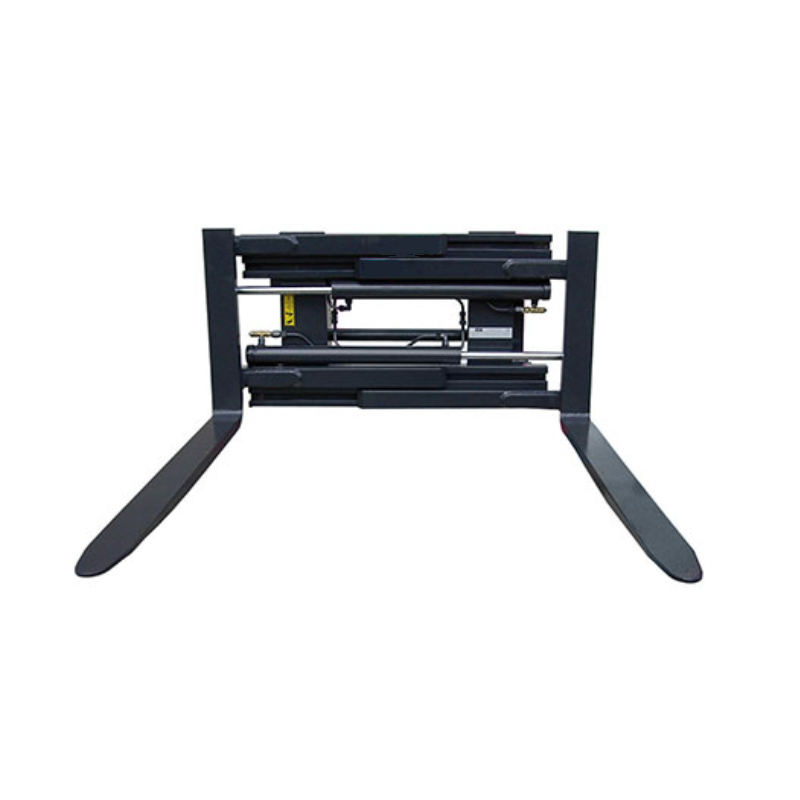

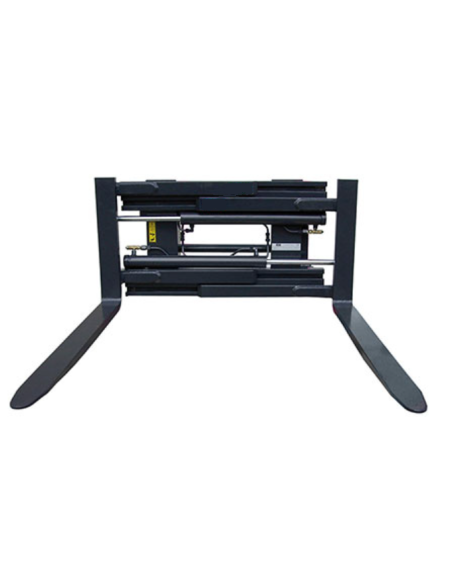

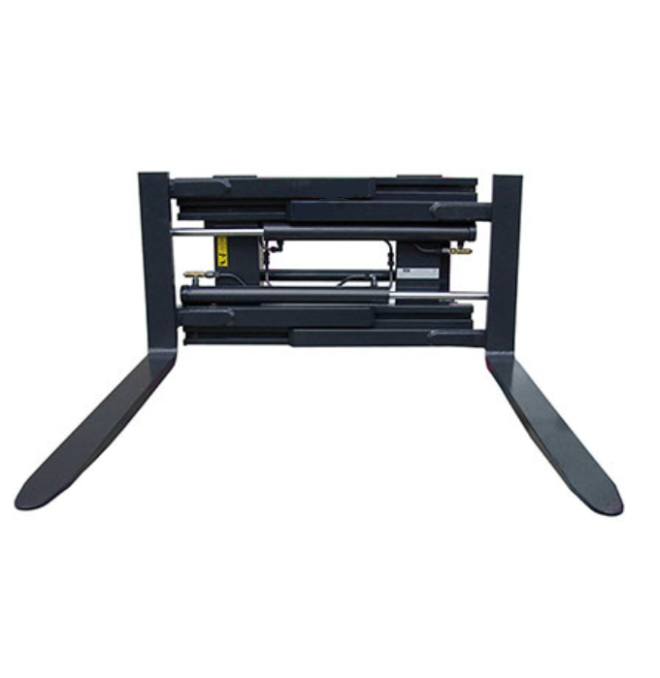

FEM2A Fork Pig - 1000kg, 360-1500mm opening
M103070116
€5,750.00
5.750,00 € (tax incl.)
FEM2 forklift forks forklift, with a maximum capacity in the loading center of 1600kg and capacity of 1000kg clamp. Being the opening range of the 360mm forks up to 1500mm maximum.
Attached with integrated side scroller, facilitates handling of various types of loads: boxes, pallets, bullets,...
Forks are multipurpose attachments, can be used as a fork positioner or to hold loads. Thanks to function 3 in 1, with fork clips can easily be manipulated boxes, pallets, bullets, etc. without having to change attachment. Versatile implementation used in various industrial sectors such as food processing and manufacturing industries.
Technical specifications:
- Mounting class (ISO 2328) FEM2
- Capacity in loading center (Q1) (kg) 1600
- Clamp capacity between forks in load center (Q2) (kg) 1000
- Charging center (LC) (mm) 500
- Loss of capacity (LL) (mm) 180
- Side slider included: SI
- Type of side scroller: Integrated
- Minimum opening range between forks (W10) (mm) 360
- Maximum opening range between forks (W11) (mm) 1500
- Minimum width of the portable board (W6) (mm) 750
- Maximum fixed frame width (W4) (mm) 950
- Applicable maximum length of forks (L1) (mm) 1200
- Width of forks (W1) (mm) 100
- Fork thickness (T1) (mm) 35
- Central visibility (H10) (mm) 195
- Horizontal gravity center (HCG) (mm) 190
- Vertical gravity center (VCG) (mm) 199
- Implementing weight (G) (kg) 317
- Ground distance (H6) (mm)76
- Number of forks included 2
- Hydraulic functions 2
- Height portable board (H4) (mm) 407
- Recommended Pressure-Pinza (P-rec-CL) (Bar) 160
- Recommended oil flow-Pinza (OFR-rec-CL) (l/min) 25
- Suitable for europalet
