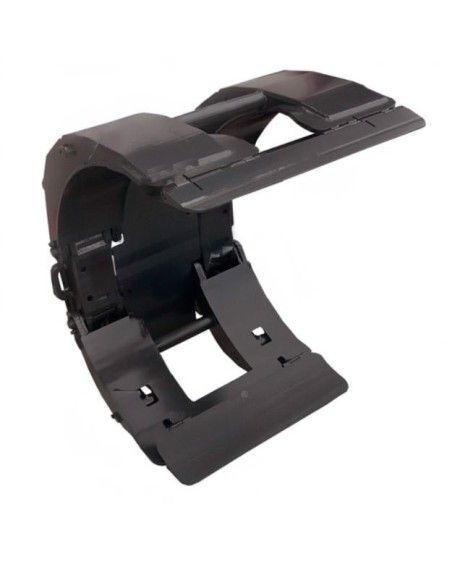

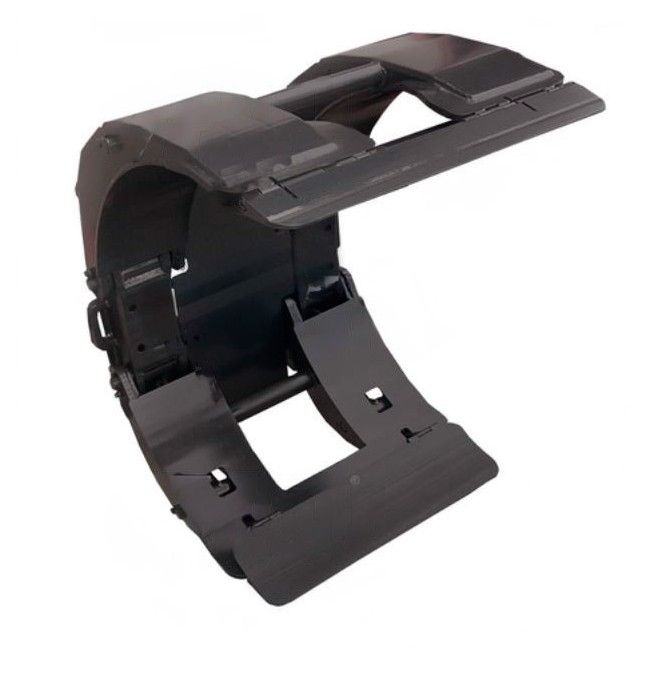

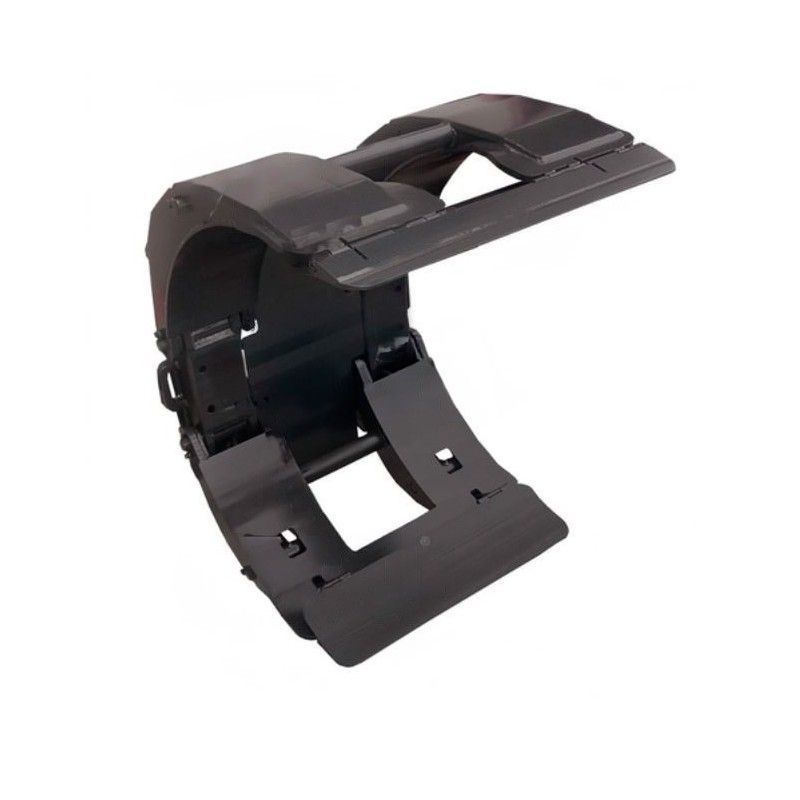

360º Coil Clamp - FEM3A 2000KG
M103070117
€14,950.00
14.950,00 € (tax incl.)
Coils for coils forklift Trucks with a load capacity of 2000kg.
Tongs for paper rolls for forklift fEM3 allows to rotate the forks easily up to 360o, being its maximum load capacity of 2000kg.
TECHNICAL CHARACTERISTICS
Mounting class: FEM3
Type of assembly class: A
Rotative

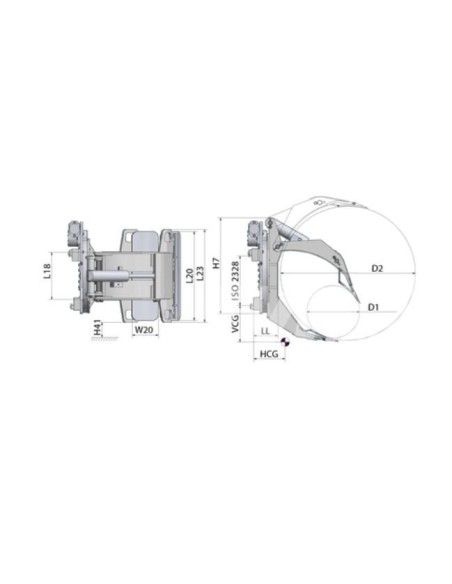

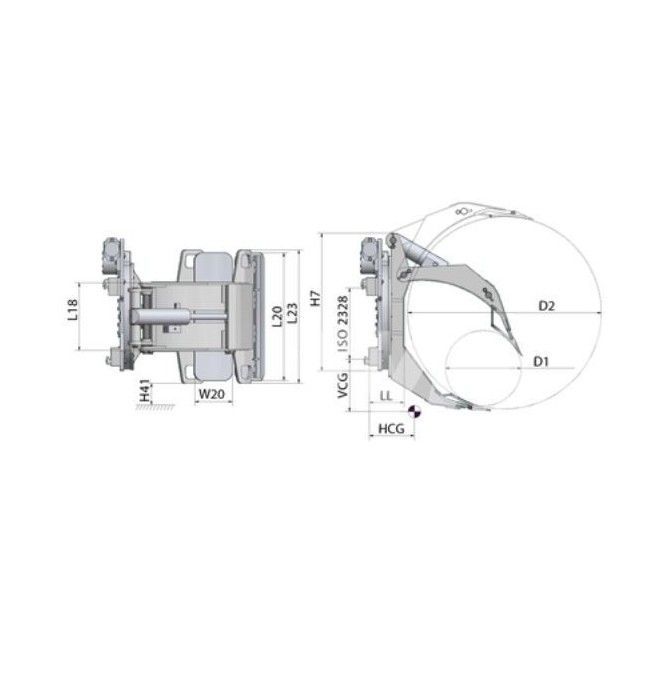

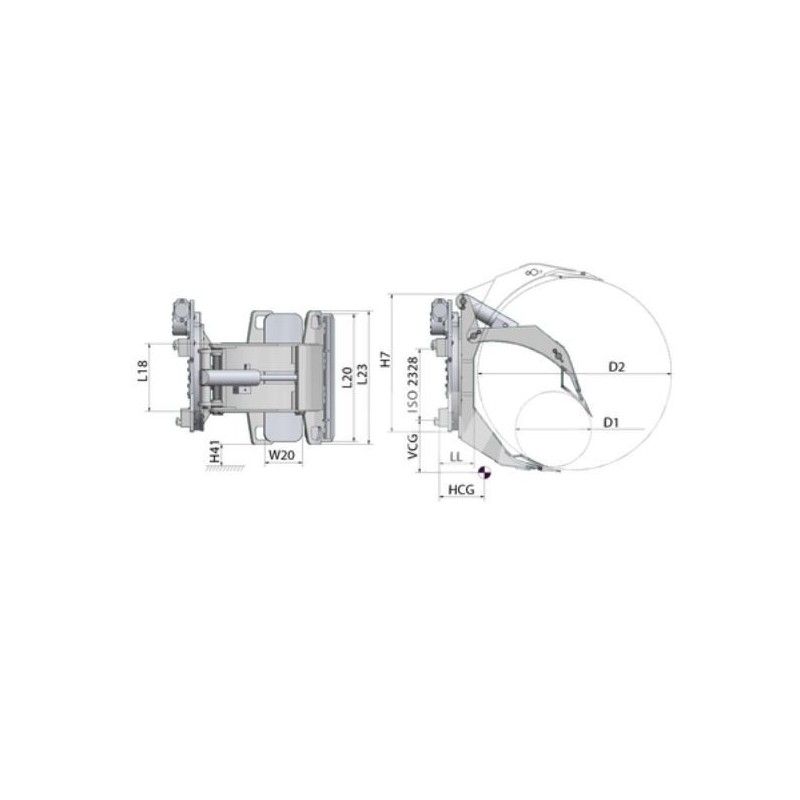

Clamp capacity between forks in load center (Q2) (kg) 2000
Charging center (LC) (mm) 800
Loss of capacity (LL) (mm) 177
Side slider included: NO
Minimum coil diameter (D1) (mm) 500
Maximum coil diameter (D2) (mm) 1600
Height of frame H7 (mm) 1190
Measured distance on the arms (L18) (mm) 846
Length of an undivided contact plate (L20) (mm) 1020
Width of contact plates (W20) (mm) 250
Width of contact pads (mm) 1070
Horizontal gravity center (HCG) (mm) 298
Vertical gravity center (VCG) (mm) 393
Implementing weight (G) (kg) 731
Rotation angle (RA) 360
Mounting angle (MA) (°) 2
Ground distance (H6) (mm) 76
Type of attachment: CR
Pressure reducer valve present: NO
Present gauge: NO
Hydraulic functions: 2
With fast detachment assemblies: NO
Type of short arm
Type of long arm
Height portable board (H4) (mm) 508
Maximum fixed frame width (W4) (mm) 850
Different coil diameters that can be manipulated together: no
Recommended Pressure-Pinza (P-rec-CL) (Bar) 160
Minimal oil flow-Pinza (OFR-min-CL) (l/min) 20
Recommended oil flow-Pinza (OFR-rec-CL) (l/min) 30
Max-Pinza oil flow (OFR-max-CL) (l/min) 45
Tissu paper models available on request: SI
Different contact surface pads on request: SI
Rotary system 180°
New
