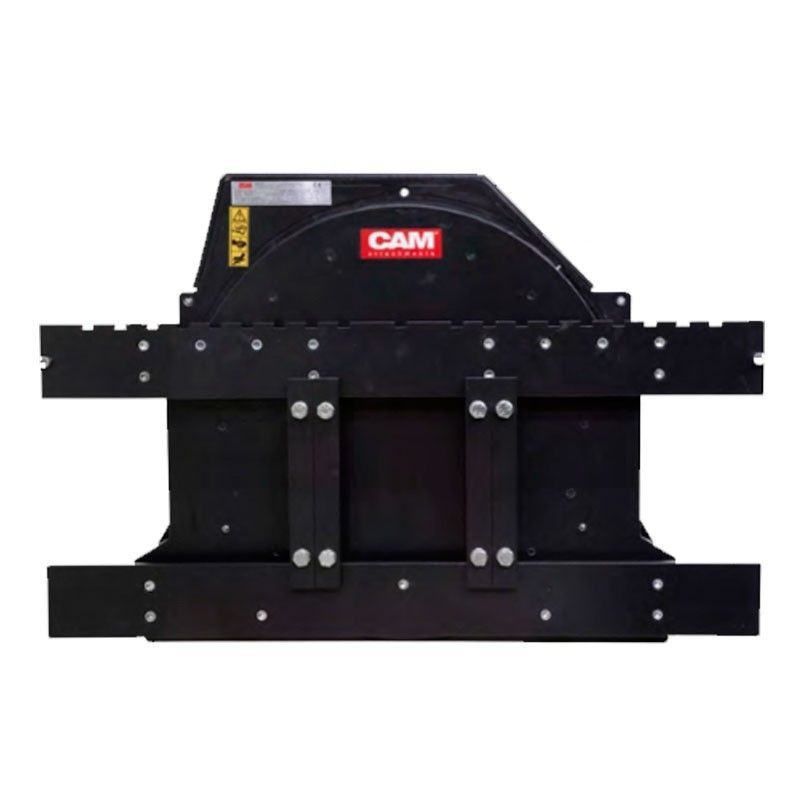

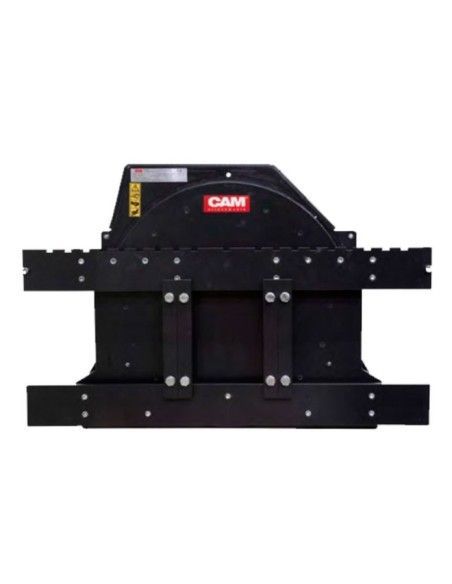

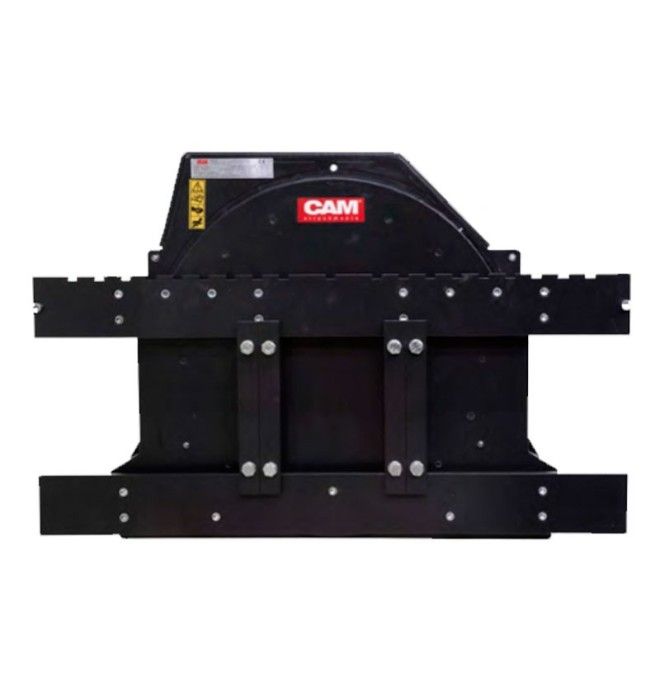

360o wheelbarrow - FEM2 1800KG

The dumper for forklift fEM2 allows to rotate the forks easily up to 360o, being its maximum load capacity of 1800kg.

The rotator implement provides greater versatility to move and stack, as well as download materials safely and efficiently. There are several types of rotators available that adapt to different professional needs, this dumper is very versatile offering a full 360o rotation and is used in a wide range of sectors: from agriculture and the construction to the food and beverage sector.

Lock bars of the forks facilitate the connection to standard measurement forks and have screw bars that can be easily changed by longer or shorter bars, depending on the user's needs. It is also designed for a long service life, with a well protected engine and a durable and durable frame.

Benefits:

• Improved productivity
• 360° Rotation
• Screw bars to adjust the length.
• Well protected motor
• High mechanical strength

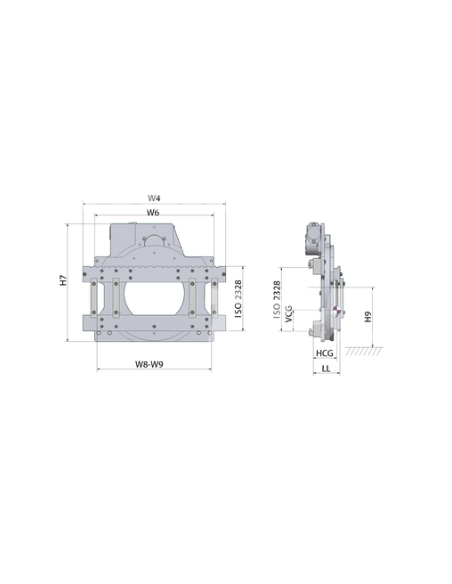

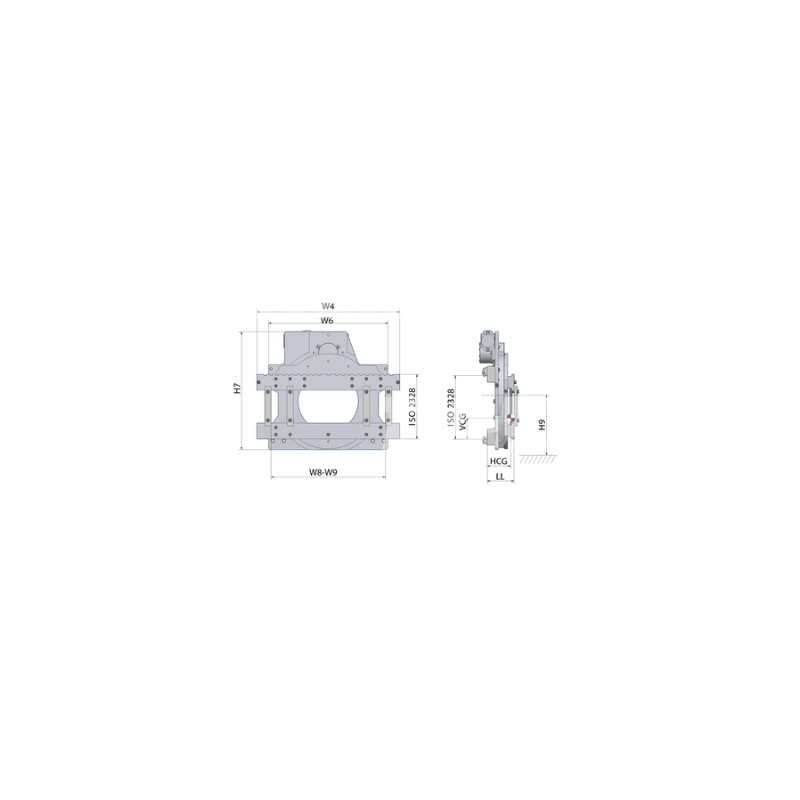

Technical specifications:

• Capacity in loading center (kg) 1800
• Charging center (mm) 500
• Maximum fixed frame width (mm): 900
• Minimal opening range measure on forks (mm) 210
• Maximum opening range on forks (mm) 820
• Loss of capacity (mm) 170
• Horizontal gravity center (mm) 85
• Vertical gravity center (mm) 278
• Implementing weight (kg) 241
• Rotation angle (°) 360
• Recommended rotation speed by oil flow (Rpm) 5.50
• Maximum rotation pair (kN/m) 4
• Pressure indicated to pair (bar) 140
• Frame height (mm) 742
• Hydraulic functions 1
• Includes bar set fork and locking pads fork. YES
• Recommended Pressure-Rotation (Bar) 160
• Recommended oil flow rotation (l/min) 25
