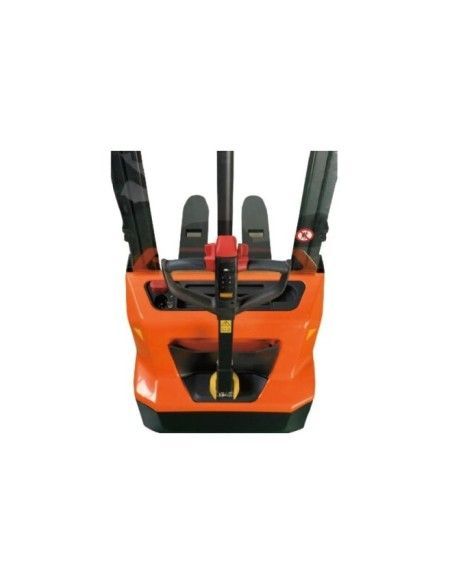

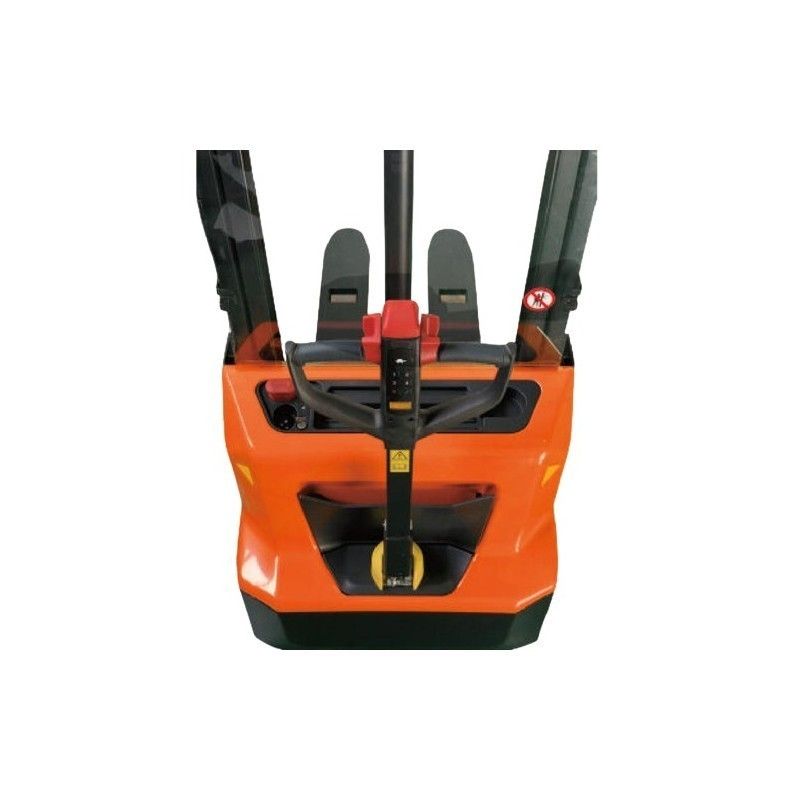

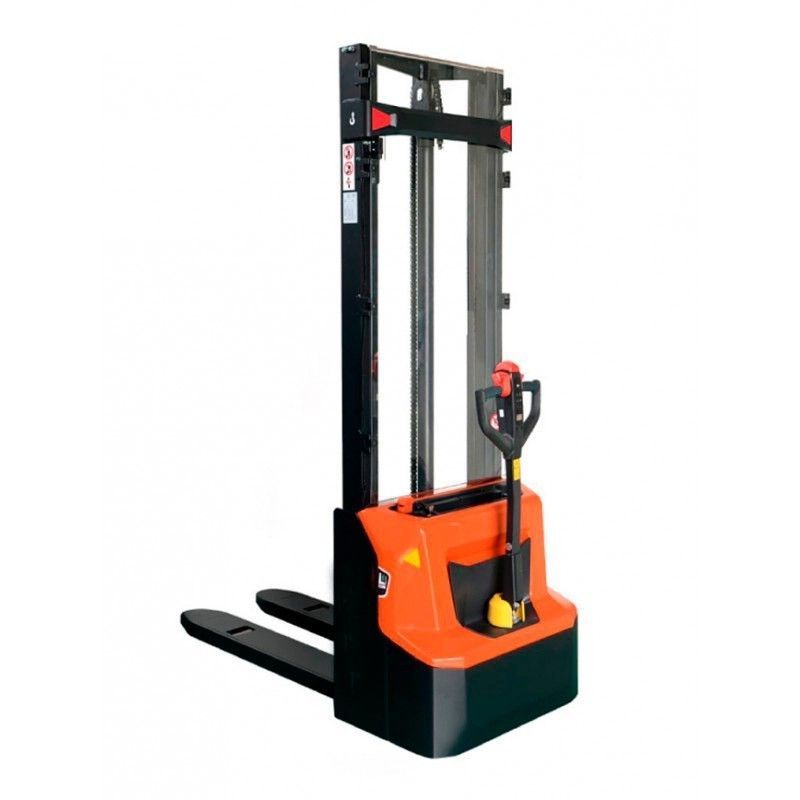

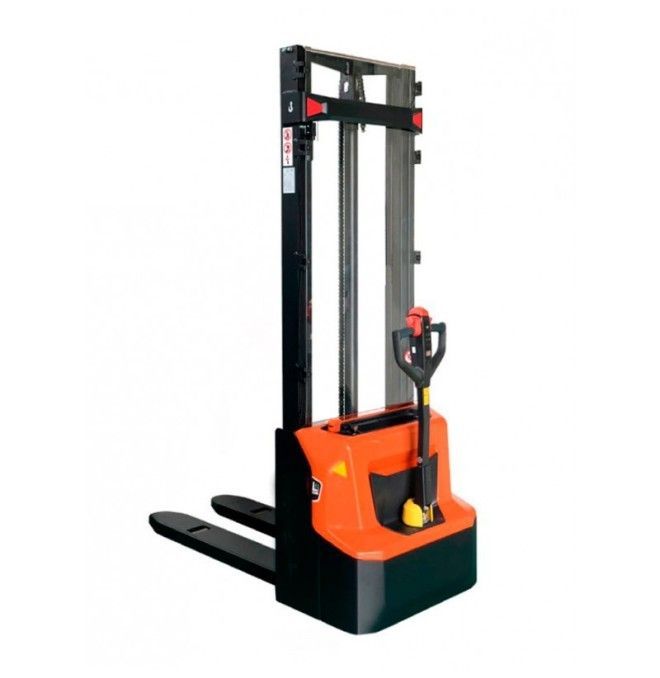

Electric stacker 1200kg to 3600mm Gel battery 24V/60Ah

Electric traction and lifting stacker, up to 1200kg load capacity and lifting height up to 3600mm, being its fork dimensions 51x571x1150mm .

Thanks to its ergonomic and compact design, it is very easy to handle. Facilitates the load and discharge of the material for the operator. Perfect for low power applications, it includes internal charger for great autonomy and a indicator battery discharge with automatic cut, to extend the life of the equipment.

BENEFITS

• Speed control.
• Access with Pin Code.
• Electrical up and down.
• Optional: RFID Access Card.
• Vertical driving function to facilitate work in narrow places.
• Litio maintenance-free batteries.
• Different versions of the available mast.
• Robust and ergonomic design with various storage areas.

TECHNICAL CHARACTERISTICS

• Load capacity: 1200kg
• Lift height: 3600mm
• Loading center: 600mm
• Height of folded mast: 2280mm
• Extended mast height: 4037mm
• Free elevation: 58mm
• Lift height: 3600mm
• Long forks: 1150mm
• Forks width: 571mm
• Minimum elevation height: 82mm
• Fork dimensions: 60x180x1150mm
• Turn radio: 1350mm
• Displacement speed with/without load: 4.2/4.5 km/h
• Lift speed with/without load: 0.11/0.17 m/s
• Decrease speed with/without load: 0.11/0.13 m/s
• Inclination with/without load: 5/10%
• AGM battery: 24V/60Ah
• Charger Incorporated: 25Ah
• Charging time: 1.5/2 Hours
• Working hours: 3.5 continuous with load
• Battery weight: 19kg
• Weight: 585kg

CE marking
