AY-255 HONDA CC TX
B401010006
€1,809.00
1.809,00 € (tax incl.)

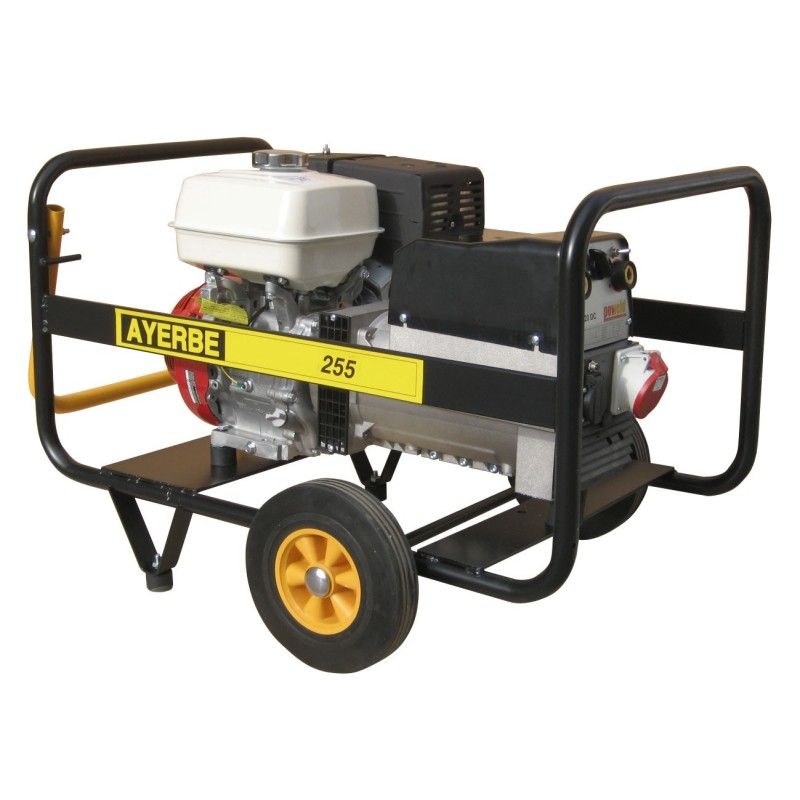

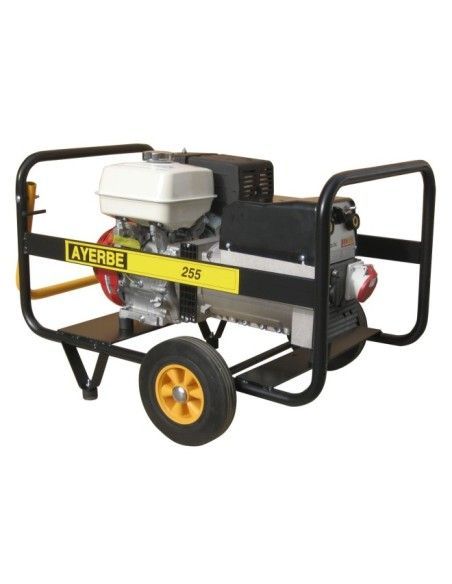

The Gasoline AY-255 H CC is a tool welding and high-performance energy generation. Powered by the powerful HONDA GX-390 engine and equipped with the reliable LINZ E2W10 220 DC alternator, this motorcycle is an exceptional combination of power and efficiency to offer outstanding results at each job.
- HONDA GX-390
- Nominal power : 13 Cv / 390 cm3
- Max Power: 6.5 KVA 400V / 3 KVA 230V
- Nominal power: 5 KVA 400V / 2.5 KVA 230V
- R.p.m 3,000 R.P.M.
- Power Factor: Cos phi 0.8
- Sound level: 97 LwA / 74 LpA @ 7 m.
- With mass clamp, electrodes and brush
- Manual opening
- Speed Regulator : Mechanics
- Alternator SINCRO EW 220 DC
- Electrode max. 4 mm. Rutile and basic
- Intensity 180 A. (35%) / 150 A. (60%)
- Voltage and Frequency: 400 & 230 V 50 Hz
- Normal welding system 30%: 180 A
- Intensive welding system 60%: 150
- Consumption (75%):2,1 L/h.
- Deposit: 6.5 l.
- Weight: 105 Kg
- Dimensions : 950 x 730 x 700 mm .
Welding kit included
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Potencia máxima nominal (LTP)
- 7
- Potencia primaria nominal (PRP)
- 5
- Start system
- Manual
- Speed regulator
- Mechanical
- Min/max welding current (A)
- 180/150
- Engine
- Other
New
8429459202803
