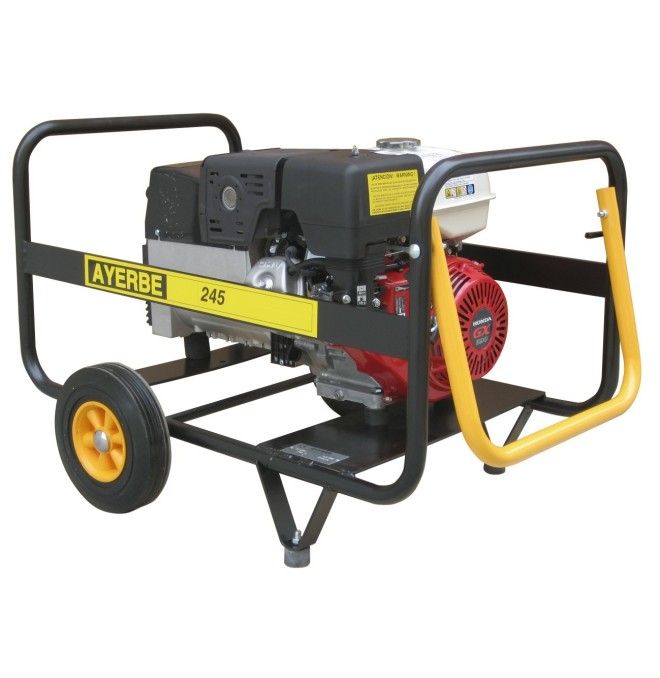

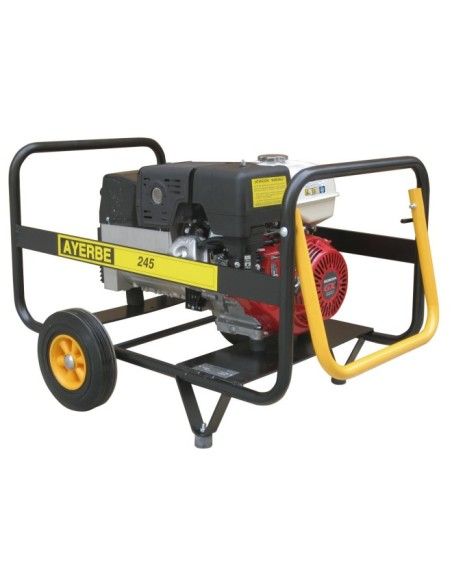

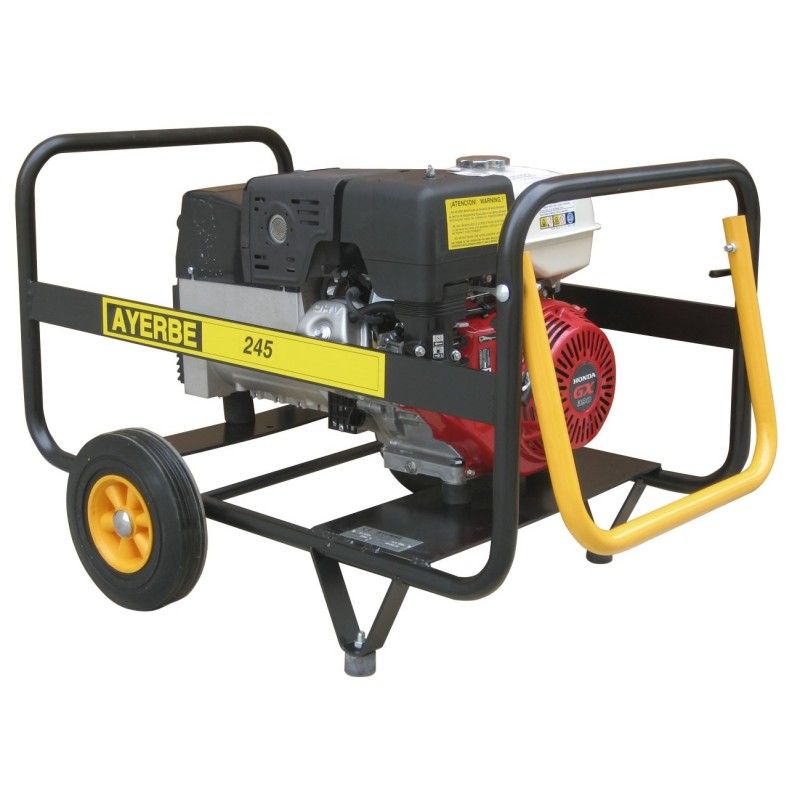

AY-245 HONDA CC MN
B401010005
€1,809.00
1.809,00 € (tax incl.)
The AY-235 H AC Gasoline Motorcycle with HONDA GX-390 Motor is the tool perfect for welding and generating energy efficiently and reliably. With its powerful 13 Cv and 390 cm3 cylinder engine, this braking offers exceptional performance in various applications. Welding kit included.
- HONDA GX-390
- Nominal power : 13 Cv / 390 cm3
- Max Power: 4.5 KVA / 3.800 W
- Nominal power: 4 KVA / 3.200 W
- R.p.m 3,000 R.P.M.
- Power Factor: Cos phi 0.8
- Sound level: 97 LwA / 74 LpA @ 7 m.
- With mass clamp, electrodes and brush
- Manual opening
- Speed Regulator : Mechanics
- Alternator SINCRO E2W10 220 MDC
- Electrode max. 4 mm. Rutile and basic
- Intensity 180 A. (35%) / 150 A. (60%)
- Tension 230 V. // 50 Hz.
- Normal welding system 30%: 180 A
- Intensive welding system 60%: 150 A
- Consumption (75%):2,1 L/h.
- Deposit: 6.5 l.
- Weight: 107 Kg
- Dimensions : 950 x 730 x 700 mm .
Welding kit included
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Potencia máxima nominal (LTP)
- 7
- Potencia primaria nominal (PRP)
- 4
- Start system
- Manual
- Speed regulator
- Mechanical
- Min/max welding current (A)
- 180/150
- Engine
- Other
New
8429459202605
