AY-235 HONDA AC MN
B401010004
€1,594.00
1.594,00 € (tax incl.)

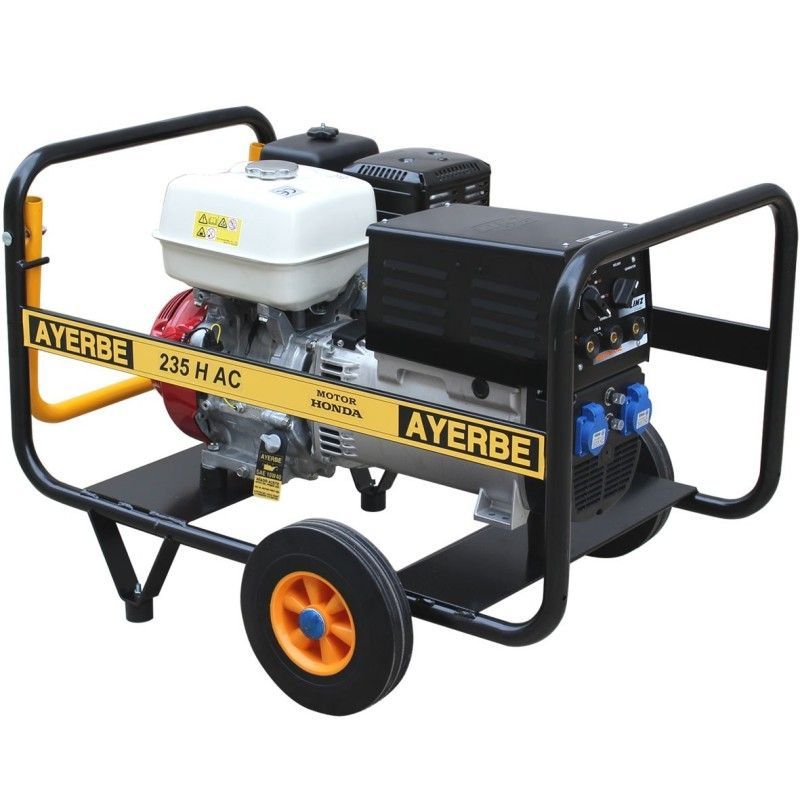

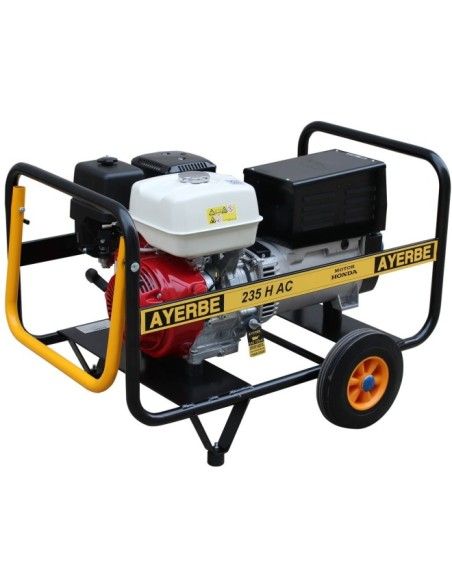

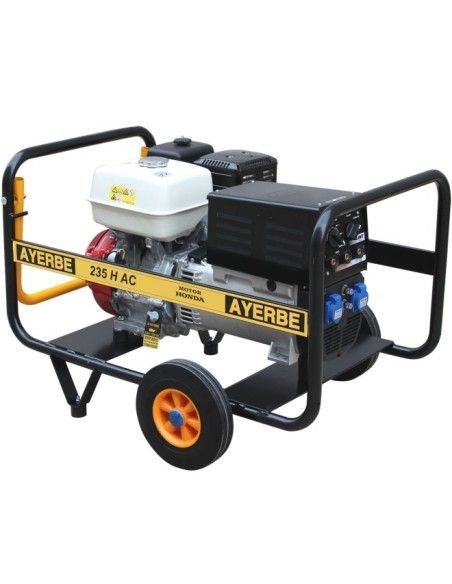

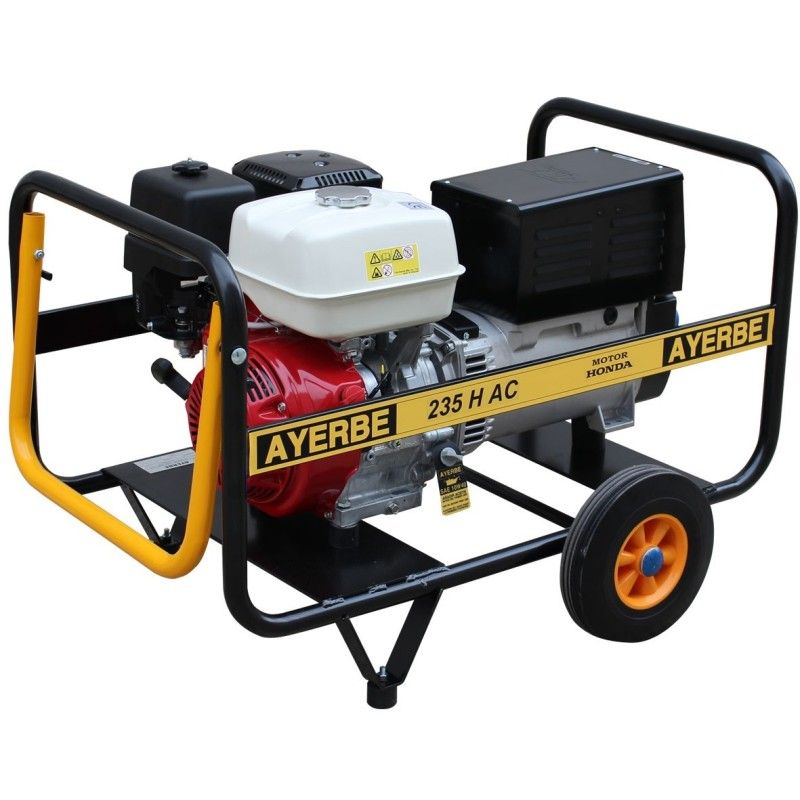

Gasoline AY-235 HONDA AC MN is a powerful and versatile tool which combines welding and power generation functions in a single team. With high-quality gasoline engine, it provides exceptional power to perform welding jobs and supply energy anywhere, even in remote sites without access to electricity. Welding kit included.
- HONDA GX-390
- Nominal power : 13 Cv / 390 cm3
- Max power. 7 KVA / 5600 W.
- Power nom.: 6 KVA / 4800 W.
- R.p.m 3,000 R.P.M.
- Power Factor: Cos phi 0.8
- Sound level: 97 LwA / 74 LpA @ 7 m.
- With mass clamp, electrodes and brush
- Manual opening
- Speed Regulator : Mechanics
- Alternator LINZ E1W10 200 AC
- Electrode max. 4 mm. Rutile (30%)
- Intensity 180 A. (35%) / 150 A. (60%)
- Tension 230 V. // 50 Hz.
- Normal welding system 30%: 180 A
- Intensive welding system 60%: 150 A
- Consumption (75%):2,1 L/h.
- Deposit: 6.5 l.
- Weight: 100 Kg
- Dimensions : 950 x 730 x 700 mm .
Welding kit included
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Potencia máxima nominal (LTP)
- 7
- Potencia primaria nominal (PRP)
- 6
- Start system
- Manual
- Speed regulator
- Mechanical
- Min/max welding current (A)
- 180/150
- Engine
- Other
New
8429459202407
