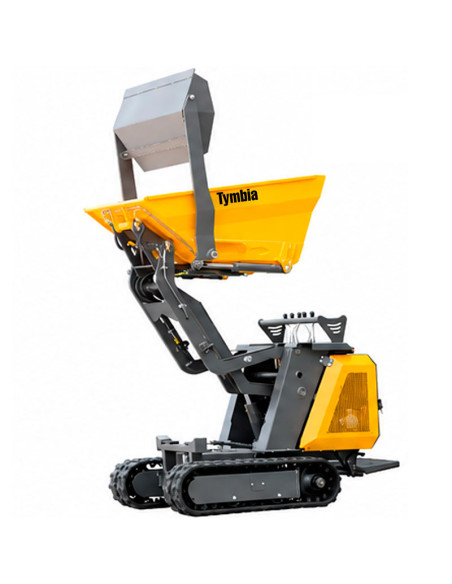

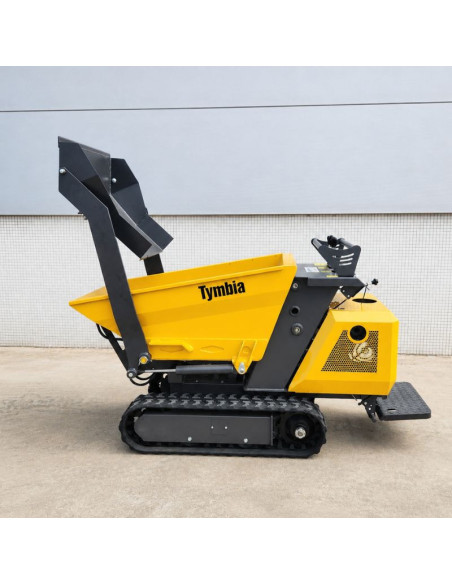

Mini Dumper of Lifestyle Elevable 800kg capacity

Video Handling Mini Dumper Lift Elevable 800kg Tymbia

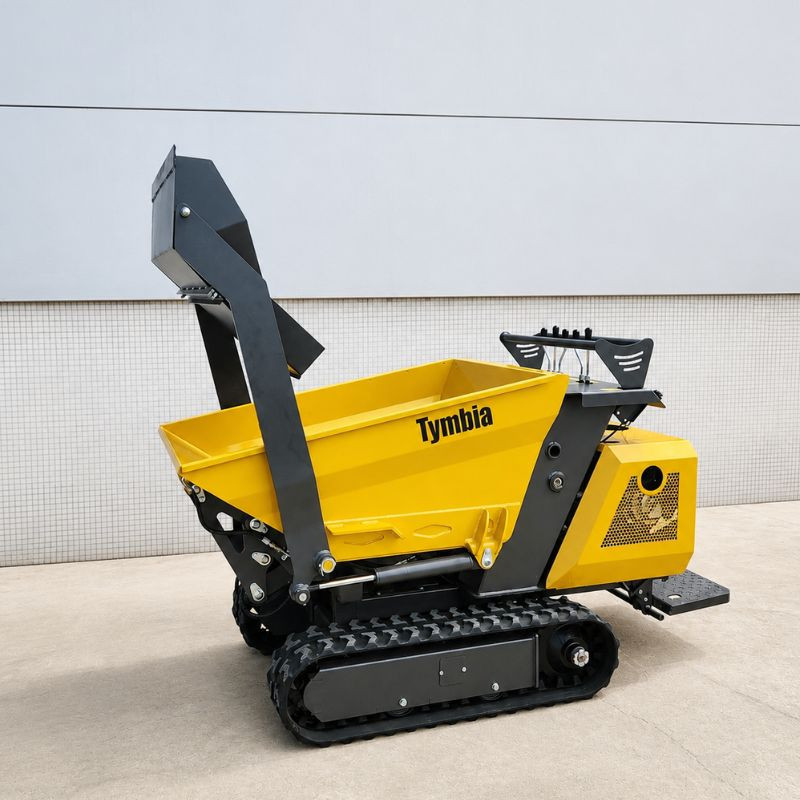

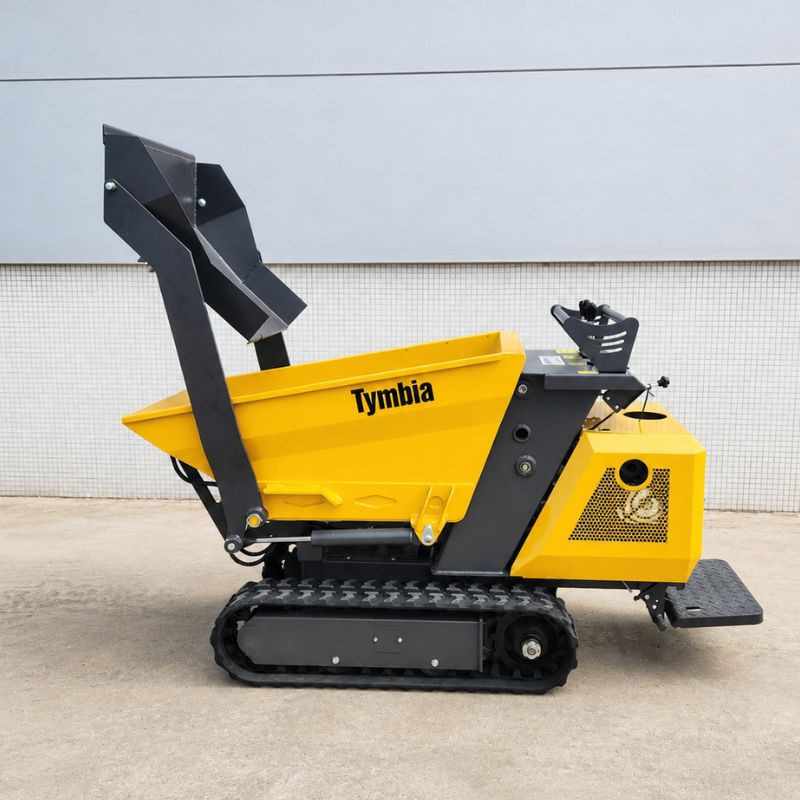

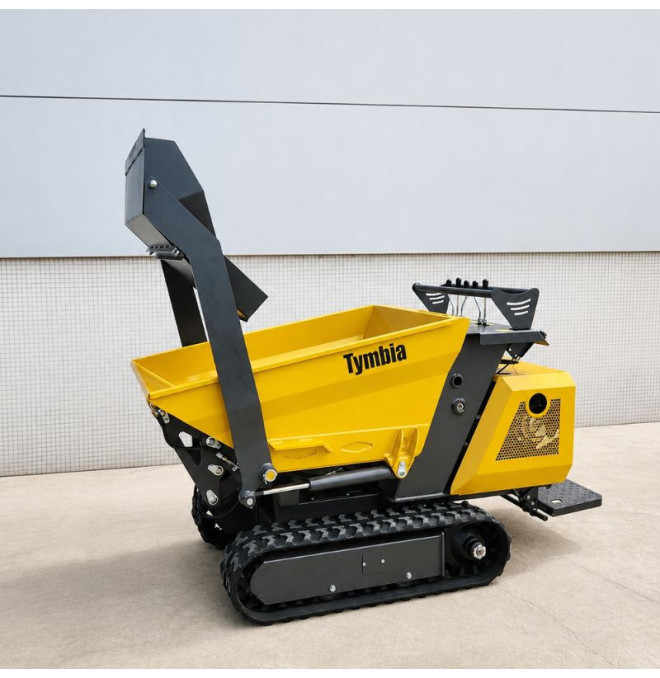

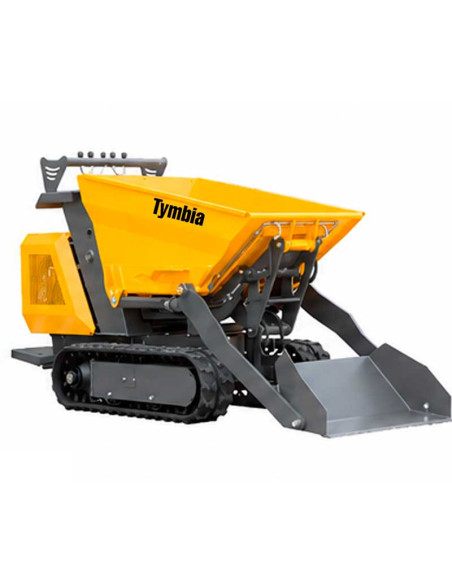

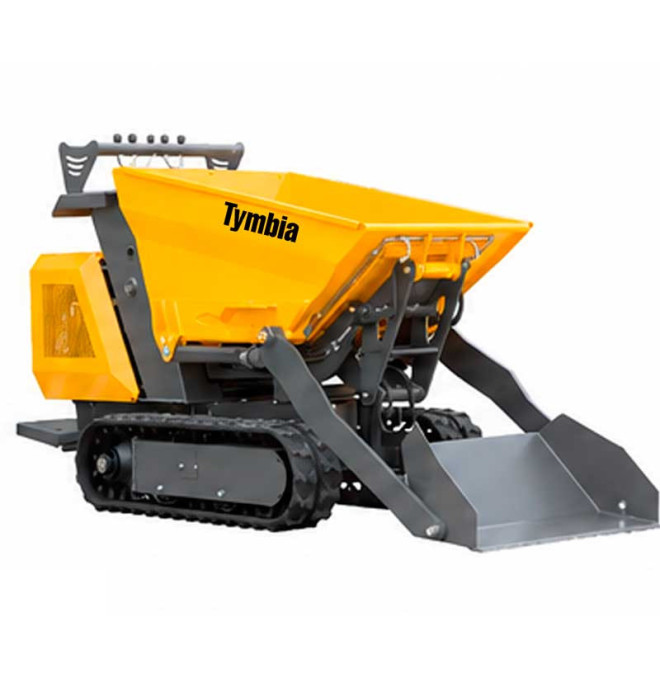

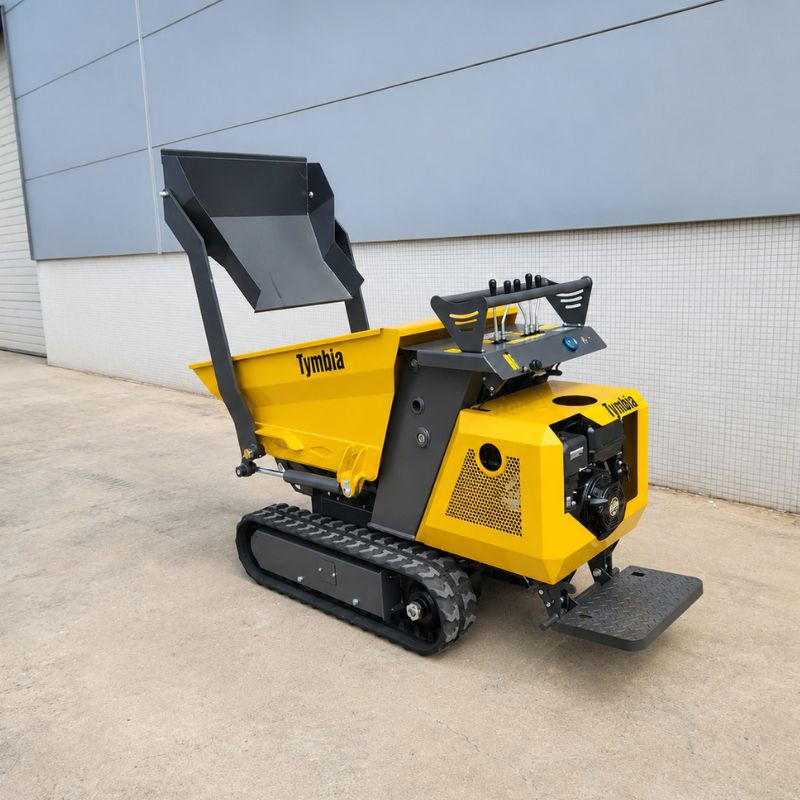

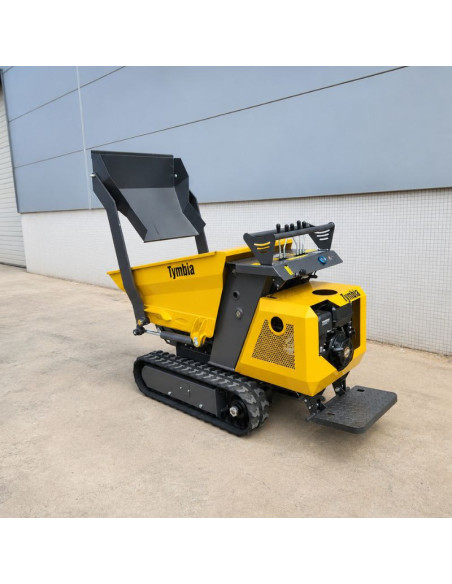

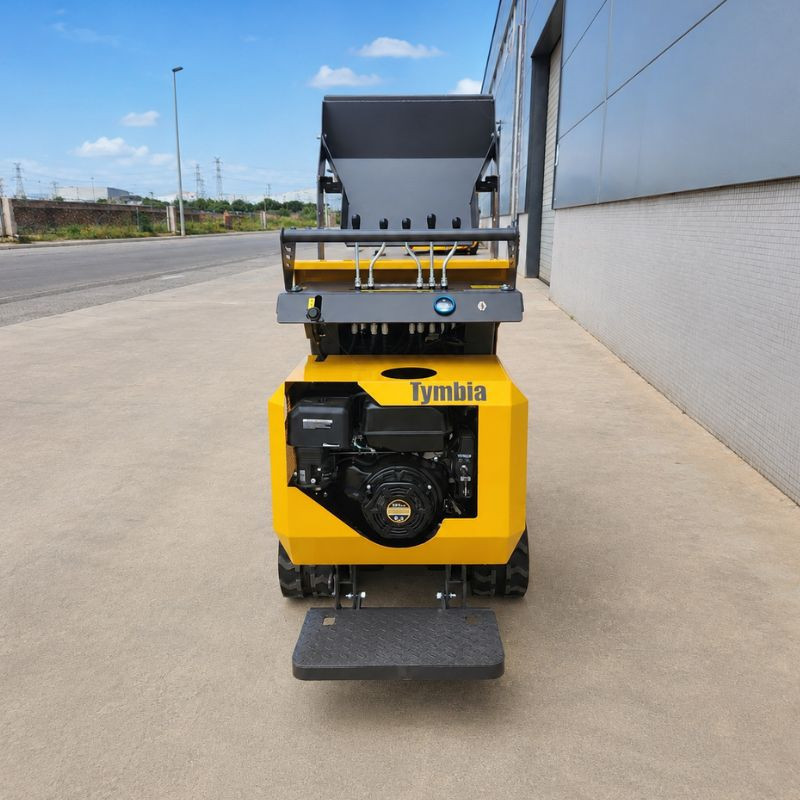

New Motorized Mini Layer Loader with Dumper Box provided with a hydraulic dump system. Thanks to the self-propelled caterpillars and the powerful embedded motor, this mini dumper allows loads to 800kg, even in case of earrings.

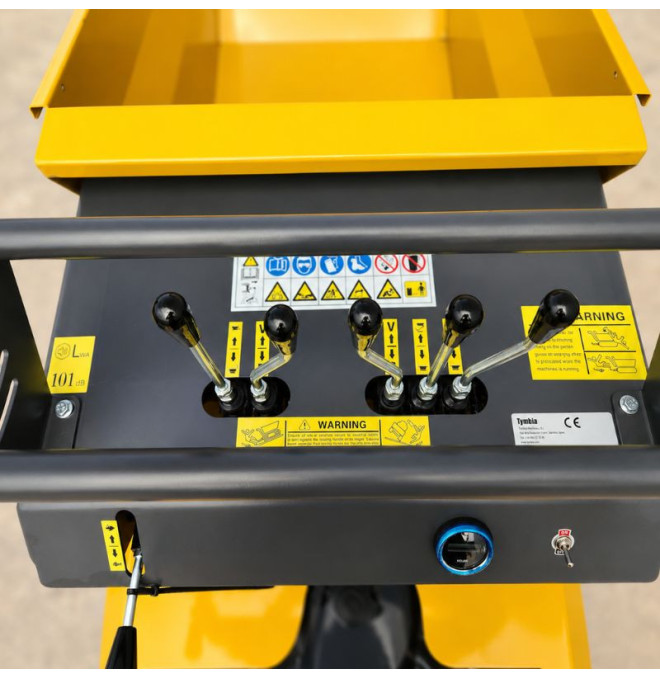

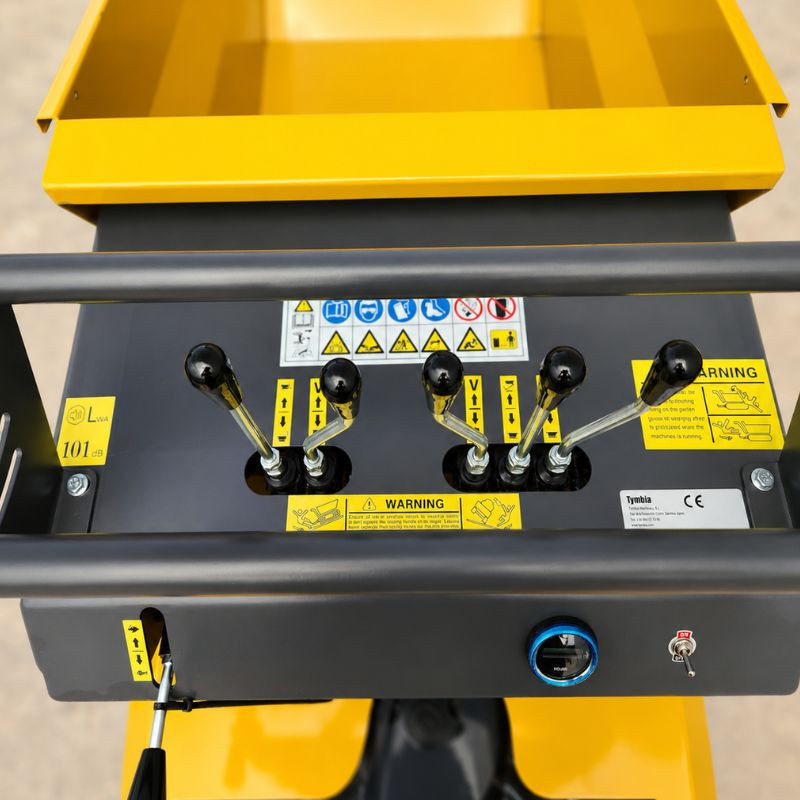

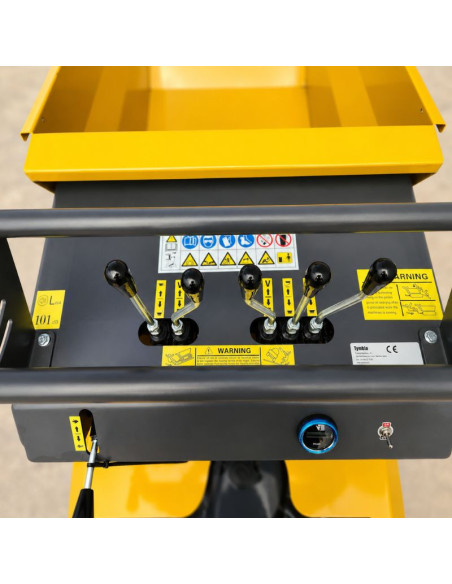

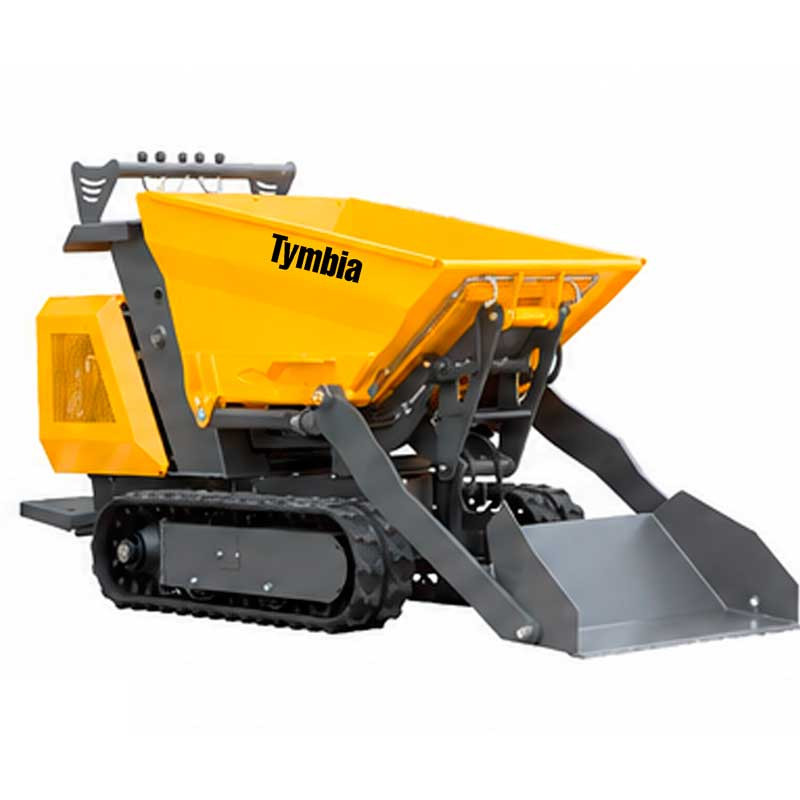

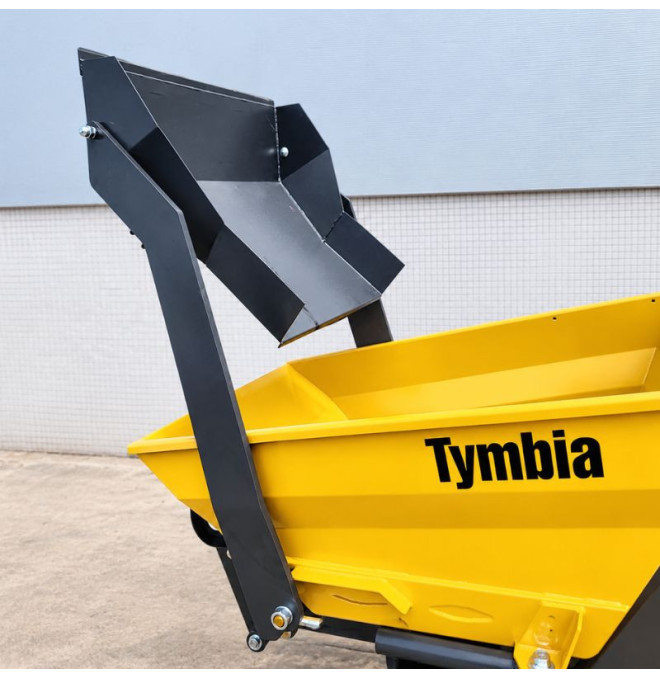

The controls of this mini caterpillar dumper are designed to be simple and intuitive to use. The main controls are in the form of levers and are used to manipulate the main functions of the machine. The movement levers of the drawer and the shovel allow controlling the movement of the loading drawer and the front shovel. When moving the levers forward or backward, it can be lifted, lowering or tilted the drawer and the blade as necessary.

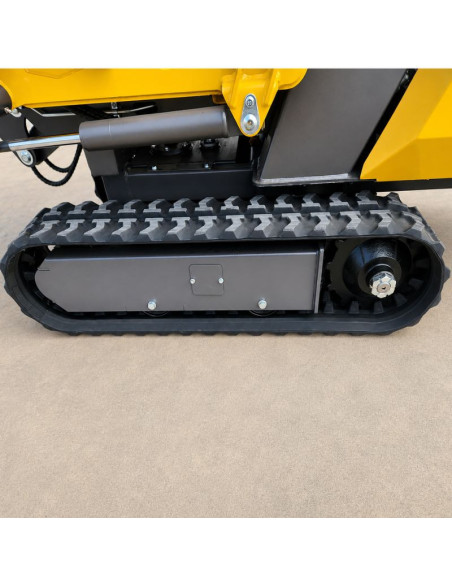

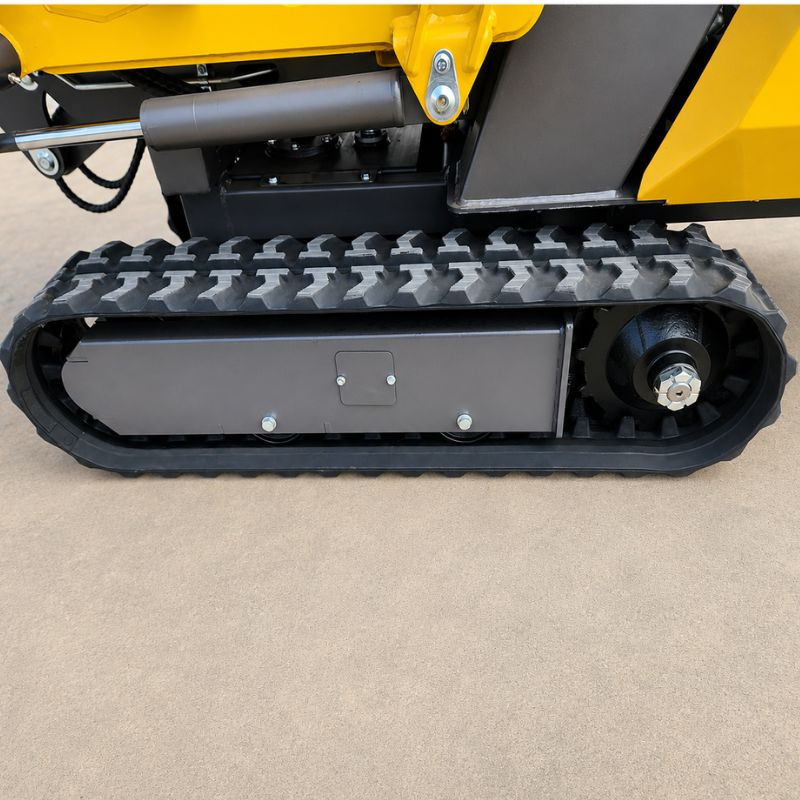

As for the track control levers, these levers are used to control the truck tracks. When moving the levers forward or backward, the direction and speed of the caterpillars can be controlled. For example, when moving both levers forward, the truck will advance forward. If they move in opposite directions, the machine will turn on its own axis.

Finally, the advance speed control, this control is in the form of a switch and is used to adjust the speed of advance of the machine. By turning the knob or selecting the proper position on the switch, the scroll speed of the minidumper can be varied.

It is always advisable to consult the operator's manual provided by the manufacturer to fully understand the operation of the specific controls of each machine. In addition, adequate training and certification must be received before operating any type of heavy machinery to guarantee safety and efficiency at work.

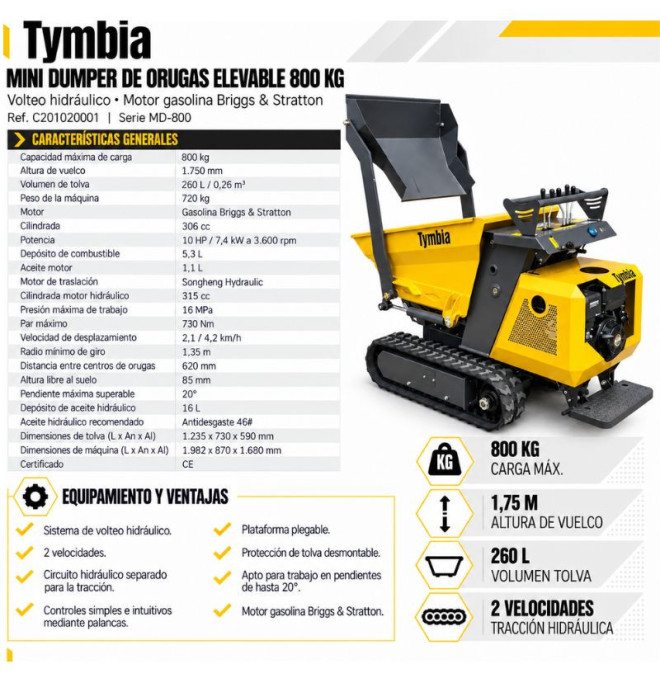

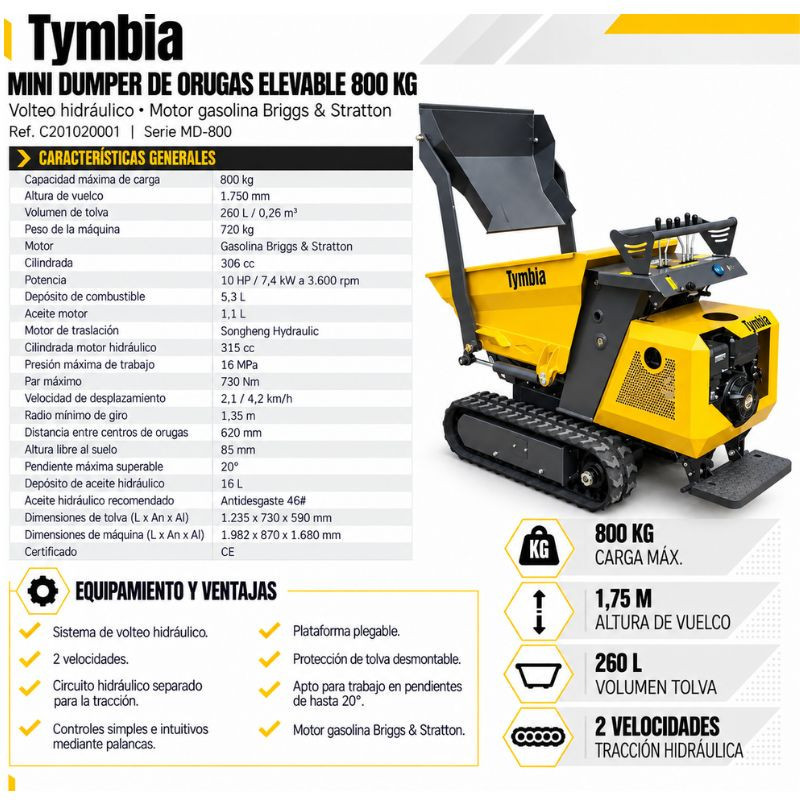

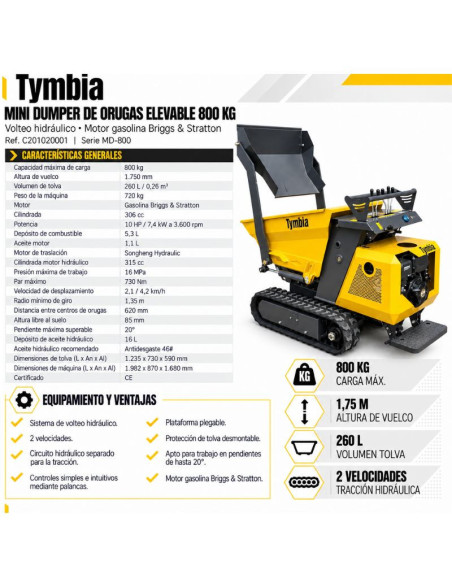

Main technical characteristics:

• Maximum load capacity: 800 kg

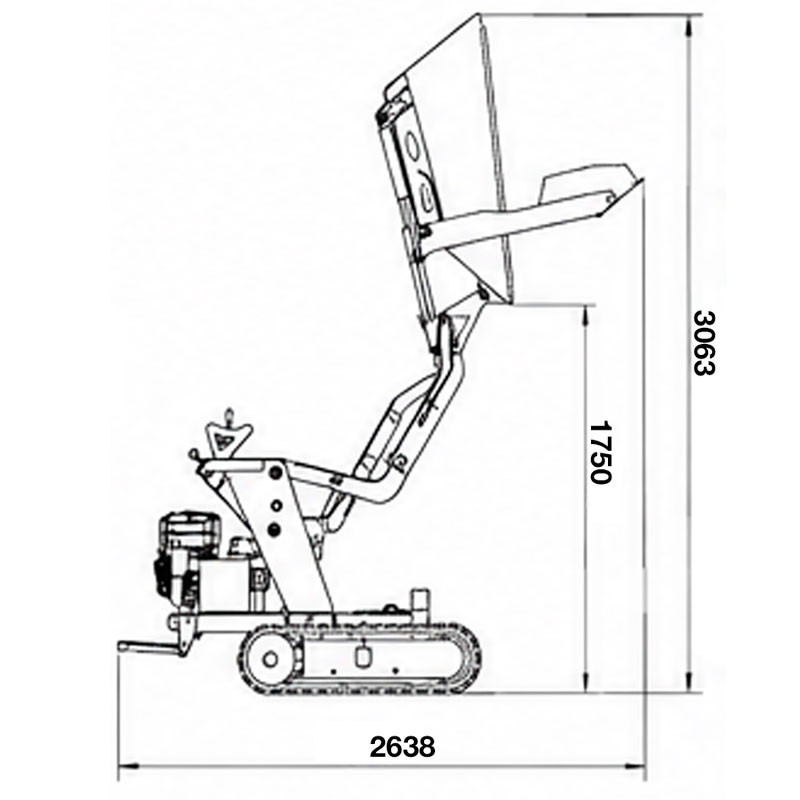

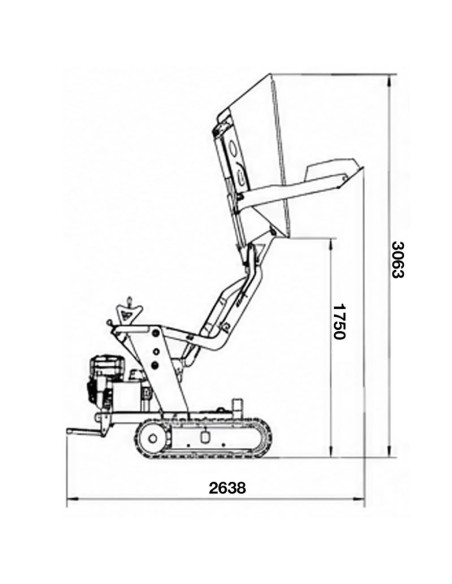

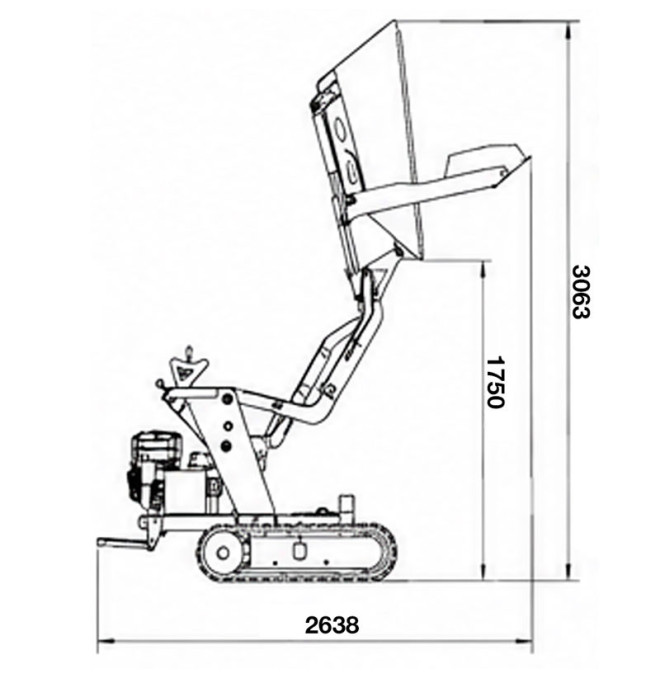

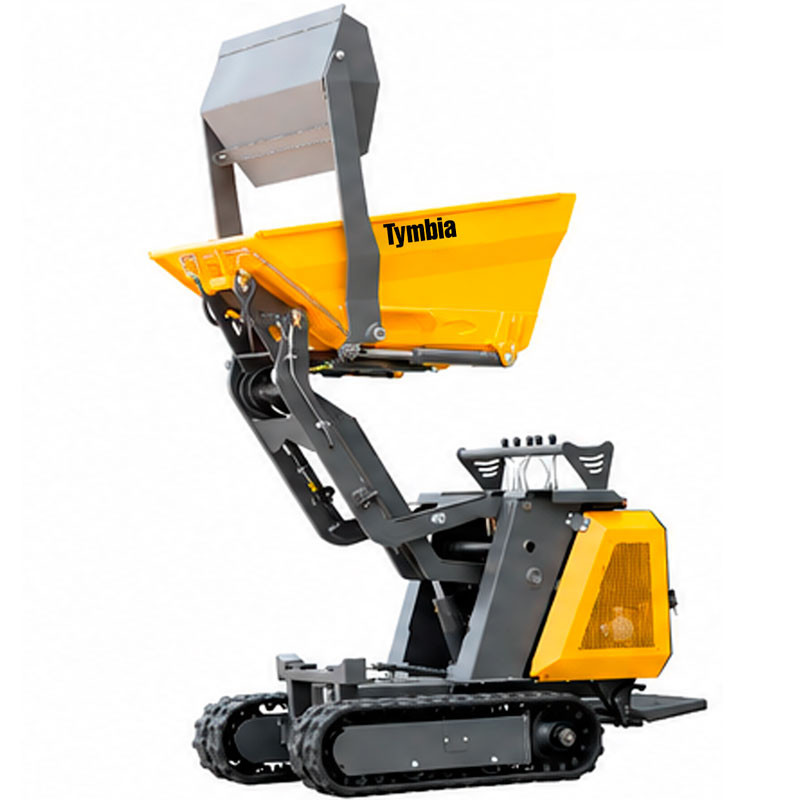

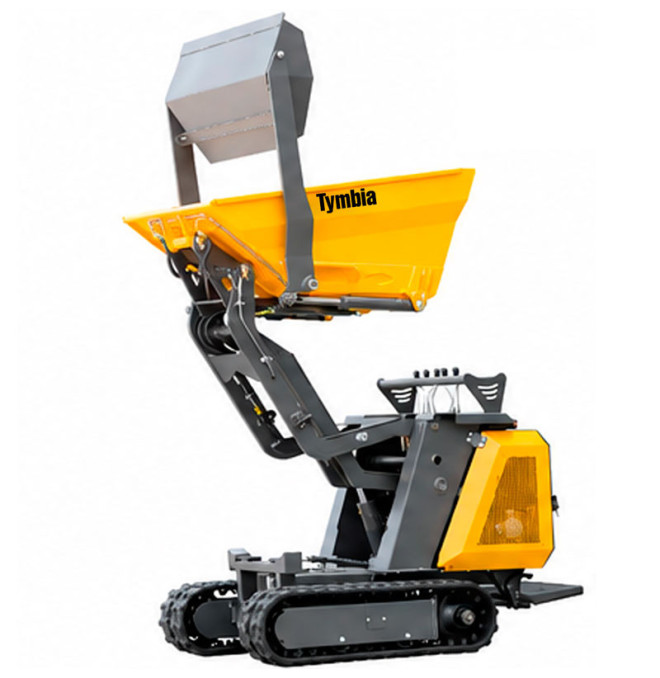

• Height of tipping: 1750mm
• Weight of the machine: 720 kg

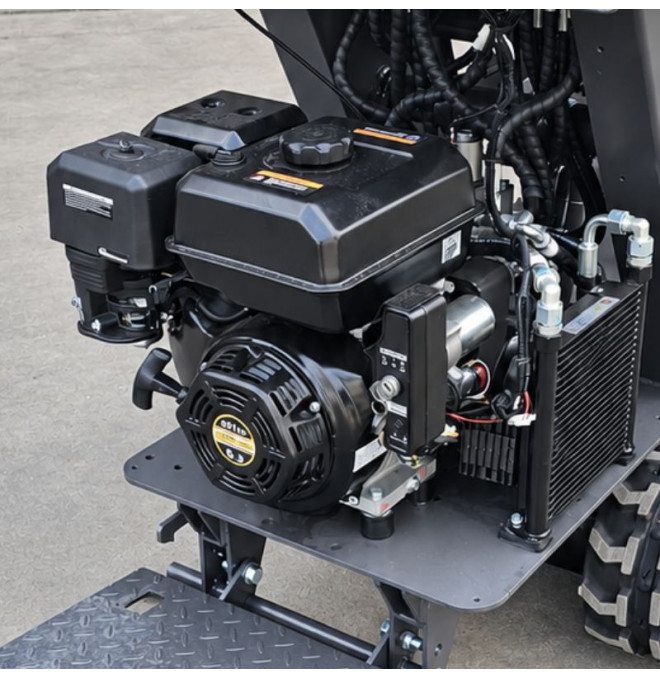

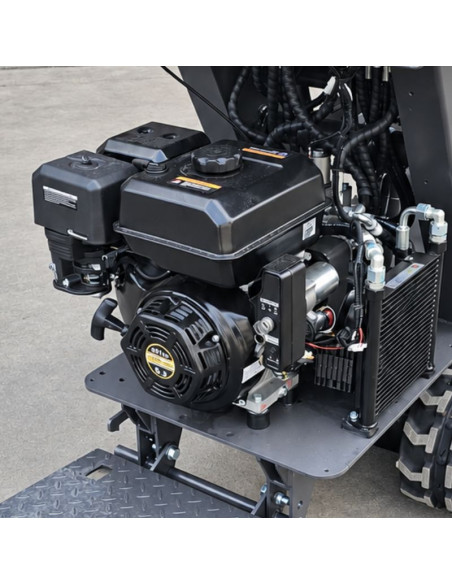

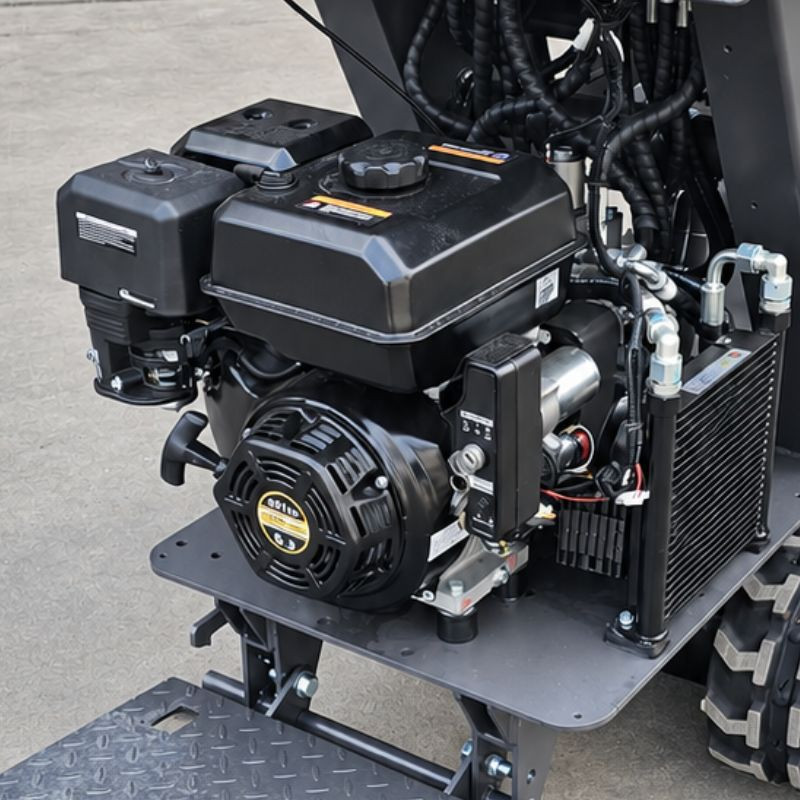

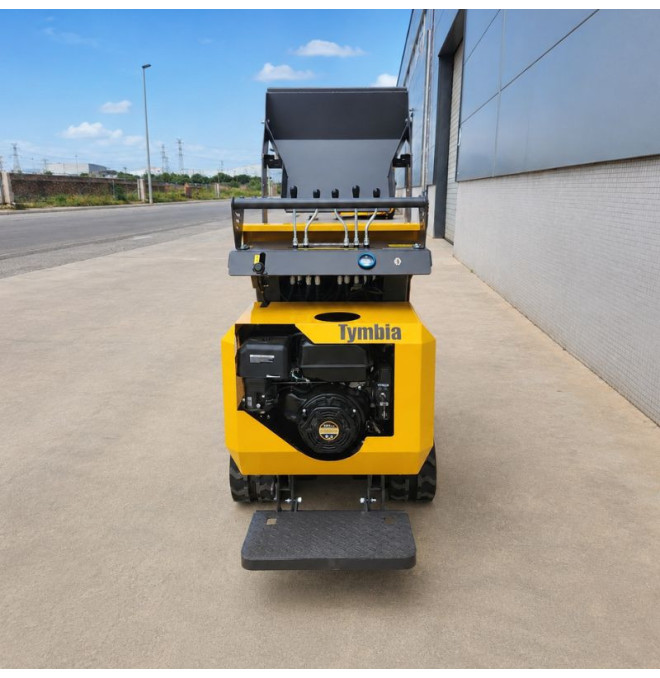

• Engine: Briggs & Stratton
• Cylinder: 306 cc
• Power: 10 HP / 7.4 kW at 3,600 rpm
• Fuel tank capacity: 5.3 L
• Engine oil capacity: 1.1 L
• Translation engine: Songheng Hydraulic
• Hydraulic engine displacement: 315 cc
• Maximum working pressure: 16 MPa
• Maximum torque: 730 nm
• Scroll speed: 2.1 / 4.2 km / h
• Minimum spin radius: 1.35 m
• Distance between caterpillars: 620 mm
• Free height to the ground: 85 mm
• Overlavable pending: 20 °
• Hydraulic oil tank capacity: 16 L
• Recommended hydraulic oil: anti-wear hydraulic oil 46 #
• Volume of tilting Container: 0.26 m³
• Dimensions of the tilting Container: 1.235 x 730 x 590 mm

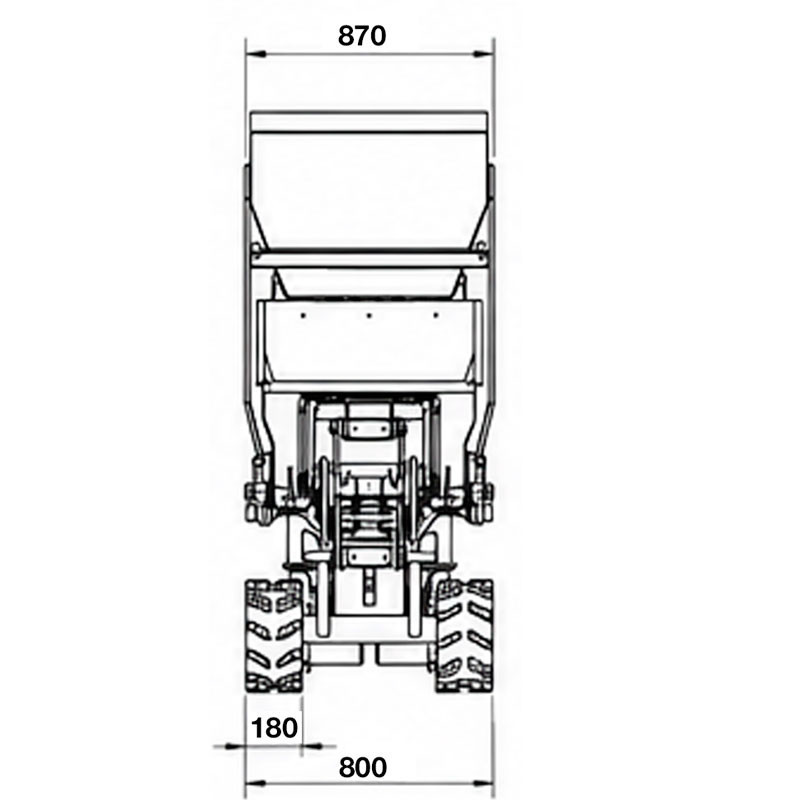

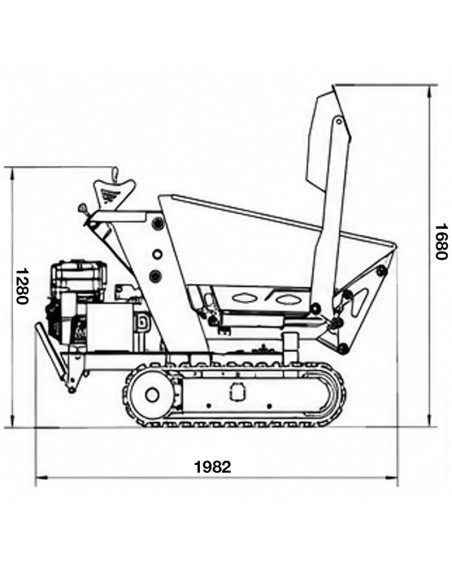

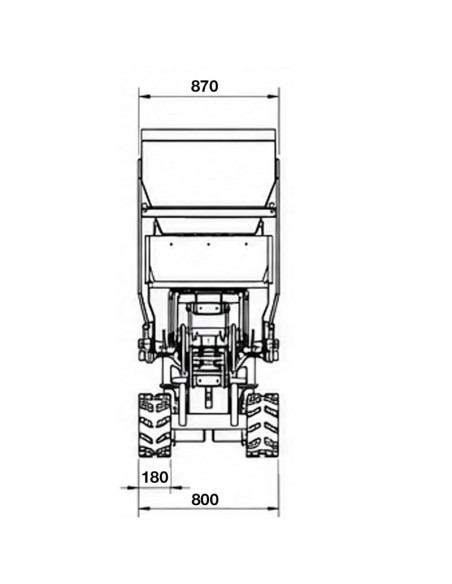

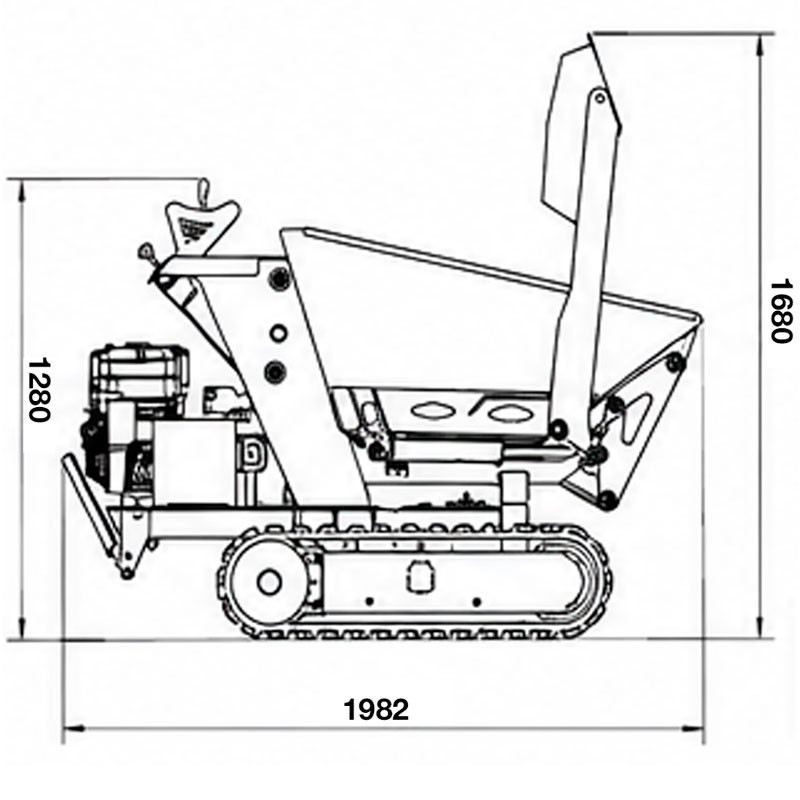

• Dimensions of the machine: 1.982 x 870 x 1.680 mm

Standard configuration

1) Separate hydraulic circuit for traction of the equipment.
2) Driving controls forward and backward by handle.
3) Custom transition gearbox to facilitate engine start with low ambient temperature.

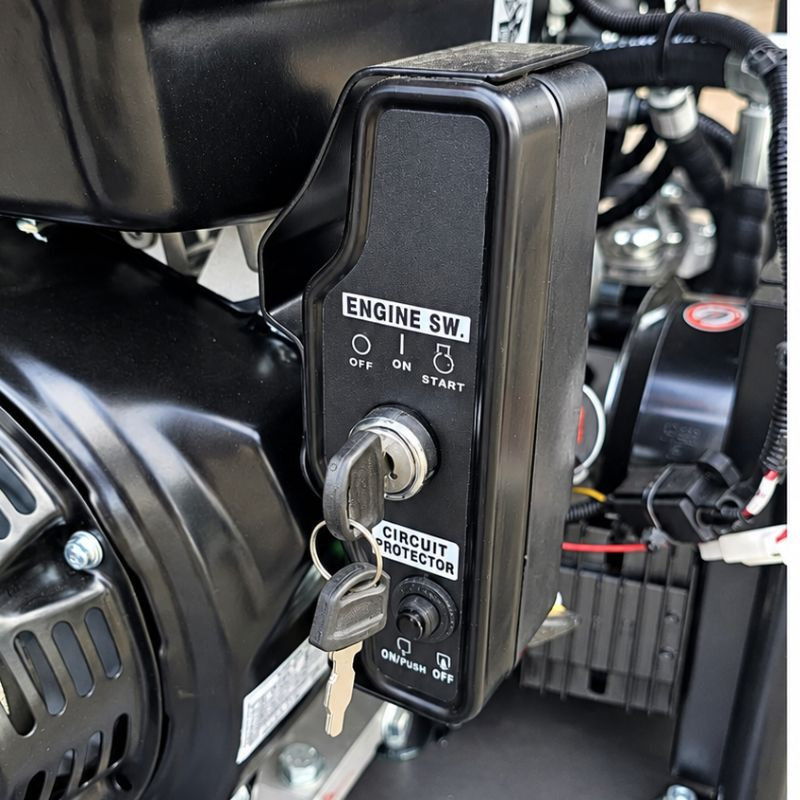

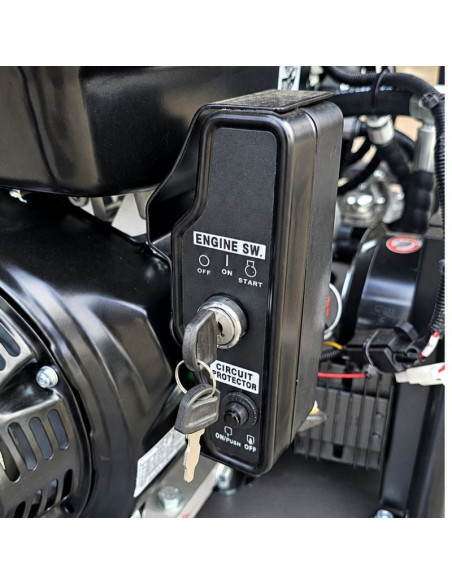

4) Option with reverse and electric start.
5) Folding platform for flexible maneuver.

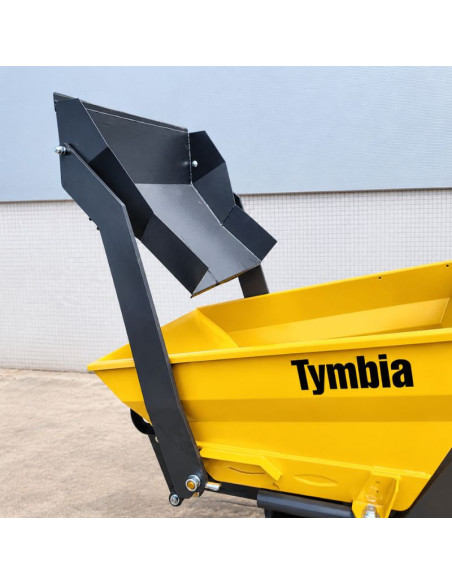

6) Protection of tilting Container removable.
