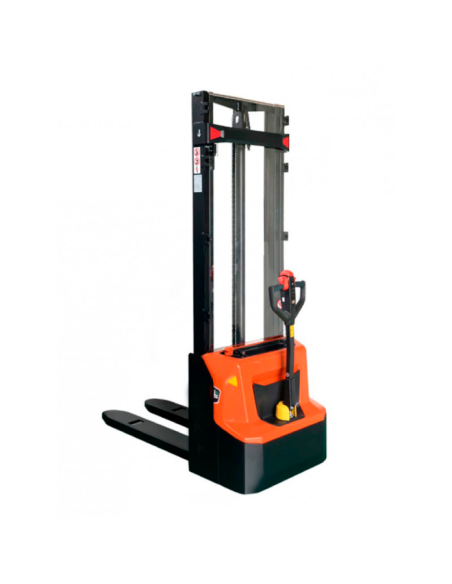

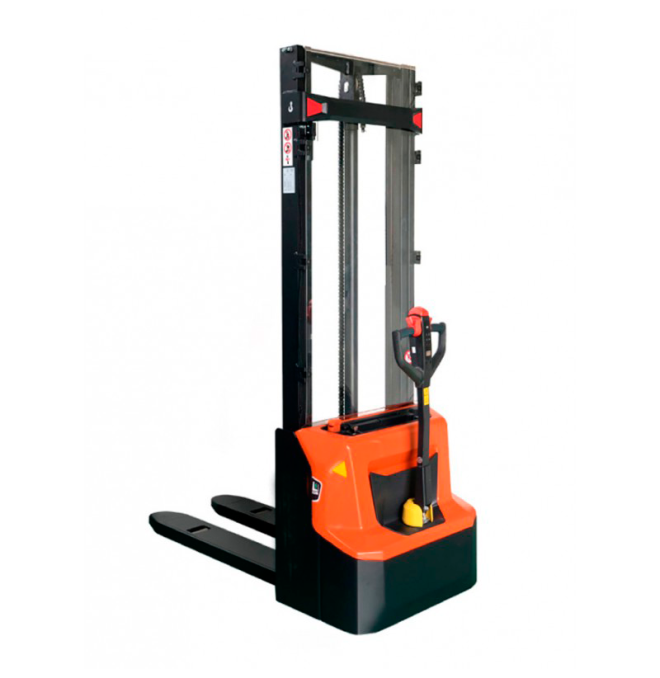

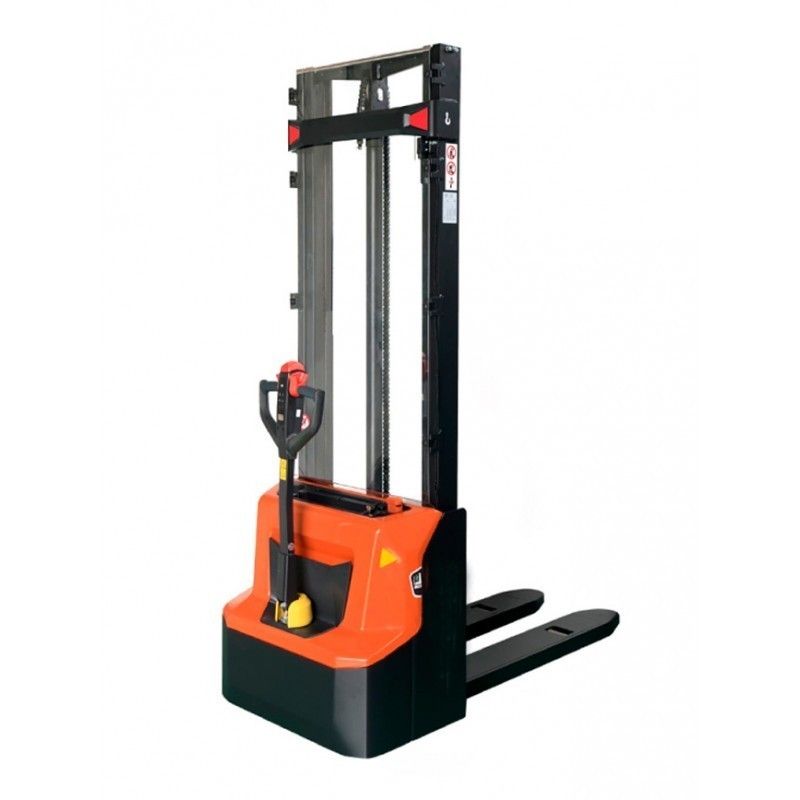

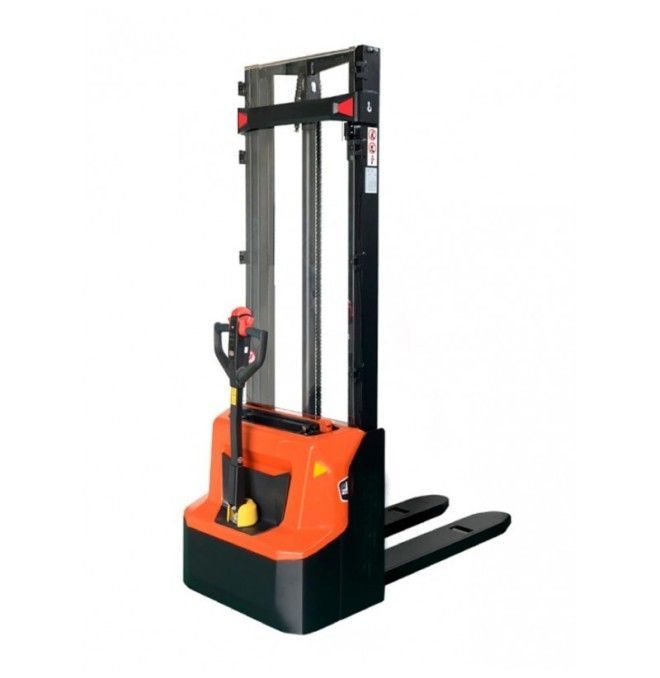

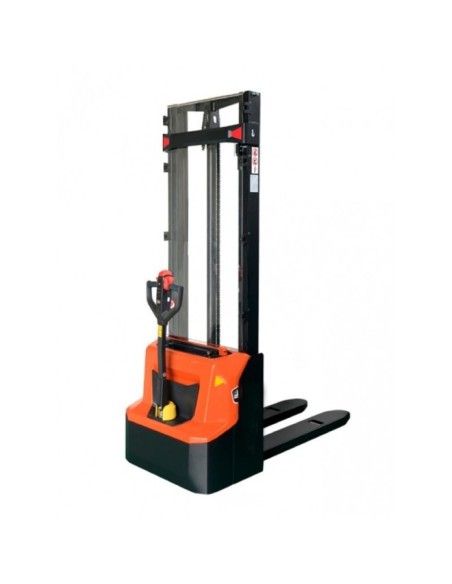

Electric stacker 1200kg to 2900mm Gel Battery

Stacker with traction and electrical lifting, up to 1200kg load capacity and lifting height up to 2900mm, being its fork dimensions 51x570x1150mm. Gel battery.

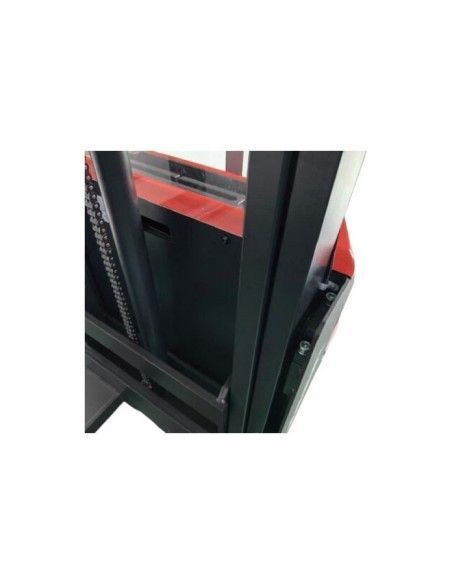

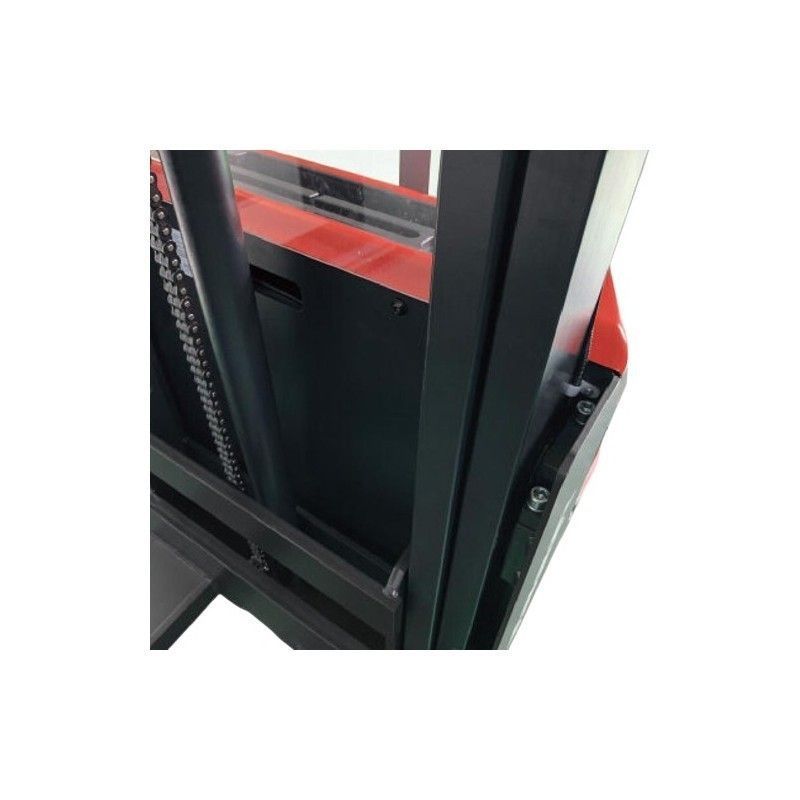

This stacker is designed for light stacking operations, thanks to its ergonomic and compact design, it is very easy to handle. Facilitates the load and discharge of the material for the operator. It has a wide mast for high residual lifting capacities and perfect view through the mast.

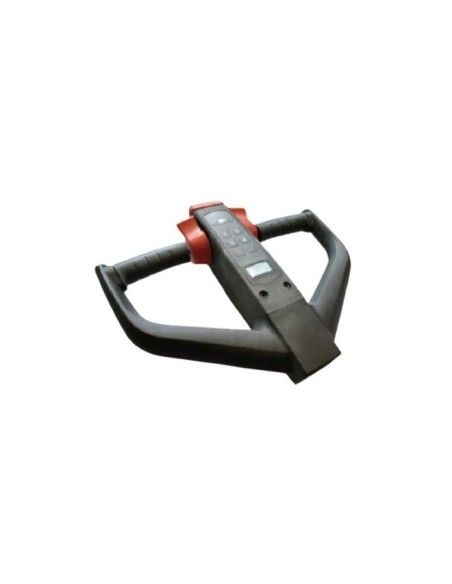

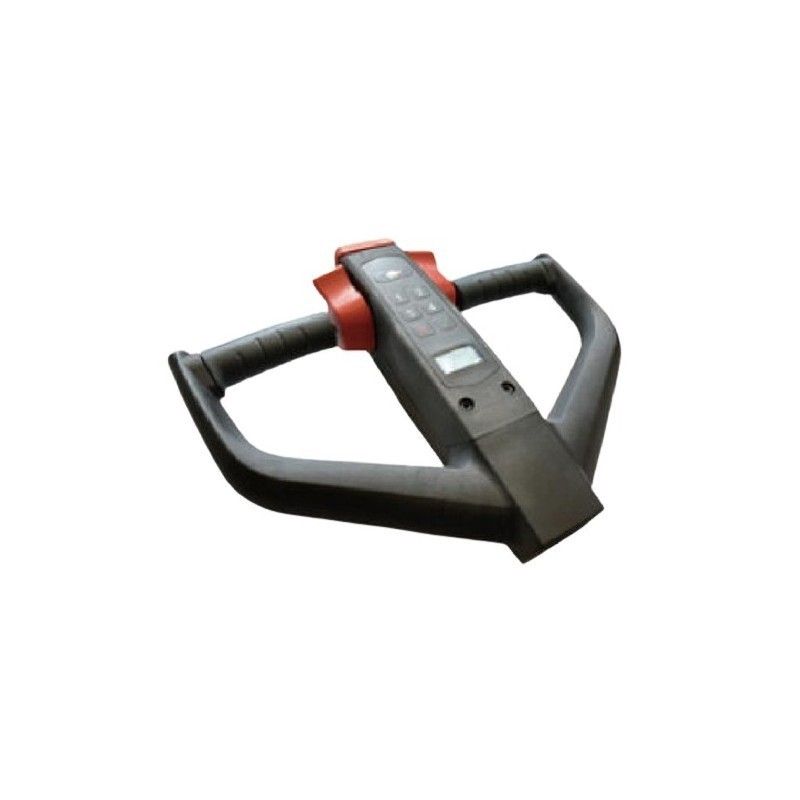

CAN-BUS rudder reduces the necessary maintenance and increases overall performance.

BENEFITS

• Speed control.
• Access with Pin Code.
• Electrical up and down.
• Optional: RFID Access Card.
• Vertical driving function to facilitate work in narrow places.
• Litio maintenance-free batteries.
• Different versions of the available mast.
• Robust and ergonomic design with various storage areas.

TECHNICAL CHARACTERISTICS

• Load capacity: 1200Kg
• Loading center: 600mm
• Distance between axles: 1267mm
• Height of the lowered mast: 1930mm
• Extended mast height: 3337mm
• Free elevation: 58mm
• Lift height: 2900mm
• Height min. Elevation: 51mm
• Long forks: 1150mm
• Width between forks: 570mm
• Fork dimensions: 60x180x1150mm
• Turn radio: 1470mm
• Translating speed with/without load: 4.5/4.7 km/h
• Lifting speed with/without load: 0.12/0.19 mm/s
• Decreasing speed: with/without load: 0.13/0.11 mm/s
• Inclination with/without load: 5/10%
• Battery: 2x12V/85Ah
• Charger Incorporated: 24V/12A
• Charging time: 1.5/2 Hours
• Driver power: 0.65kW
• Lift engine power: 2.2kW
• Working hours: 3.5 continuous with load
• Battery weight: 19kg
• Weight: 670kg

CE marking.
