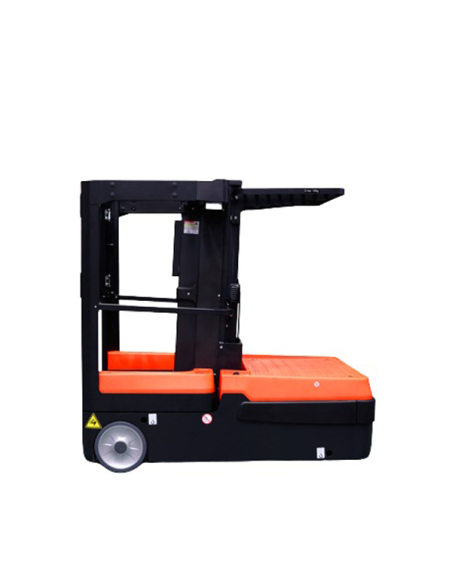

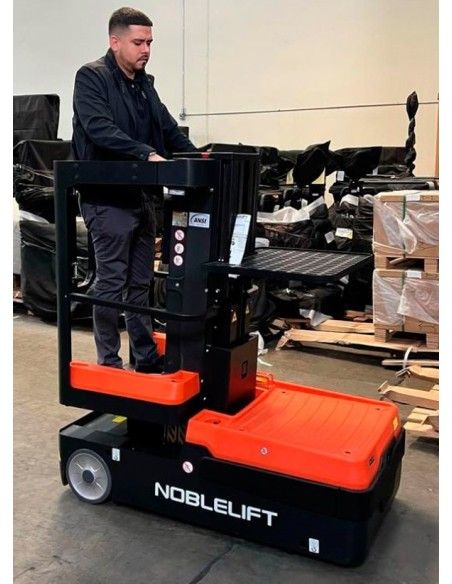

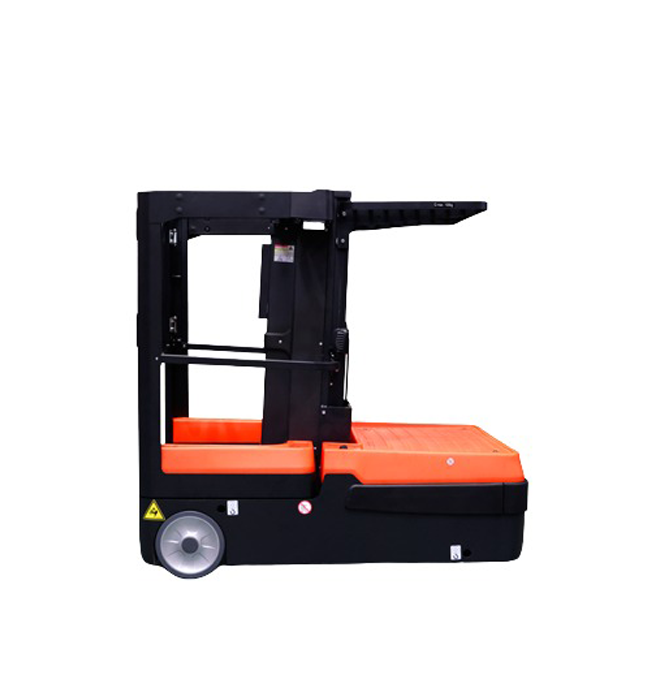

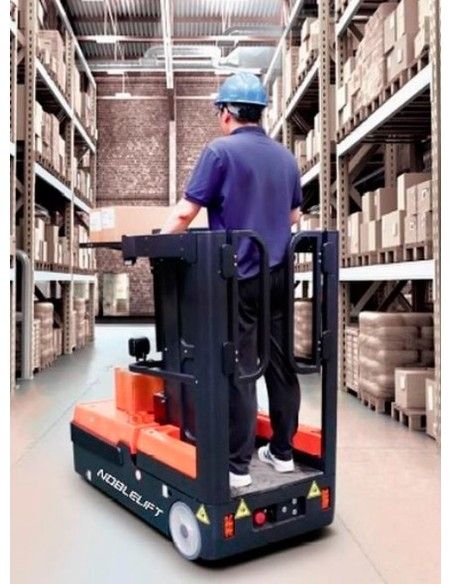

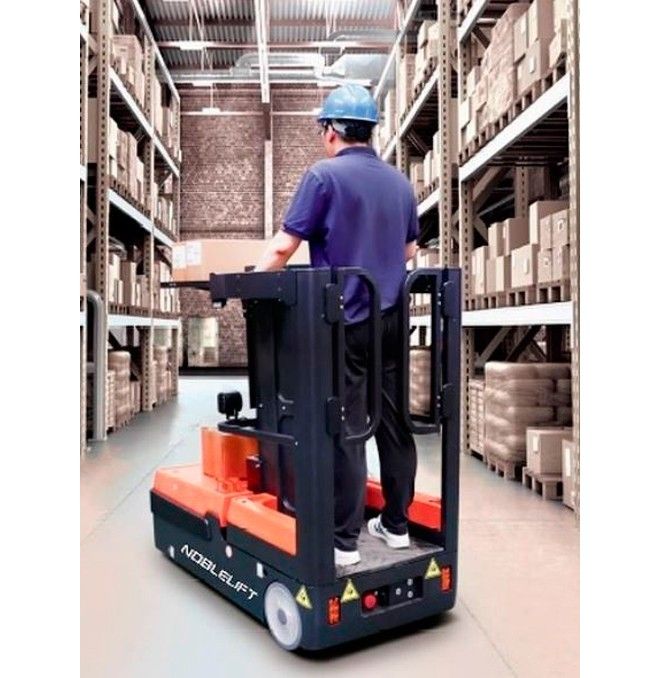

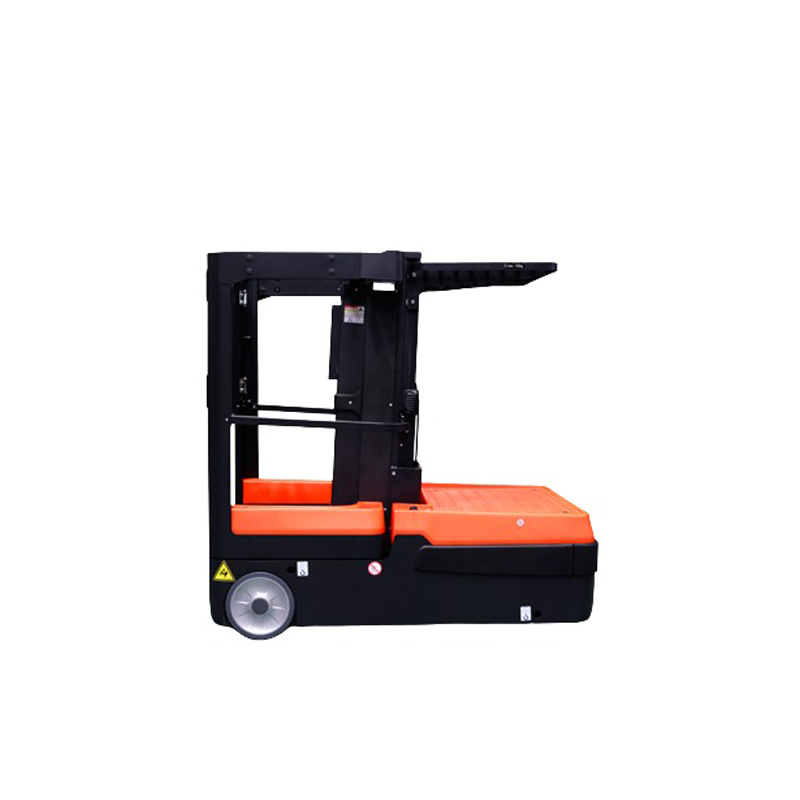

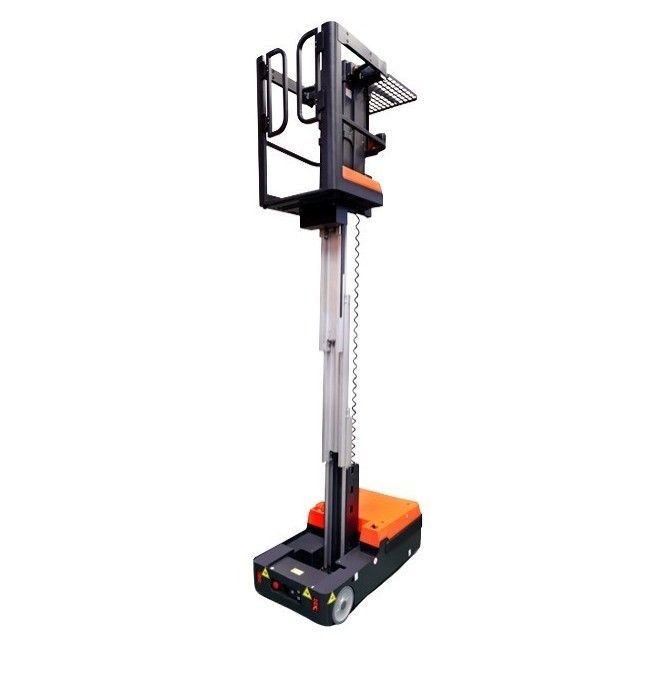

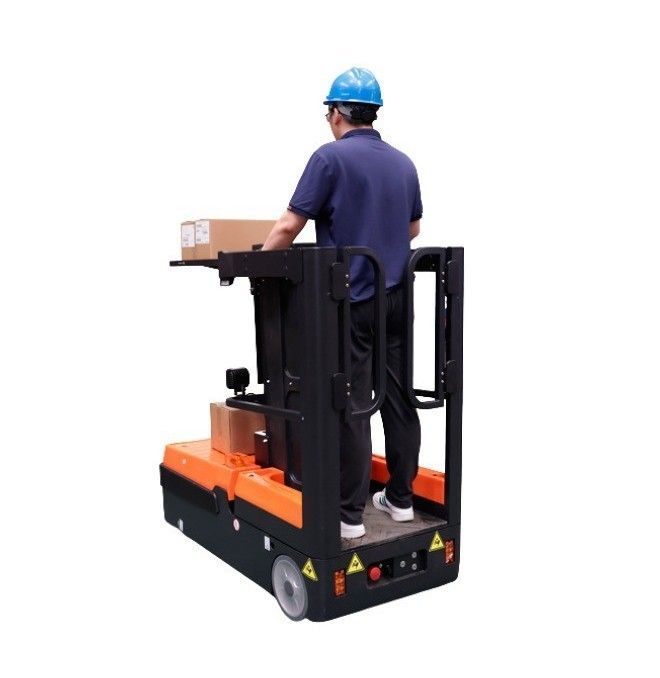

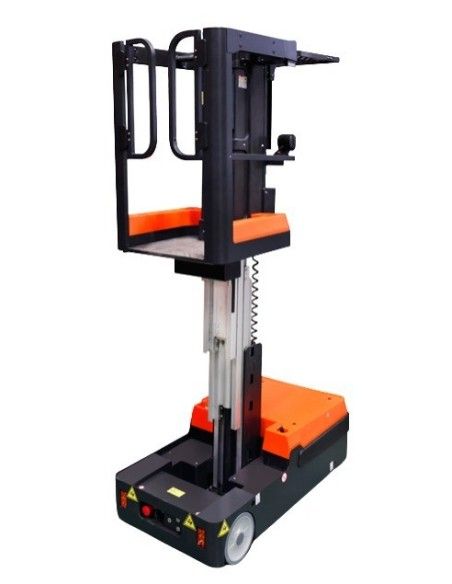

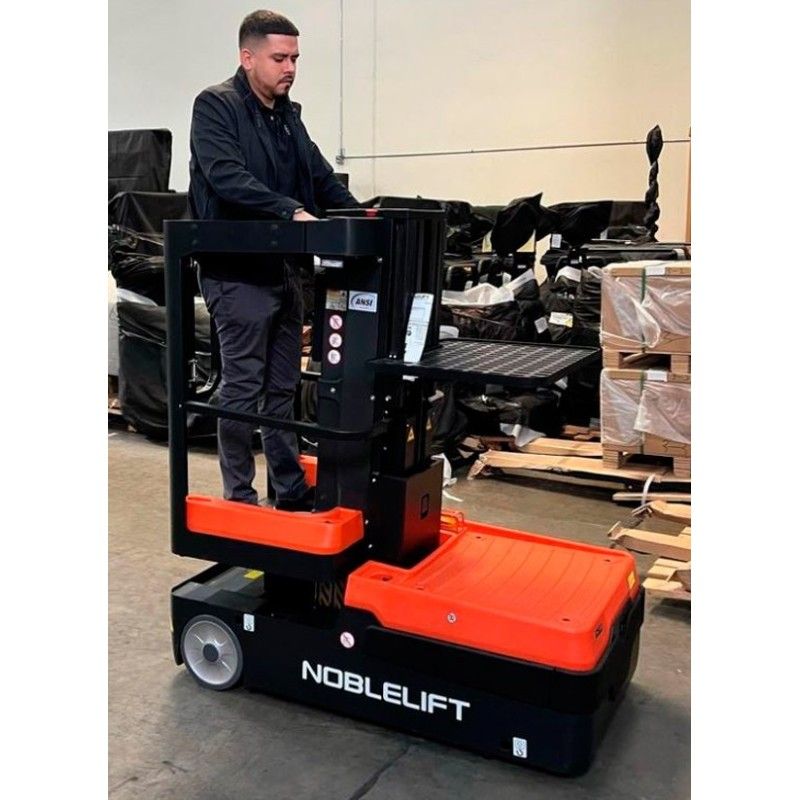

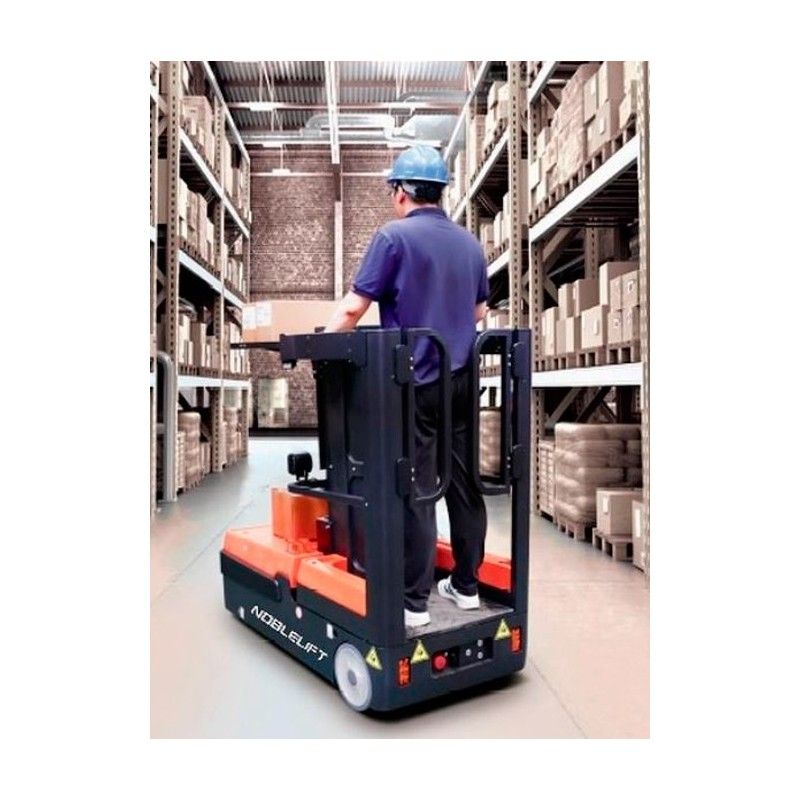

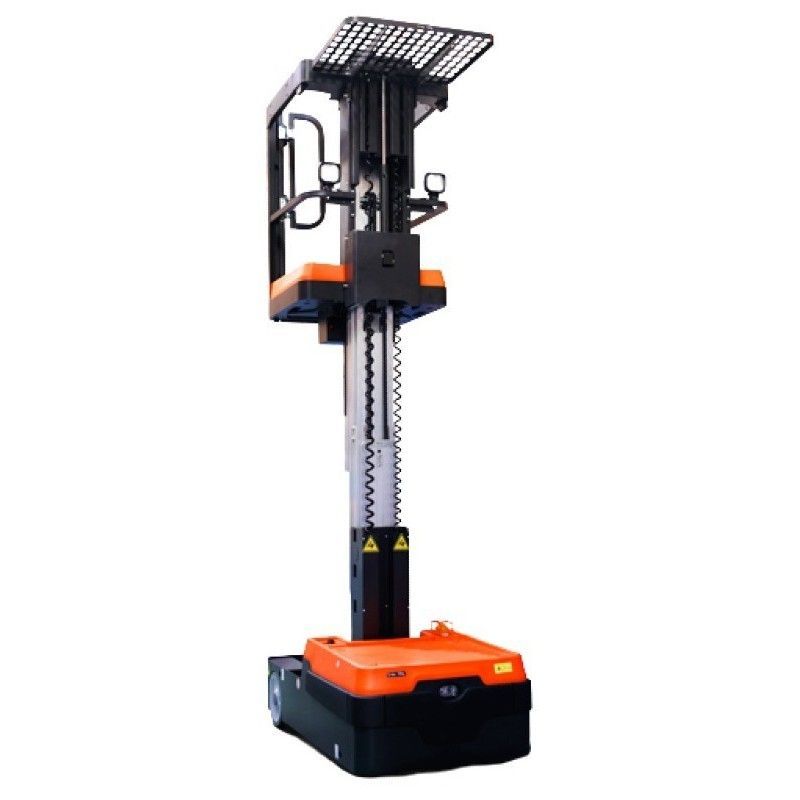

Order Pickers Electric 150kg to 3000mm Lithium Battery

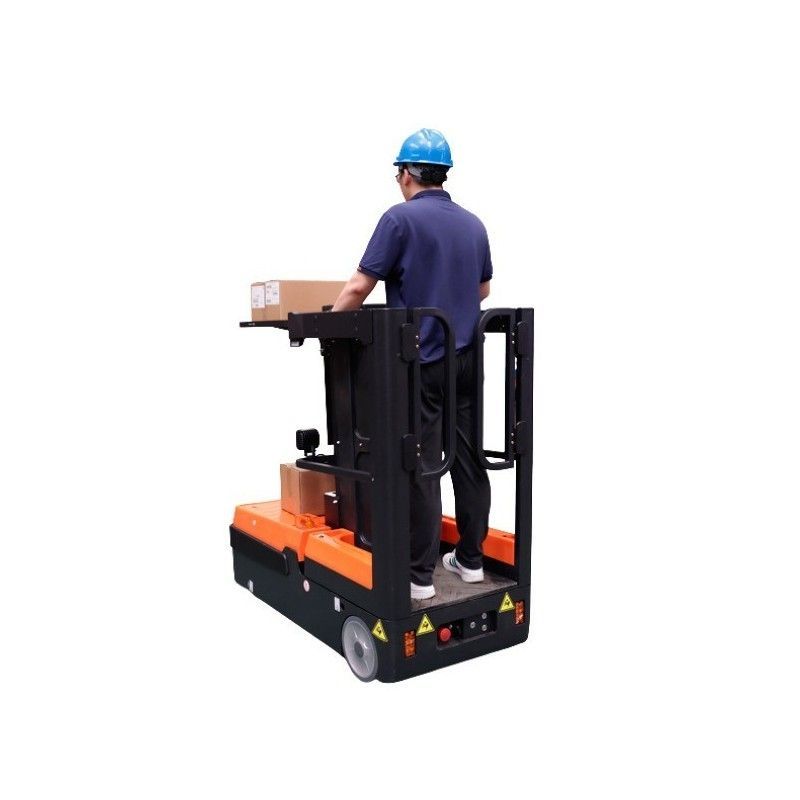

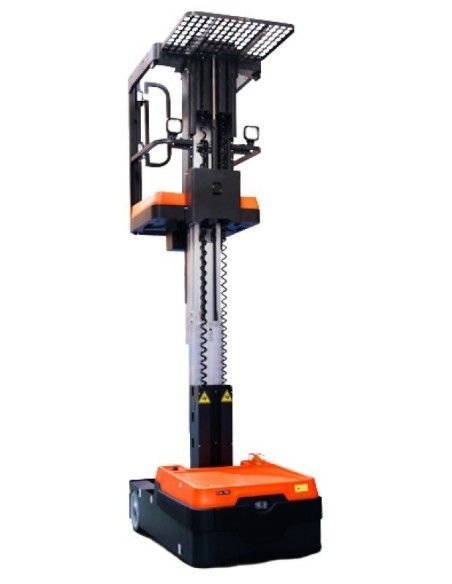

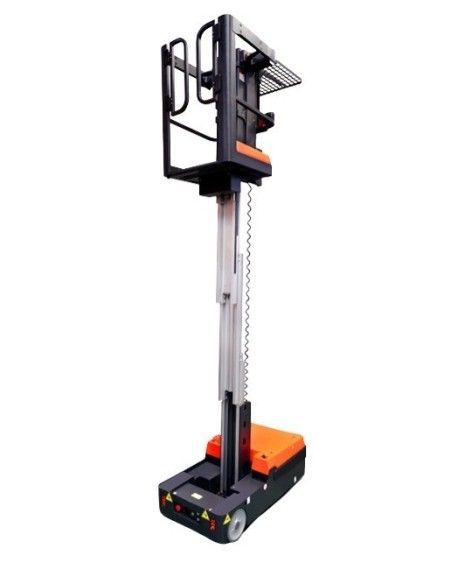

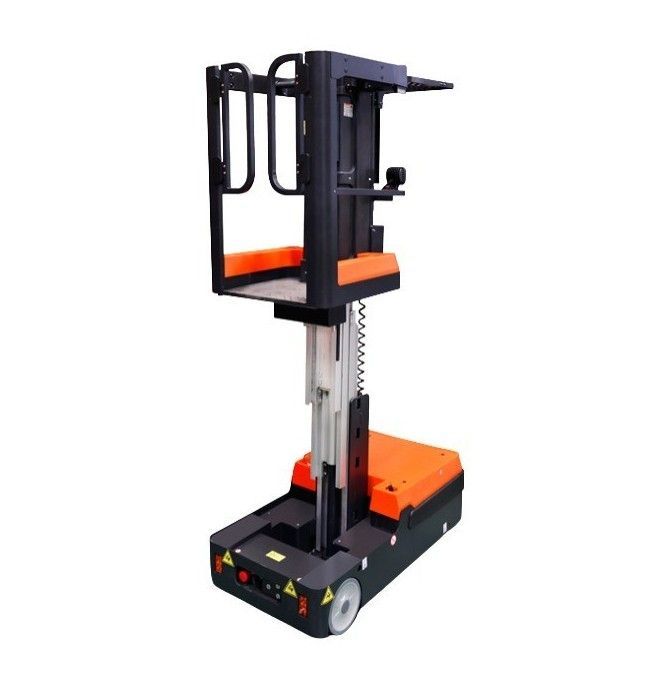

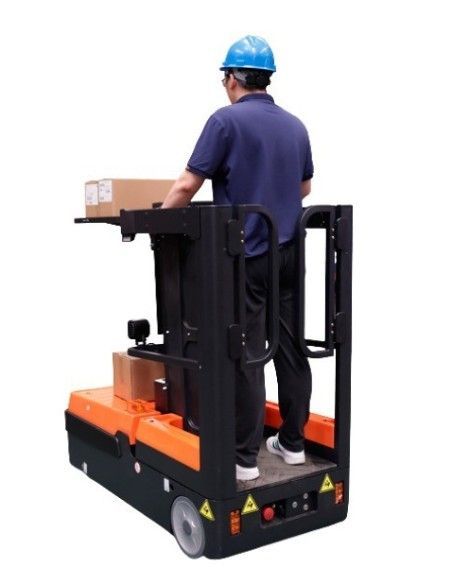

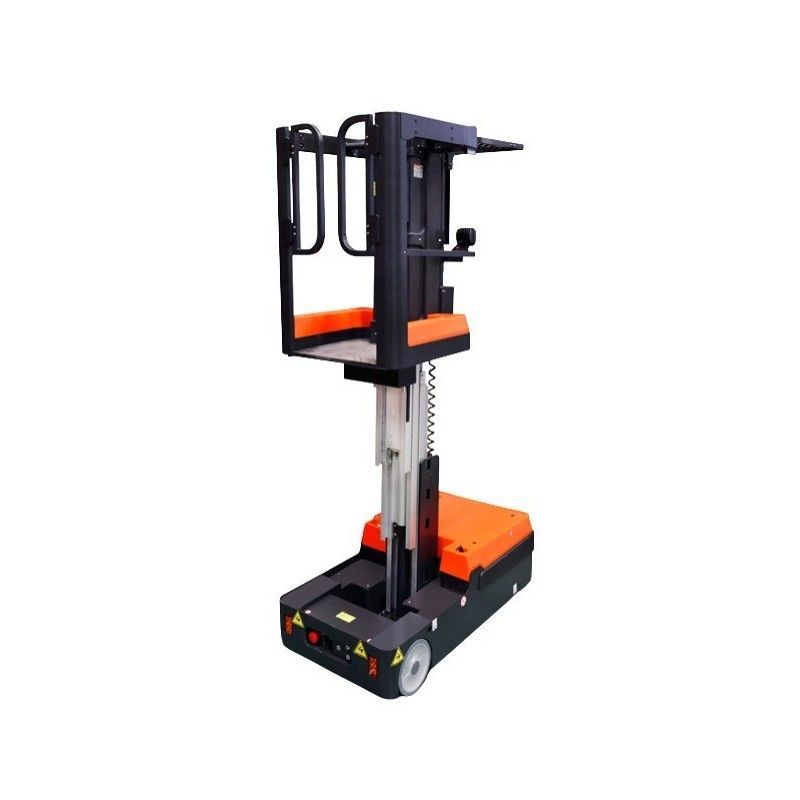

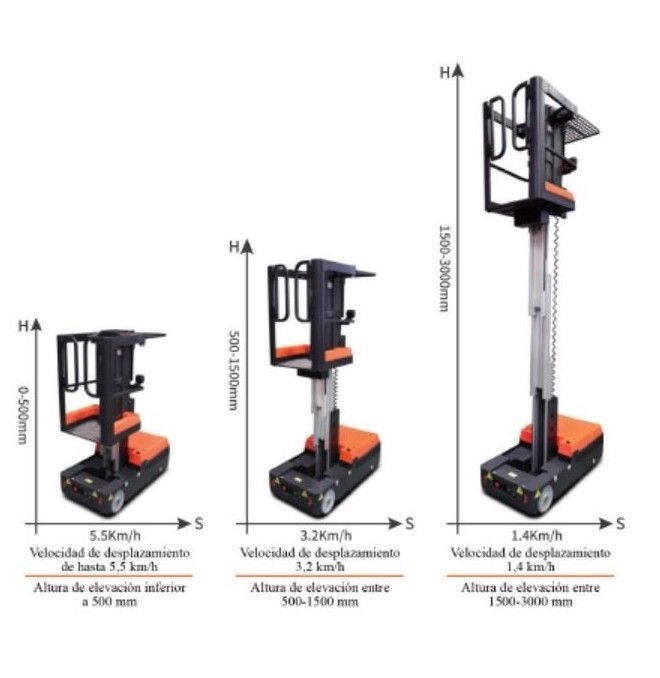

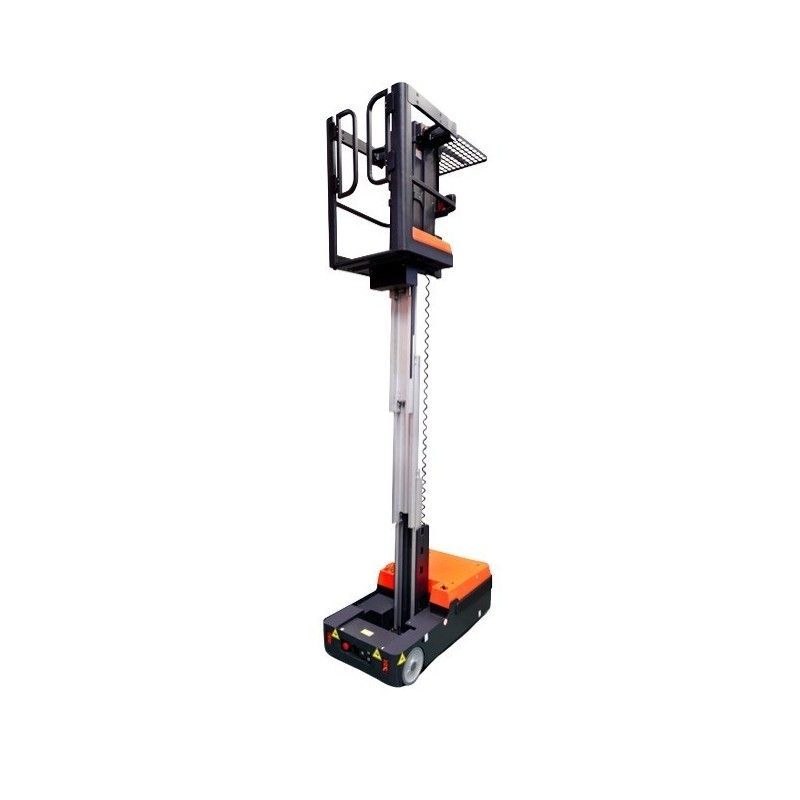

Order Pickers electric, with lithium battery and charger incorporated. With a capacity of the platform up to 150kg (for an operator), load capacity of the 100kg load tray, being its width of 750mm and height min. of 1454mm, which means it can easily enter in narrow areas (scensors, doors, narrow corridors, etc.). Its max elevation height is 3000mm, while the working height can reach up to 5000mm, this makes it possible to collect materials from the top of the shelving.

Thanks to its full-charge operation and long battery life (up to 5h), it makes it perfect for heavy tasks. Also, it is equipped with a Curtis controller, which makes the simultaneous operation of lifting and driving not only possible, but also smooth and safe.

Equipped with LCD display, which indicates safety warnings, speed, turning angle and breakdown code, all the information necessary for the operator. It is also equipped with a PIN code lock with the RFID card access function.

TECHNICAL CHARACTERISTICS

• Load capacity: 150kg
• Charging capacity of load tray: 100kg
• Operator compartment capacity: 135kg
• Height of platform step: 3015mm
• Height platform descended: 1395mm
• High platform height: 4091mm
• High total height: 4150mm
• Working height: 5000mm
• Total height descended: 1454mm
• Vehicle length: 1460mm
• Vehicle width: 750mm
• Rear wheels: 256x80
• Front wheels: 220x70
• Turn radio min: 1300mm
• Service Freno: Regenerative
• Parking brake: electromagnetic
• Inclination, with/without load: 5/8%
• Lifting speed, with/without load:  0.2/0.22 m/s
• Decrease speed, with/without load: 0.21/0.18 m/s
• Battery (5h): 24V/106Ah, 2x35kg
• Energy consumption according to VDI cycle: 0.41kWh/h
• Lithium battery: 24V/60Ah
• Battery weight: 17kg
• Charger: 12Amp
• Lithium Charger: 25Amp
• Motor displacement: 0.65kW
• Lift motor (operator): 2.2Kw
• Lifting motor (loading belt): 0.8Kw
• Type of controller: AC
• Service weight: 690kg

CE Certificate
