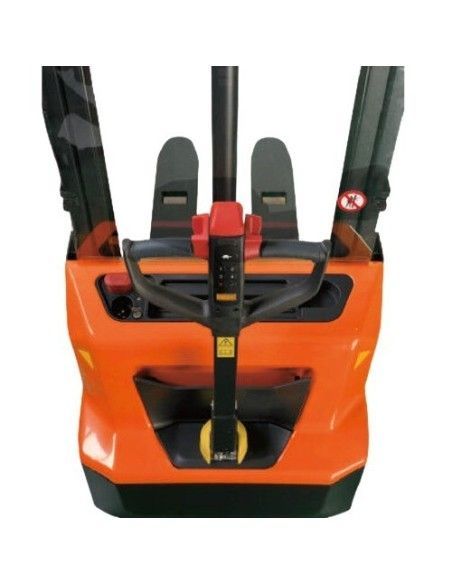

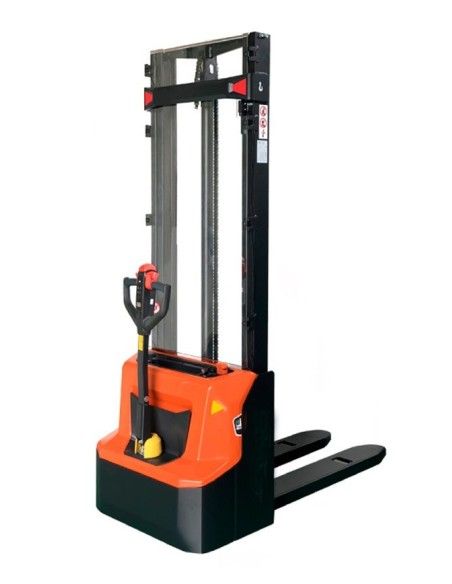

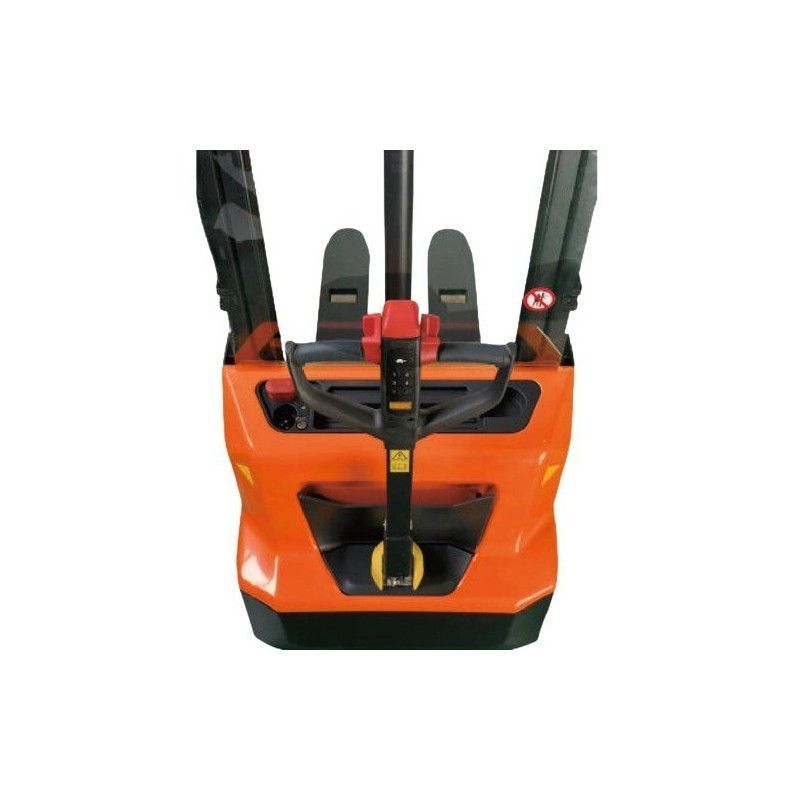

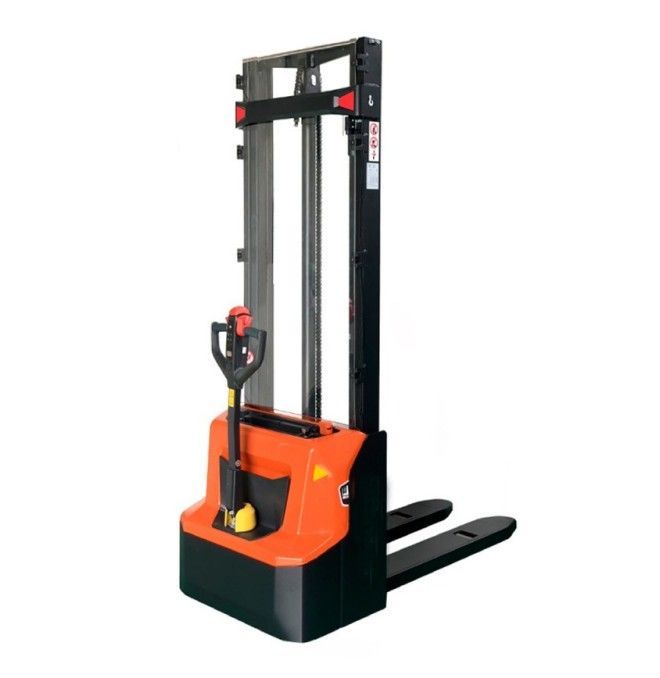

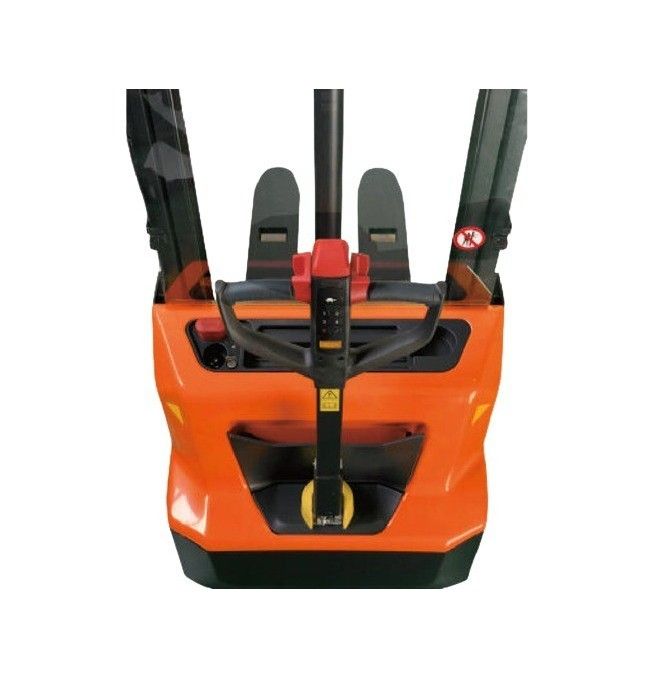

Electric stacker 1200kg at 2900mm 24V / 60Ah lithium battery

Electric traction and lift stacker, up to 1200Kg of load capacity and a lifting height up to 2900mm, being its forks 51x570x1150mm.

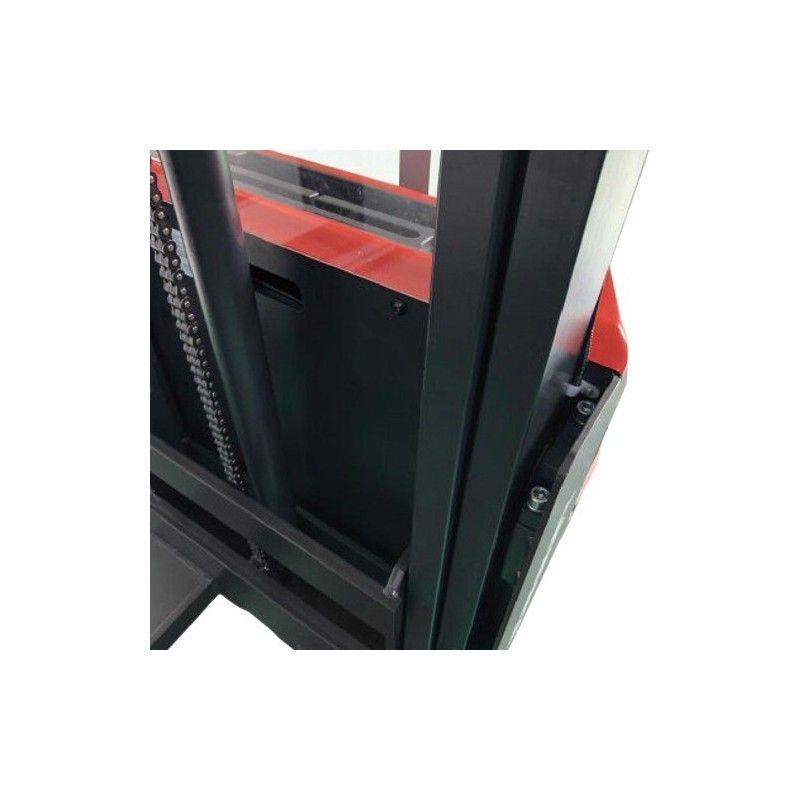

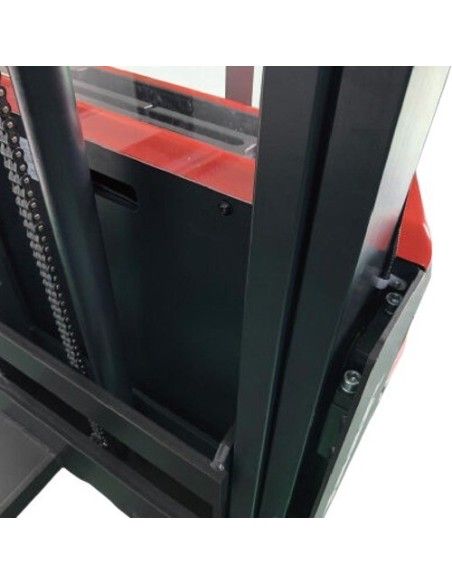

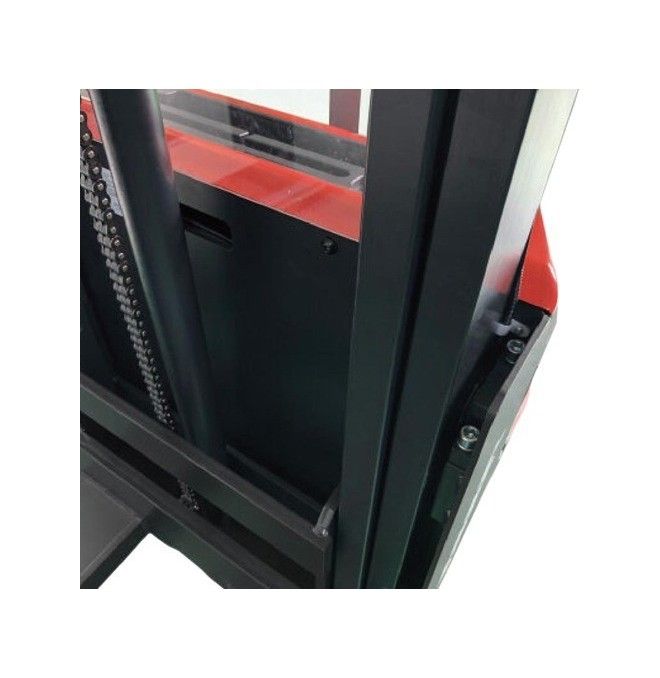

This stacker is designed for light stacking operations, thanks to its ergonomic and compact design, is very easy to handle. It facilitates the loading and unloading of the material for the operator. It has a wide mast for high residual lifting capabilities and perfect view through the mast.

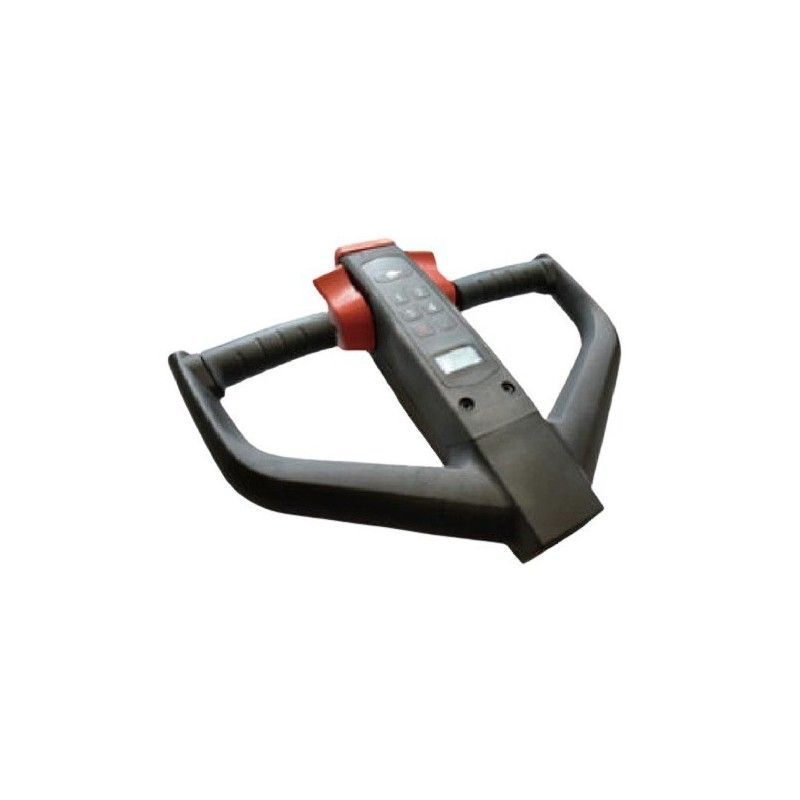

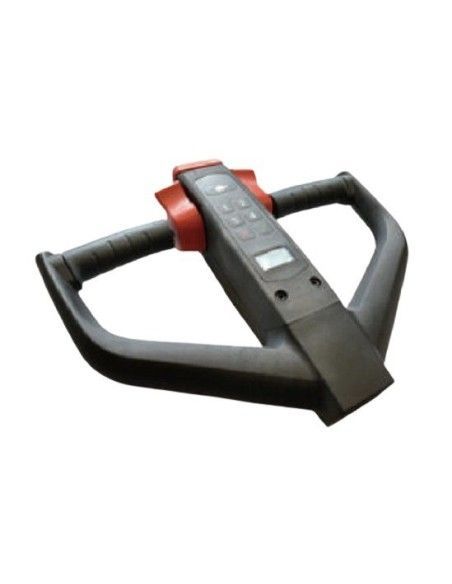

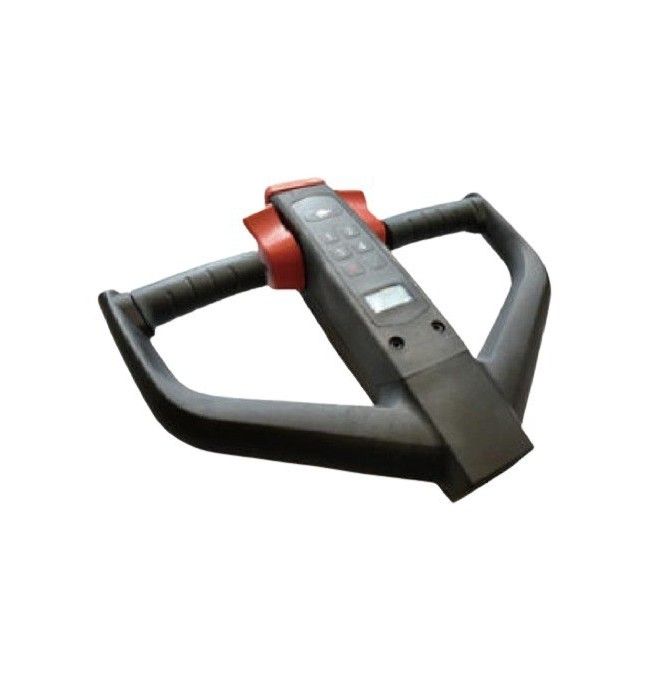

The Can-Bus rudder reduce the necessary maintenance and increase the overall performance.

Advantages

• Speed control.
• Access with PIN code.
• Elevation and electric descent.
• Optional: RFID access card.
• Vertical driving function to facilitate work in narrow places.
• Free Lithium Maintenance Batteries.
• Different versions of the mast available.
• Robust and ergonomic design with various storage areas.

Technical characteristics

• Loading capacity: 1200kg
• Cargo center: 600mm
• Closed mast height: 1930mm
• Extended mast height: 4494mm
• Free Elevation: 58mm
• Lifting height: 2900mm
• Loist height Elevation: 82mm
• Long forks: 1150mm
• Width forks: 570mm
• Dimensions of forks: 60x180x1150mm
• Radio of rotation: 1350mm
• Translation speed with / without load: 4.2 / 4.5 km / h
• Lifting speed with / without load: 110/170 mm / s
• Drop speed: with / without load: 110/130 mm / s
• Tilt with / without load: 5/10%
• Battery: 24V / 60AH
• Built-in charger: 24V / 25Ah
• Load time: 1.5 / 2 hours
• Working hours: 3.5 Continuous with load
• Battery weight: 19kg
• Weight: 585kg

Marked CE.
