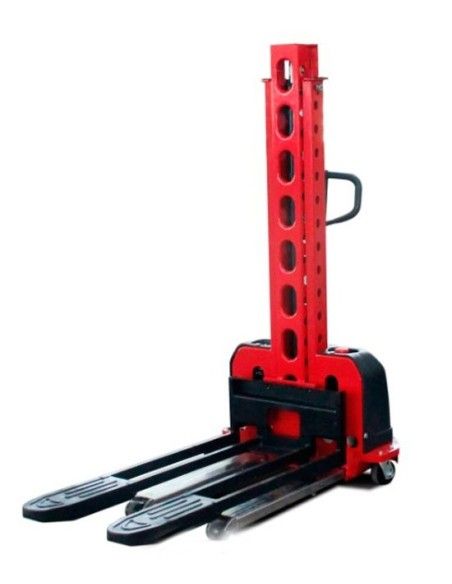

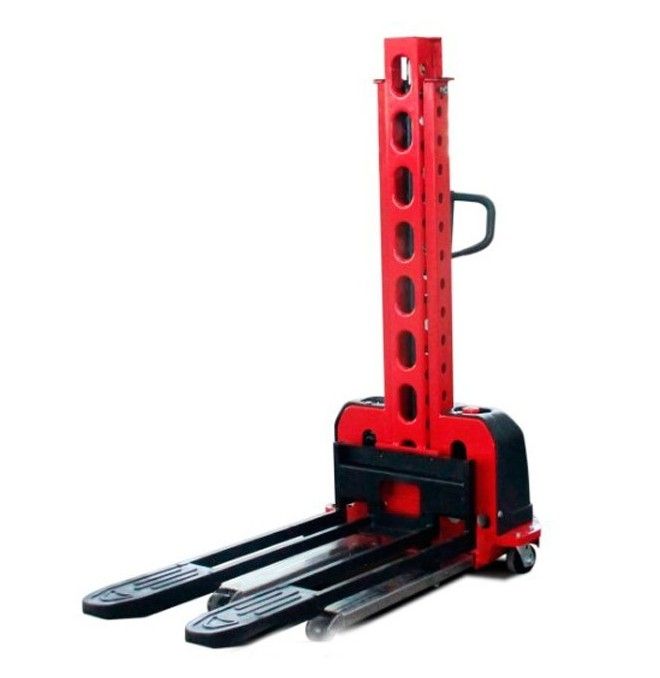

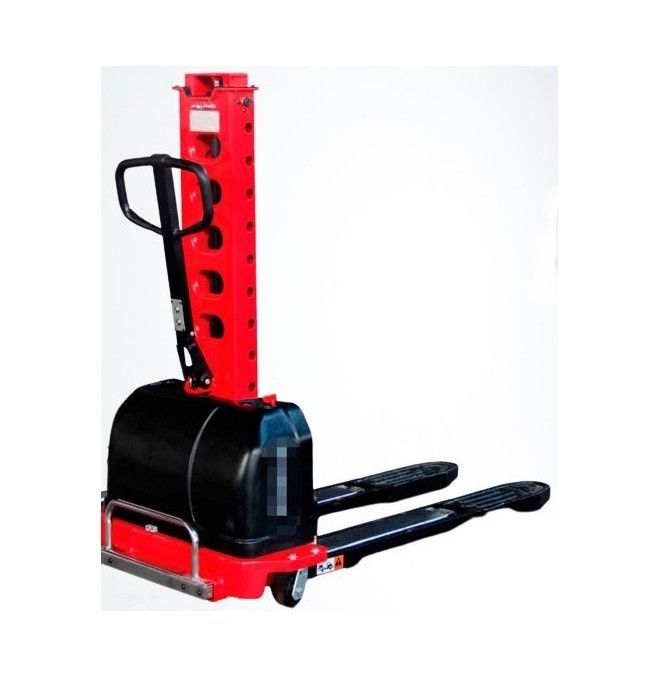

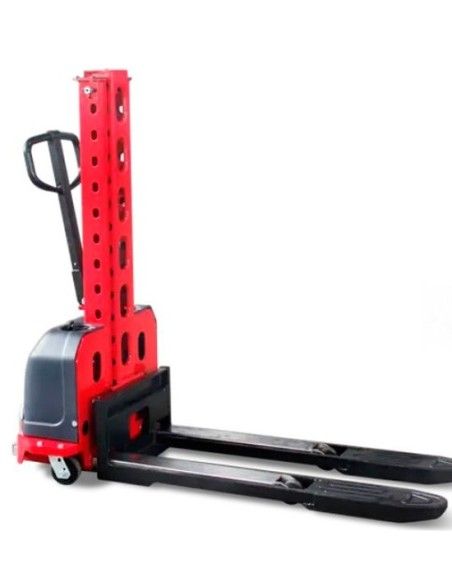

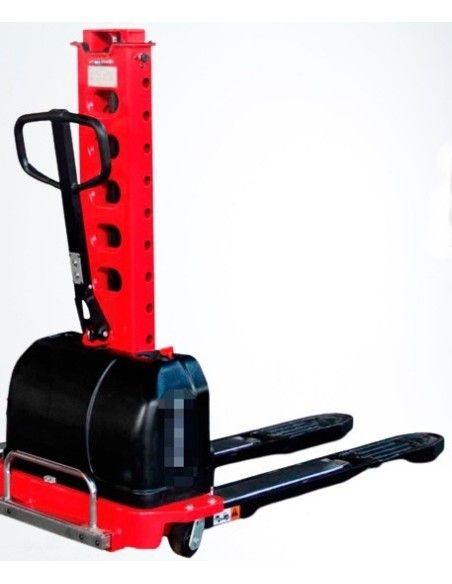

Self-supporting stacker 500kg to 900mm (Total height 1200mm)

This new model self-supporting stacker, is the best solution for the distribution of goods. In addition, you can take it in the van or truck and get it up and down by your own means. It is very light, easy to handle and fast, as he himself will be loaded into his truck or van. Thank you self-supporting stacker will significantly increase the comfort and efficiency of your deliveries.

The self-supporting stacker has a load capacity up to 500kg to 900mm elevation being its total height of 1200mm.

The Tymbia self-chargeable stacker is an innovation for delivering all kinds of materials. In the same product you can replace your lifting platform, transparent manual, stacker, ramp and elevator.

A stacker with electrohydraulic elevation and manual traction, you can carry control through the pushers located in the helm. Equipped with double wheels to facilitate handling. Its battery is 12V/33Ah, it has indicator battery charge and on/off key.

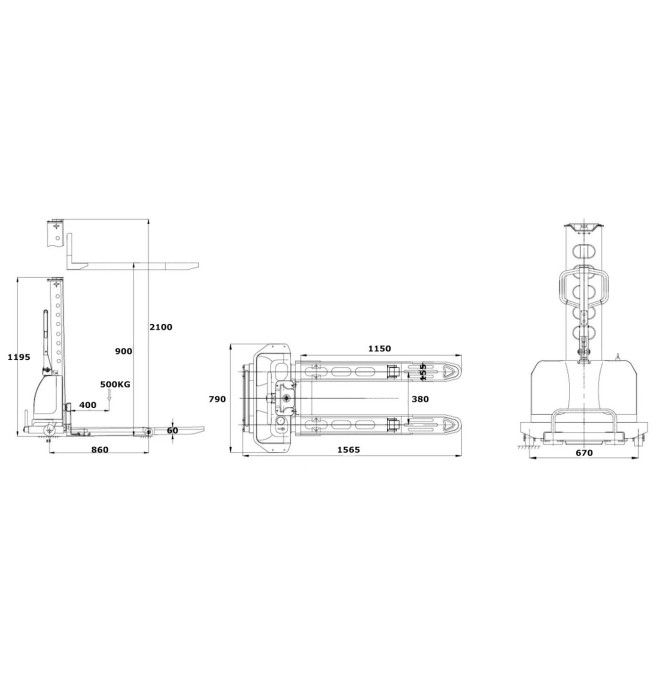

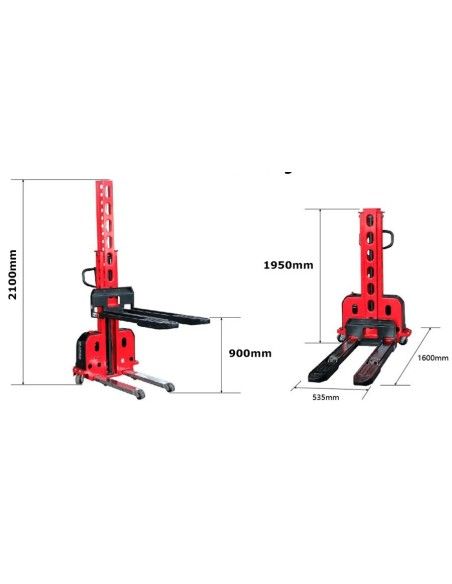

TECHNICAL CHARACTERISTICS

• Charging capacity: 500kg
• Charging center: 400mm
• Distance between axles: 860mm
• Front drive: 380mm
• Rear drive: 380mm
• Minimum height of the fork from the floor: 90mm
• Maximum height of the fork after raising it: 900mm
• Outer width of the fork: 535mm
• Inner width of the fork: 225mm
• Length of the fork: 1150mm
• Width of each fork: 155mm
• Grosor of each fork: 60mm
• Total length: 1565mm
• Total width: 790mm
• Height (when fork is down): 1195mm
• Highest height: 2100mm
• Min. turning radius: 1120mm
• Max. Lift speed (full charge/no charge): 80/110mm
• Max. descent speed (full charge/no charge): 80/80mm
• Lifting engine: 12V/0.8Kw
• Battery capacity: 12V/33Ah
• Battery weight: 10kg
• Material weight: 175kg
• Color: Orange (according to availability)

CE marking
