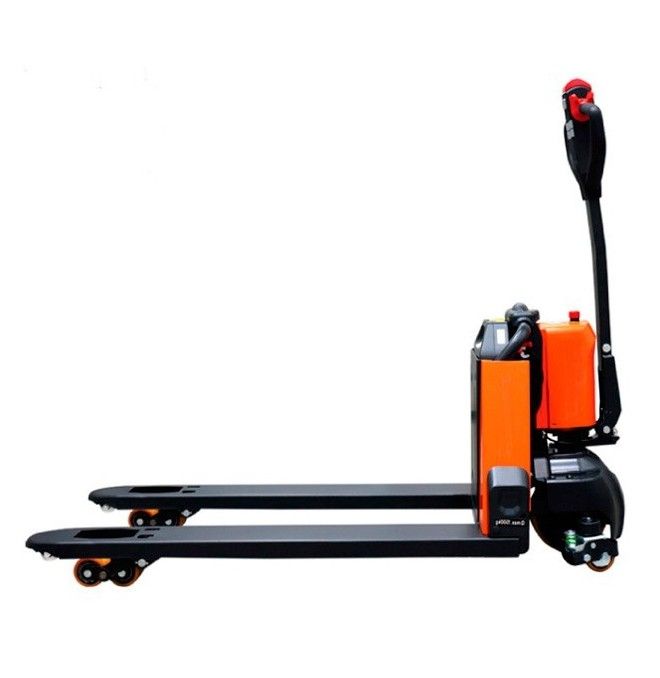

Electric Transpalet of 2000kg and 48V - Logistics Agility

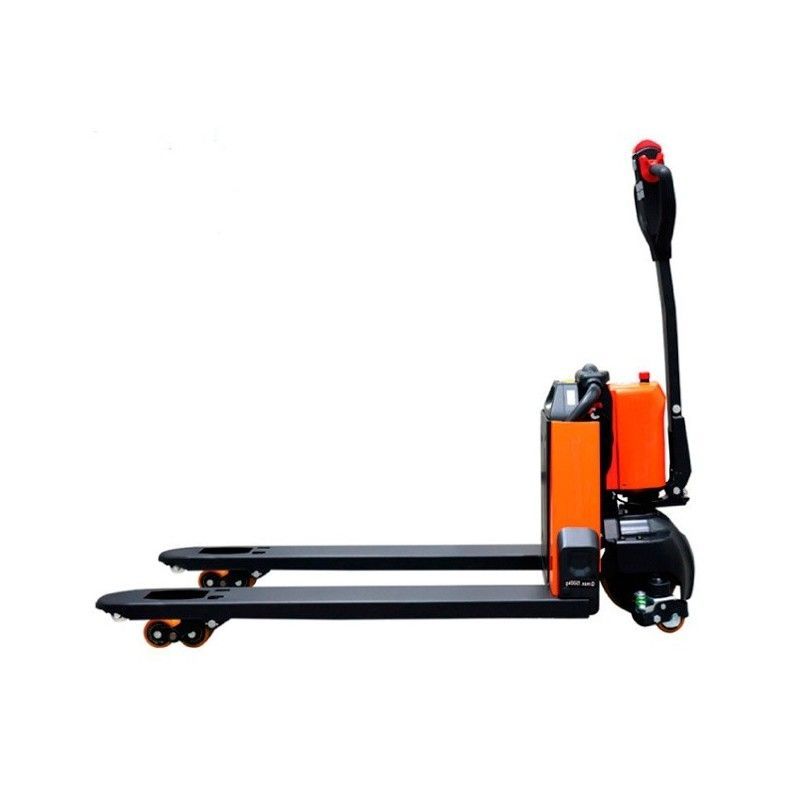

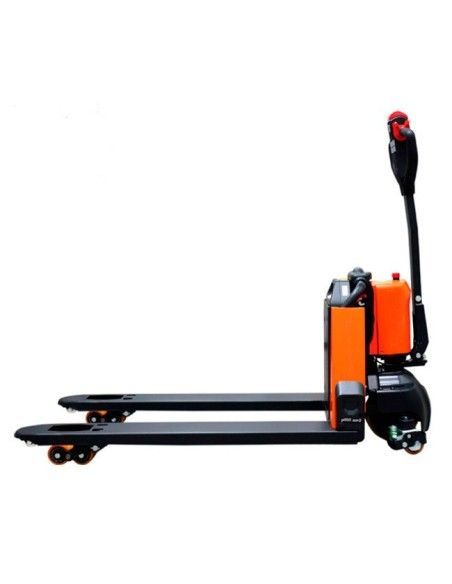

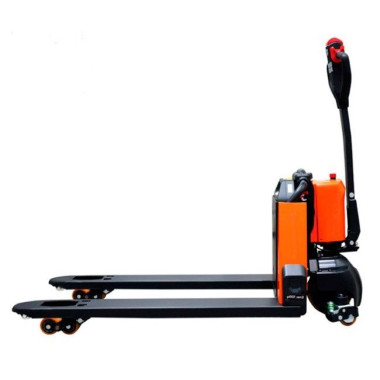

Compact and light electrical transparent, with a load capacity up to 2000kg. 48V / 20Ah lithium battery, fast-loading, does not need maintenance and include charger. Its wheels and rollers are of iron and polyurethane.

Thanks to its robust and compact structure of the chassis, it helps the work be lighter and that the operator can perform tasks more easily, easily and safely, can reduce physical damage due to long-term drag or by the lifting and decrease movement. This model also helps save energy, guarantees a long service life of the transparent.

The forks with double-sided C-shaped reinforcements and at the tips of the forks, causes significantly the strength and rigidity of the frame significantly. In addition, there are no hoses or tubes in the hydraulic lift circuit of the pallets, which improves reliability and reduces the amount of potential problems related to leaks through the connectors or their joints.

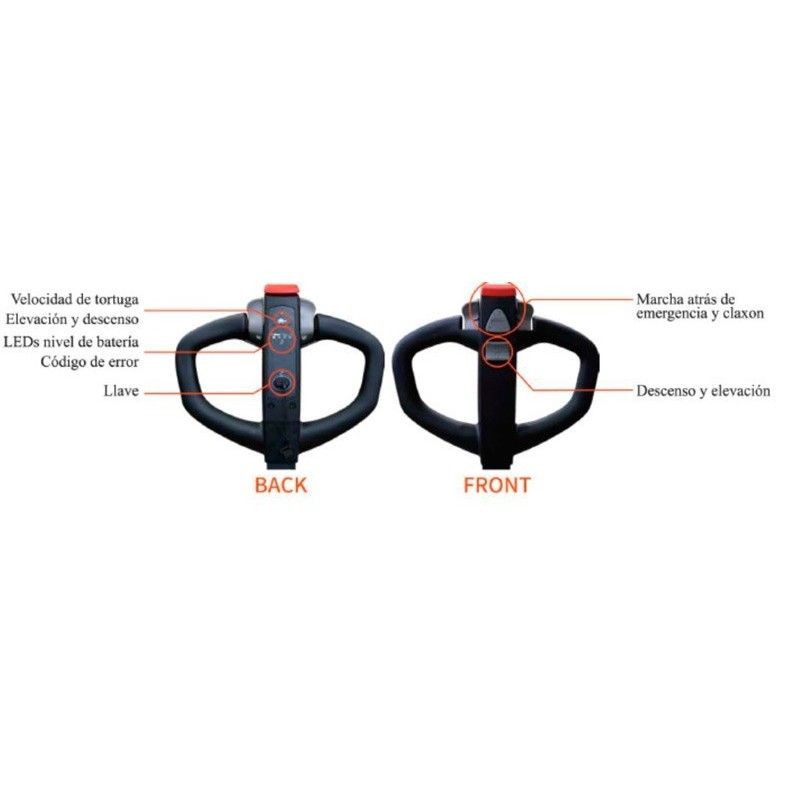

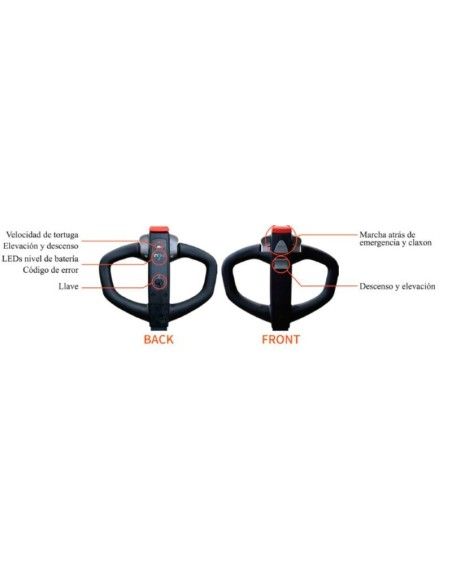

Its ergonomic rudder design with multifunctional LCD screen shows the battery charge level and error codes, which makes the computer status easy to check.

Advantages

• Compact, robust and easy handling design.
• Perfect for the use of light loads and for use in retail.

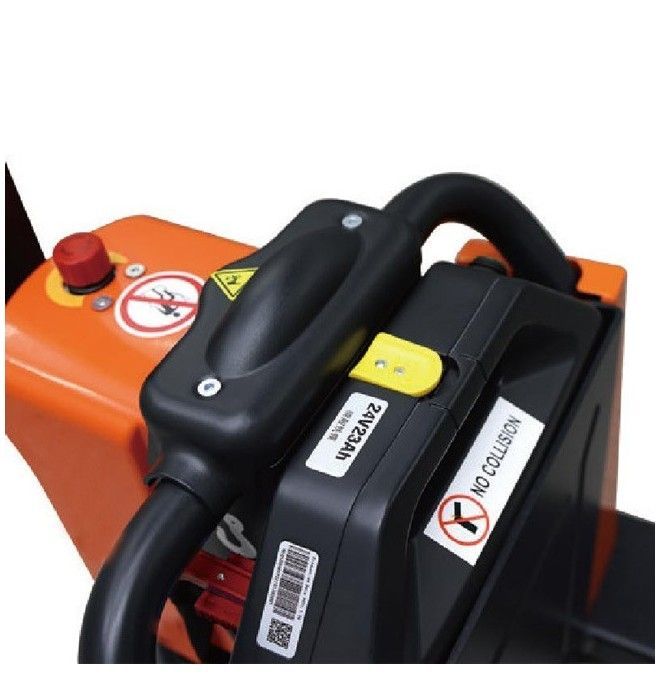

• Removable lithium battery, fast loading and light service weight.
• Easy change of battery.

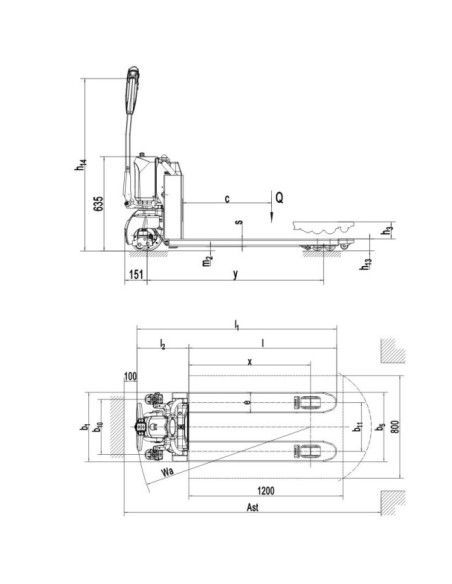

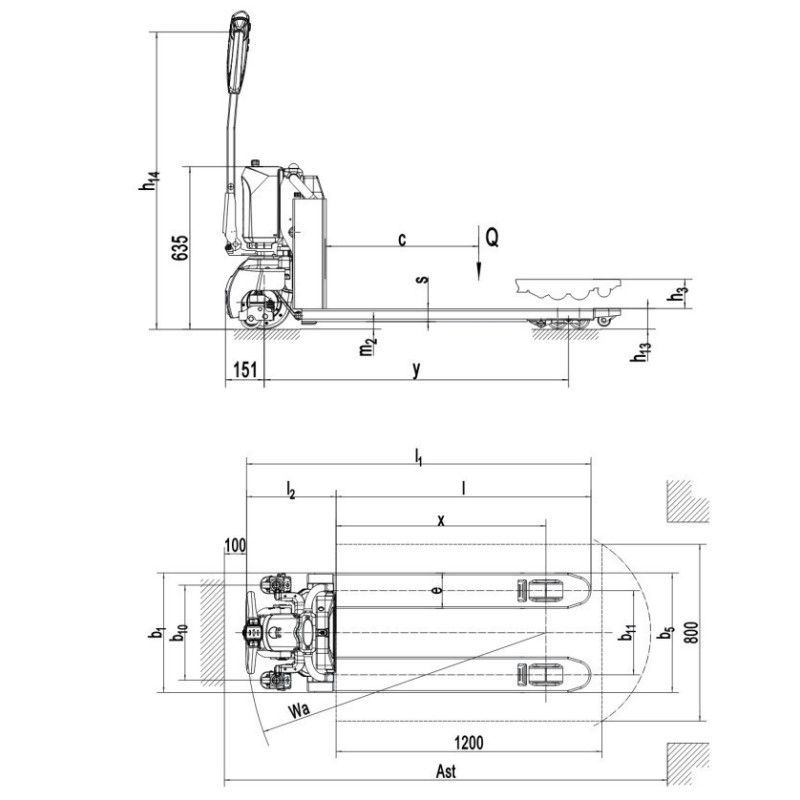

Technical characteristics

• Loading capacity: 2000kg
• Distance to the center of the load: 600mm
• Distance to the center of the load, from the drive shaft to fork: 947mm
• Body distance: 1189mm

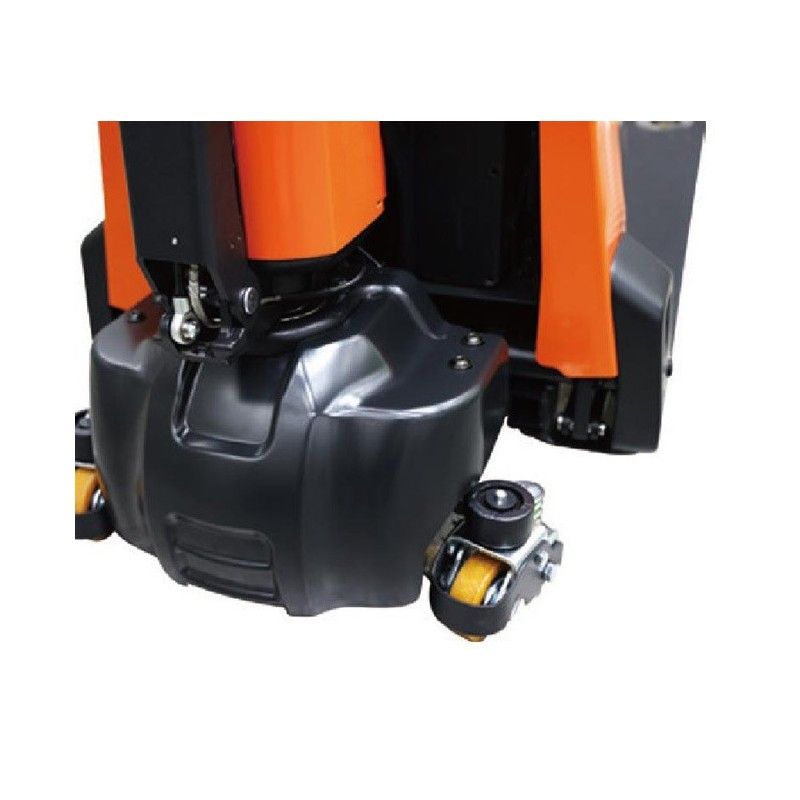

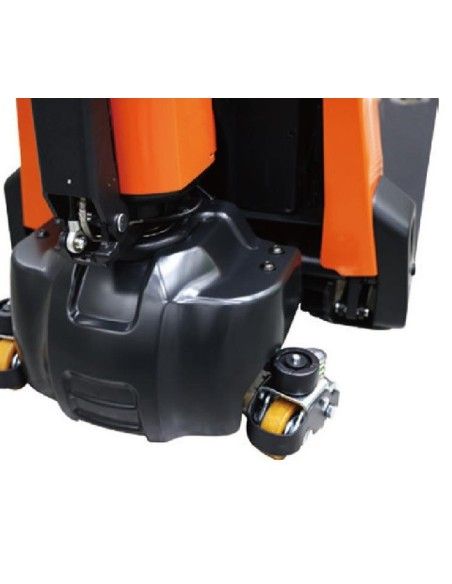

• Wheels: Polyurethane
• Lifting: 115mm
• Rudder height in Driving position Min / Max.: 745 / 116mm
• Height descended: 80mm
• Total long: 1543mm
• Length Up to the face of the forks: 393mm
• Total width: 540mm
• Handle measures: 50x160x1150mm
• Width forks: 540mm
• Floor Distance, Distance between Axles: 30mm
• Hall Width for Palets of 800x1200: 2013mm
• Radio of rotation: 1340mm
• Scroll speed with / without load: 4.9 / 4.9 km / h
• Lifting speed with / without load: 0.016 / 0.019 m / s
• Decrease speed with / without load: 0.052 / 0.02 m / s
• Maximum tilt with / without load: 7/16%
• Service brake: Electromagnetic
• Scroll motor: 1.0kw
• Lifting engine: 0.8KW
• Battery: 48V / 20Ah
• Battery weight: 8kg
• Net weight: 127kg

CE certificate
