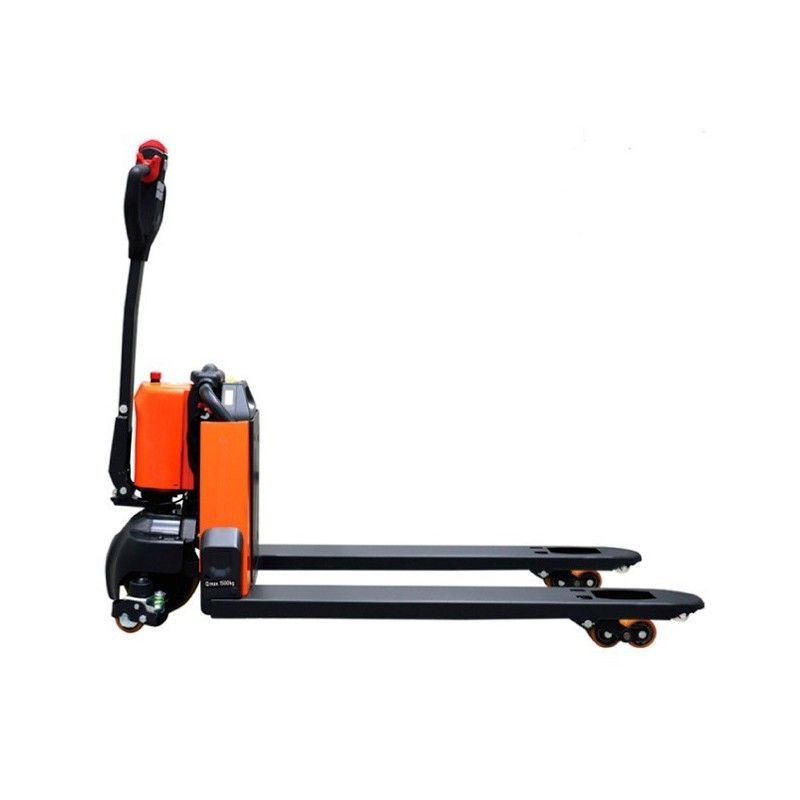

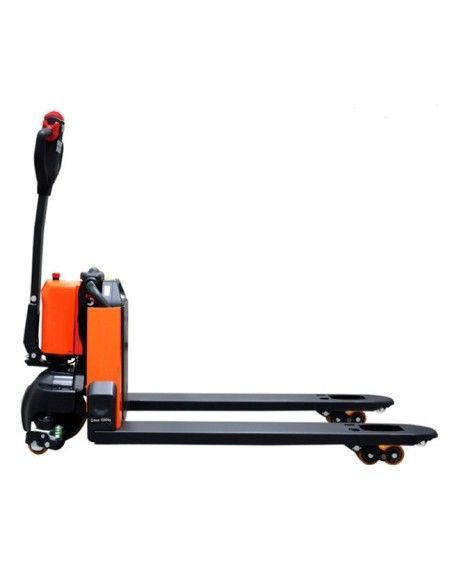

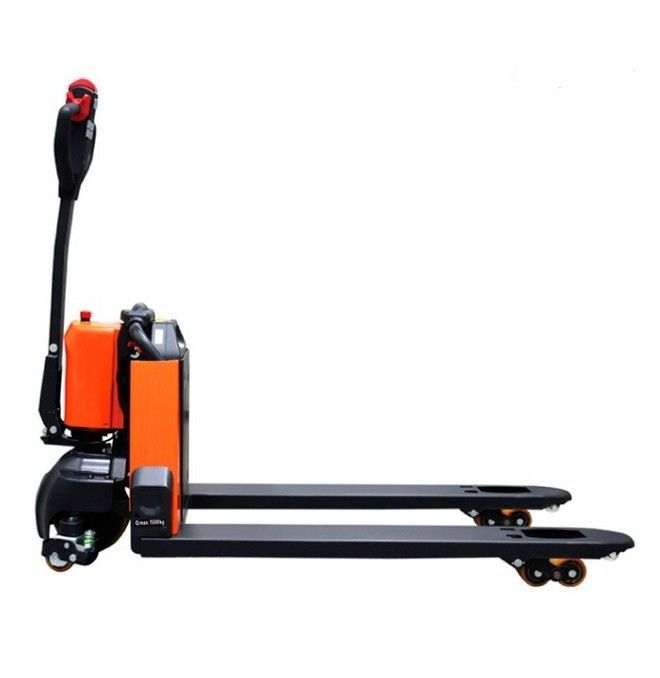

1500kg electric transparent with lithium - use in warehouses

Electric pallet truck compact and lightweight, with load capacity up to 1500kg, includes lithium charger and battery, for quick and timely loading, without maintenance. Its wheels and rollers are iron and polyurethane. 24V 20Ah battery.

This pallet truck helps to make the job lighter and to make the operator perform the tasks more easily and safely, can reduce physical damage by dragging in the long term or by the movement of elevation and descent, this model will also help save energy, thanks to its lithium battery.

Forks with double-sided C-shaped reinforcements and fork tips significantly increase the strength and stiffness of the frame. In addition, there are no hoses or tubes in the hydraulic lifting circuit of the pallet Trucks, which improves reliability and reduces the number of potential leak-related problems through connectors or their joints.

CHARACTERISTICS

• Lithium battery (fast charge and without operating).

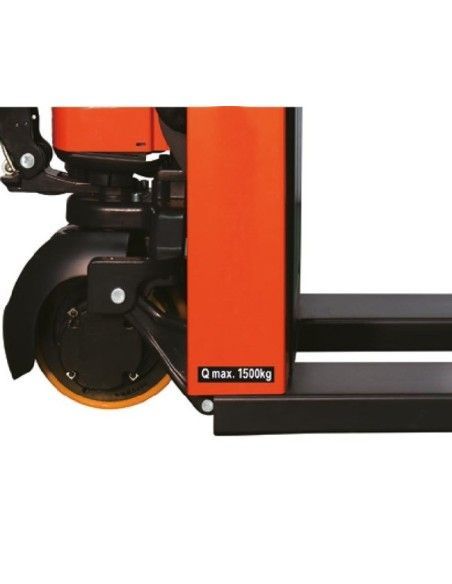

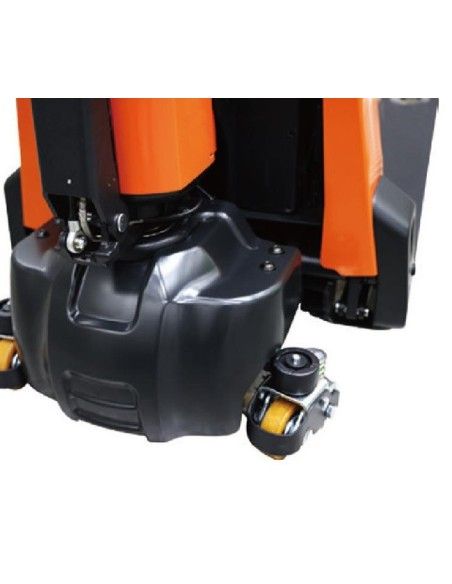

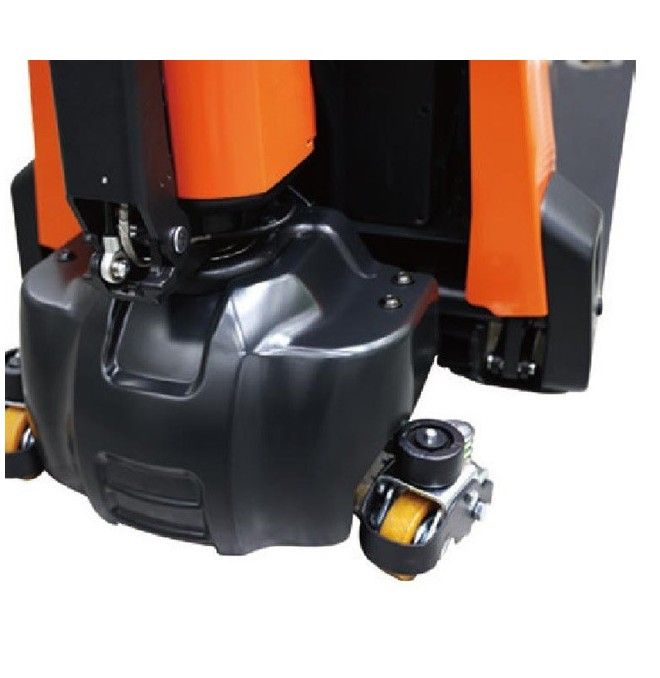

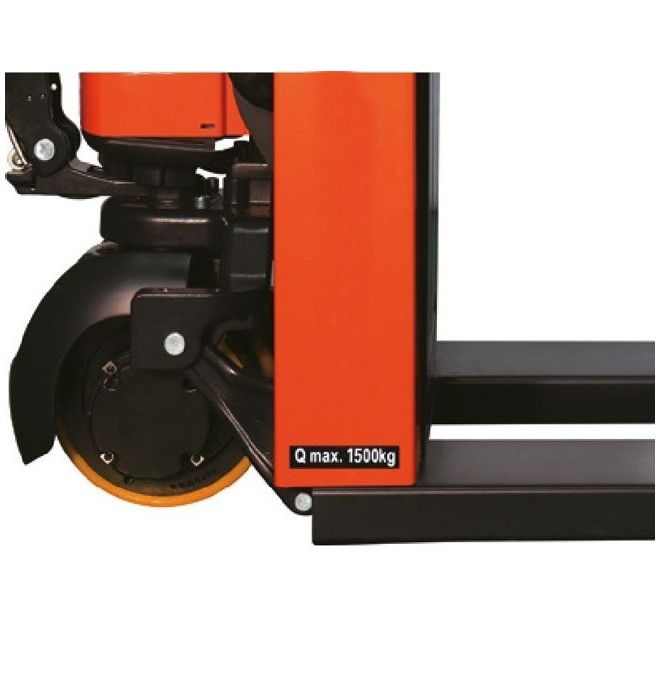

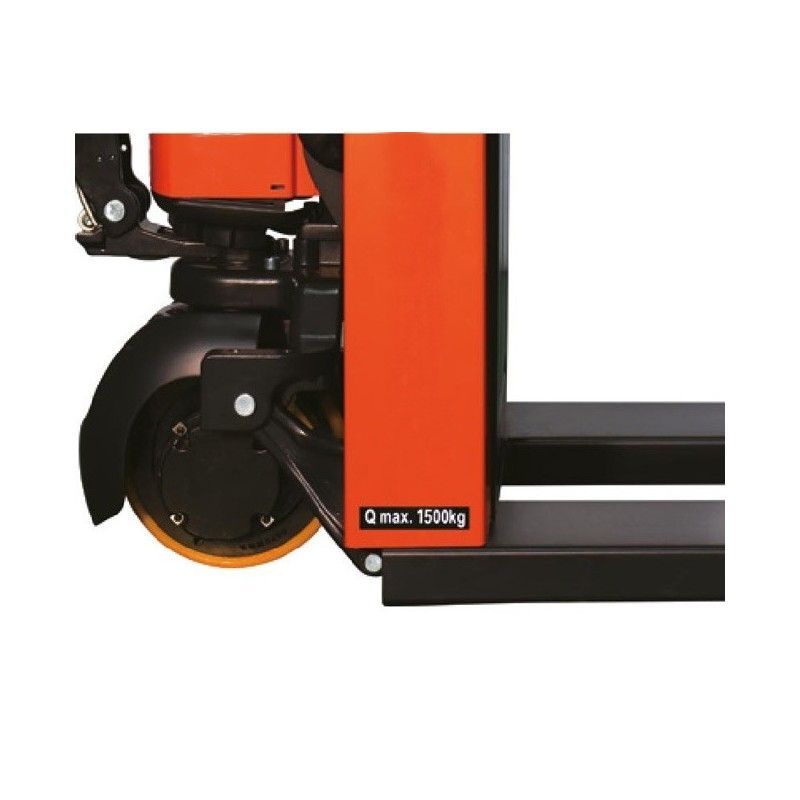

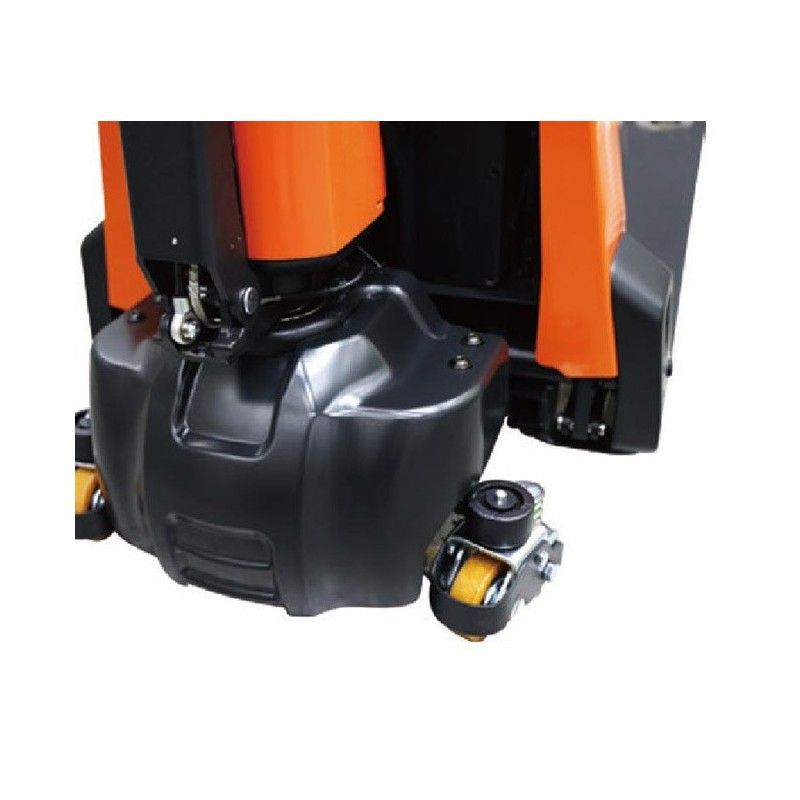

• Wheels and rollers of iron and polyurethane.
• Tim CANBUS, CURTIS controller.
• CAN bus technology.
• Protective metal bottle.

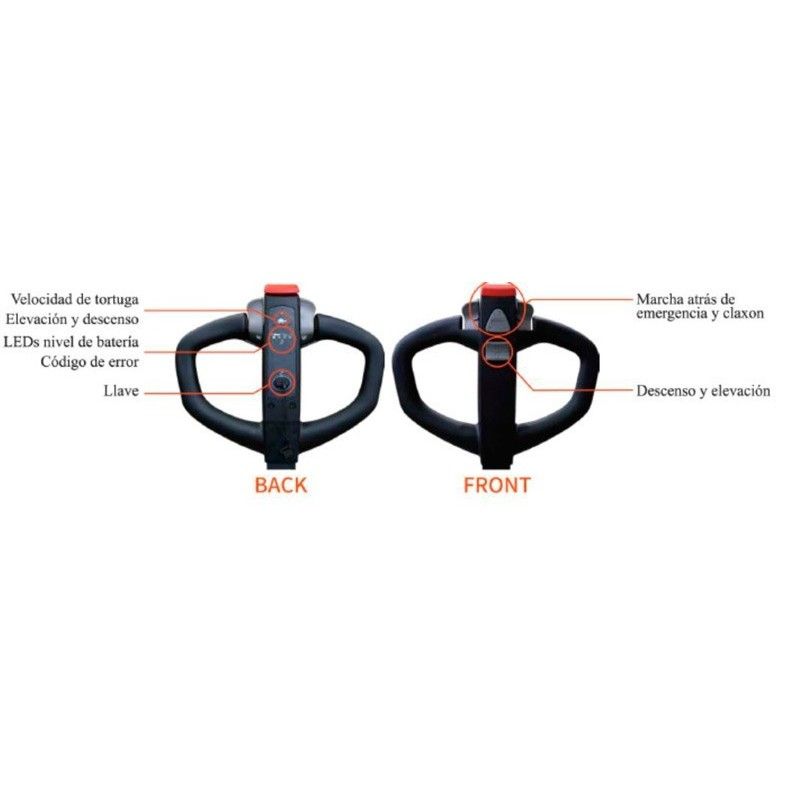

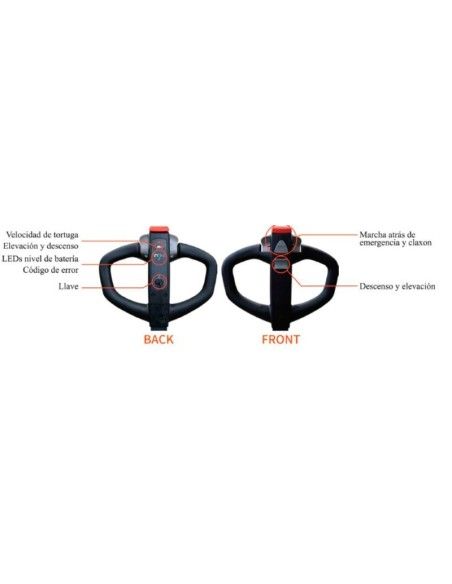

• Ergonomic and functional dyedon (portable to operate).
• LCD display (shows the battery charge level and error code, which makes the state of the wheelbarrow clear and the management of the wheelbarrow safer).

BENEFITS

• Transfer of the load effortlessly from the operator.
• Electromagnetic brakes. Compact equipment.

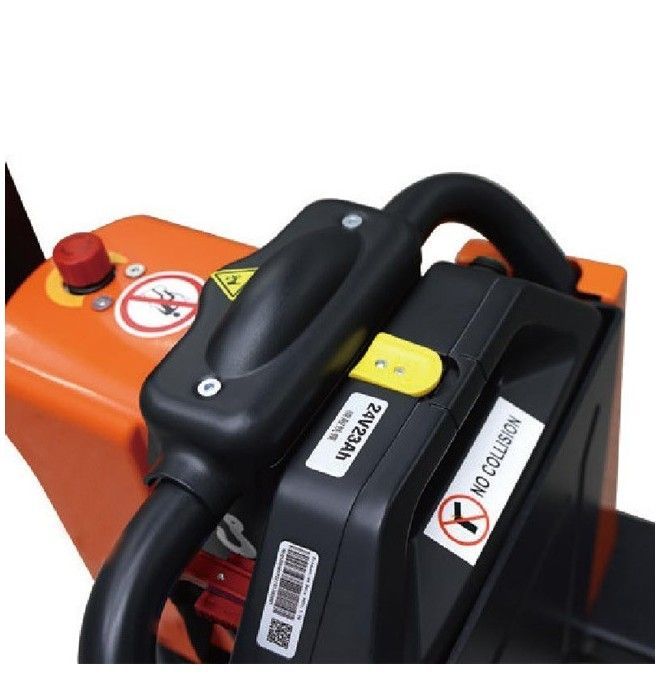

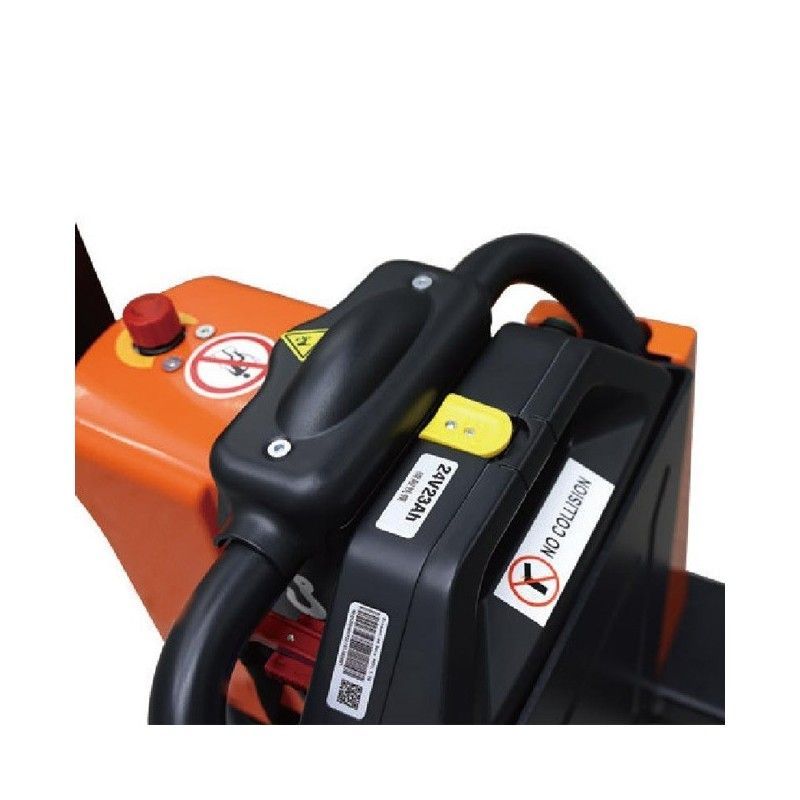

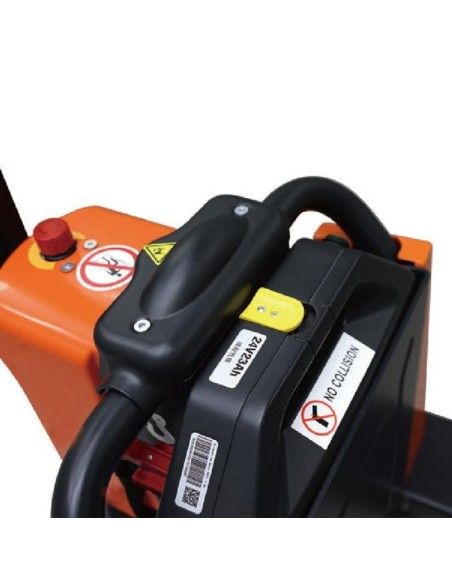

• Includes lithium charger and battery, easily exchanged.
• Anti crushing button. Slow march. Load led

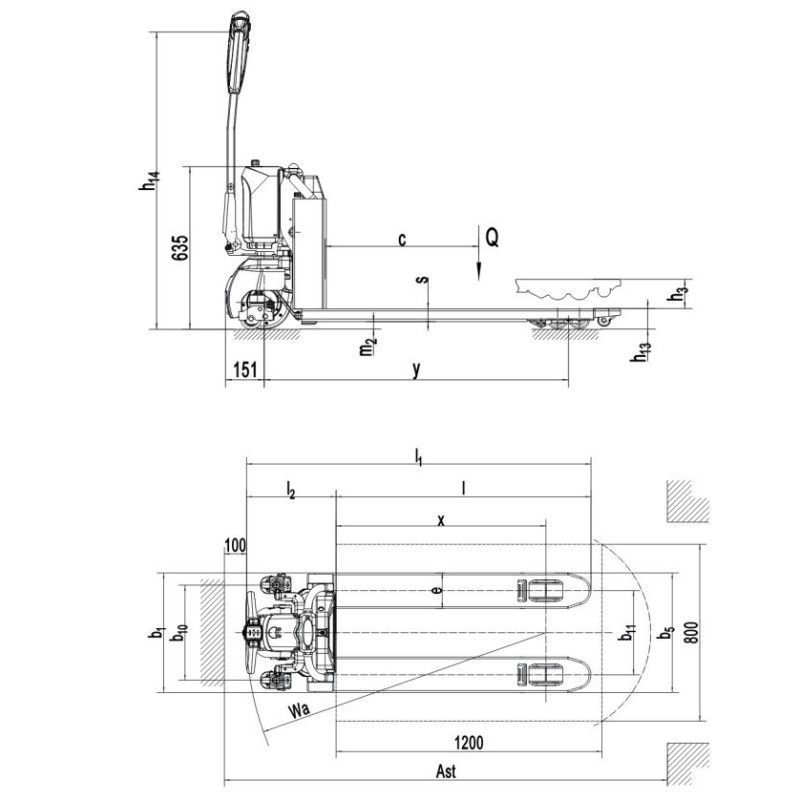

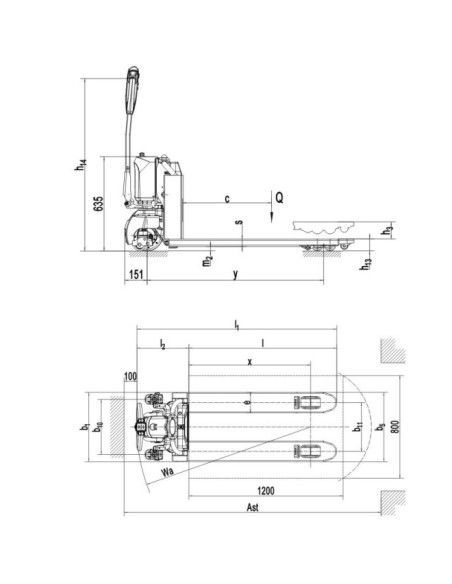

TECHNICAL CHARACTERISTICS

• Charging capacity: 1500kg
• Accession: electric
• Voltage: 24 V
• Other features: for warehouse, compact, for light applications
• Min height of elevation: 80mm
• Maximum height of elevation: 115mm
• Total high: 1160mm
• Total length: 1543mm
• Fork length: 1150mm
• Width of the forks: 160mm
• Fork dimensions: 50x160x1150mm
• Total width: 540mm
• Aisle width required: 2013mm
• Battery capacity: 23Ah/ 46 Ah
• Gradient c/s load: 6/16 %
• Turn radio: 1340mm
• Speed c/s load: 4.3/4.9 km/hr
• Lift c/s load: 0.05/0.22 m/s
• Descent c/s load: 0.05/0.026 m/s
• Gravity center: 600mm
• Battery: 24V 20Ah
• Weight Battery: 6.5kg
• Current: AC
• Translating/learning motor: 0.75/0.50kW
• Engine: CC c/speed control
• Net weight: 127kg

CE marking
