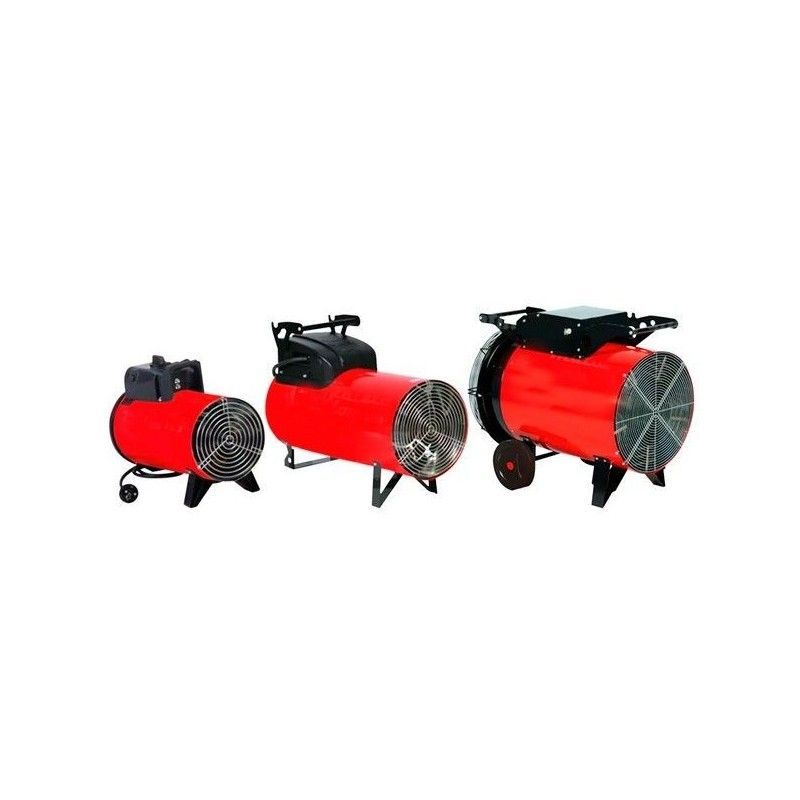

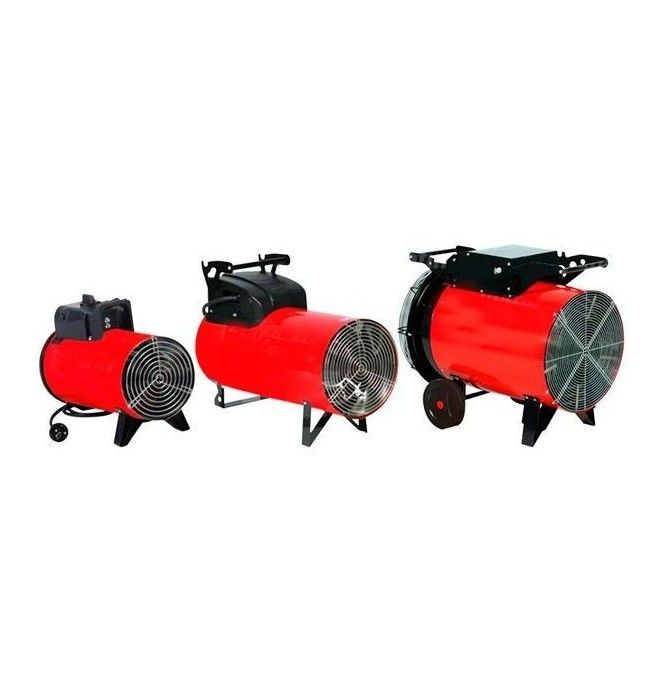

3Kw to 30Kw industrial electric ventilators (aircraft)
A501016273
€450.00
450,00 € (tax incl.)
Heated ventilators, ideal for all environments where diesel, LPG and methane cannot be used. Safe and with a low sound level, these electric airfields are practical and efficient, providing instant heat in industrial buildings and small and medium-sized companies, warehouses and public areas.
Deployable; select the power.
Industrial electric aerograms of different powers are ideal for all environments where diesel, LPG and methane cannot be used. It provides instant heat as in; warehouses, public air, small and medium-sized enterprises. These new fans are safe and with a low sound, practical and efficient level.
Simple but highly effective solution for the commercial and construction, since they reduce the time of removal of moisture in the drying.
They have:
Additional AISI 321 reinforcement elements for high performance.
Termostato environment incorporated.
Power selector.
Power cable (1.5 m) with 230V power outlet (EK 3).
Safety temostat with manual rearmament.
Stainless steel front grill.

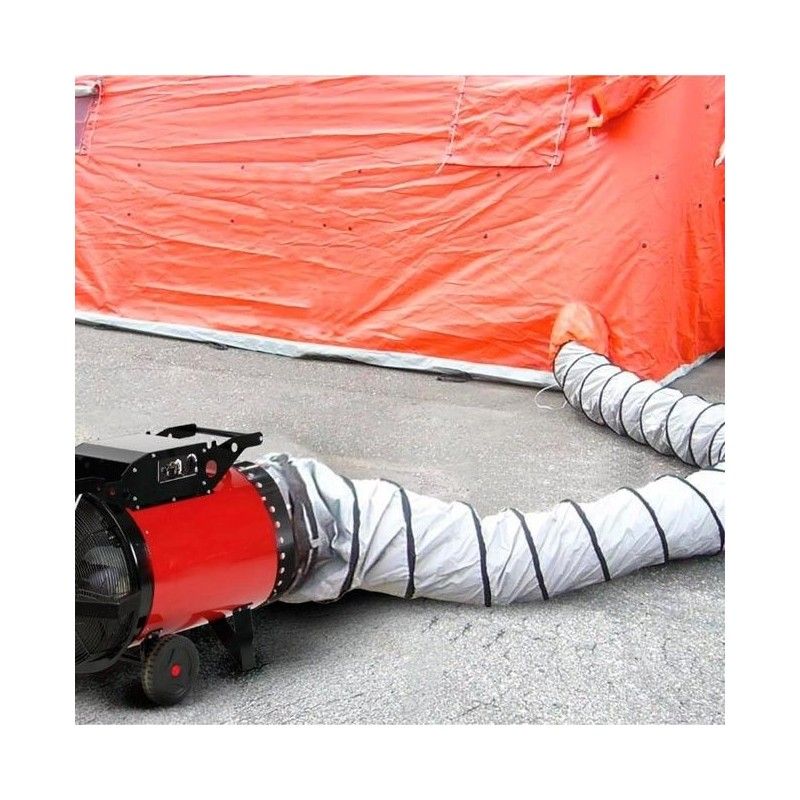

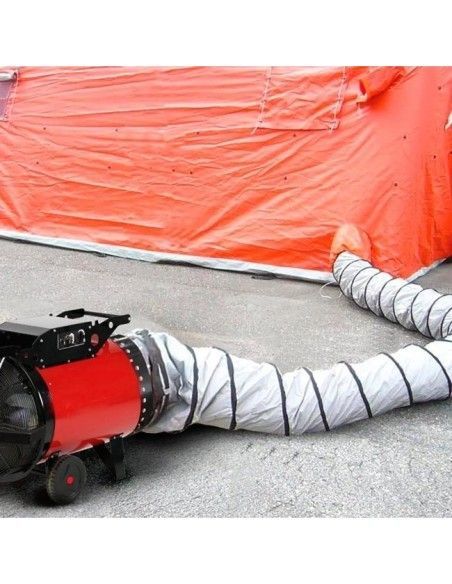

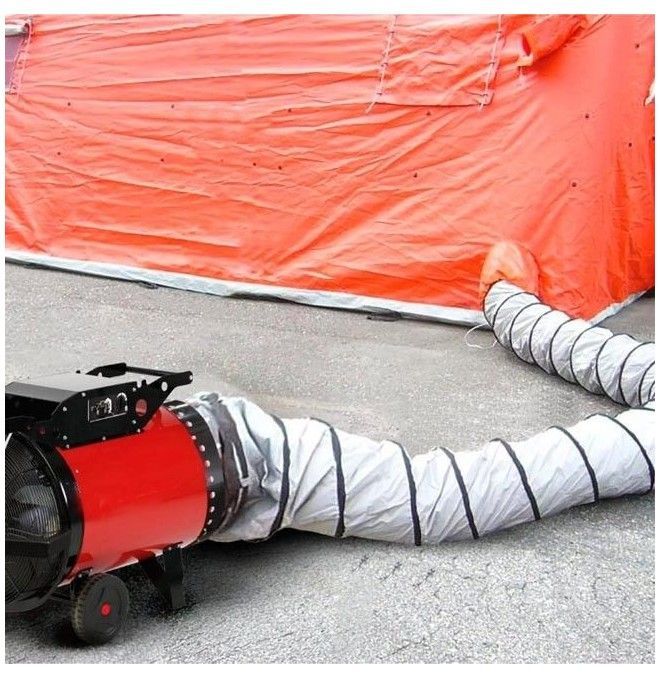

Conduct up to 6 m long (EK 10, EK 15) (optional).
TECHNICAL CHARACTERISTICS
|
Max thermal power. |
3 kW |
10 kW |
15 kW |
22 kW |
30 kW |
|
Electric power |
3,05 kW |
10.11 kW |
15.11 kW |
22.11 kW |
30.11 kW |
|
Performance |
100% |
100% |
100% |
100% |
100% |
|
Air flow |
450 m3/h |
1,500 m3/h |
2,000 m3/h |
3.050 m3/h |
3.900 m3/h |
|
Service voltage |
230 V 1~ 50 Hz |
400 V 3~ 50 Hz |
400 V 3~ 50 Hz |
400 V 3~ 50 Hz |
400 V 3~ 50 Hz |
|
Electrical intensity |
6.2 - 12 A |
7,1 - 13,6 A |
13,8 - 21 A |
13,8 - 21 A |
13,8 - 21 A |
|
Temperature difference |
32 - 44,50 °C |
30.5 - 48.3 °C |
35 - 54.3 °C |
35 - 54.3 °C |
35 - 54.3 °C |
|
Recommended volume |
50-90 m3 |
200-300 m3 |
250-380 m3 |
400-650 m3 |
650-800 m3 |
|
Dimensions (LxAnxAl) |
367x180x280 mm |
505x277x511 mm |
575x277x511 mm |
700x317x538 mm |
795x540x706 mm |
|
Weight |
5 kg |
13 Kg |
15 kg |
21 Kg |
38 Kg |
