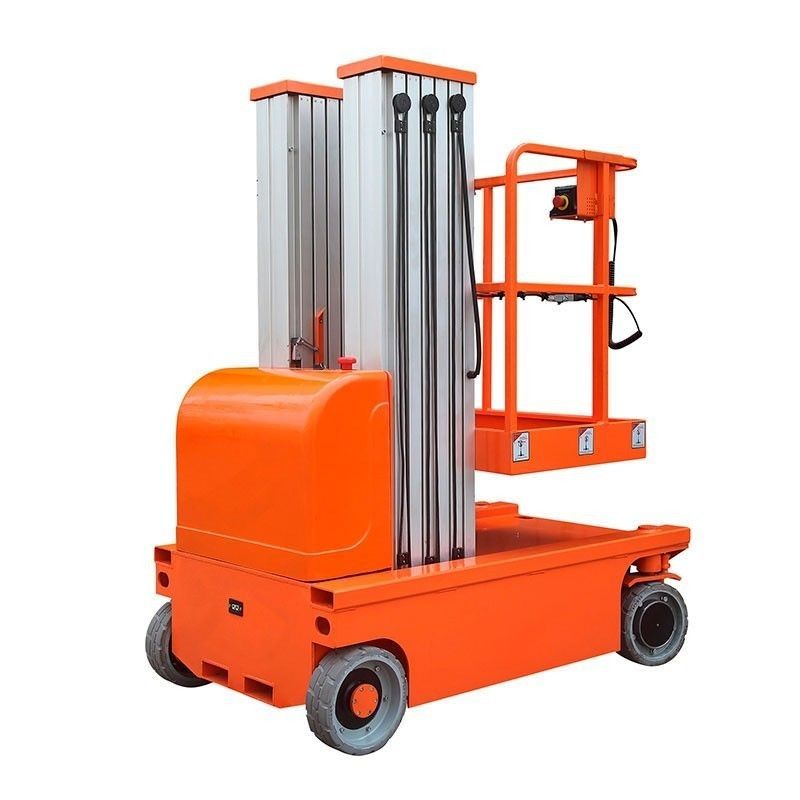

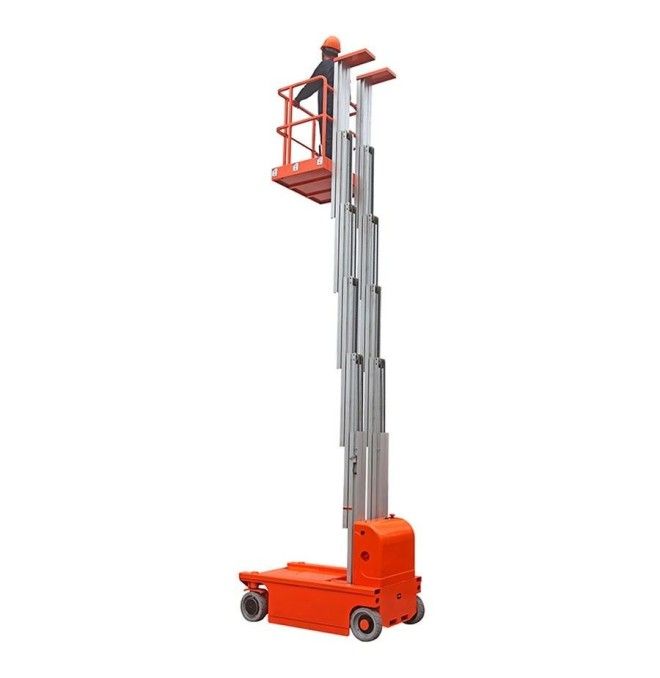

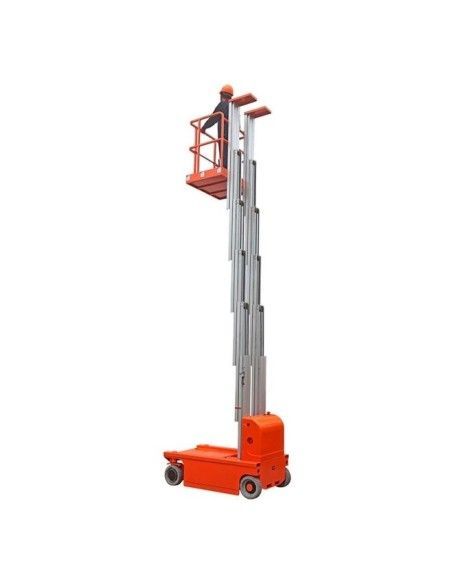

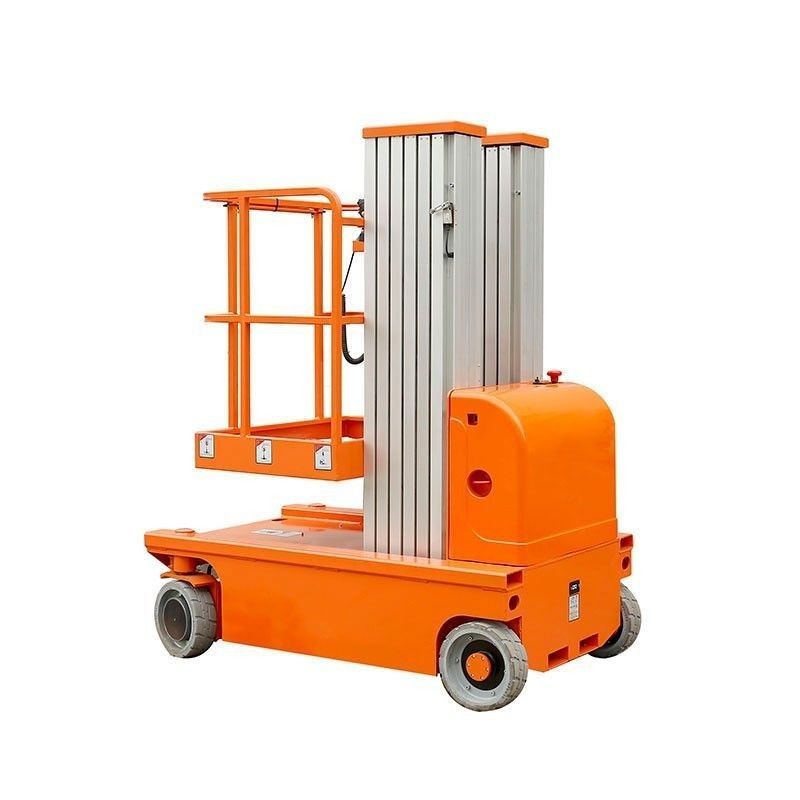

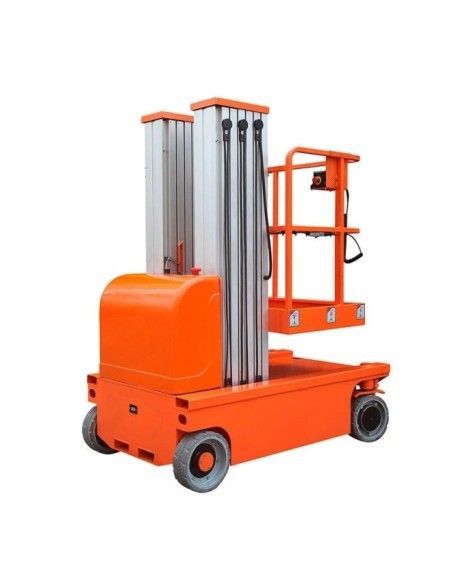

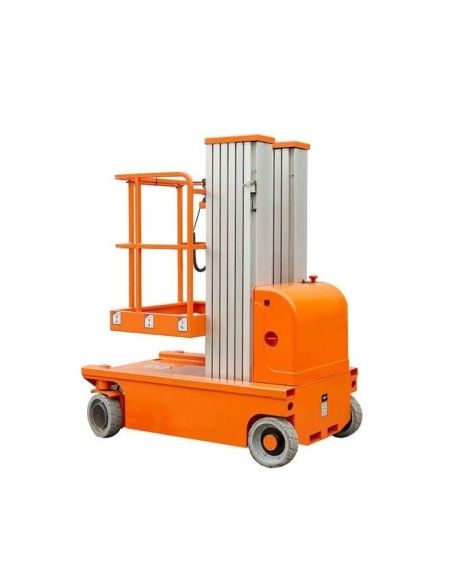

Lifting platform with 9m Electric Translation - 150kg
M103021008
Lifting platform rises people, totally electric, up to 9000mm elevation and a working height of 11000mm. Load capacity for one person, up to 150kg. Dimensions of the platform 1000x700x1100mm .
Equipped with emergency drop valve. Ideal for working on very large heights. Battery of (2x12/150 v/Ah) and charger 24/25 V/A.
It has CE marking.
Lifting platform with electric lifting and transfer of double mast, up to 9m high and a load capacity of 150kg. Adequate capacity for an operator, platform measures: 1000x700x1100mm. Equipped with emergency descent system and automatic protection against potholes. Perfect for working at high altitudes.
TECHNICAL CHARACTERISTICS
- Load capacity: 150kg
- Distance to the floor: 20mm
- Maximum lifting of the platform: 9000mm
- Total height of the elevated platform: 10500mm
- Shelf height: 680mm
- Dimensions of the platform: 1000x700x1100mm
- Turn radio: 1800mm
- Maximum slope capacity: 20%
- Turn wheel dimension: 305x100mm
- Engine wheel dimension: 305x100mm
- Traction motor: 2x2.4/0.5 V/kw
- Lift motor: 24/2.2 V/kw
- Battery: 2x12/150 v/Ah
- Charger: 24/25 V/A
- Total length: 1700mm
- Total width: 1000mm
- Total height: 2100mm
- Weight: 1250kg
- Manufacture from materials of any heading
It has CE Certificate.
- Load capacity (kg)
- 150
- Lifting height (mm)
- 9000
- Lifting system
- Electric
- Total length (mm)
- 1700
- Width (mm)
- 1000
- Description
- Total electric lifting platform
- Max. (mm)
- 9000
- Traction motor (KW)
- 2x2.4/0.5 V/kw
- Lifting motor (KW)
- 24/2.2 V/kw
- Dimensions (mm)
- 1000x700x1100
