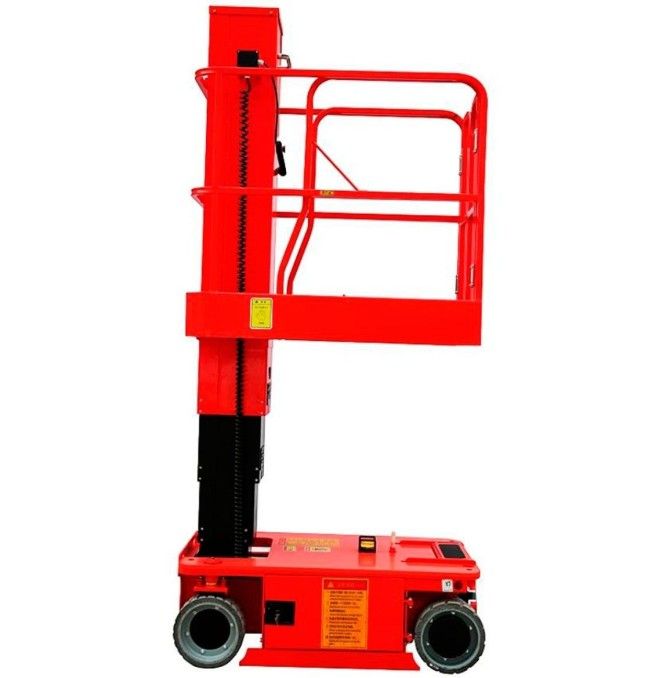

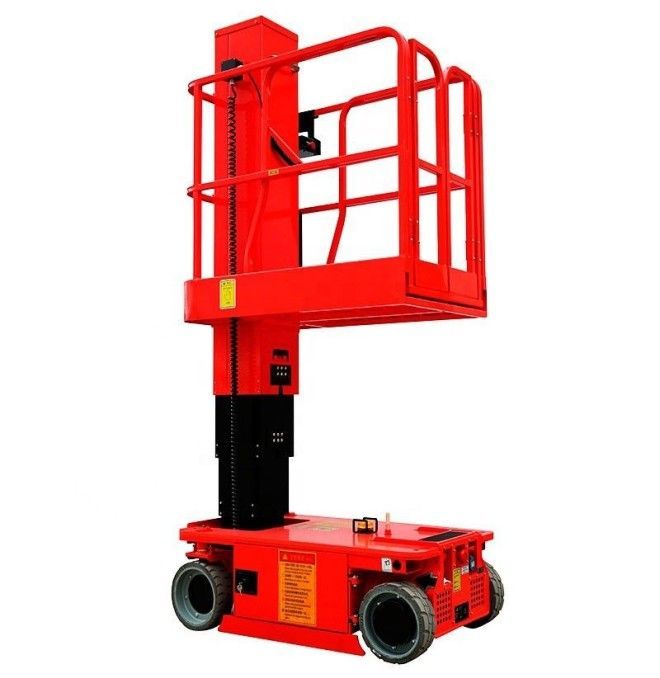

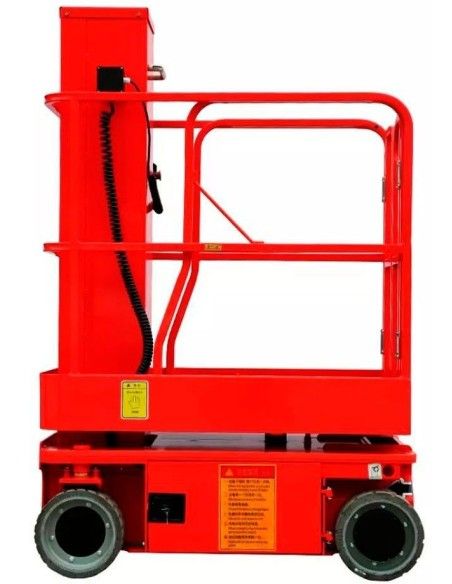

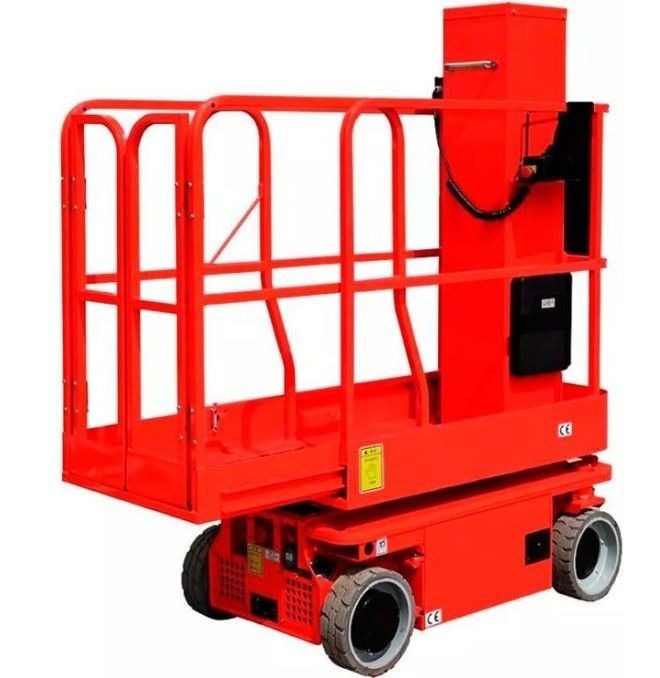

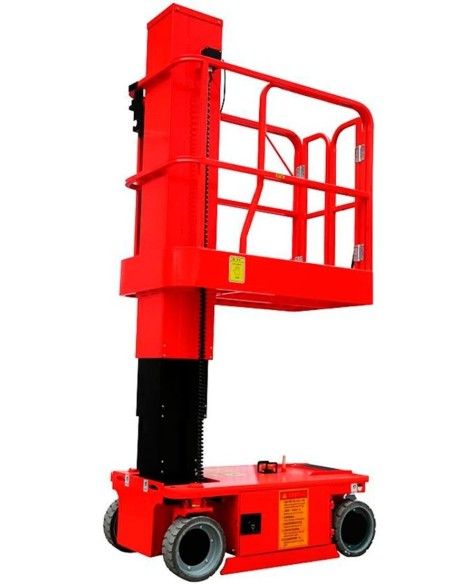

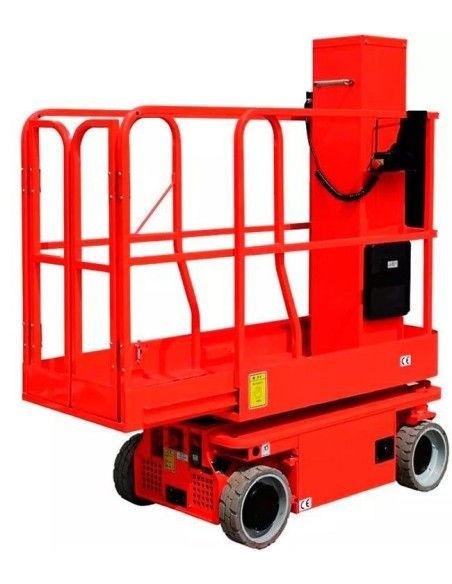

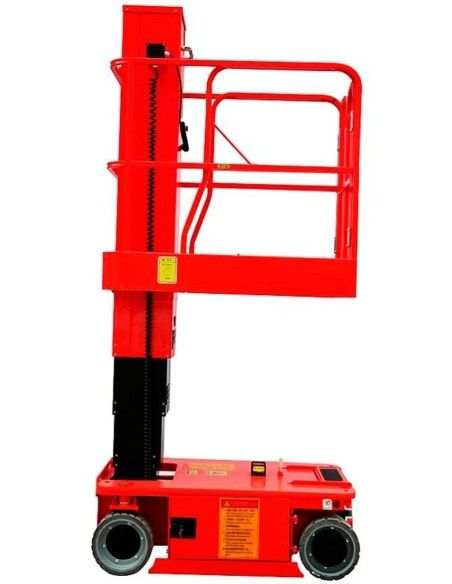

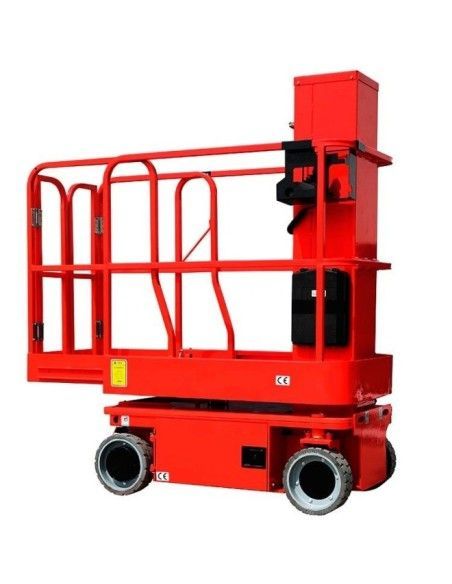

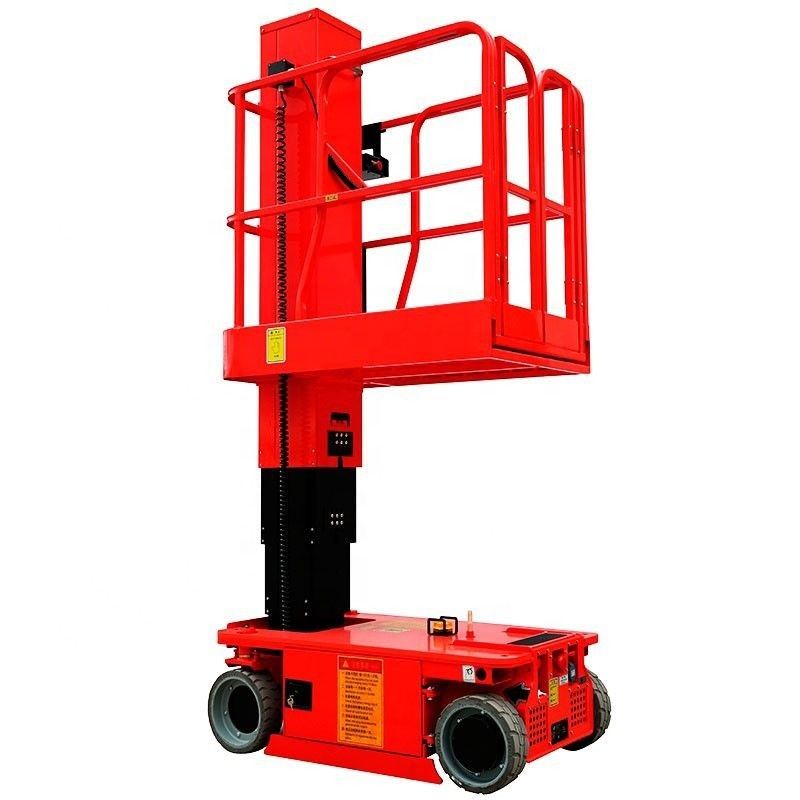

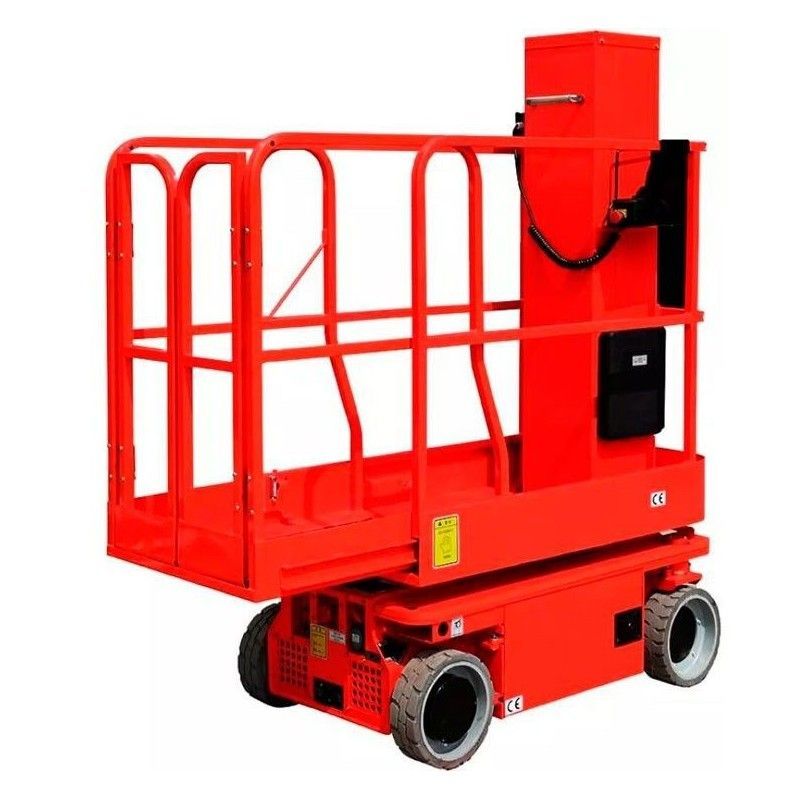

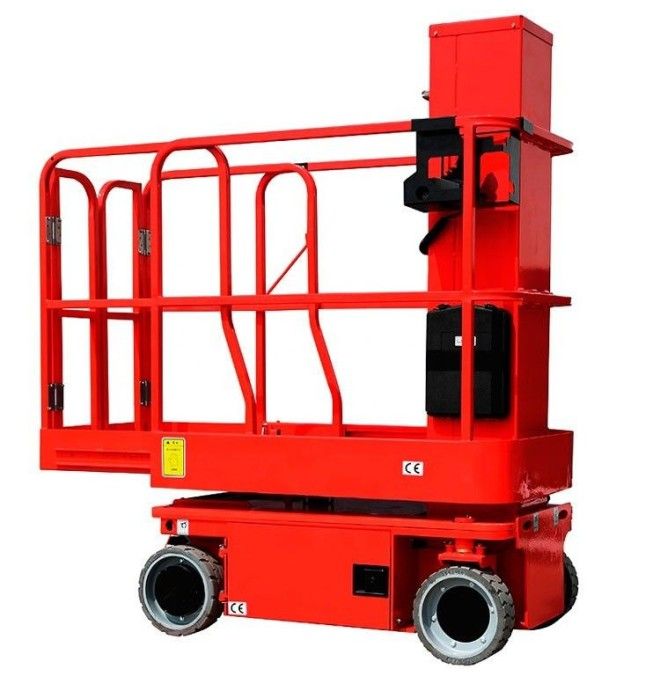

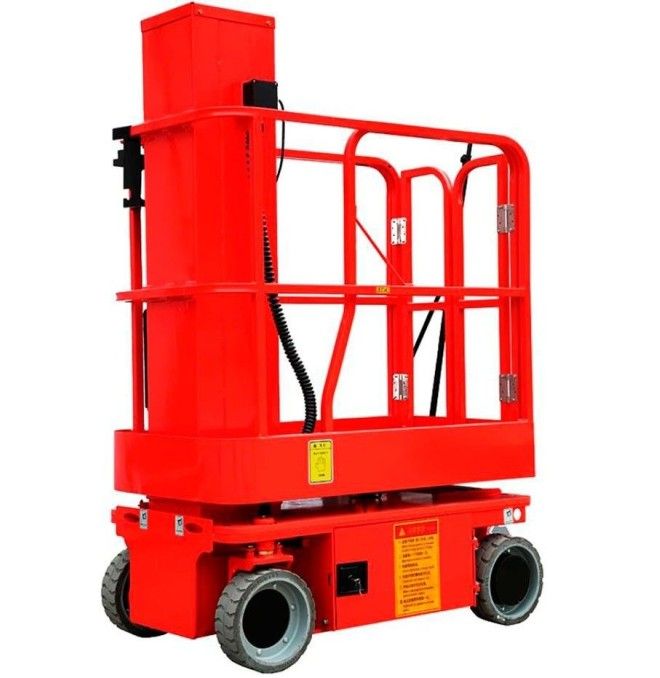

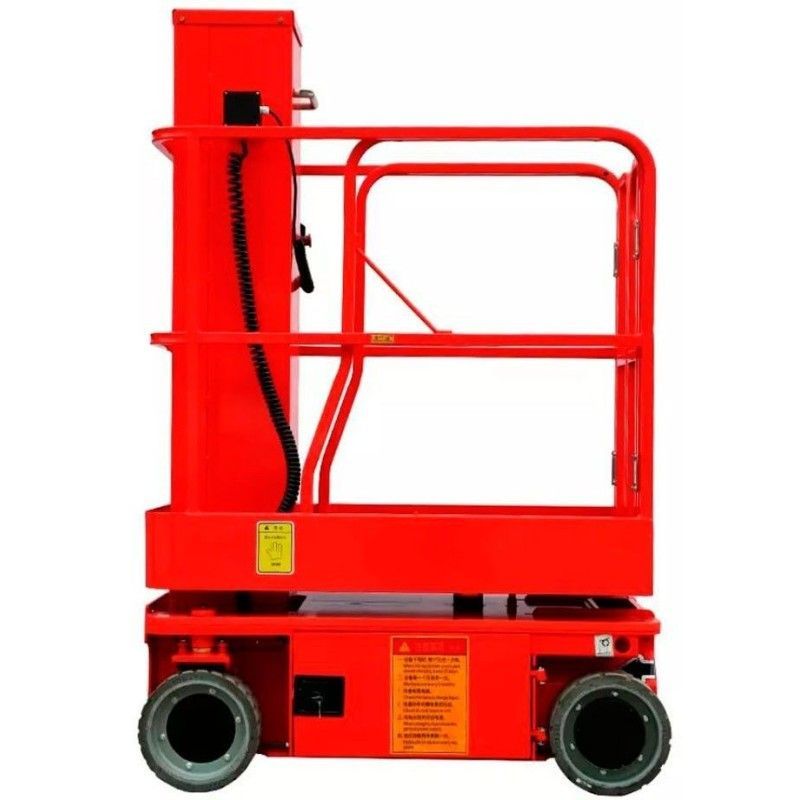

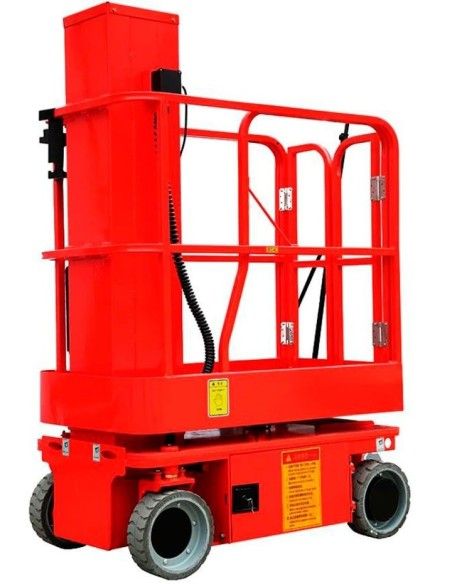

Order Pickers Electrical 227kg to 4800mm

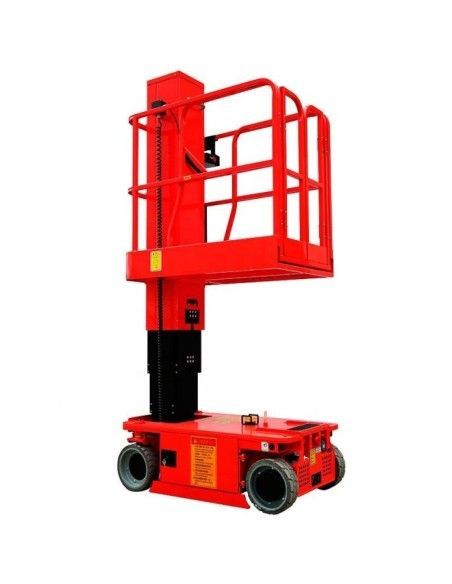

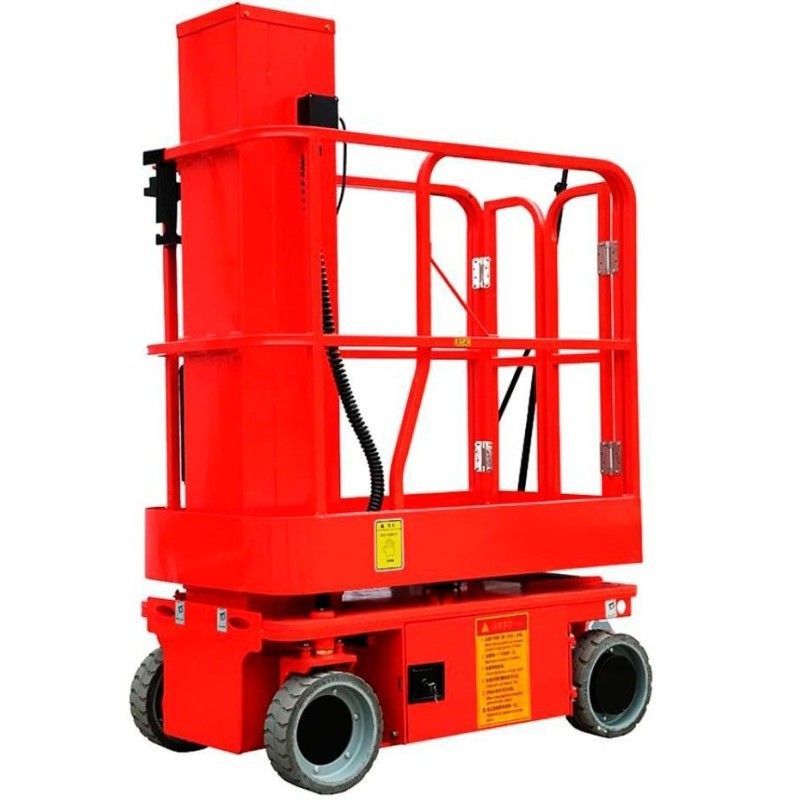

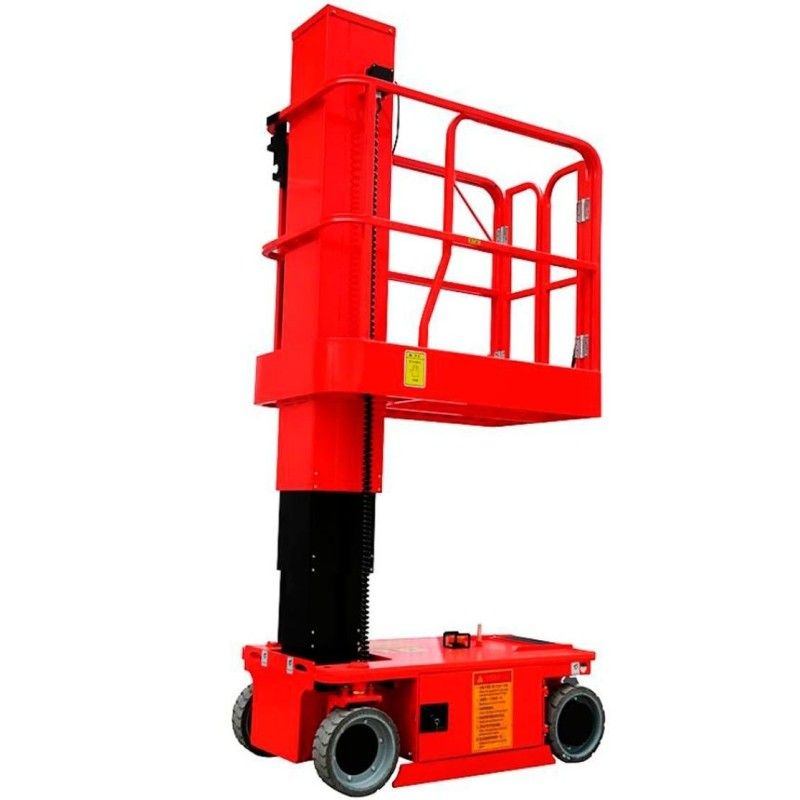

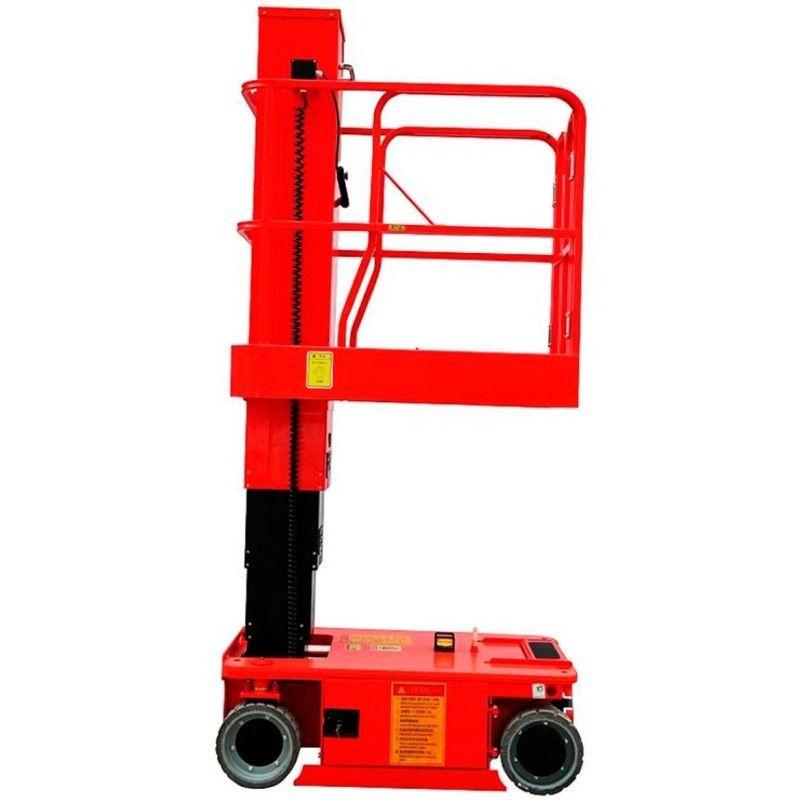

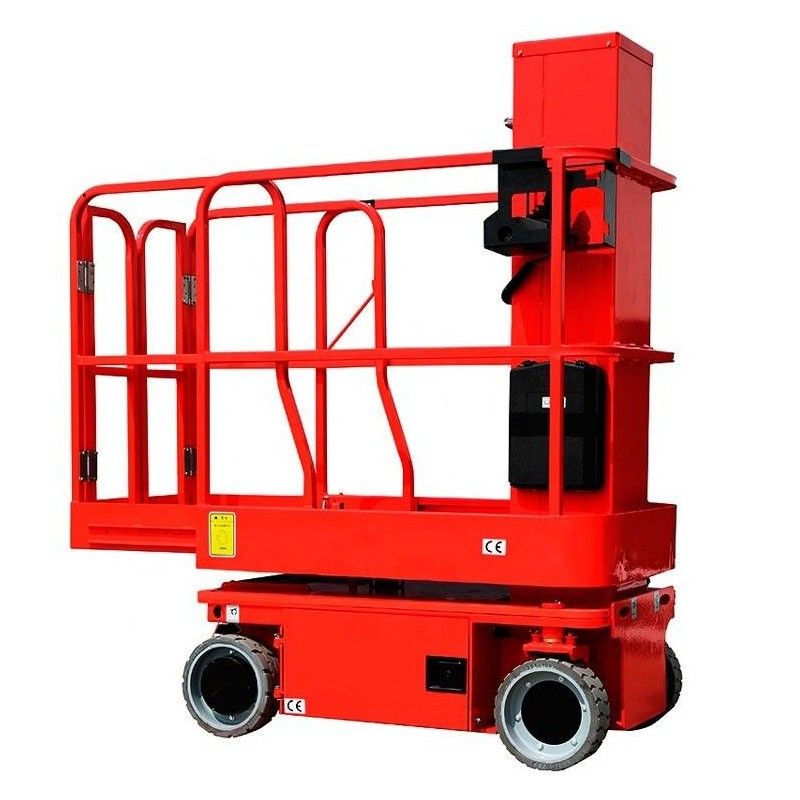

Compact electric platform, with a maximum height of 4800mm and operator load capacity up to 227kg.

You can move the vehicle free and easily to better perform the job, thanks to the collection of orders, the effort is reduced and the safety of the operator and the efficiency at work is increased.

It is very easy to use due to its ergonomic design with smooth handling and acceleration, equipped with a very stable mast

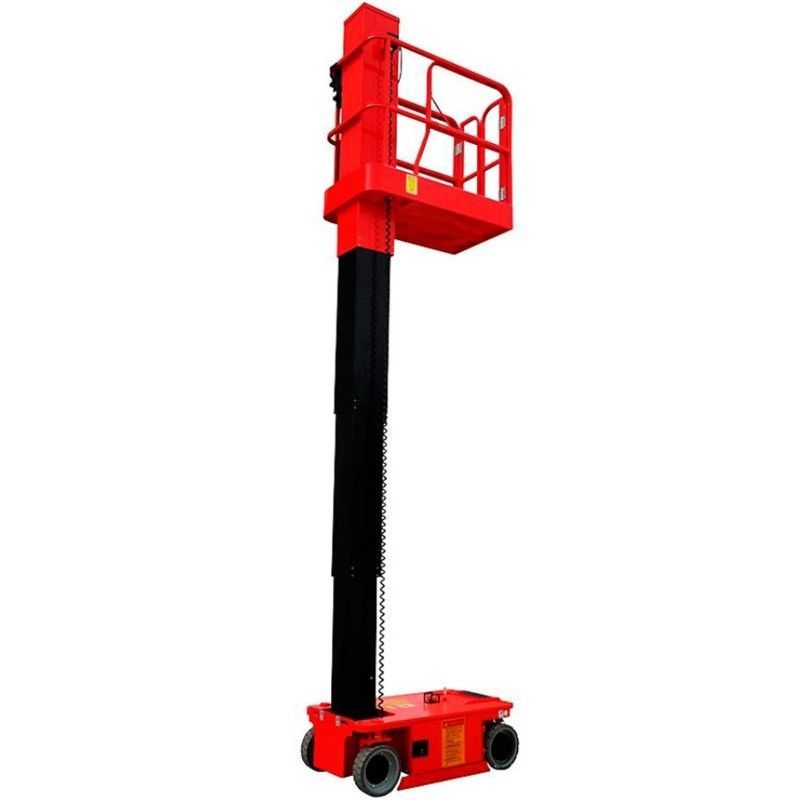

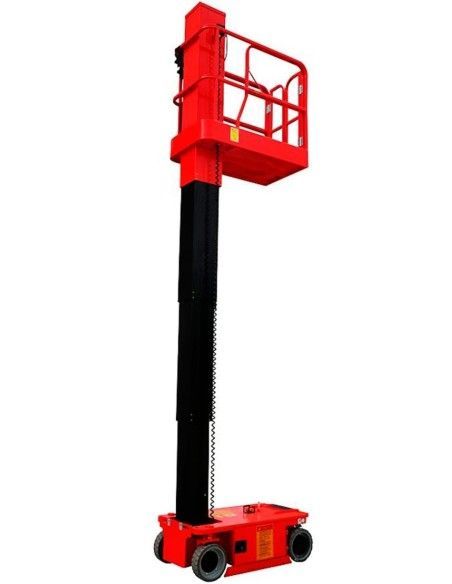

Thanks to its universal wheel it adapts to more complex terrain, which is suitable for multiple spaces and environments (movements of materials, maintenance of installations, etc.). Rotating front wheels. With telescopic vertical mast

Vehicle indications:

The control panel carries: floor lift button, floor/platform control switch, emergency down extractor, power outlet, on button.

To connect the plug, open the ignition cap.

When the platform finds a failure/error in the air, you can safely get off the platform and pull the emergency button.

Once you turn the edge up, then you can operate the elevator with the platform control panel.

Control handle from the platform - lift control through handle, control walking through the handle

Electric vehicle suitable for moving in clean, dry and prepared terrain (hormigon, asphalt).

Also, it is important to know the following details of the machine:

1. It is more stable, because the lifting structure and platform are in contact with four surfaces, and the lifting structure is made of steel.
2. Better transitability and smaller size, suitable for narrow spaces.
3. Electrophoresis of the lifting structure, even if the paint falls, it will not rust.
4. Chain transmission, basically without maintenance.
5. Parts made of quality.

 CHARACTERISTICS

• Platform height: 4800mm
• Working height: 6800mm
• Load capacity: 227kg
• Extend capacity: 114kg
• Dimensions of the platform: 1300x700mm
• Extender platform: 510mm
• Size: 1360x760x1700mm
• Translation speed: 4km/h
• Lifting speed: 1.1km/h
• Traction motor: 2x24 VDC/0.5kW
• Lifting engine: 24VDC/ 1.3kW
• Battery voltage: 24V/ 15A
• Weight: 980kg

It has CE Certificate
