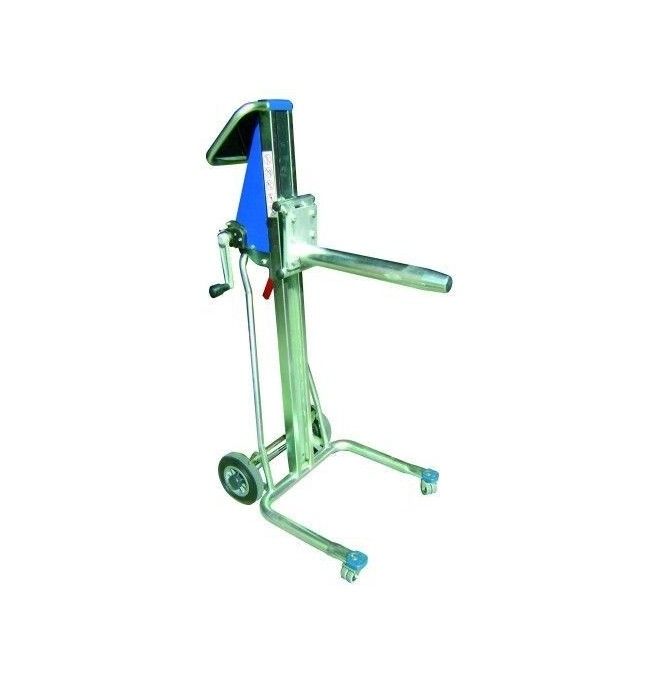

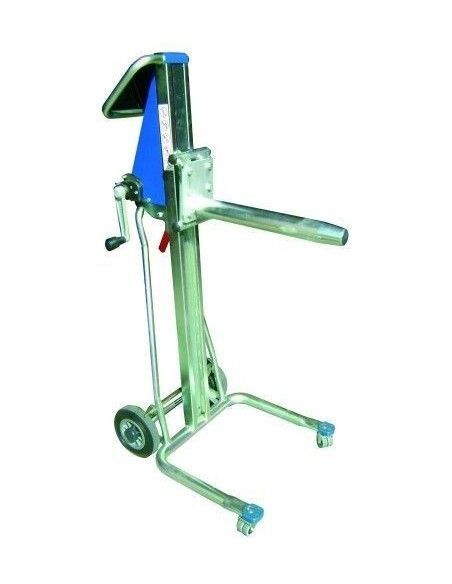

Manual stacker Light 170kg with spur
M102020031
€1,160.00
1.160,00 € (tax incl.)
Handweight stacker of 170 kg of load capacity, equipped with spur for the transport and lifting of coils.
Manual stacker ideal for handling loads up to 170 kg, is very easy to handle due to its low weight, 25kg. Built in tubular steel for greater robustness. Parking brake on both rear wheels.
It is high quality galvanized for extreme environments. Sprinkle Ø 60 and 350mm long, for transport and lifting coils.
CHARACTERISTICS
| Dimensions (mm) long x wide x high | 742 x 580 x 1380 |
| Lift height | 1100 |
| Capacity | 170 KG. |
| Kg weight | 25 |
| Pumping or turning lift | 50 mm |
- TYPE
- Manual
- Load capacity (kg)
- 170
- Lifting height (mm)
- 1100
- Lifting system
- Manual
- Total length (mm)
- 742
- Weight (kg)
- 25
- Total height (mm)
- 1380
- Width (mm)
- 580
- Description
- Con Espolón
- Elevation by pumping / spin
- 50 mm
- Dimensions (LXAXH machine / rudder)
- 742x580x1380
- Discharge height (mm)
- -
- Regulations
- EC
New
8427982305497
