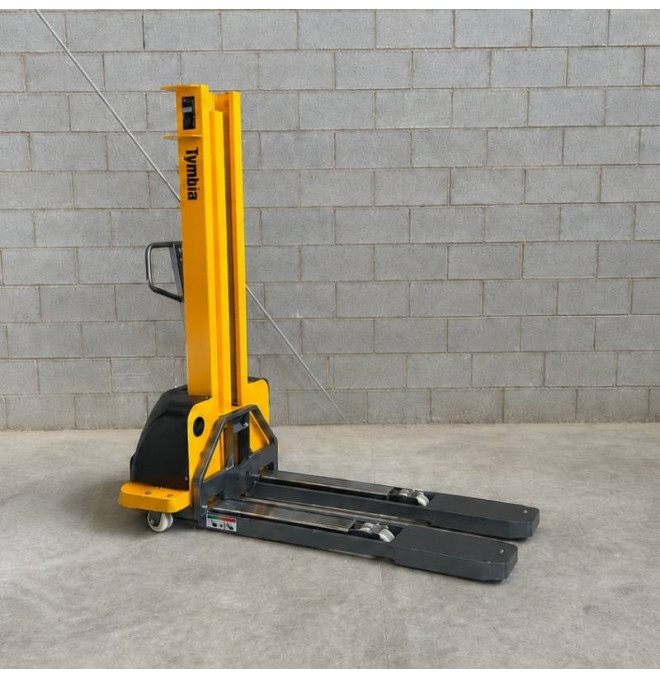

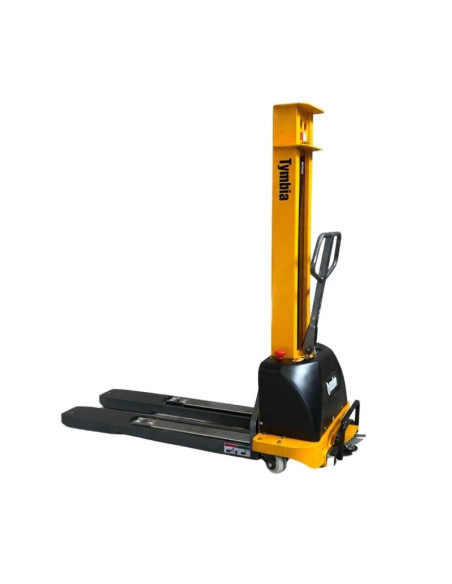

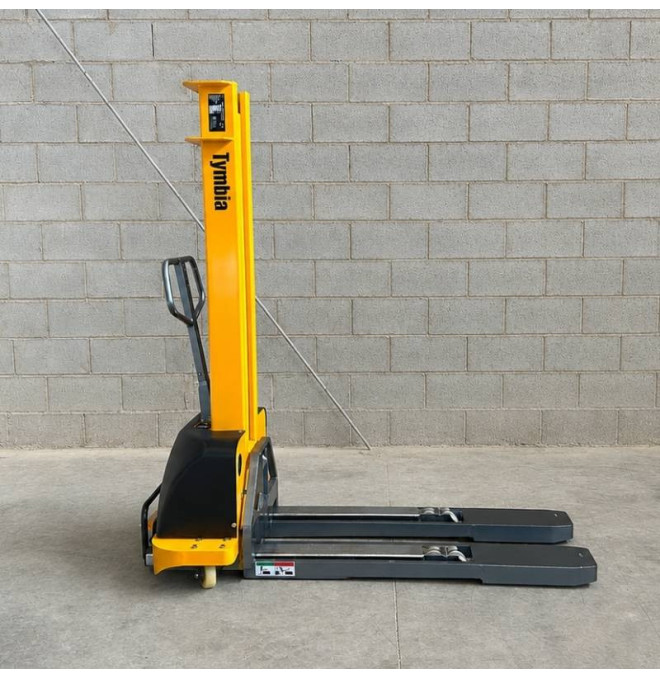

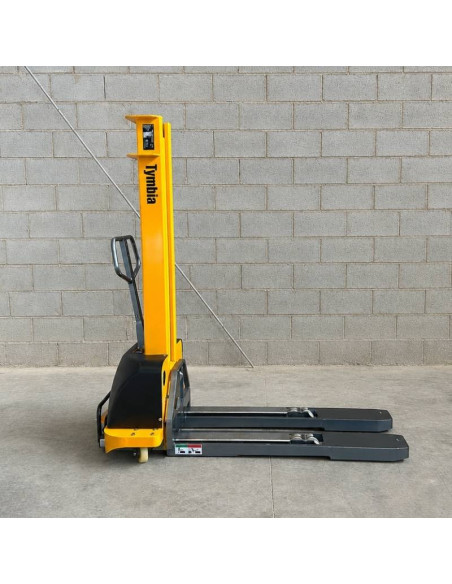

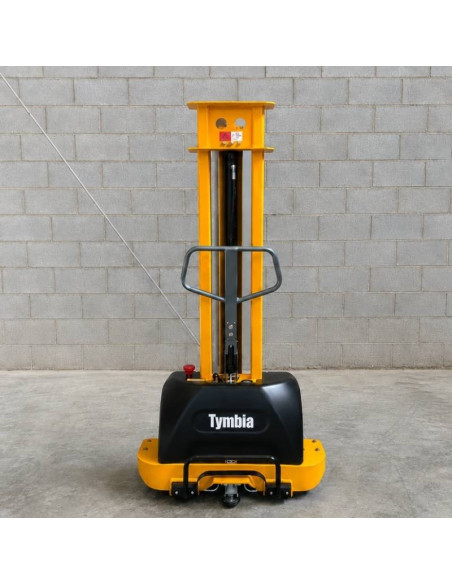

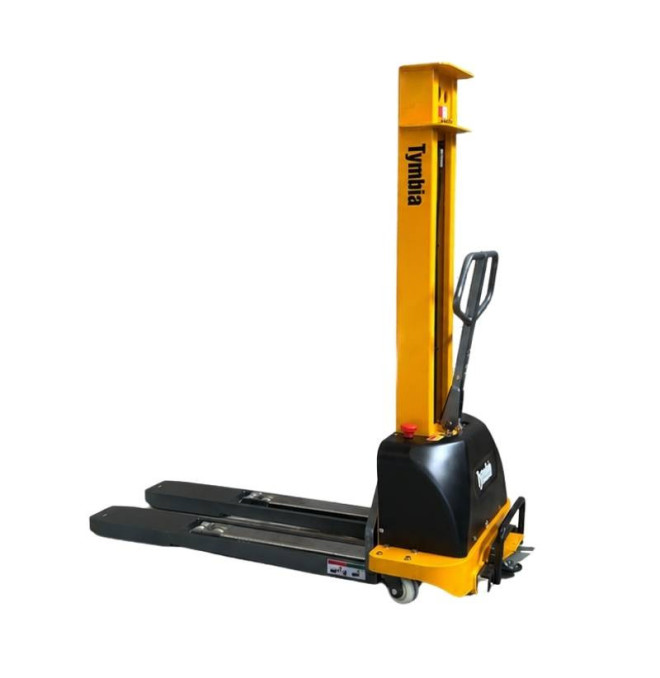

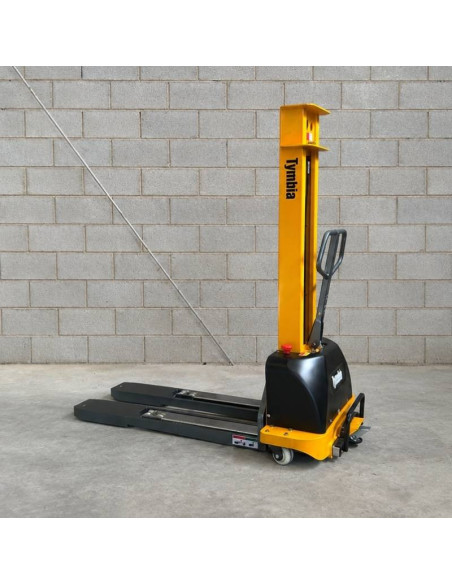

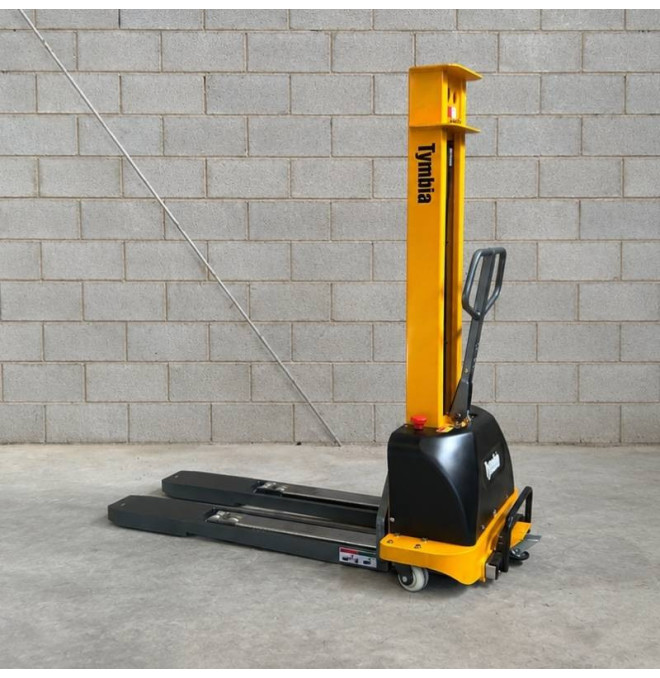

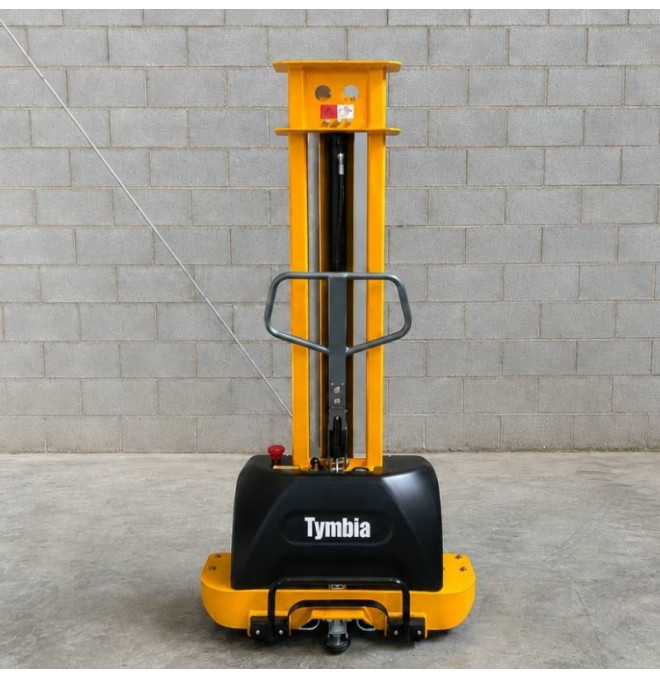

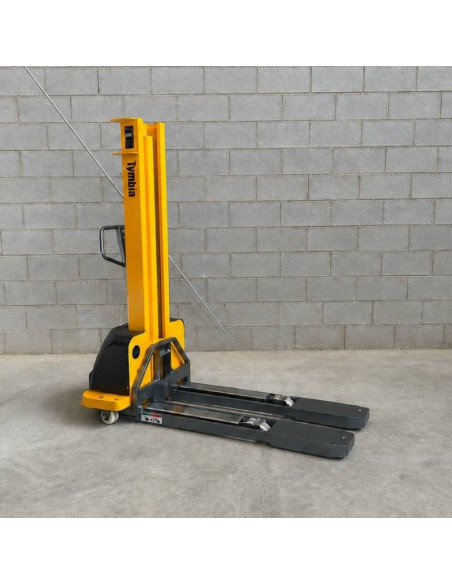

Self-supporting stacker 1000kg at 1300mm

The Tymbia self-supporting stacker is an innovative solution for handling all types of materials. A single unit can replace your lift platform, manual pallet jack, stacker, ramp, and elevator.

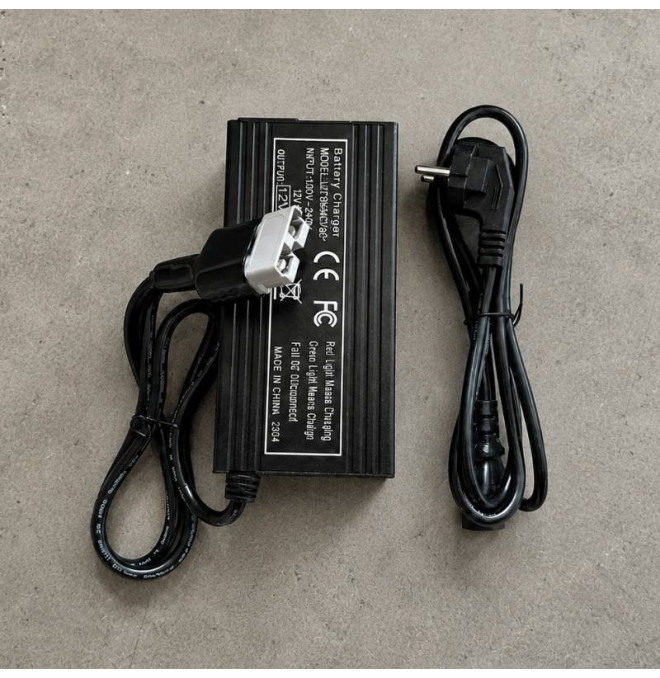

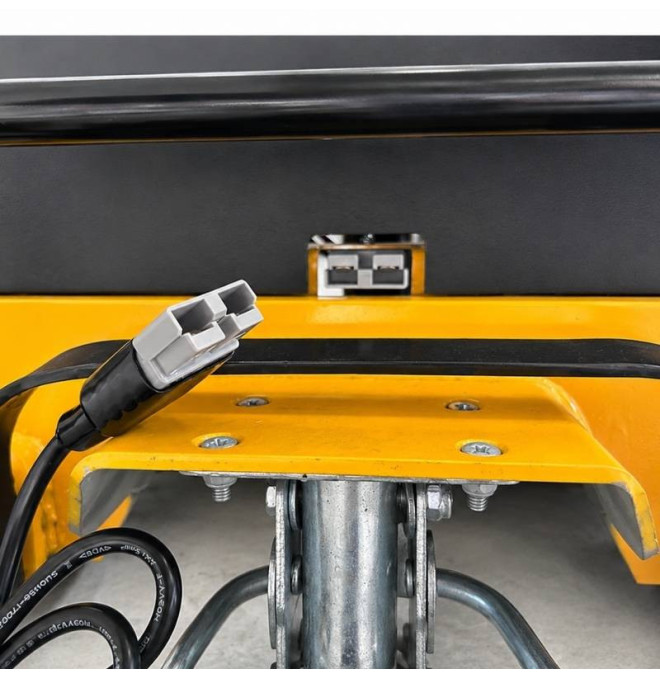

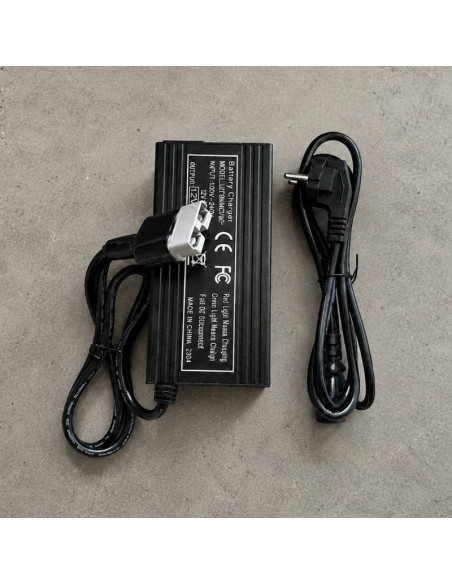

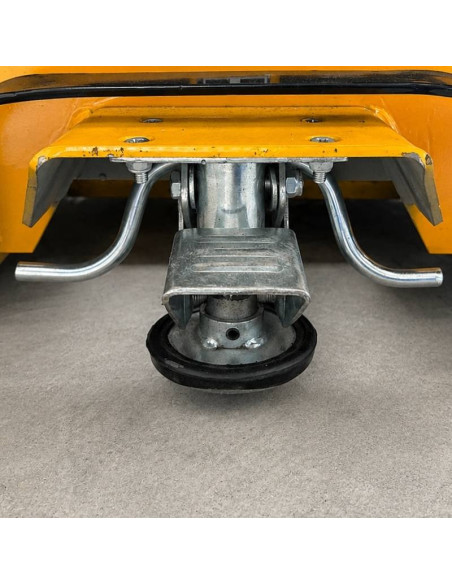

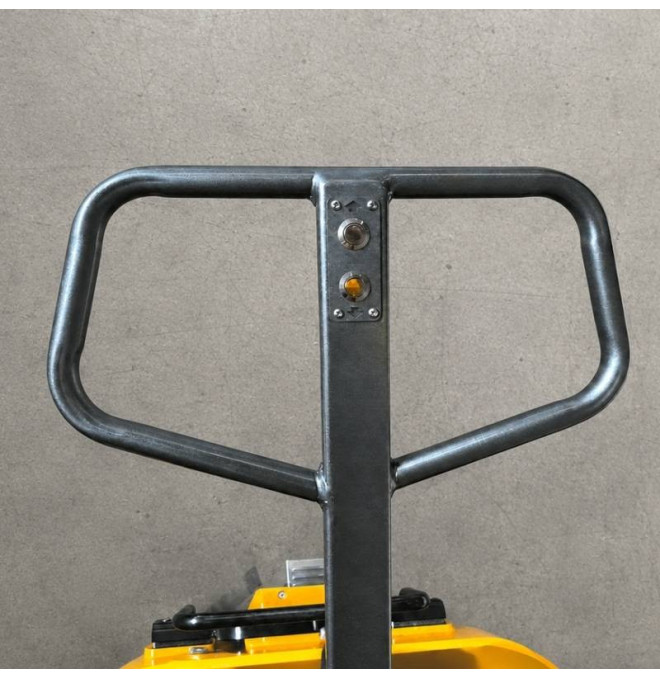

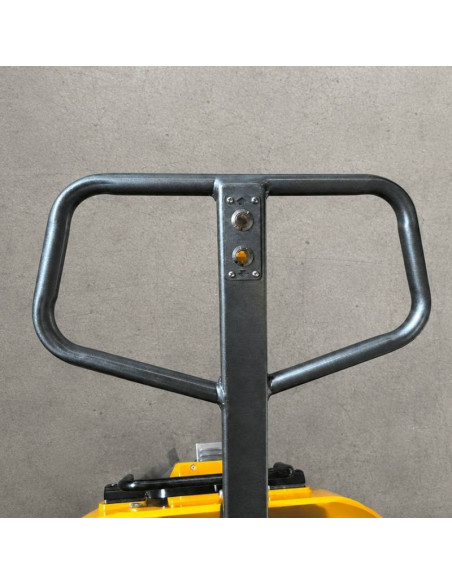

This stacker features electro-hydraulic lifting and manual propulsion, and you can control it using the buttons on the handlebar. It is equipped with dual wheels for easy maneuvering. It has a 12V battery, a battery charge indicator, and an on/off switch.

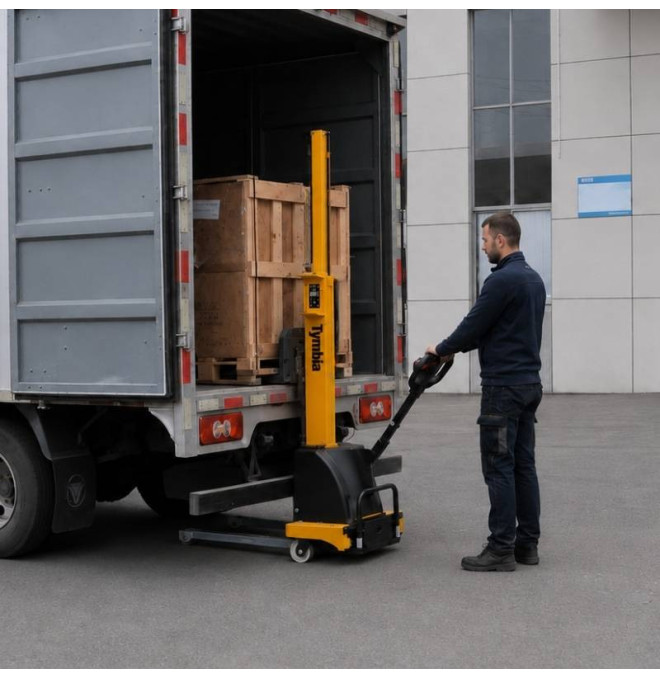

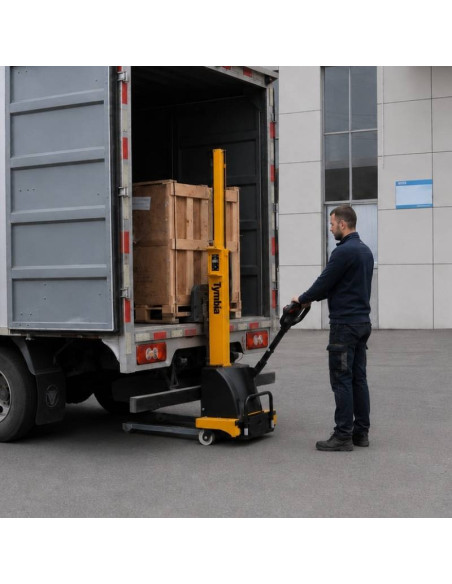

It’s quick and easy to transport since it can be loaded onto your truck or van on its own. Thanks to this self-loading stacker, you’ll significantly increase the convenience and efficiency of your deliveries.

The self-loading stacker is the best solution for delivering goods.

FEATURES

• Load capacity: 1000kg

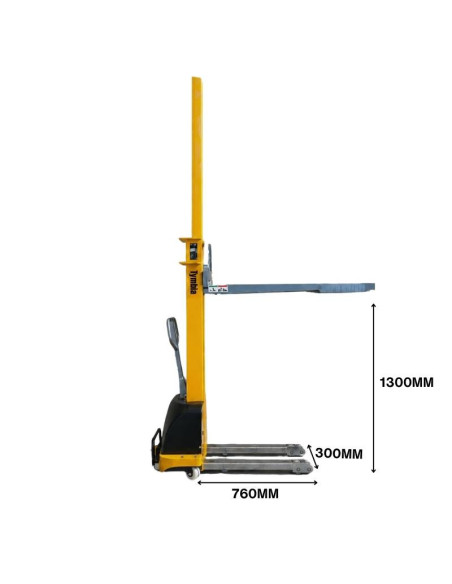

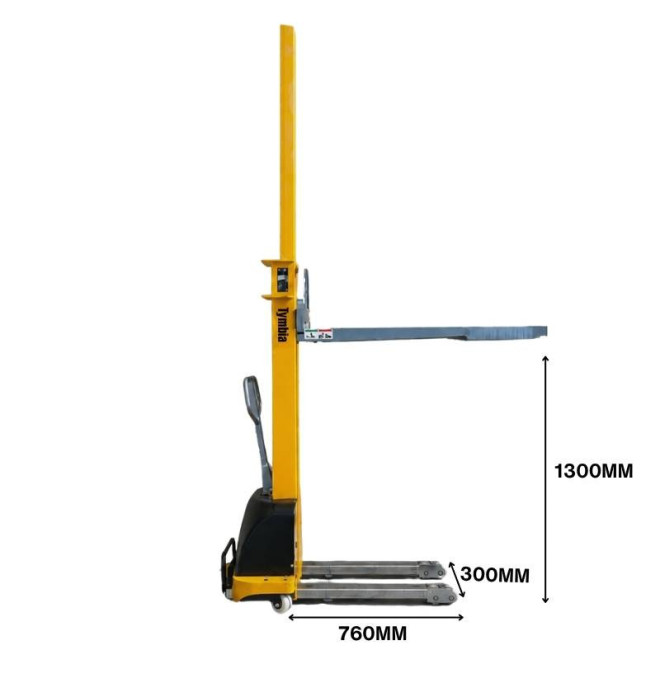

• Maximum lift height: 1,300 mm
• Load center: 400 mm
• Wheelbase: 860 mm
• Turning radius: 1,120 mm

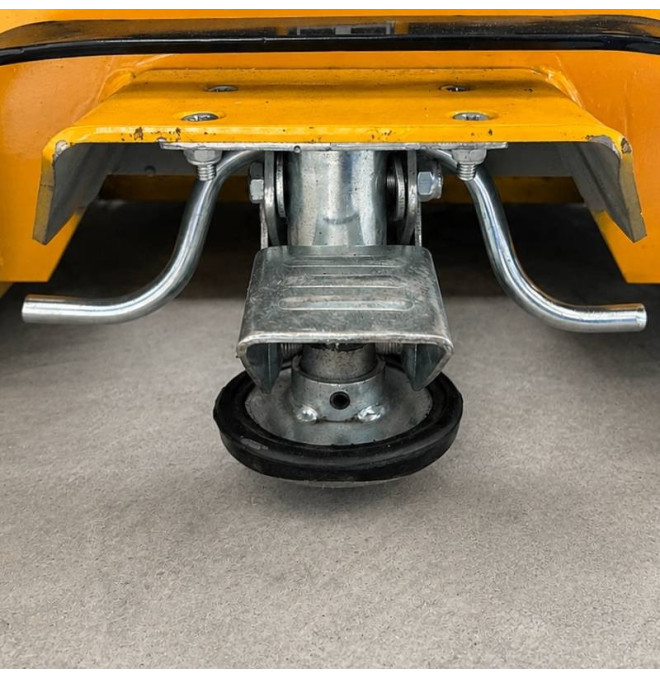

• Drive wheel: 100 mm diameter x 50 mm wide
• Load wheel: 70 mm diameter x 60 mm wide

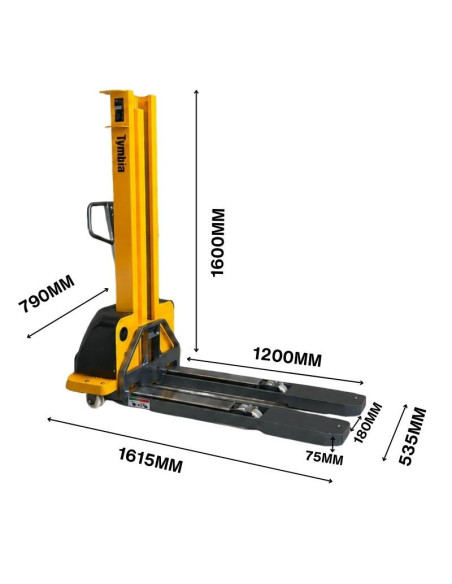

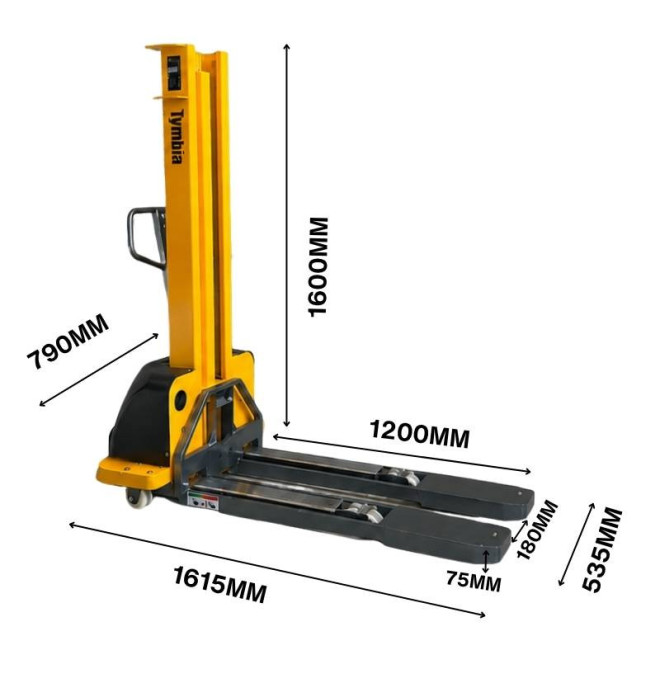

• Overall width: 790 mm
• Overall length: 1640 mm
• Overall height with mast extended: 2900 mm
• Overall height: 1,670 mm
• Forks: 1,150 mm long, 192 mm wide
• Total fork width: 185 mm
• Lifting speed: 85 mm/sec.
• Lowering speed: 85 mm/sec.
• Lift motor power:12V/0.8 kW.
• Batteries: 12V/33Ah lithium.
• Total weight (including battery): 265 kg
