Weighing Hook / Dynamometer

Heave of different capacity : 3000,5000 and 10000 kg. Available in two versions, the simplest (CHS M) and the most complete (CHS W). Both have a backlit LCD display and include command and briefcase to save the hook.

Version CHS M

Screen and keyboard integrated into the hook. Remote control with function keys. Maximum distance from the 15m remote control. Remote control power: 2 AA batteries (including).

Version CHS W

Integrated screens and keyboards on the hook. Remote control via radio with function and display keys for weight display. Maximum distance for the correct operation of the remote control via radio: 50m in straight line. Remote control power: 4 AA batteries (including).

CHARACTERISTICS

• Portable heavyweight hook and/or load dynamometer for traction forces.

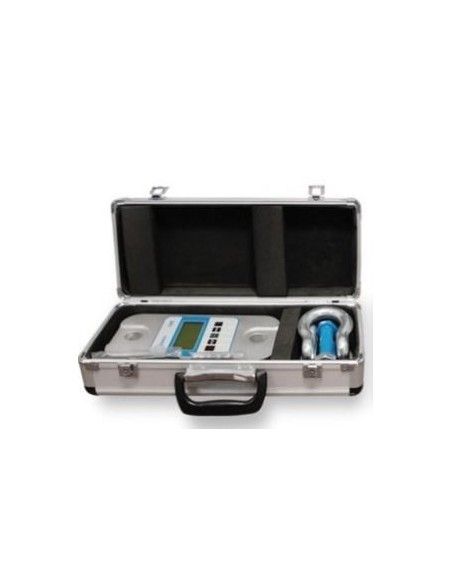

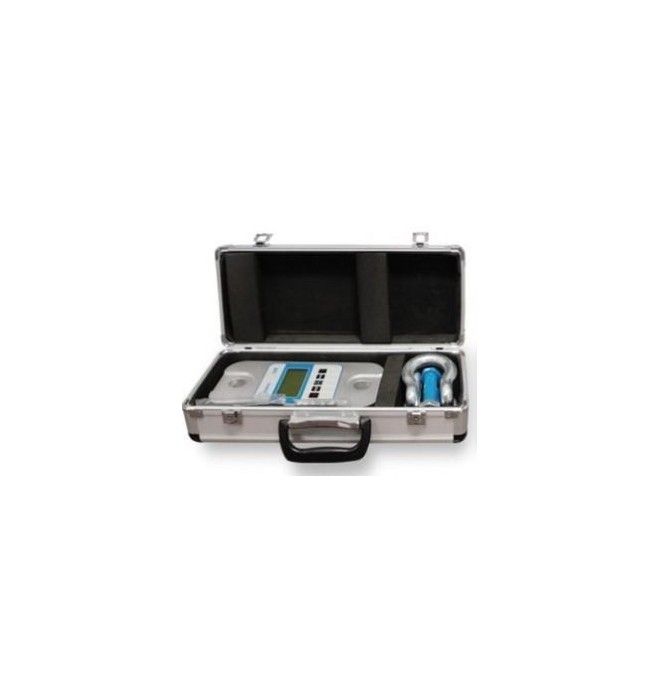

• Supplied with suitcase to facilitate transport.
• Two housing finishes:
  For hooks of 3000 and 5000 kg: aluminum.
  For 10000 kg hooks: steel.
• Relit LCD display with 6 digits of 25 mm.
• Two versions:

Version CHS M
Screen and keyboard integrated into the hook.

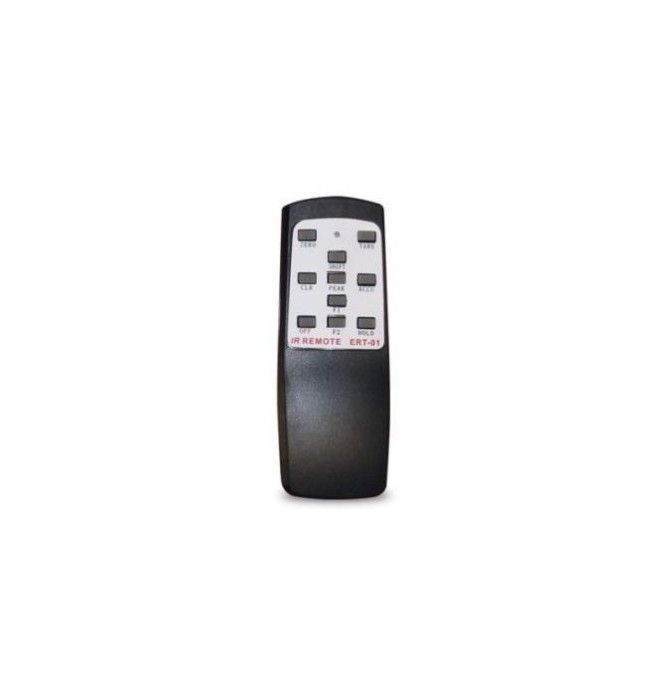

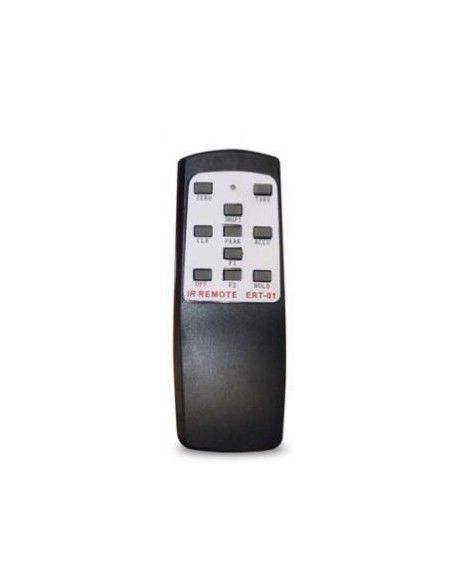

Remote control with function keys.

Maximum distance from the remote control: 15m.

Remote control power: 2 AAA batteries (including).

Version CHS W
Screen and keyboard integrated into the hook.
Remote control via radio with function and display keys for weight display.
Maximum distance for the correct operation of the remote control via radio: 50 m. in straight line.
Included in CHS3000W and CHS5000W (optional CHS10000W).
Remote control power: 4 AA batteries (including).


• Calibration of the hook by remote control.
• Power hook: 3 AA batteries (including).
• Low battery indicator alarm.
• Units: kg, lb, N, kN, t.
• According to the Machine Safety Directive 2006/42/CE.

FUNTIONS

• Accumulation
• Zero
• Tara
• Value peak
• Function of 2 limits (high and low)
