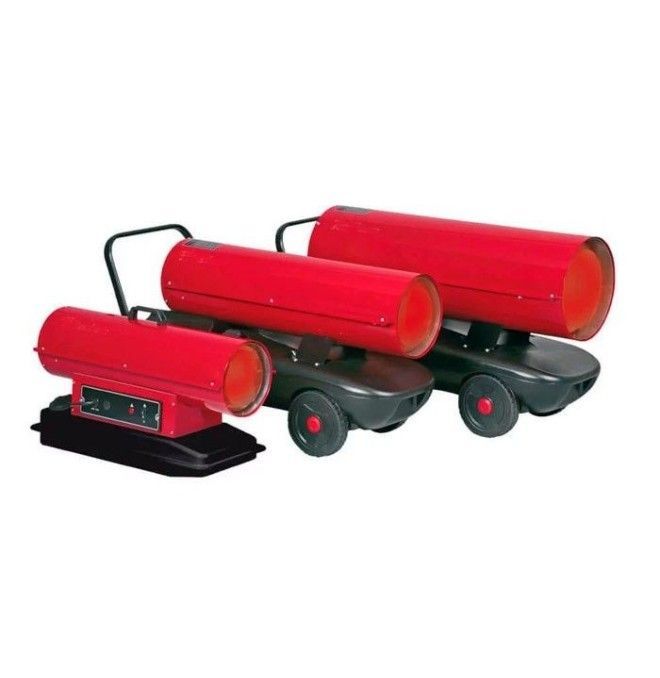

20Kw hot air generators to 46Kw
A501016284
€1,279.00
1.279,00 € (tax incl.)
Diesel hot air generators, from 20Kw to 46Kw. Ideal for small and medium premises, heat reaches everywhere. They are light and manageable, hot air generators are a tool more work equipment, either for heating or for drying in construction.
Always use in ventilated spaces.
Perfect combustion with 100% performance.

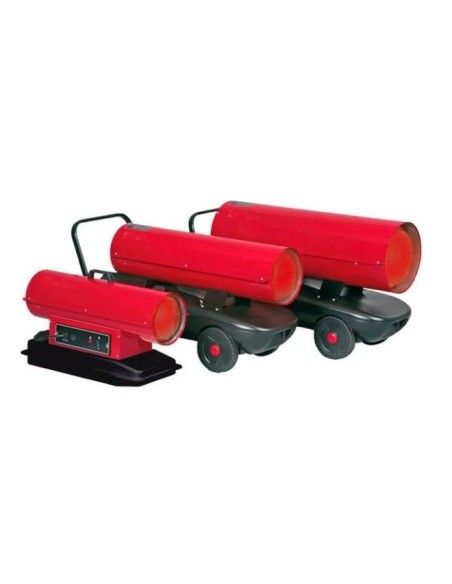

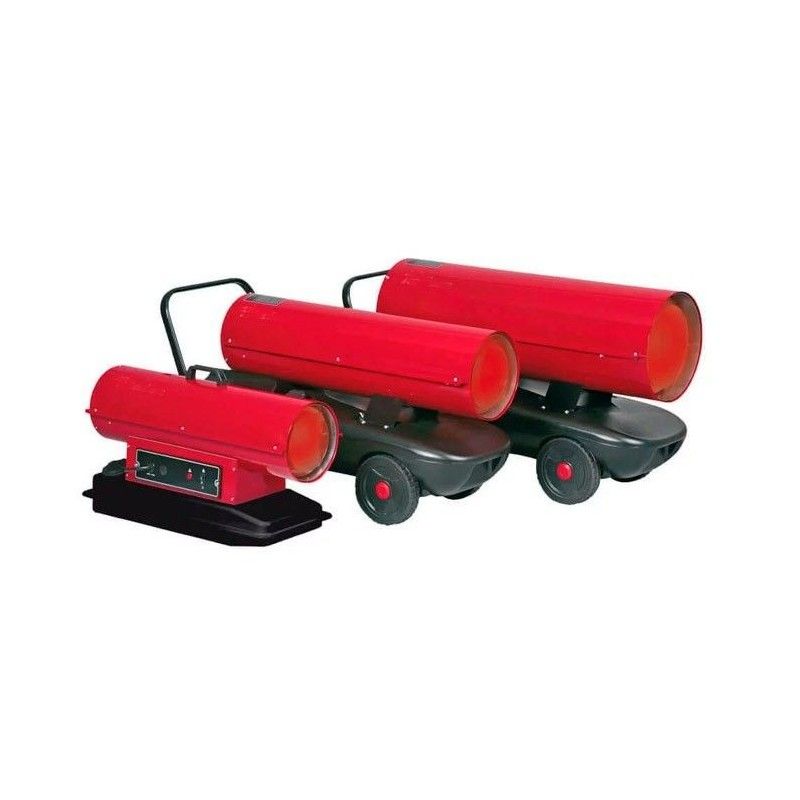

Hot air generators diesel direct combustion, with different powers. Direct diesel hot air generators are portable hot air generation equipment for small and medium premises.
Light and manageable, hot air generators are a tool more work equipment, either for heating or for drying in construction. Always use in ventilated spaces.

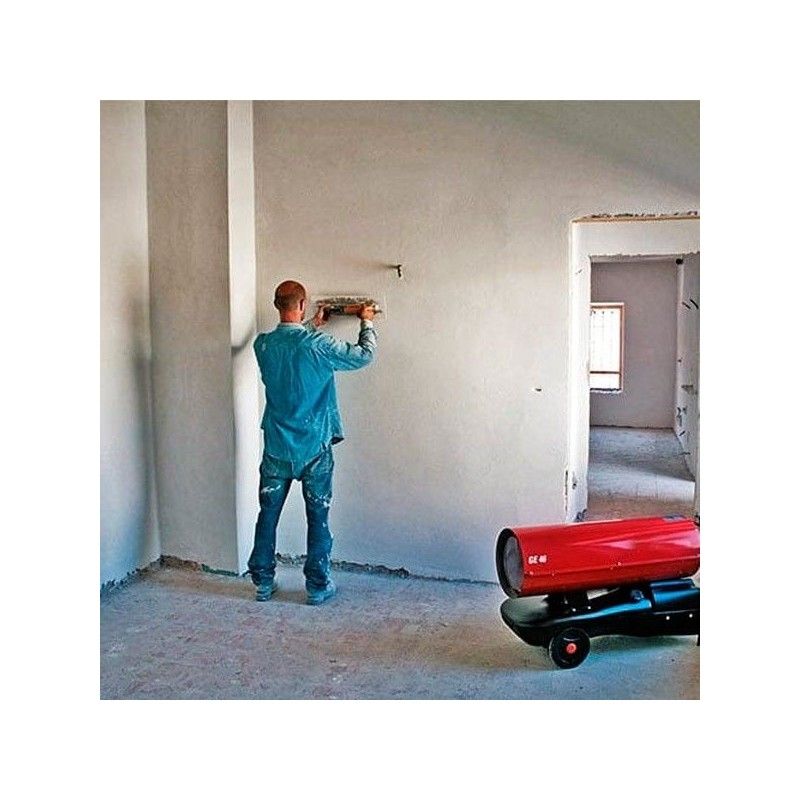

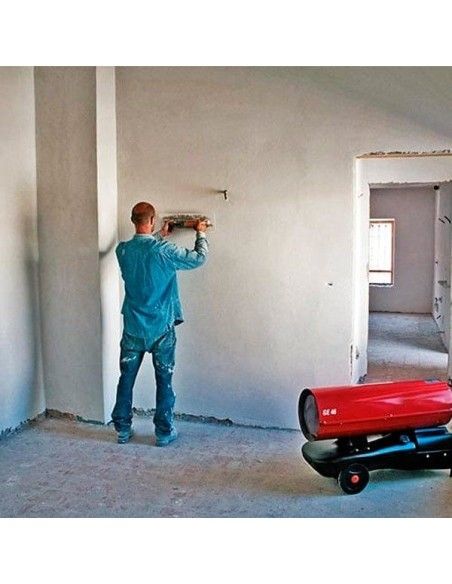

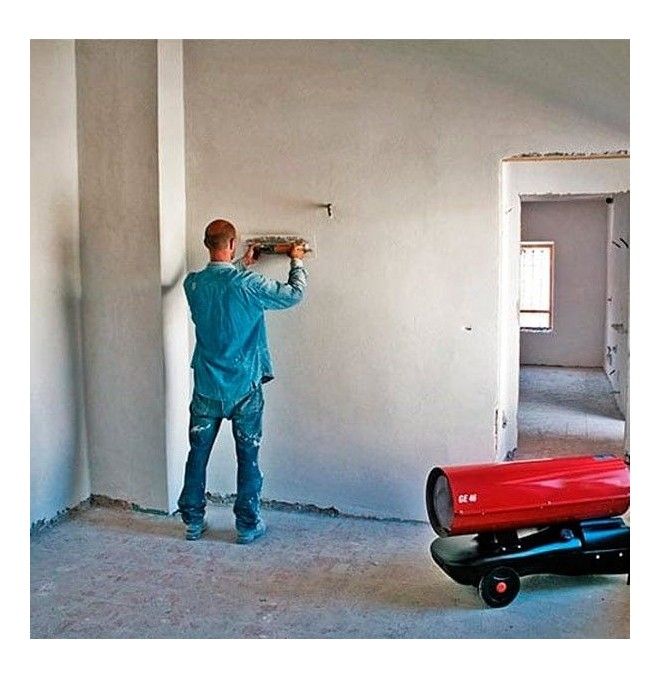

*To dry materials construction (yese, mortar, concrete, escayola, patches, etc.) contact us.
Burner provided with maximum security:
- Overheating.
- Cooling velvet
- Photocell of flame control
- Power electrodes with ignition transformer.
Recommended to use Gasoleo B from a trusted provider.
Advisable to use Biodiesel (improved for the Environment).
The Intelligent Security Centralite acts by stopping the operation in case of:
- Deficient fuel
- Lack of air in the premises
- Lack of diesel oil
- Dirt in the filter or in the diesel injection
- Overheating of the boiler
- Power supply failure
- Ignition failure
MANDATE TABLE
1) Reboot button with indicator locking (red), operation (green) and wait (orange).
(2) Control switch with three positions: • Position 0 stop. • Position 1 operation. • Position 2 to work with thermostat, higrostate, timer.
3) Connection for thermostat, higrostate, timer.
(4) Indicator on.
5) Cable line output.
TECHNICAL CHARACTERISTICS
|
Heat power |
20 kW - 17.234 kcal/h |
36 kW - 31.002 kcal/h |
46 kW - 39.568 kcal/h |
|
Performance |
100% |
100% |
100% |
|
Air velocity at the exit |
8.5 m/s |
10 m/s |
10.4 m/s |
|
Scope of hot airflow |
4.5 m |
5.7 m |
6.3 m |
|
Ta-Input Difference - Output |
170 °C |
177 °C |
97 °C |
|
Air flow |
350 m3/h |
605 m3/h |
1.400 m3/h |
|
Recommended volume |
500-600 m3 |
550 - 1.050 m3 |
800-1,500 m3 |
|
Electric power |
200 W |
232 W |
400 W |
|
Service voltage |
230v 50Hz |
230v 50Hz |
230v 50Hz |
|
Engine revolutions |
2.800 r.p.m. |
2.800 r.p.m. |
2.800 r.p.m. |
|
Connection to thermostat |
I did |
I did |
I did |
|
Fuel |
Petroleum A or B |
Petroleum A or B |
Petroleum A or B |
|
Fuel consumption |
1,69 L/h |
3,04 L/h |
3.8 L/h |
|
Oil tank |
17 L |
42 L |
42 L |
|
Self-government |
10 hours |
13.8 hours |
10.8 hours |
|
Sound level |
63 dB |
63 dB |
63 dB |
|
Ø air output |
210 mm |
250 mm |
250 mm |
|
Dimensions (LxAnxAl) |
720x300x450 mm |
1.075x440x615 mm |
1.075x440x630 mm |
|
Weight |
other |
25 kg |
other |
