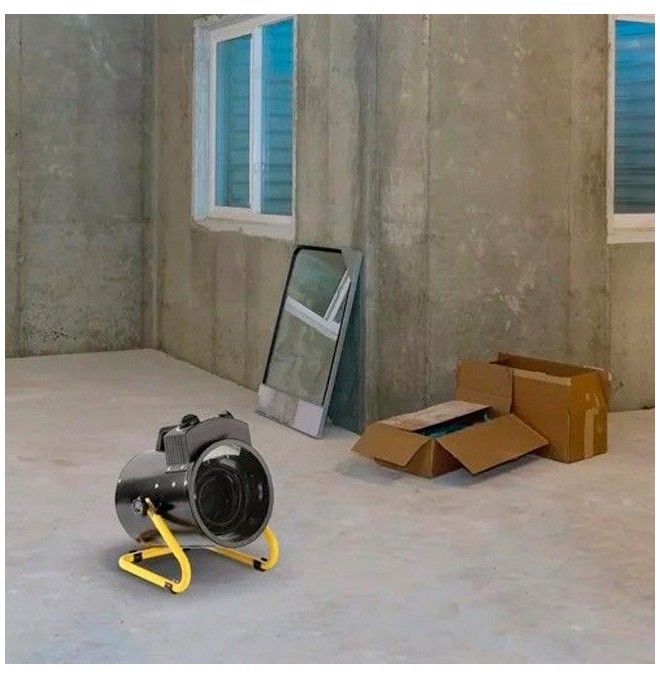

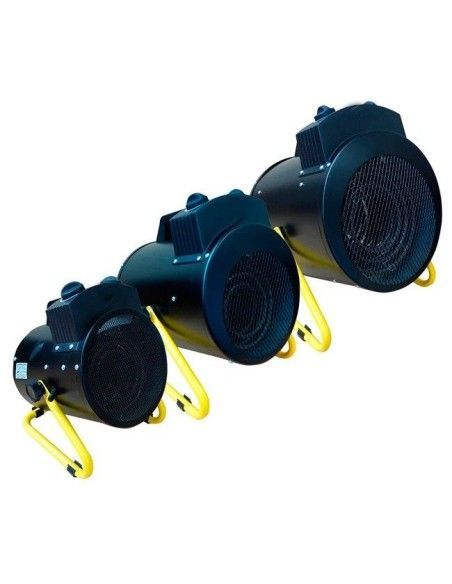

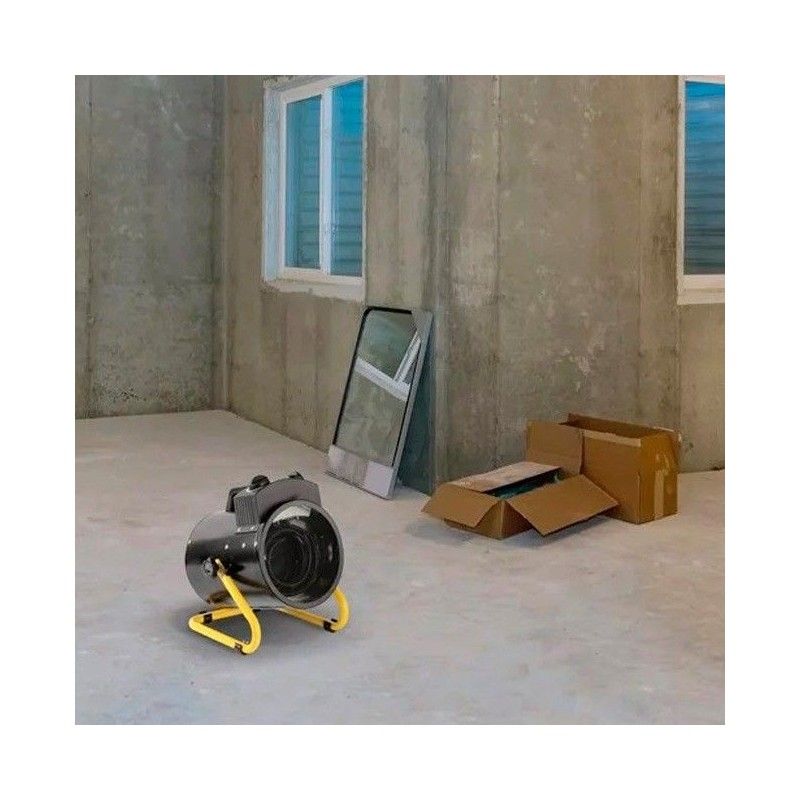

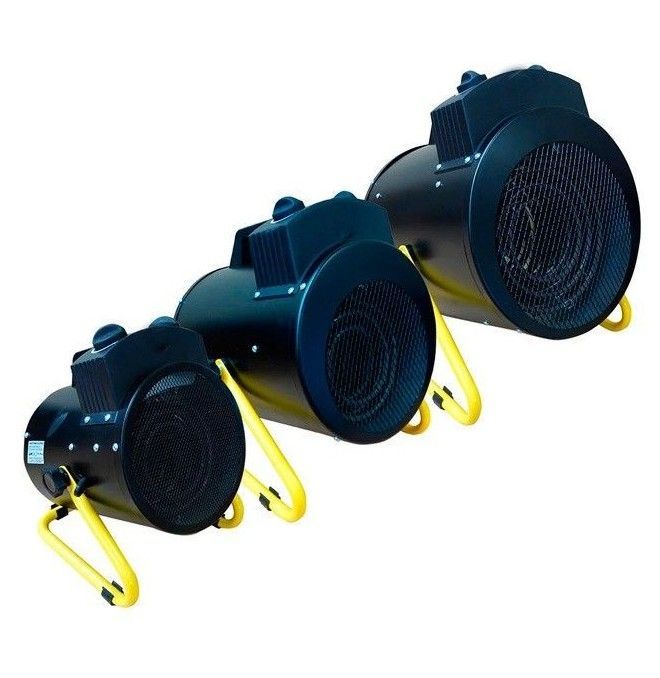

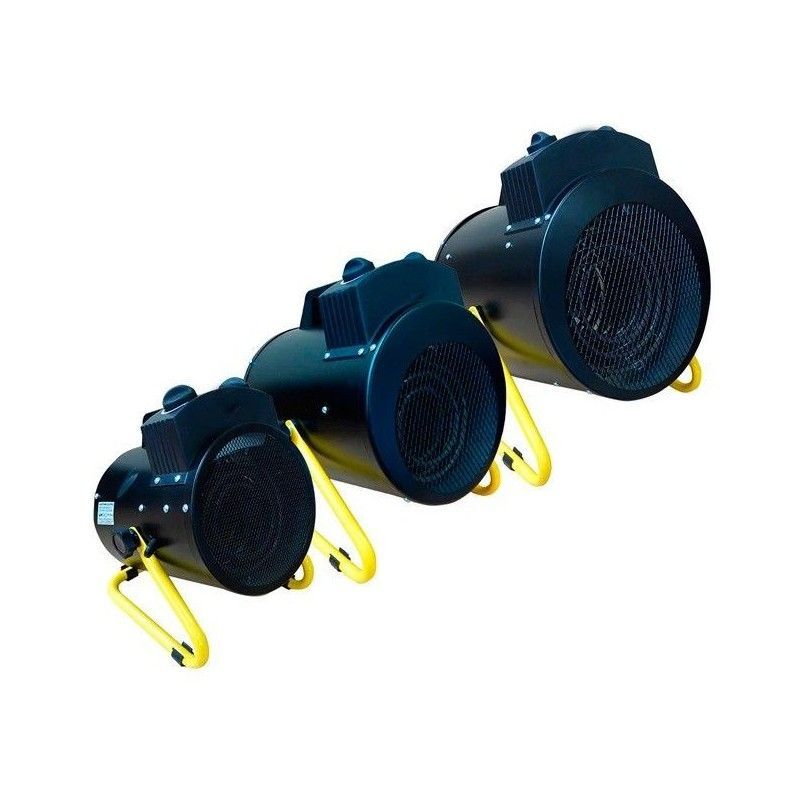

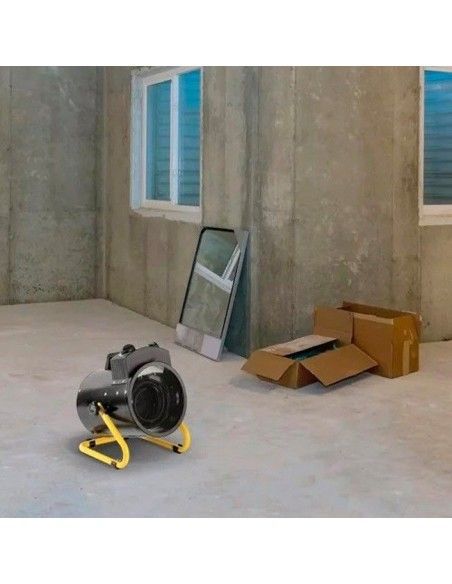

3Kw to 9Kw industrial electric ventilators
A501016266
€109.19
109,19 € (tax incl.)
Industrial electric aerothermal vents from 3Kw to 9Kw, small size and high efficiency. They are determined by being portable and light. The body of the heater is made of stainless steel, with all protected devices with double protection against overheating. IPX4 class electrical protection for use in wet areas.
Deployable; select the power.
New industrial aeroterms with different electrical powers. These new fans are small and high-efficiency, very compact and lightweight. Ideal for any space (nave, workshop, garage, etc) can be used in wet areas, thanks to its electrical protection (IPX4).
Made of stainless steel, with all protected devices with double protection against overheating. The handle and legs are protected with insulating plastic cover and metal housing covered against dust and oxidation.
It has adjustable thermostat to select the desired temperature. Power selector in the control box, to be able to work or 50% or to its maximum power.
The 3Kw model has a simple connection: 1.5m cable with standard monophase clamp.
The 5Kw and 9Kw models have a three-phase connection: 1.5m cable with 16A 3F+N+T three-phase CEE clasp.
TECHNICAL CHARACTERISTICS
|
Electric power |
3 kW |
5 kW |
9 kW |
|
Heat power |
1.5kW - 3kW |
2.5kW - 5kW |
4.5kW - 9kW |
|
Performance |
100% |
100% |
100% |
|
Air flow |
354m3/h |
260m3/h |
650m3/h |
|
Service voltage |
230V - 50Hz |
400V - 50Hz |
400V - 50Hz |
|
Connection |
1.5m cable with standard monophase clasp |
1.5m cable with CEE 16A 3F+N+T |
1.5m cable with CEE 16A 3F+N+T |
|
Electrical intensity |
12.5A |
7.2A |
13A |
|
Recommended volume |
30m2 |
48m2 |
80m2 |
|
Dimensions (LxAnxAl) |
243x227x295mm |
330x290x360mm |
330x330x400mm |
|
Weight |
3.7kg |
6.8kg |
9.1kg |
